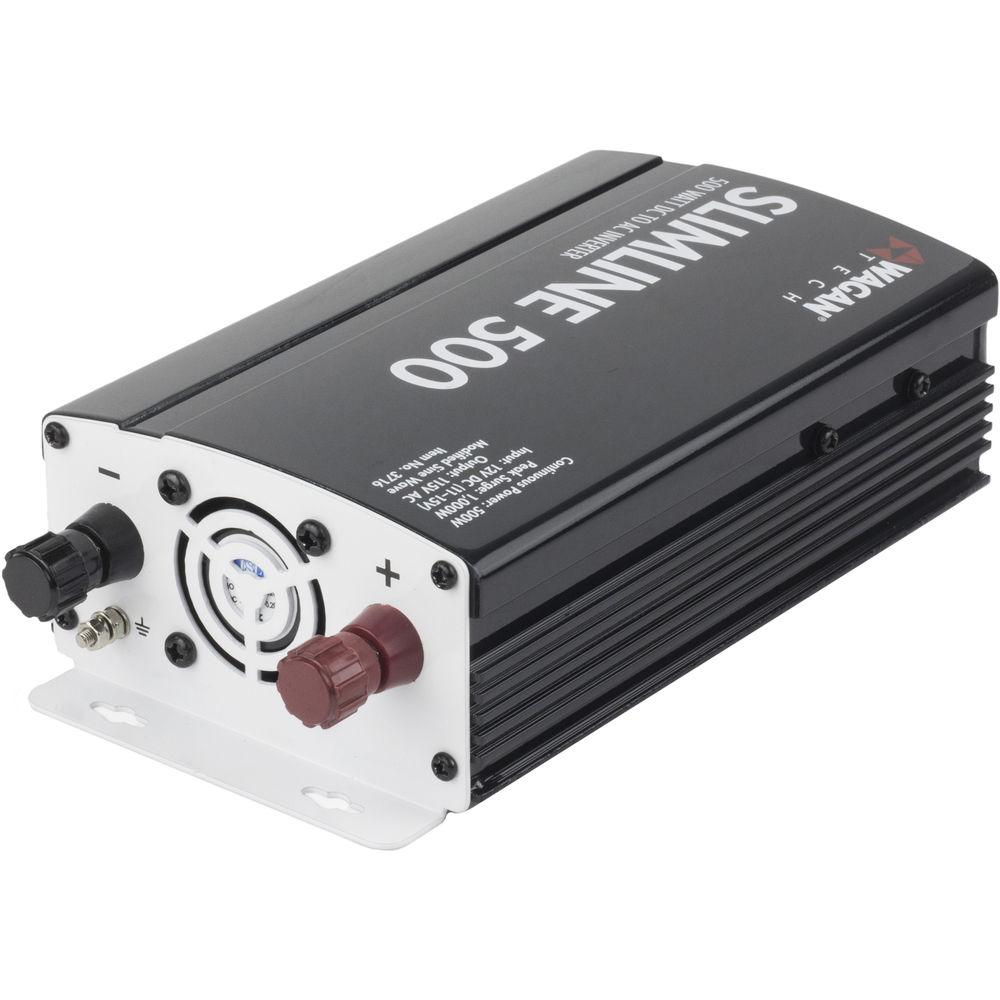

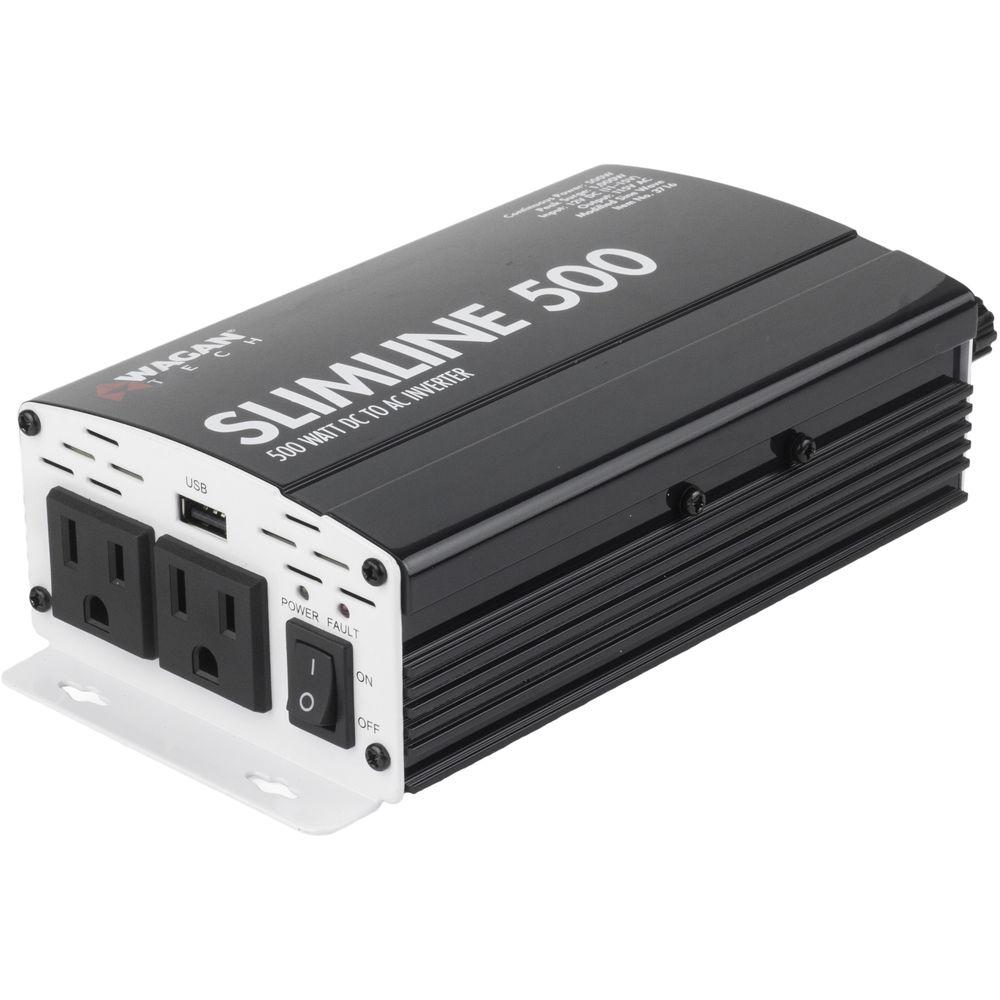

User Manual for WAGAN SlimLine 500W 12 VDC to 115 VAC Power Inverter Click to enlarge the picture
Contents of the user manual for the WAGAN SlimLine 500W 12 VDC to
- Product category: Power Inverters WAGAN
- Brand: WAGAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WAGAN Power Inverters
 |
User manual for the WAGAN SlimLine 500W 12 VDC to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WAGAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WAGAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WAGAN product will considerably shorten its lifespan!
|
Product description Designed as a power solution for cars, trucks, boats, RVs, and campers, the Wagan Tech SlimLine 500W 12 VDC to 115 VAC Power Inverter is ideal for charging or running devices and appliances from smartphones to laptops to power tools. Screw-down power terminals allow it to be hard-wired to a 12 VDC battery quickly and easily, while the slim form-factor and flanges with screw holes enable it to be conveniently mounted. This inverter features a USB port.Two standard 3-prong 115 VAC US outlets provide 500W of continuous power, with the capability of outputting up to 1000W to safely power appliances that require large initial start-up wattage, or if you need to run a power tool for a short burst. A cooling fan and multiple safety circuitry ensures that both the inverter and the battery powering it are protected from damage including: low-battery, reverse-polarity, overheat, and overload protection. - Performance
-
- Power
- 500W continuous
- 1000W peak/surge to safely use appliances that require high-wattage at start-up
- Input power:
- 12 VDC
- Screw-down positive and negative wire terminals to hard-wire to car/vehicle/boat battery
- Outputs:
- 115 VAC
- Two 3-prong grounded standard US outlet
- No-load current draw: Less than 0.2A
- Protections
-
- Overload protection with automatic shutdown
- Overheat protection with automatic shutdown
- Internal fuse prevents damage due to a short circuit or reverse polarity
- Car/vehicle low-battery alarm when battery drops below 10.5V
- Automatic shutdown when car/vehicle battery drops to 10V
- Green LED power indicator
- Red LED overload indicator
- On/off switch to reduce wear and save battery
- Construction
-
- Internal cooling fan maintains safe temperature while under load
- Slim aluminum housing for easier installation
- Front and rear mounting flange
UPC: 084367037169 In the Box WAGAN SlimLine 500W 12 VDC to 115 VAC Power Inverter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN SlimLine 500W 12 VDC to 115 VAC Power Inverter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 3716 Specs | Power | Normal: 500 W
Surge: 1000 W | | Connector | 1 x USB Power Port | | Frequency | 60 Hz | | Input Power | 12 VDC | | Output Power | 115 VAC, Per Outlet | | Input Ports | 1 x Pair Wire Terminals | | Output Ports | Two 3-Prong VAC US Wall Outlet | | Dimensions | 8.0 x 4.0 x 2.4" / 10.2 x 20.3 x 6.1 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 9.5 x 5.9 x 3.3" |
