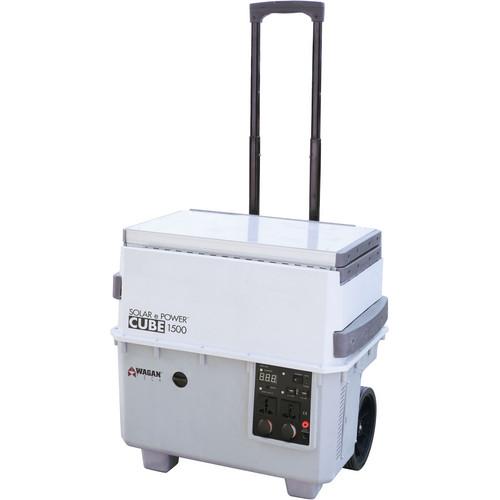

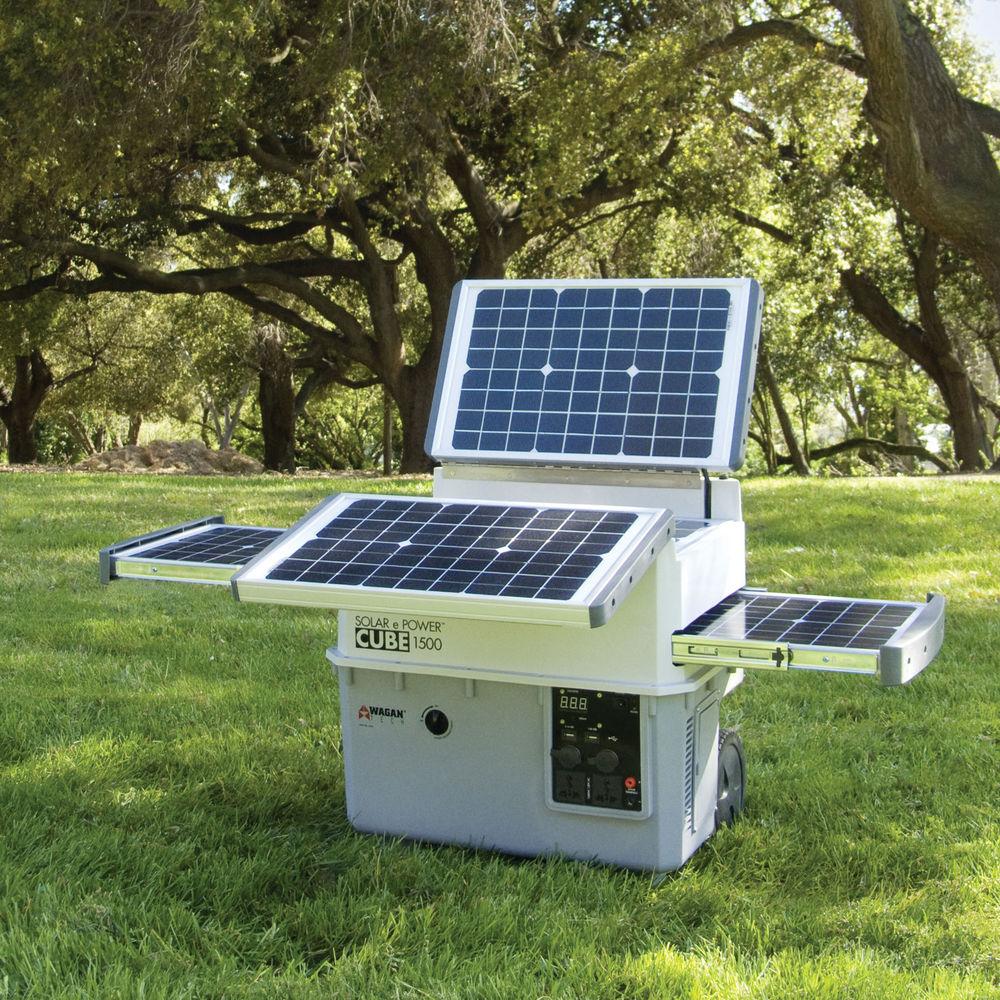

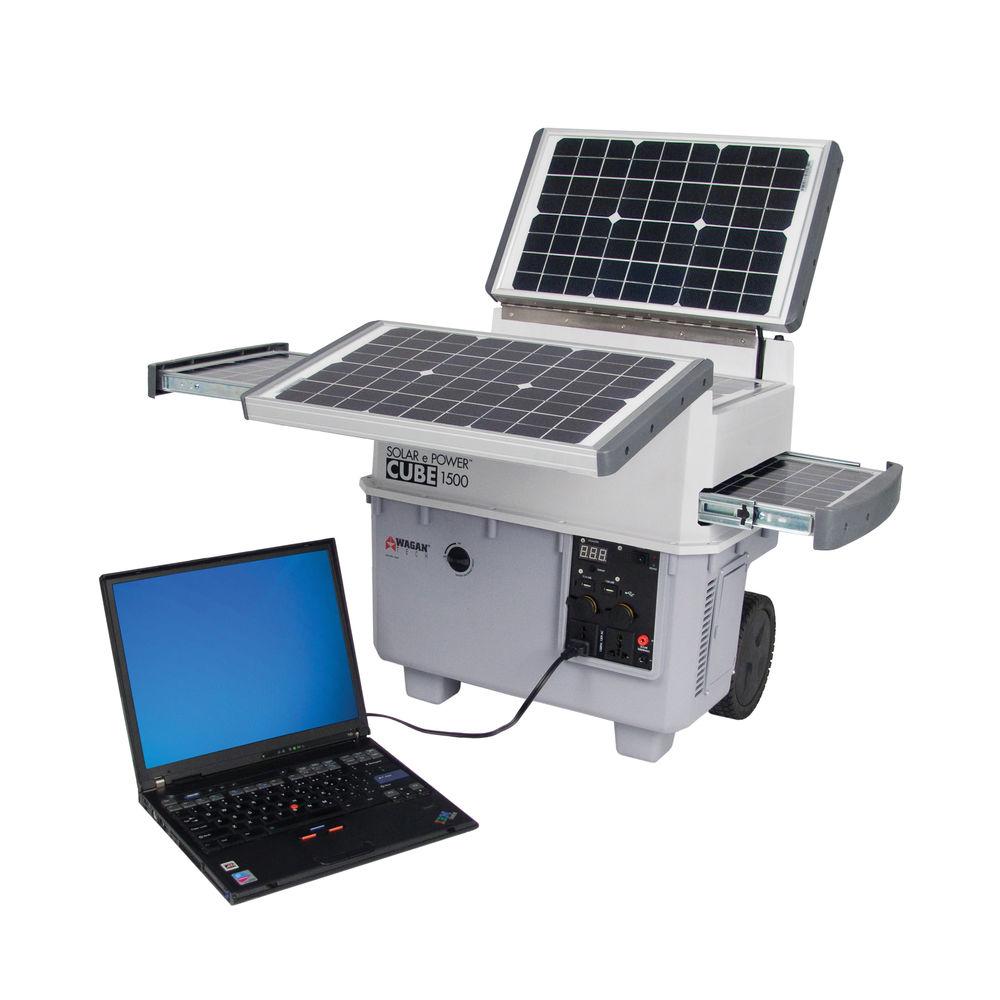

Product description The WAGAN Solar e Power Cube 1500 is a portable power source featuring a 1500W AC inverter, 12VDC outlets, and 2.1A USB power ports supported by a 55Ah gel battery. - 2 DC outlets with auto-reset, circuit breaker
- 2 USB power ports to charge cell phones, MP3 players, tablets & e-readers, and laptops
- Digital voltmeter for checking battery status
- DC recharging adapter (fused)

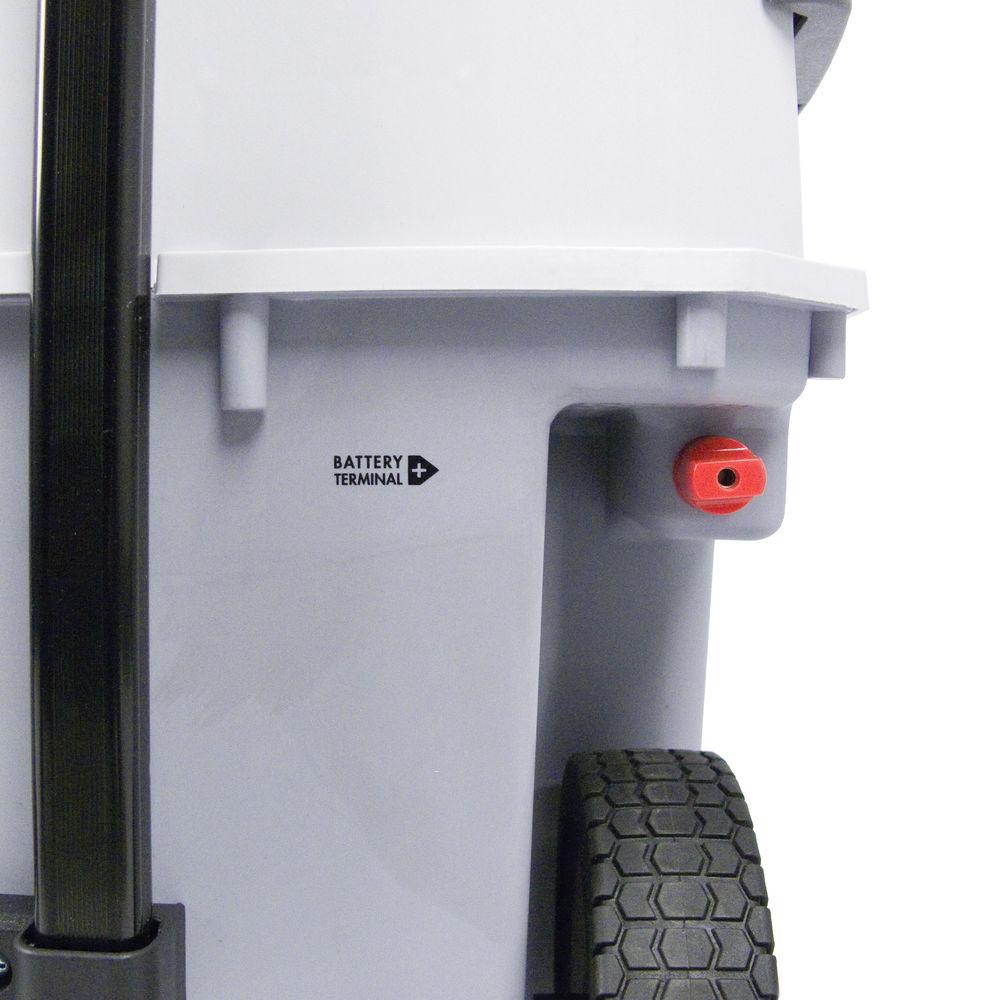

- Terminals for solar panel expansion
- Collapsible handle & wheels for easy transport

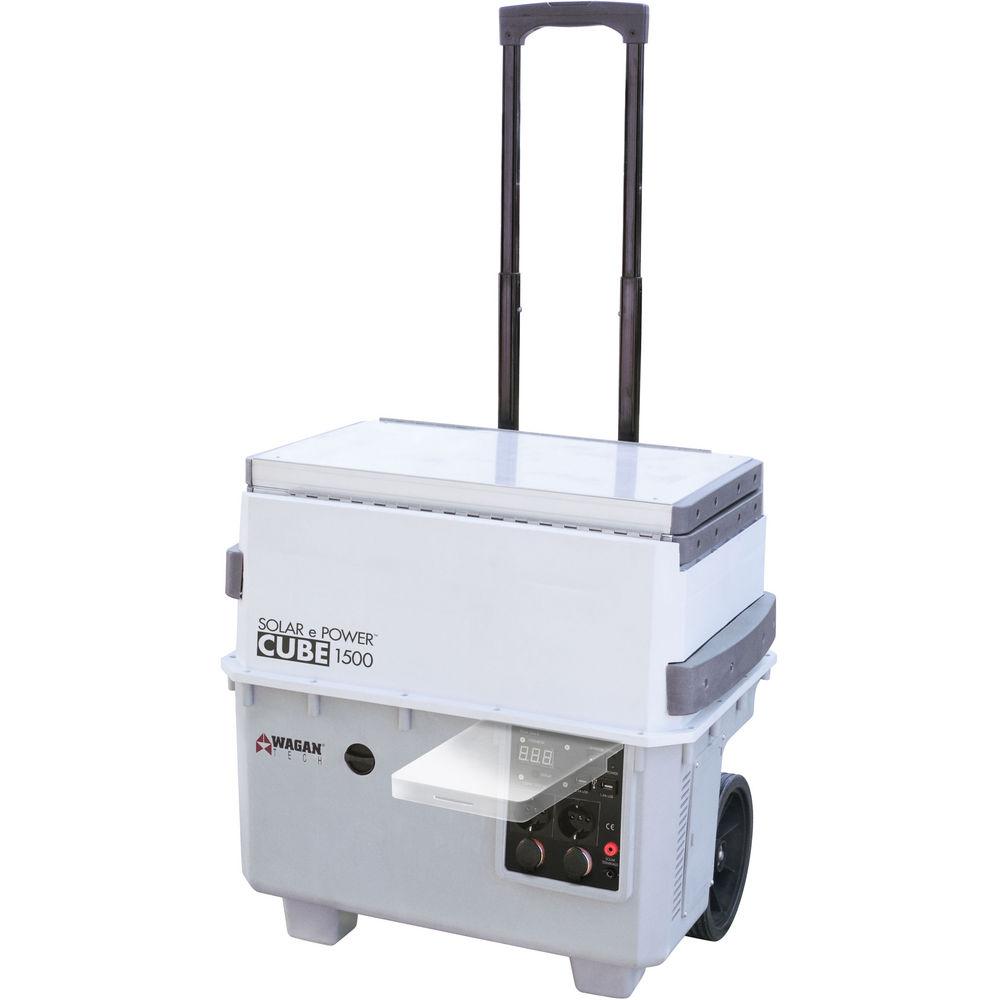

- Hidden storage compartment
- Charging Times: Initial AC Charge: Up to 24 hours Solar Panel Charging Time: 16 hours peak sunlight
UPC: 084367025463 In the Box WAGAN Solar e Power Cube 1500 AC & DC Charger Limited 2-Year Warranty (Excluding Battery) Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN Solar e Power Cube 1500 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 2546 Specs | | | AC Voltage | 115 VAC, 60 ± 4 Hz | | Output Power | AC 1,500W (3,600 peak) | | Waveform | AC Output: Modified sine-wave | | Operating/Storage Temperature | 32 to 104°F (0 to 40°C) | | Efficiency | 90% | | No Load Current Draw | <0.7 A | | Alarm | 10.5 ± 0.5 V | | Low Battery Shutdown | 9.5 ± 0.5 V | | | | AC Powered | LED Bulb, 3 W: 165 hours
Radio, 4 W: 123 hours
Wireless Router, 10 W: 49 hours 30 minutes
Portable Stereo, 20 W: 20 hours 45 minutes
40 W Light Bulb, 40 W: 12 hours 22 minutes
Laptop Computer, 45 W: 11 hours
Thermo-Fridge/Warmer, 60 W: 8 hours
19" TV (Cathode Ray Tube), 70 W: 7 hours
Fax Machine (Assuming Continuous Operation), 120 W: 4 hours 24 minutes
Computer with 15.0" (38.1 cm) Monitor, 200 W: 2 hours 28 minutes
Conventional Refrigerator / Freezer (20 cu.ft), 540 W: 55 hours
Microwave Oven (Assuming Continuous Operation), 1,000 W: 10 hours | | | | Battery Type | Sealed AGM/Gel Hybrid | | Battery Voltage | 12 VDC | | Battery Capacity | 55 Ah | | Current | Maximum Load Current Through 12 VDC Power Socket (Continuous): 15 A
USB Maximum Output Current: 2.1 A | | Circuit | DC Power Socket Circuit Breaker Rating (Internal, Automatic Reset): 15 A | | | | DC Powered | Cellular Phone (Assuming Continuous Operation Send or Receive) 6W: 82 hours
Fluorescent Light, 8 W: 61 hours 15 minutes
Portable Cooler, 30 W: 16 hours 30 minutes
Tire Inflator, 100 W: 4 hours 56 minutes | | | | Maximum Output | Solar Panel: 5 x 16 W (80 W built-in bulb) | | Panel Type | Monocrystalline | | Efficiency | Solar Panel: 17% | | Controller | Solar Channel: 10 A | | AC Rating | Current: 100 to 240 VAC, 50/60 Hz, 12 VDC, 5 A | | Power | Maximum Solar Panel Array Power: Expandable up to 150 W | | | | Dimensions | 20.9 x 20.9 x 14.6" (53.0 x 53.0 x 37.0 cm) | | Weight | 84.0 lb (38.2 kg) | | | | Package Weight | 99.2 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 18.0" |
