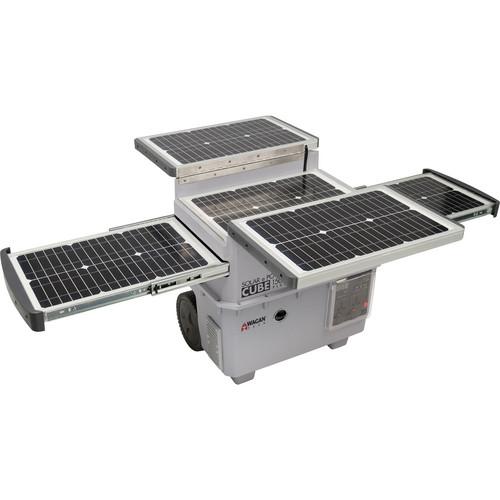

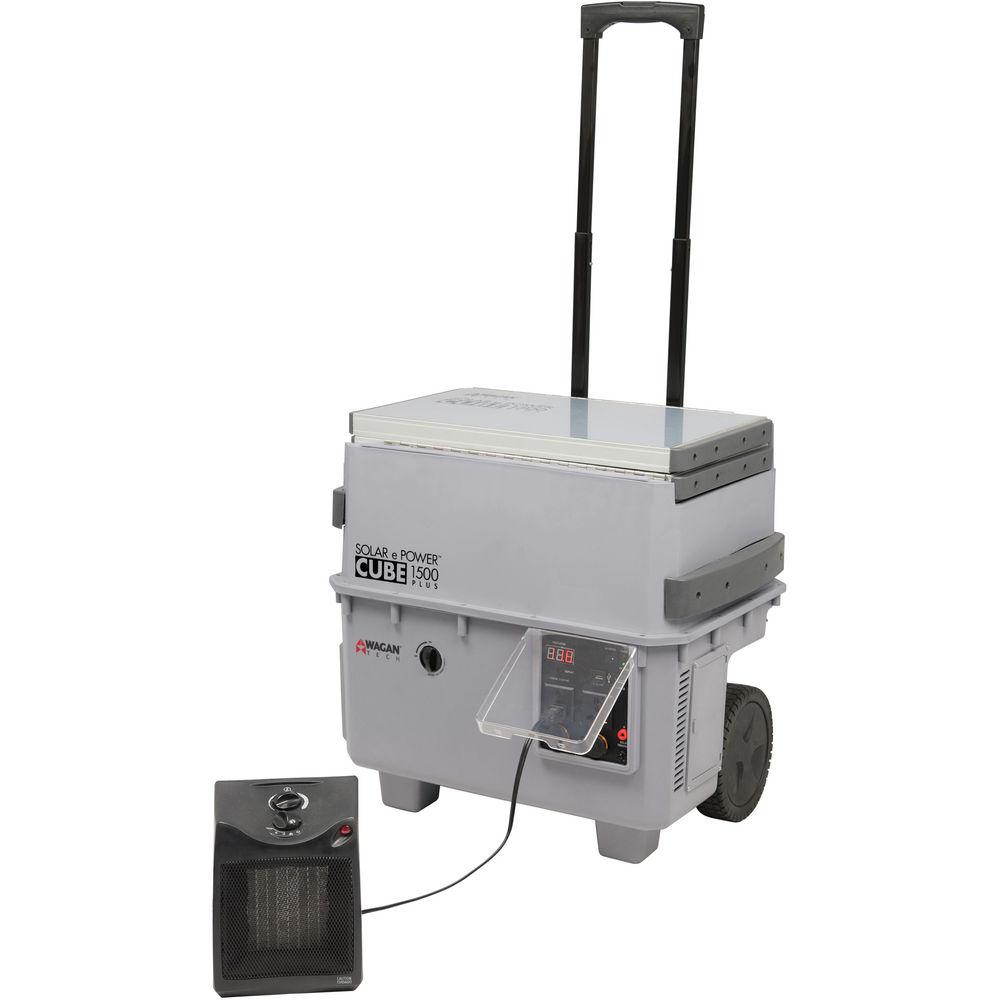

Product description The WAGAN Solar e Power Cube 1500 Plus is a portable power source. You can charge the internal battery with the fold-out and slide-out solar panels. Additionally, you can also charge with a home AC outlet or vehicle DC outlet. It is great for running the AC, USB, or DC devices from anywhere. Additional solar panels and batteries (sold separately) can be connected for even more power. - Two 115VAC outlets (220V also available upon request)
- Two 12V accessory outlet for powering DC appliance (loads up to 15A)
- Auto-reset circuit breaker
- Two USB power ports (5V, 2.1A charging output total) for charging/operating cell phones, MP3 players, and tablet PCs
- DC recharging adapter (fused)
- Digital voltmeter for checking battery status
- AGM/Gel Hybrid 100 AH battery suitable for deep cycle applications
- Charging Times: Initial AC Charge: Up to 43.2 hours, Solar Panel Charging Time: 32.4 hours peak sunlight
UPC: 084367025470 In the Box WAGAN Solar e Power Cube 1500 Plus Weather-Resistant Fabric Cover AC & DC Adapter Limited 2-Year Warranty (Excluding Battery) Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN Solar e Power Cube 1500 Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 2547 Specs | | | AC Voltage | 115 VAC, 60 ± 4 Hz (220 V also available upon request) | | Output Power | AC 1,500 W (3,600 peak) | | Waveform | AC Output: Modified sine-wave | | Operating/Storage Temperature | 32 to 104°F (0 to 40°C) | | Efficiency | 90% | | No Load Current Draw | <0.5 A | | Alarm | 10.5 ± 0.5 V | | Low Battery Shutdown | 9.5 ± 0.5 V | | | | AC Powered | Radio, 4 W: 250 hours
Compact Florescent Light, 20 W: 50 hours
Laptop Computer, 65 W: 13 hours
Ceiling Fan, 100 W: 9 hours 30 minutes
Desktop Computer with 15.0" (38.1 cm) Monitor, 200 W: 4 hours 18 minutes
Sony Playstation 3 Video Game Console, 200 W: 4 hours 18 minutes
40.0" (101.6 cm) LCD TV, 200 W: 4 hours 18 minutes
1/2" (1.3 cm) Drill (Assuming Continuous Operation), 750 W: 45 minutes
Microwave Oven (Assuming Continuous Operation), 1,000 W: 30 minutes
Coffee Maker, 1,500 (maximum output): 10 minutes | | | | Battery Type | Sealed AGM/Gel Hybrid | | Battery Voltage | 12 VDC | | Battery Capacity | 100 Ah | | Current | Maximum Load Current Through 12 VDC Power Socket (Continuous): 15 A
USB Maximum Output Current: 2.1 A | | Circuit | DC Power Socket Circuit Breaker Rating (Internal, Automatic Reset): 15 A | | | | DC Powered | Smartphone (Assuming Continuous Operation Send or Receive) 6W: 160 hours
Tablet Computer, 12 W: 80 hours
Portable Cooler, 30 W: 30 hours

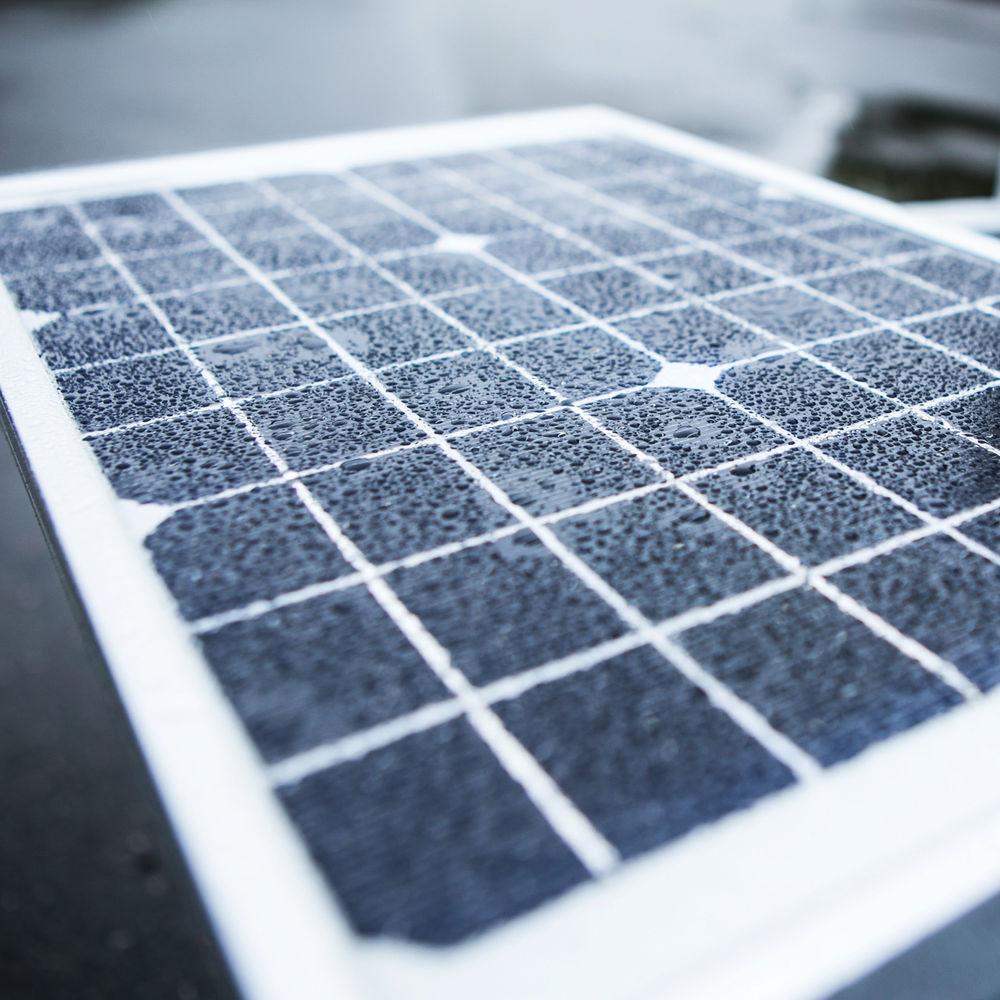

Air Compressor, 100 W: 9 hours 30 minutes | | | | Maximum Output | Solar Panel: 5 x 16 W (80 W built-in bulb) | | Panel Type | Monocrystalline | | Efficiency | Solar Panel: 17% | | Controller | Solar Channel: 20 A | | AC Rating | Current: 100 to 240 VAC, 50/60 Hz, 12 VDC, 5 A | | Power | Maximum Solar Panel Array Power: Expandable up to 300 W | | | | Dimensions | 20.9 x 20.9 x 14.6" (53.0 x 53.0 x 37.0 cm) | | Weight | 116.6 lb (53.0 kg) | | | | Package Weight | 132.55 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 18.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to WAGAN Solar e Power Cube 1500 Plus
| Subject: Replaced bad battery but now nothing works | | Date: 06.05.2022 22:28:36 | Name: Robert Haight | | I replaced the battery in my solar cube generator and after hooking it all back up again I had nothing working. No lights, no fan, no power whatsoever! Battery is brand new with 12 volts. Is there an authorized repair place near me? I'm in Palm Bay Florida. | | Post reply |
