User Manual for WAGAN Solar eCase Generator Click to enlarge the picture
Contents of the user manual for the WAGAN Solar eCase Generator
- Product category: Solar & Portable Power WAGAN
- Brand: WAGAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WAGAN Solar & Portable Power
 |
User manual for the WAGAN Solar eCase Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WAGAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WAGAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WAGAN product will considerably shorten its lifespan!
|

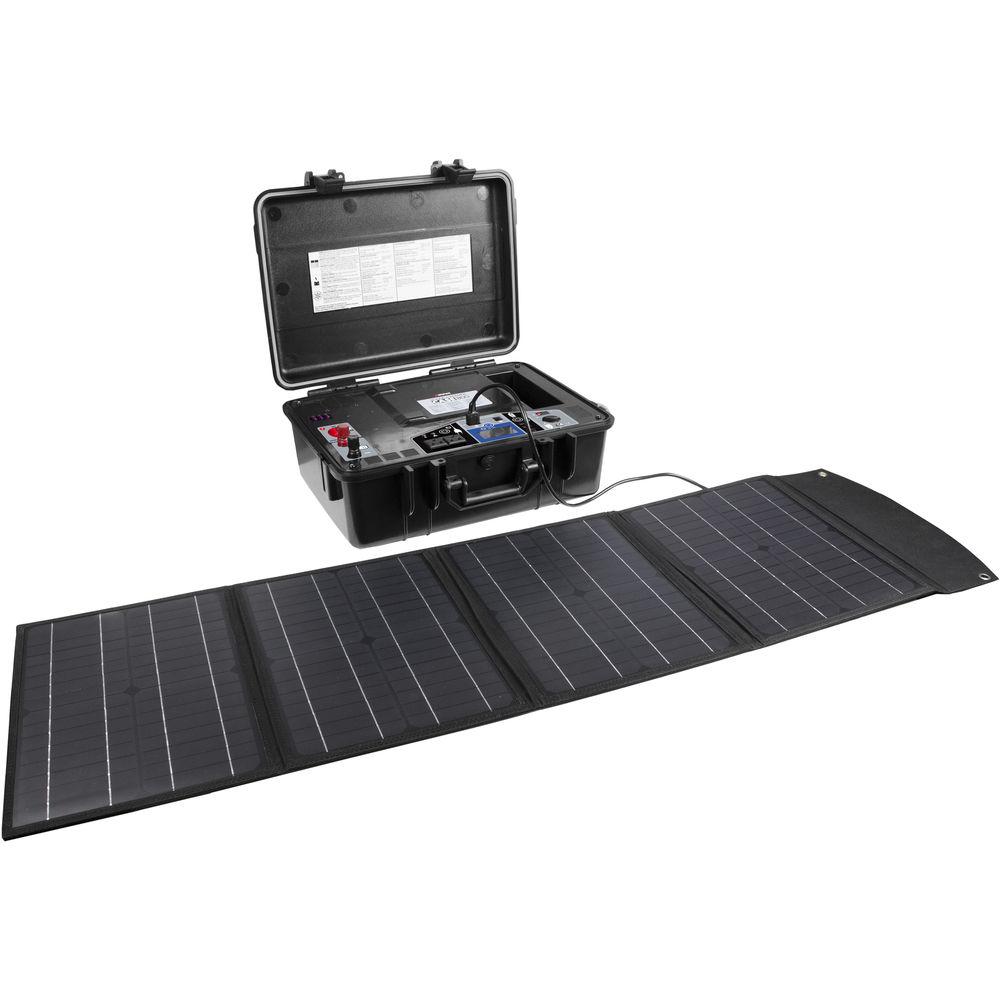

Product description Even if the power is out or you've left the power grid behind, you can run electric and electronic gear with the Solar eCase Generator, a 12-volt, 26-amp battery that can be recharged with the included 60-watt solar panel.

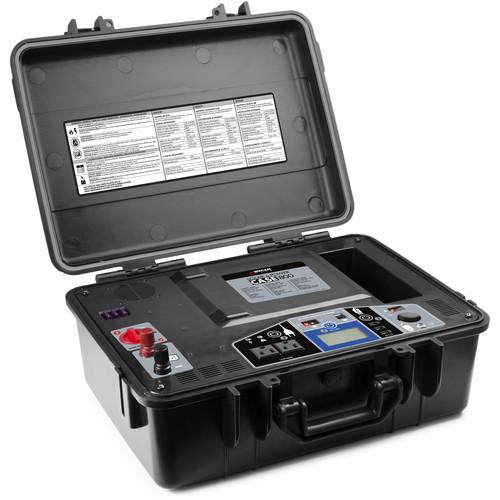

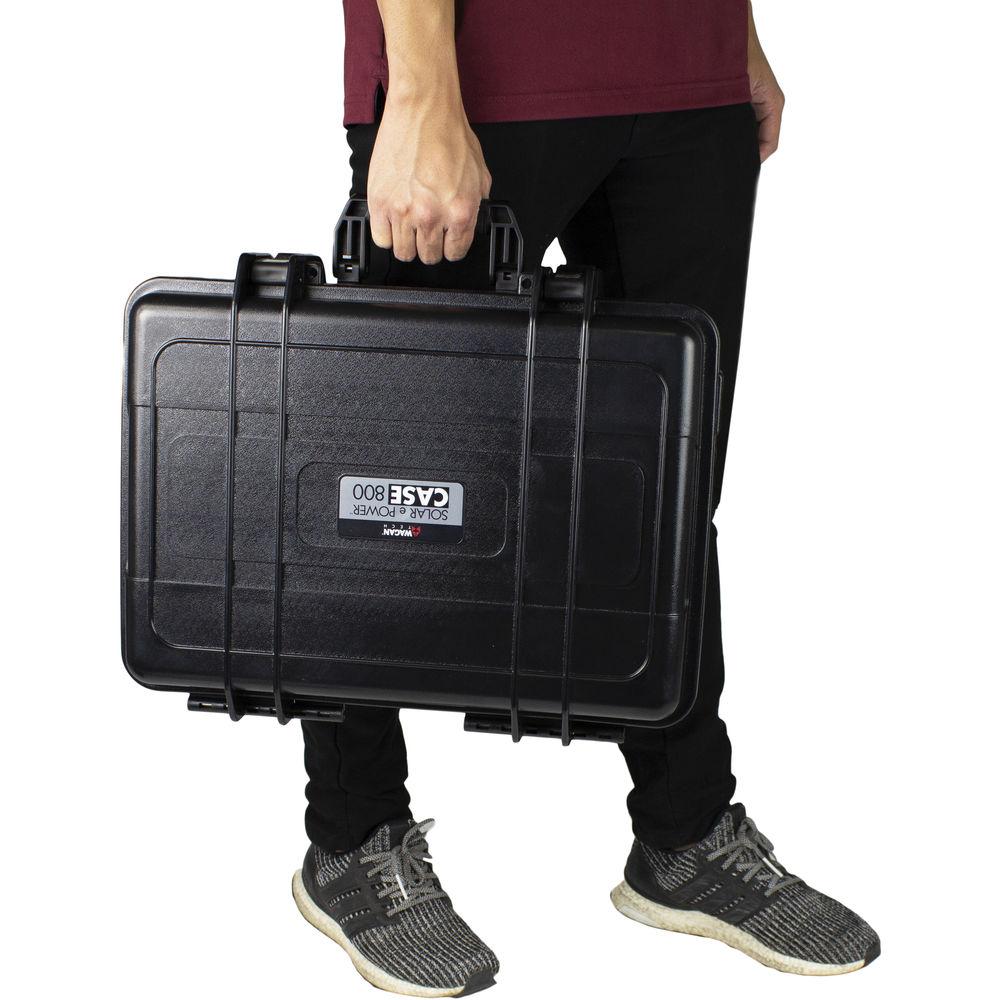

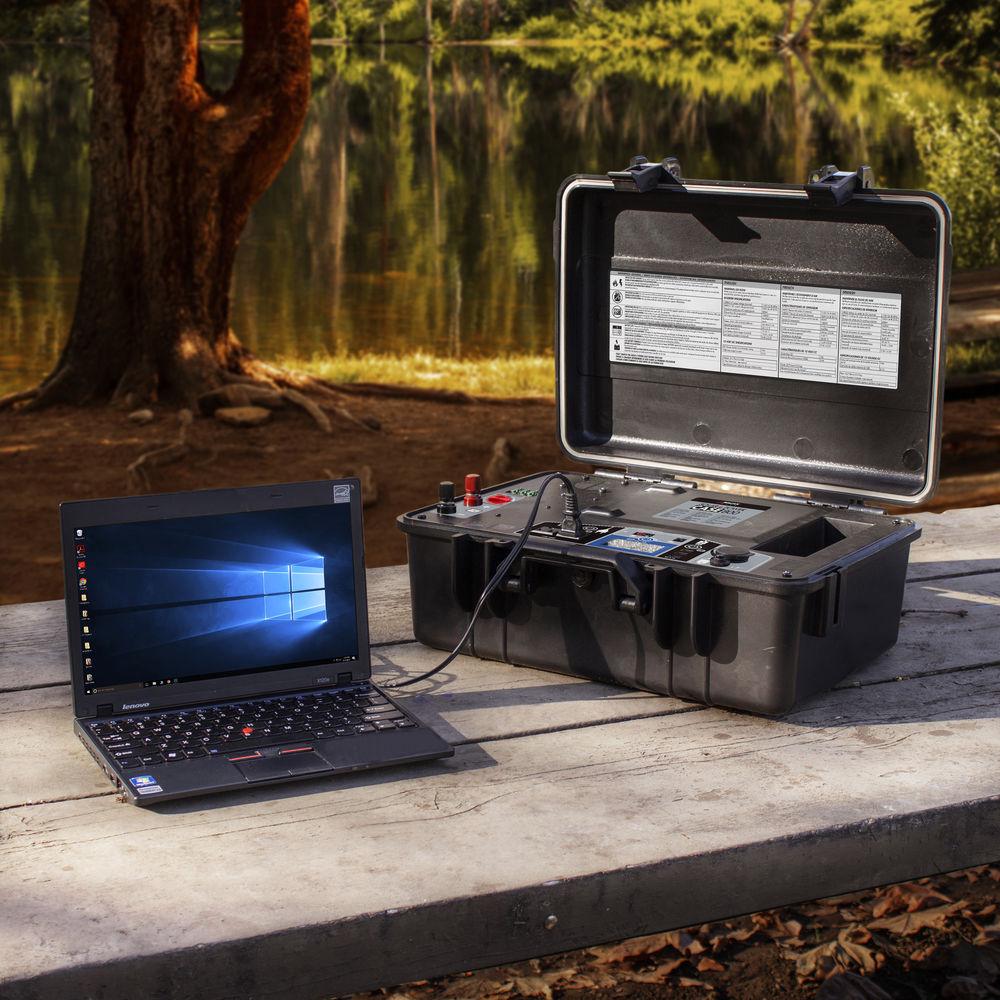

Housed in a crush-resistant, watertight case with a pressure relief valve, the eCase Generator is fitted with three USB ports, two AC power outlets, and a vehicle-type DC power socket. A backlight illuminated LCD panel displays incoming and outgoing power. The eCase Generator includes an 800-watt DC-to-AC power inverter (1600 watts surge) with enough power to operate computers, lights, TV, DVD, satellite communications, cameras, radio, electric tools, ham radios, or other electronic needs in the field. - Battery
-
- Rechargeable 12 VDC, 26A sealed lead-acid
- 60W folding solar panel with Anderson connectors
- 12 VDC car/vehicle and 110 VAC wall charging adapters
- Outputs
-
- One 12V car/vehicle type port, 15-amp auto-reset
- Three 2.1A USB ports
- Two 115 VAC three-pronged outlets
- Two Anderson 12 VDC outputs
- Solar Panel
-
- Monocrystalline construction
- Voltage: 16-22 VDC
- 10A controller
- Efficiency: 17%
- Inverter
-
- 800W modified sine wave AC power inverter
- 1600W surge capability
In the Box WAGAN Solar eCase Generator Limited 2-Year Warranty (eCase) Limited 1-Year Warranty (Battery) Table of Contents
|
Upload User Manual
Have you got an user manual for the WAGAN Solar eCase Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWAGAN 8822 Specs | Battery | 12 V, 26 A, Rechargeable Sealed Lead-Acid | | Outputs | 1 x 12 VDC Car/Vehicle Type Port: 15 A
2 x 115 VAC US Outlet, 60 Hz
3 x 2.1 A USB Port
Power inverter: 800 W Continuous, 1600 W peak | | Fuse | 1 x 15 A, Replaceable | | No Load Battery Drain | <0.5 A | | Low Battery Warning | 10.5 VDC (±0.5 VDC) | | Low Battery Shutdown | 9.5 VDC (±0.5 VDC) | | Dimensions | 18.3 x 14.4 x 7.3 / 46.5 x 36.6 x 18.5 cm | | Weight | 33.7 lb / 15.3 kg |
