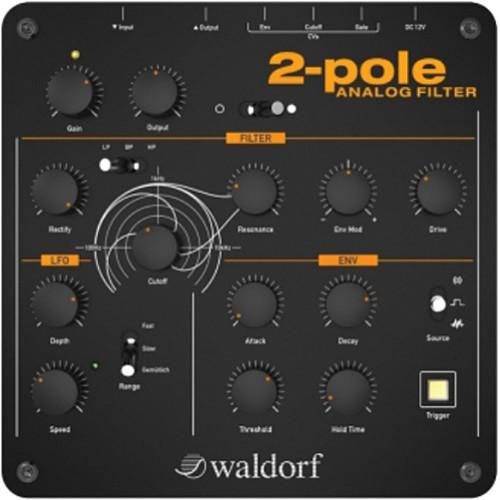

Product description The Waldorf 2-Pole Analog Filter empowers DJs, guitar players, keyboard players, and other performing and producing musicians with the company's iconic analog filter sounds. Similar to the filters found in the company's 4-Pole, X-Pole, and AFB16 standalone units, as well as the Wave, Q+, or Pulse synthesizers.
The company's filter technology is now available in a novel square box with dedicated intuitive one knob/one function controls. You can use the device to perform dramatic filter sweeps, by hooking up a pedal controller to the unit's cutoff CV, using an integrated envelope follower, or animate pad sounds using the device's LFO. - Fully analog signal path: Preamp -> Filter -> Overdrive
- Award winning Waldorf analog multimode filter technology
- Filter can be modulated by LFO, envelope follower or external signal
- Preamp with overdrive capability for direct connection of instruments like bass or guitar
- Post-filter overdrive with adjustable gain
- LFO with different ranges, rate up to several kHz
- Envelope follower with trigger section and different modes
- True Bypass
- Controls
- Input Gain with level LED
- Rectify pot for mixing-in the rectified input signal
- Filter Cutoff pot
- Filter Resonance pot
- Bipolar Filter Env Mod pot
- Filter Type switch
- Overdrive pot
- Activation switch
- Output Level pot
- LFO Range switch with 3 positions
- LFO Rate pot with LED
- LFO Mod Depth pot
- Trigger Button with LED
- Trigger Threshold pot
- Trigger Hold pot
- Envelope Follower Source switch with 3 positions
- Envelope Follower Attack pot
- Envelope Follower Decay pot
- Connections
- Audio In
- Audio Out
- Cutoff CV In
- Envelope Follower CV In
- Trigger In
- Power DC 12V
In the Box Waldorf 2-Pole Analog Filter 12 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Waldorf 2-Pole Analog Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaldorf 2POLE Specs Connections | 1x 1/8" mono (3.5 mm) TRS Audio Input jack Audio Out 1x 1/8" (3.5 mm) Cutoff CV In 1x 1/8" (3.5 mm) Envelope Follower CV In 1x 1/8" (3.5 mm) Trigger In 1x 12 VDC Power Input | Maximum Current | 150 mA | Input Voltage | 9 to 15 VDC, negative sleeve | Dimensions (W x D x H) | 7.28 x 7.28 x 2.55" (185 x 185 x 65 mm) | Weight | 2.4 lb (1.1 kg) | | Package Weight | 3.1 lb | Box Dimensions (LxWxH) | 12.5 x 9.0 x 4.3" |
