Product description - Choosing Your First Hardware Synthesizer for Under $1000

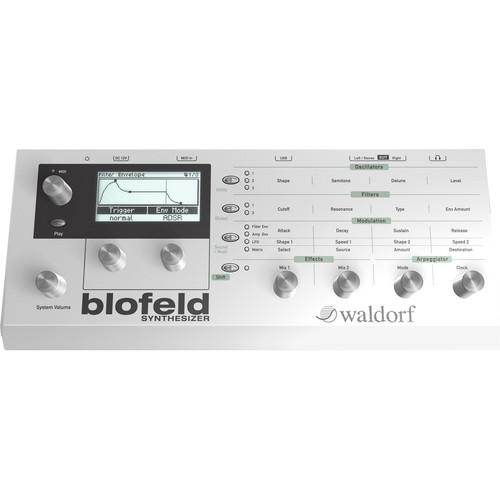

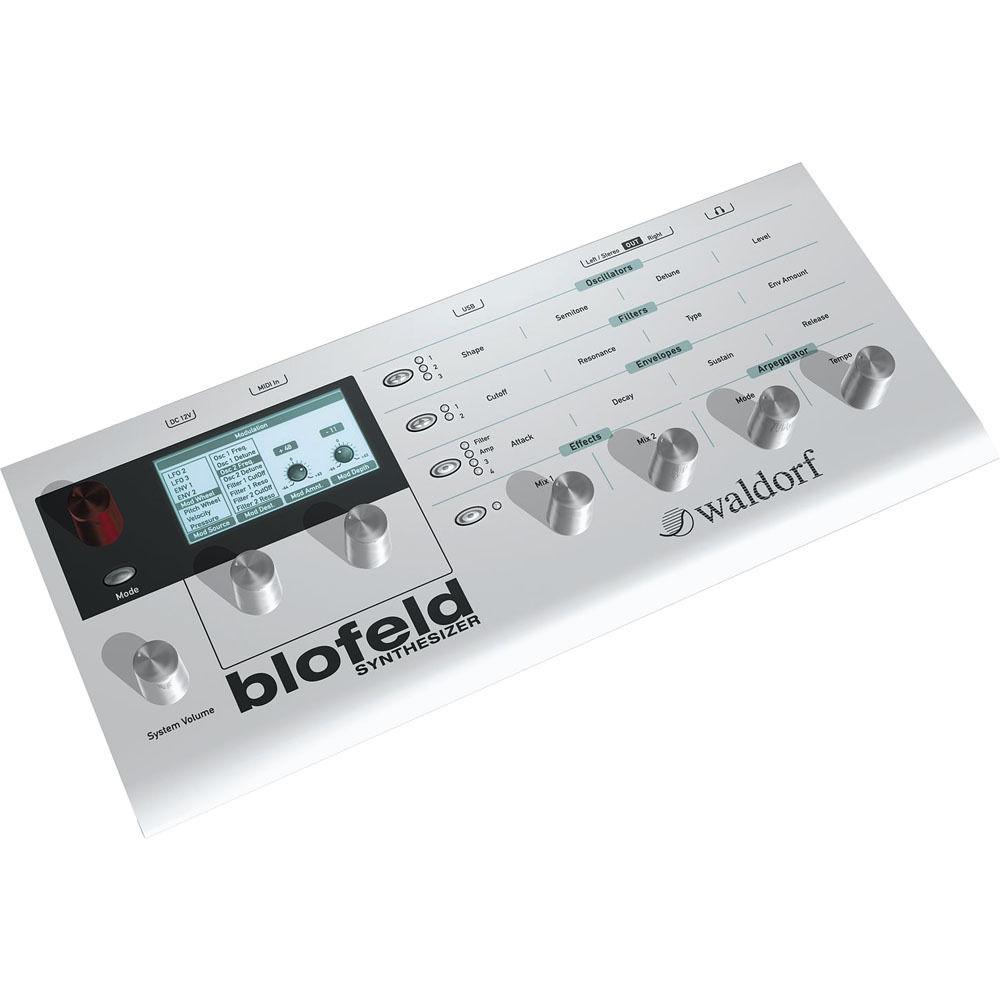

The Blofeld Desktop Synth Module by Waldorf features Waldorf's legendary Analog Modeling Technology and 60 MB of onboard sample memory. That kind of built-in storage allows you to import your own selection of samples and manipulate them using the Blofeld, 16-part multi-timbral virtual-analog synthesis engine. You'll also be able to load and play Micro Q sounds and it comes bundled with Spectre, a free tool for creating and transferring sample content. It also has 25 voice polyphony, over 1000 factory patches and a programmable 16-step arpeggiator sure to excite and energize your audience and productions. But things don't end there; the Blofeld also features an on-board effects section and the classic Microwave II/XT/XTk wavetables. Add that to its all-metal white enclosure, stainless steel rotaries, large graphic LED display and multiple oscillator and filter modulations and you've got yourself what is destined to become another Waldorf classic. - Soundsets
- Genres by Rob Lee
Jorg Schaaf's Blofeld Xperience Volume 1
Analog vs. Digital by Ingo Weidner - Powerful Arpeggiator
- Hold and one shot modes
Can be synced with MIDI Clock
Direction up, down, alternate
Range up to ten octaves
Various methods to modify note sort order - Programmable 16 Step Arpeggiator
- Accent
Timing
Length
Glide on/off
Pause
Chord
Previous note
Random not from note list
First and/or last note from note list - Effects
- One effect slot per part
One effect slot globally for all parts
Chorus
Flanger
Phaser
Overdrive
Triple FX (S&H, Ring Modulation, Chorus)
Delay (only available on global Effect slot)
Clocked Delay (only available on global Effect slot)
Reverb (only available on global Effect slot)
Poly, Mono, Dual or Unisono Mode with Selectable Voice Count - 3 Oscillators Virtual Analog Models
- Pulse with pulse width modulation and adjustable brilliance
Sawtooth with adjustable brilliance
Triangle
Sine - Wavetables
- Q Alt 1 and Alt 2 wavetable with adjustable brilliance
All wavetables from microwave II/XT/XTk series with adjustable brilliance
Separate wavetable selectable for oscillator 1 and 2 - Frequency Modulation Between the Oscillators
- Filter FM
- Oscillator Synchronization
- Resonance up to self-oscillation
- Ring Modulator for Oscillator 1 and 2
- Low pass 24 dB / 12 dB
Band pass 24 dB / 12 dB
High pass 24 dB / 12 dB - Noise Generator with Noise Color
- Notch 24 dB / 12 dB
- Two Independent Multi Mode Filters
- Comb filter with positive/negative feedback
PPG low pass filter - Two Drive Stages Per Voice with Adjustable Drive Gain and Selectable Curves
- Clip
Hard
Medium
Soft
Sine Shaper - Programmable Modulation Matrix with 16 Slots
- Modulation speed far into audio range
Modulation sources include all internal modulation sources plus various MIDI messages
Modulation destinations for almost all continuous sound parameters - Various Pre-routed Modulation Destinations with Selectable Sources
- Pitch Modulation
Oscillator 1 / 2 / 3 frequency modulation
Oscillator 1 / 2 / 3 pulse width modulation
Filter 1 / 2 cutoff modulation
Filter 1 / 2 frequency modulation
Pan 1 / 2 modulation
Amp modulation - Four Modifiers for Transforming Modulation Sources with Various Algorithms
- Syncable to MIDI clock
Note Retrigger with adjustable start phase
Monophonic LFO
Keytrack - Four Fast Envelopes with Selectable Types
- Single trigger / retrigger per envelope
ADSR
ADS1DS2R (two decay/sustain stages plus adjustable attack level)
One shot
Loop S1S2 (loop between sustain 1 and 2)
Loop all (loop over all stages) In the Box Waldorf Blofeld Desktop Synth Module Limited 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Waldorf Blofeld Desktop Synth Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaldorf Blofeld Specs | Sounds | More than 1000 | | Multitimbral | 16 part | | Voices | Up to 25 | | Memory | 60 MB of sample memory | | Effects | 3 oscillators per voice
2 independent multi mode filters per voice
2 drive stages per voice with selectable drive curves
3 fast LFOs per voice
4 fast envelopes per voice
16 step programmable arpeggiator
All Q oscillator modelsAll microwave II/XT/XTk wavetablesFilter FM
Chorus
Flanger
Phaser
Overdrive
Triple FX S&H, ring modulation and chorus
Delay (only available on global effect slot)
Clocked delay (only available on global effect slot)
Reverb (only available on global Effect slot) | | Knobs | 7 endless stainless steel dials | | Buttons | Play
Down
Up
Free
Utility
Global
Sound/Multi
Shift | | Display | Graphic display 128 x 64 pixels, b/w, white background LED | | Output | 1/4" right and left/stereo | | Headphone Jack | 1/4" stereo | | Pedal Control | 1/4" sustain | | USB | Uses standard USB MIDI Driver provided by host computer OS | | MIDI | In/Out | | Nominal Voltage | DC 12V | | Power Supply Input Voltage | 100 - 240 V | | Current Consumption | 0.3 A | | Power Consumption | 5 W | | System Requirements | Windows ME minimum, Windows XP or newer recommended
Mac OS X 10.2 minimum, Mac OS X 10.3 or newer recommended | | Dimensions (HxWxD) | 2.12 x 11.96 x 5.19" (54 x 304 x 132 mm) | | Weight | 2.86 lb (1.3 kg) | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 17.8 x 9.0 x 4.2" |
