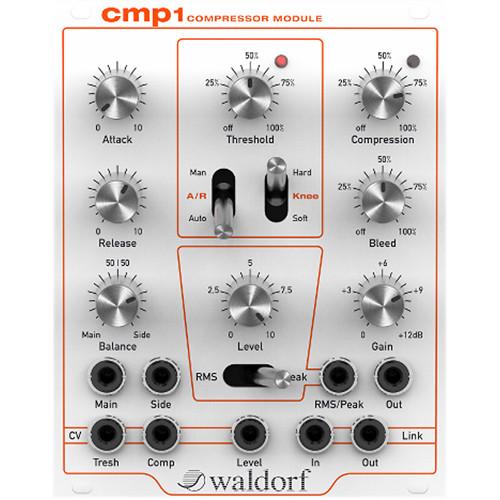

User Manual for Waldorf cmp1 Compressor Module for Eurorack Click to enlarge the picture
Contents of the user manual for the Waldorf cmp1 Compressor Module for Eurorack
- Product category: Synthesizer Modules Waldorf
- Brand: Waldorf
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Waldorf Synthesizer Modules
|
User manual for the Waldorf cmp1 Compressor Module for Eurorack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Waldorf product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Waldorf user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Waldorf product will considerably shorten its lifespan!
|
Product description Waldorf: kb37 Eurorack Keyboard Controller Read More The cmp1 Compressor Module for Eurorack from Waldorf is an analog compressor used to create dynamic variations in the audio-signal path of a Eurorack synthesizer. While this module can handle all standard compressor duties, it is also packed with an assortment of powerful control options and CV-modulated parameters, conducive to creative experimentation. Features include a balance control between the main & side inputs for flexible side-chaining, automatic and manual modes for attack & release controls to sculpt your sound, a choice of hard-knee and soft-knee compression transitions, and bleed control for parallel compression. Threshold and compression ratio can be controlled from the panel or via CV inputs. Use the level knob to add make-up gain and optimize output level. -
- Fully analog compressor
- Side-chaining with adjustable balance control
- RMS and Peak modes
- Threshold and compression controllable from panel with additional CV Inputs
- Attack & release in manual or automatic mode
- Hard and soft-knee compression
- Bleed control for mixing original signal with compressed output
- Overall gain control
- Separate output of detector signal for use as envelope follower
- Additional level-control input for optional use as exponential VCA
In the Box Waldorf cmp1 Compressor Module for Eurorack Ribbon Cable 4 x M2.5 Screws 4 x M3 Washers 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Waldorf cmp1 Compressor Module for Eurorack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaldorf CMP1 Specs | Connectors | 1 x main audio input
1 x audio output
1 x side input
1 x threshold and 1 x compression CV input
1 x RMS/peak output
1 x level-control input
1 x link input and 1 x link output | | Controls | 8 x rotary knobs
1 x two-position manual/auto switch
1 x two-position hard-knee/soft-knee switch
1 x three-position adapt/RMS/peak switch | | Dimensions (L x W x H) | 13 x 9 x 6" / 33.0 x 22.9 x 15.2 cm | | Weight | 0.8 lb / 350 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 12.6 x 9.0 x 4.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
