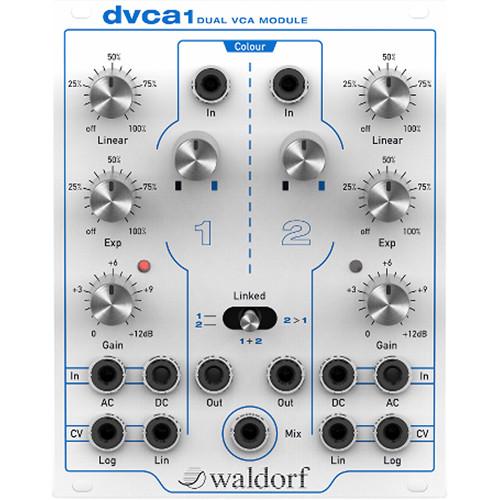

User Manual for Waldorf dvca1 Dual VCA Eurorack Module Click to enlarge the picture
Contents of the user manual for the Waldorf dvca1 Dual VCA Eurorack Module
- Product category: Synthesizer Modules Waldorf
- Brand: Waldorf
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Waldorf Synthesizer Modules
|
User manual for the Waldorf dvca1 Dual VCA Eurorack Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Waldorf product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Waldorf user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Waldorf product will considerably shorten its lifespan!
|
Product description Waldorf: kb37 Eurorack Keyboard Controller Read More raqteesycfvc The dvca1 Dual VCA Eurorack Module from Waldorf is a two-channel voltage-controlled amplifier used to change the amplitude of the audio-signal path in a Eurorack modular synthesizer. Built around two VCAs with positive gain control, these purely analog amplifiers offer a wide range of options. The color knobs control state-variable filters designed to add warmth and color to the sound. Each VCA features simultaneous linear and logarithmic (exponential) gain control. Flexible link modes let you create modulated panning. Both VCA outputs can be routed through individual outputs or summed via the mix output. -
- Two analog VCAs
- Optional color control based on state-variable filter technology
- CV input for color modulation
- Simultaneous linear & exponential controls and CV inputs
- Additional gain control up to +12 dB
- Separate AC and DC coupled inputs for audio-response control signals
- Separate summing output for mixing VCA signals
- Link mode for parallel modulation of both VCA signals
- Anti-parallel link option for panning effects
In the Box Waldorf dvca1 Dual VCA Eurorack Module 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Waldorf dvca1 Dual VCA Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaldorf DVCA1 Specs | Connections | Each VCA comes equipped with:
1 x color CV input
1 x log and 1 x lin CV input
1 x AC and 1 x DC input
1 x audio output
Both VCAs can be summed:
1 x summing mix output | | Controls | 8 x rotary knobs
1 x three-position link-mode switch | | Gain Control | +12 dB | | Dimensions (L x W x H) | 1 x 4 x 5.25" / 25 x 101.6 x 133.3 mm | | Weight | 1.3 lbs / 0.6 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 12.5 x 9.1 x 4.4" |
