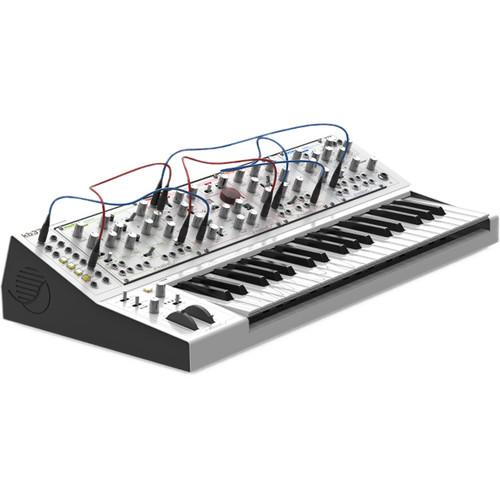

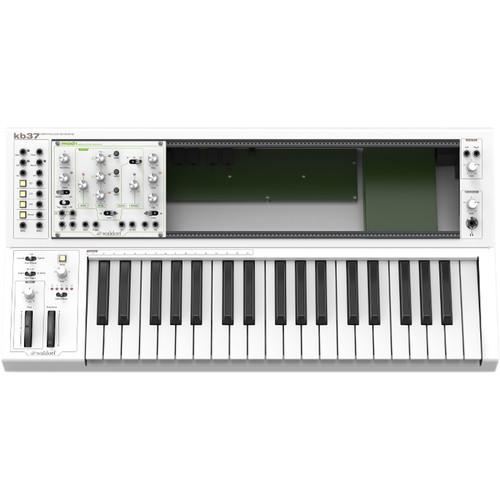

Product description Waldorf: kb37 Eurorack Keyboard Controller Read More bcexrauqzrervwbdzxdtzvzfvzxqub Developed to be intuitive for the beginner and versatile for the professional, the kb37 from Waldorf is a compact and rugged performance controller keyboard that houses up to 107 HP Eurorack modules. The module rack is conveniently angled just above the Fatar TP9 37-note keyboard and includes a built-in high-resolution and temperature-stable 16-bit CV interface for flexible control over modules with eight CV outputs, three trigger outputs, gate, and clock & reset outputs for MIDI sync.

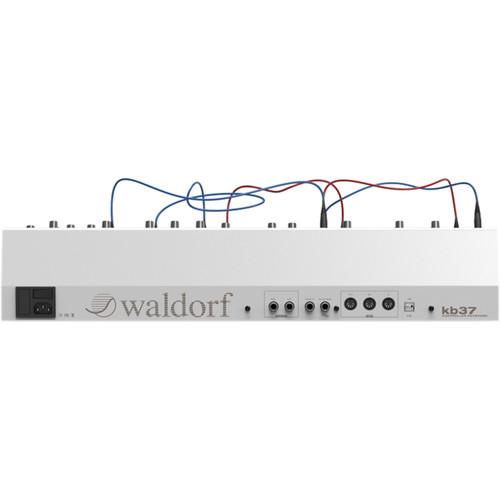

The instrument also features MIDI in, out and thru ports making it well suited for both studio and stage. The Kb37 offers an array of real-time control elements such as pitch, mod wheels glide, selectable note priority, octave up/down switch and gate retrigger, while the keybed transmits velocity and aftertouch. The rear panel also offers two 1/4" (L & R) outputs, a stereo sensor input, sustain pedal input, and USB. The kb37 ships with a power cord. - Keyboard and Controllers
-
- Fatar TP9 37-key keyboard with aftertouch
- Pitchbend wheel
- Modulation wheel
- Glide
- Selectable note priority
- Octave up/down switch
- Gate retrigger
- Module Section
-
- Width: 107 HP
- Eurorack-compatible bus
- Bus CV & Gate linkable to CV interface via jumpers
- Built-in regulated power supply (+12V/-12V, 1.5A)
- CV Interface
-
- 8 CV outputs
- Pitch
- Velocity
- Aftertouch
- Pitchbend
- Modwheel
- 3 User-assignable MIDI controllers
- 3 Trigger outputs
- Gate
- Clock & Reset outputs for MIDI sync
In the Box Waldorf kb37 Eurorack Controller Keyboard Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Waldorf kb37 Eurorack Controller Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaldorf WKB37 Specs | Keyboard & Controllers | Fatar TP9 37-key keyboard with aftertouch
Pitchbend wheel
Modulation wheel
Glide
Selectable note priority
Octave up/down switch
Gate retrigger | | Module Section | Width: 107 HP (21.4" / 543.6 mm)
Eurorack-compatible bus
Bus CV & Gate linkable to CV interface via jumpers
Built-in regulated power supply (+12 V/-12 V, 1.5 A) | | CV Interface | CV Outputs: 8x 1/8" / 3.5 mm
Pitch
Velocity
Aftertouch
Pitchbend
Modwheel
3 user-assignable MIDI controllers
3 Trigger outputs
Gate
Clock & Reset outputs for MIDI sync | | MIDI | In: 5-pin DIN
Out: 5-pin DIN
Thru: 5-pin DIN | | Inputs | Sensor: 1/4" 6.35 mm
Sustain Pedal: 1/4" / 6.35 mm | | Outputs | Stereo Outputs (L&R): 2x 1/4" / 6.35 mm | | USB | Type-B | | Dimensions (W x D x H) | 25.8 x 13.1 x 4.8" (656 x 334 x 122 mm) | | Weight | 18.7 lb (8.5 kg) | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 30.5 x 17.4 x 9.0" |
