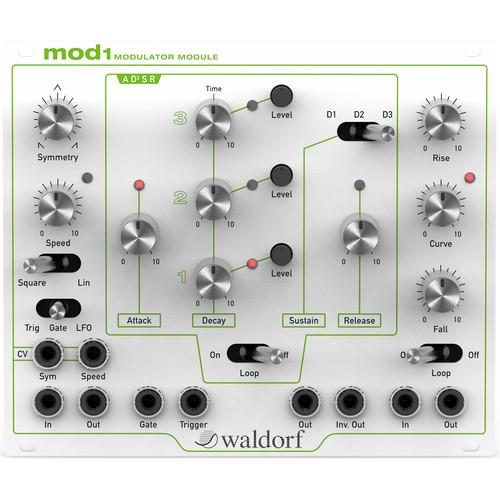

Product description Waldorf: kb37 Eurorack Keyboard Controller Read More The mod1 Modulator Module for Eurorack from Waldorf is an analog envelope generator that produces time-based modulation signals used to control various types of modules in your Eurorack synthesizer. This unit houses three flexible modulation sources capable of producing simple envelopes and LFOs, as well as complex looped and multi-stage curves.The ADSR section features a decay parameter configurable for one, two and three stages, three sustain modes, and a switchable loop mode. It outputs both positive and inverted signals. The symmetry generator can be used as an LFO with a choice of square and linear waveforms. Symmetry and speed can be controlled from the panel or via CV inputs. The rise & fall generator is a two-stage envelope generator that features a curve control for the rise stage and an optional loop mode. - AD3SR Generator
-
- ADSR envelope with up to three decay stages
- Each decay stage offers time- and target-level control
- Configurable for one, two or three decay stages
- Three sustain modes
- Optional ADSR loop mode
- Gate and trigger inputs
- Positive and inverted signal outputs
- Symmetry Generator
-
- Two-segment modulator with controllable symmetry
- CV inputs for speed and symmetry
- LFO mode with bipolar output
- Gate and trigger envelope modes with unipolar output
- Rise & Fall Generator
-
- Two-stage envelope
- Flexible curve control for rise stage (from smooth classical RC shape to linear segments)
- Optional loop mode
- Gate input
In the Box Waldorf mod1 Modulator Module for Eurorack 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Waldorf mod1 Modulator Module for Eurorack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaldorf MOD1 Specs | Connections | AD3SR generator
1 x gate input
1 x trigger input
1 x positive output and 1 x inverted signal output
Symmetry generator
1 x symmetry and 1 x speed CV input
1 x signal input
1 x signal output
Rise & fall generator
1 x gate input
1 x signal output | | Controls | 10 x rotary knobs
1 x two-position waveform switch
1 x three-position trigger input selection switch
2 x two-position loop switch
1 x three-position sustain-mode switch
3 x decay-stage push buttons | | Power Supply | +12 V/150 mA, -12 V/150 mA | | Dimensions (L x W x H) | 13 x 9 x 5" / 33.0 x 22.9 x 12.7 cm | | Weight | 0.8 lb / 350 g |
