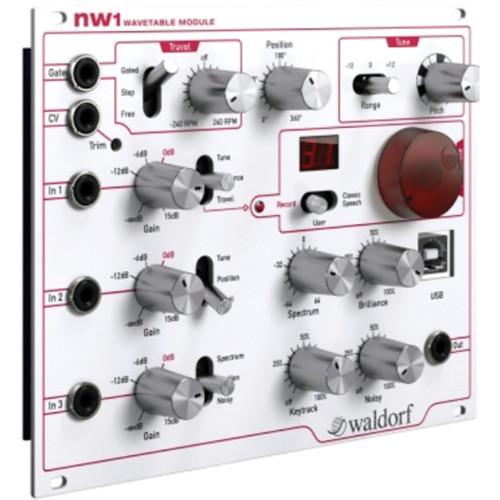

User Manual for Waldorf nw1 Wavetable Module for Eurorack Click to enlarge the picture
Contents of the user manual for the Waldorf nw1 Wavetable Module for Eurorack
- Product category: Synthesizer Modules Waldorf
- Brand: Waldorf
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Waldorf Synthesizer Modules
|
User manual for the Waldorf nw1 Wavetable Module for Eurorack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Waldorf product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Waldorf user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Waldorf product will considerably shorten its lifespan!
|
Product description Waldorf: kb37 Eurorack Keyboard Controller Read More The nw1 Waveable Module from Waldorf is a sound engine in Eurorack format with independent control of spectral envelope and noisiness. Wavetable scanning is cyclic with optional modulation of travel speed, position, spectrum, and more. The nw1 sound engine allows for onboard creation of user wavetables via time-domain multiple fold-over analysis. This can be done by connecting any sound source to the nw1 to transfer audio into a wavetable or by using the integrated speech synthesizer to translate typed text into wavetables. - Cyclic wavetable scanning with modulatable position and travel speed
- Control of spectral envelope independent of pitch
- Adjustable periodicity up to noisy reproduction
- Classic Waldorf wavetables included
- Integrated speech synthesizer for wavetables
- User-recordable wavetables
Table of Contents
|
Upload User Manual
Have you got an user manual for the Waldorf nw1 Wavetable Module for Eurorack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaldorf NW1 Specs | Power Requirements | ± 12 V, 150 mA | | Connectors | Gate input for triggering wavetable travel and recording
Main 1 V/Oct CV input with trim for pitch control
3 x CV inputs for modulation and realtime wavetable recording
Audio output
USB port with galvanic isolation for wavetable transfer and text input
Eurorack power connector | | Controls | 10 x Rotary knobs
1 x Rotary knob, wavetable select/encoder
6 x 3 Position switch | | Display | 2-digit, 7-segment display | | Dimensions | Width 6.4 in (162.6 mm), 32 HP |
