User Manual for Waldorf Pulse 2 Analog Synthesizer Module Click to enlarge the picture
Contents of the user manual for the Waldorf Pulse 2 Analog Synthesizer Module
- Product category: Synthesizer Modules Waldorf
- Brand: Waldorf
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Waldorf Synthesizer Modules
 |
User manual for the Waldorf Pulse 2 Analog Synthesizer Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Waldorf product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Waldorf user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Waldorf product will considerably shorten its lifespan!
|

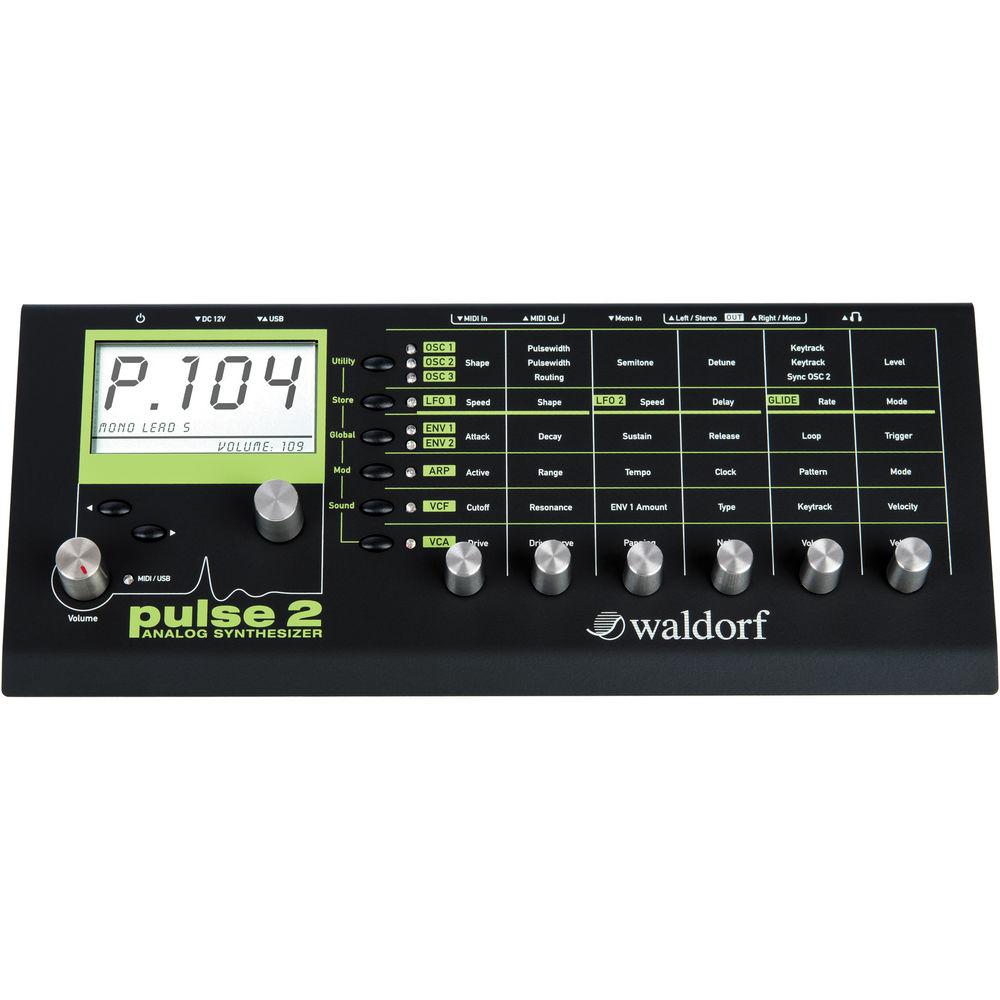

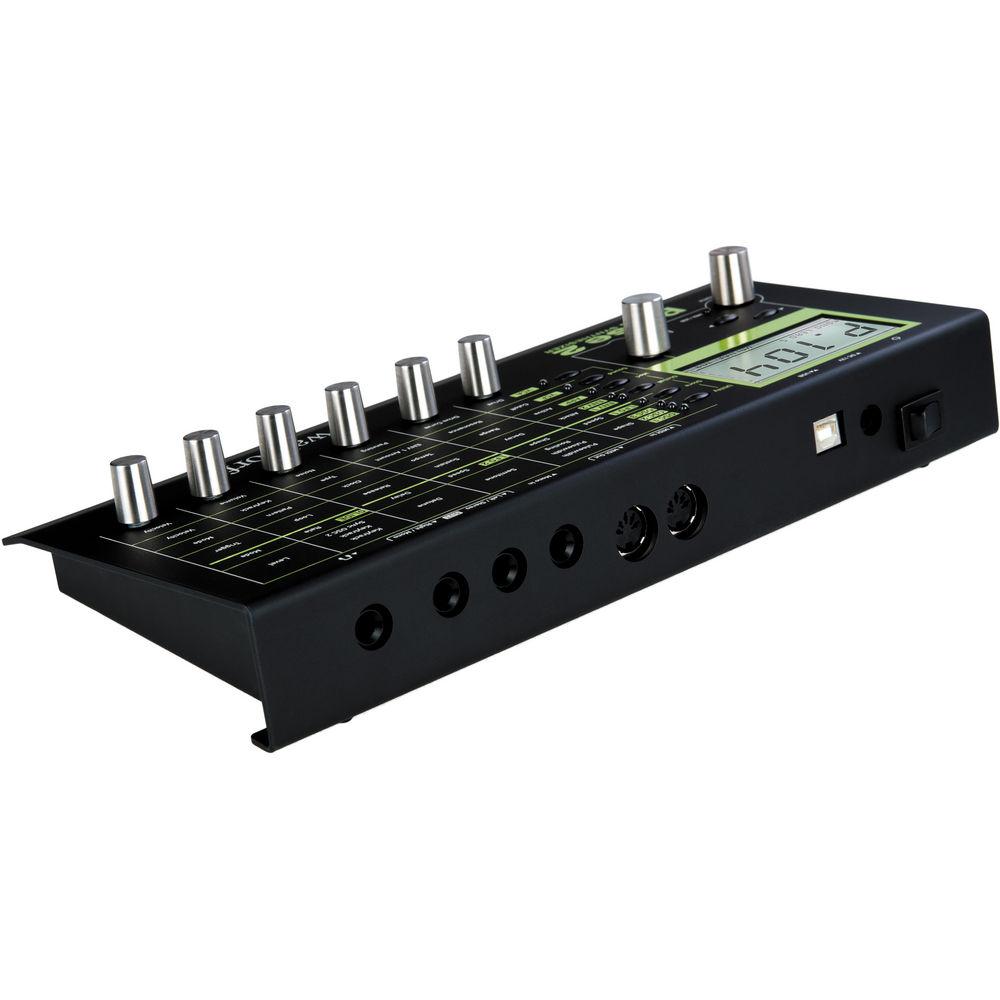

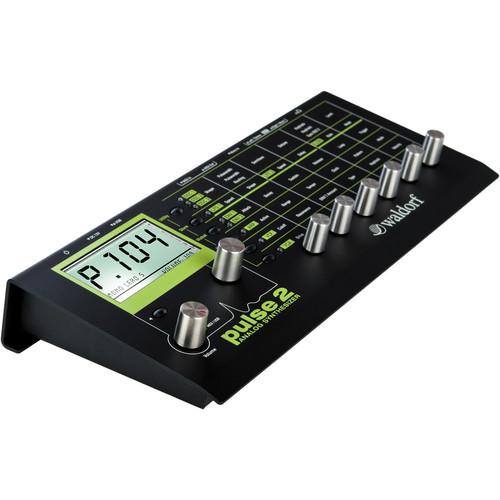

Product description The Pulse 2 Analog Synthesizer Module from Waldorf features 3 analog oscillators as well as an analog cascading filter. In addition, it has analog filter FM and ring modulation with up to 8-voice chords. You can create a variety of sounds and patterns with the built-in arpeggiator and route your sounds via the 8-slot modulation matrix or tweak the included 500 sound programs. Your parameters are displayed on the Pulse 2's backlit LCD screen.
The synth can be played by an external controller through its USB port or 5-pin DIN MIDI input. An external analog input allows for further tone shaping capabilities. -
- 3 analog oscillators + 1 noise generator
- Pulse width modulation
- Hard sync
- Filter FM from oscillator 3
- Ring modulation from oscillator 3
- XOR oscillator mode
- 8/4 voice paraphonic modes
- Cascade filter
- 24dB/12dB low-pass, 12dB high-pass/band-pass filter modes
- Arpeggiator
- 8-slot modulation matrix
- USB input
- 5-pin DIN MIDI input & output
- External analog signal input
- Backwards compatible with original Pulse synth
- 128x64 character backlit LCD
- 8 stainless steel knobs
- 500 sound programs
- Electron-absorbing black case
In the Box Waldorf Pulse 2 Analog Synthesizer Module Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Waldorf Pulse 2 Analog Synthesizer Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaldorf Pulse 2 Specs | Oscillators | 3 x analog
1 x noise generator | | Modulation | Pulse width
Filter FM (from oscillator 3)
Ring (from oscillator 3) | | Filter | Cascade filter
24 dB/12 dB low-pass, 12 dB high-pass/band-pass filter modes | | Matrix Type | 8-slot modulation matrix | | MIDI | USB
1 x 5-pin DIN input
1 x 5-pin DIN output | | Audio Output | 2 x 1/4" / 6.3 mm line output
1 x 1/4" / 6.3 mm stereo headphone output | | LCD | 128 x 64 | | Connections | 1 x 1/4" / 6.3 mm stereo headphone jack
2 x 1/4" / 6.3 mm audio line output (L/R)
1 x 1/4" / 6.3 mm audio line mono input
2 x 1/4" / 6.3 mm CV/Gate outputs
1x 5-pin DIN MIDI input
1x 5-pin DIN MIDI output
1x USB port
1x Power supply socket | | Power Supply | Nominal Voltage: 12 VDC
Supply Voltage: 100 - 240 V
Maximum Current Consumption: 400 mA
Maximum Power Consumption: 6 W | | Dimensions (W x D x H) | 12 x 5 x 2" / 304 x 132 x 54 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 17.8 x 9.0 x 2.9" |
