Product description

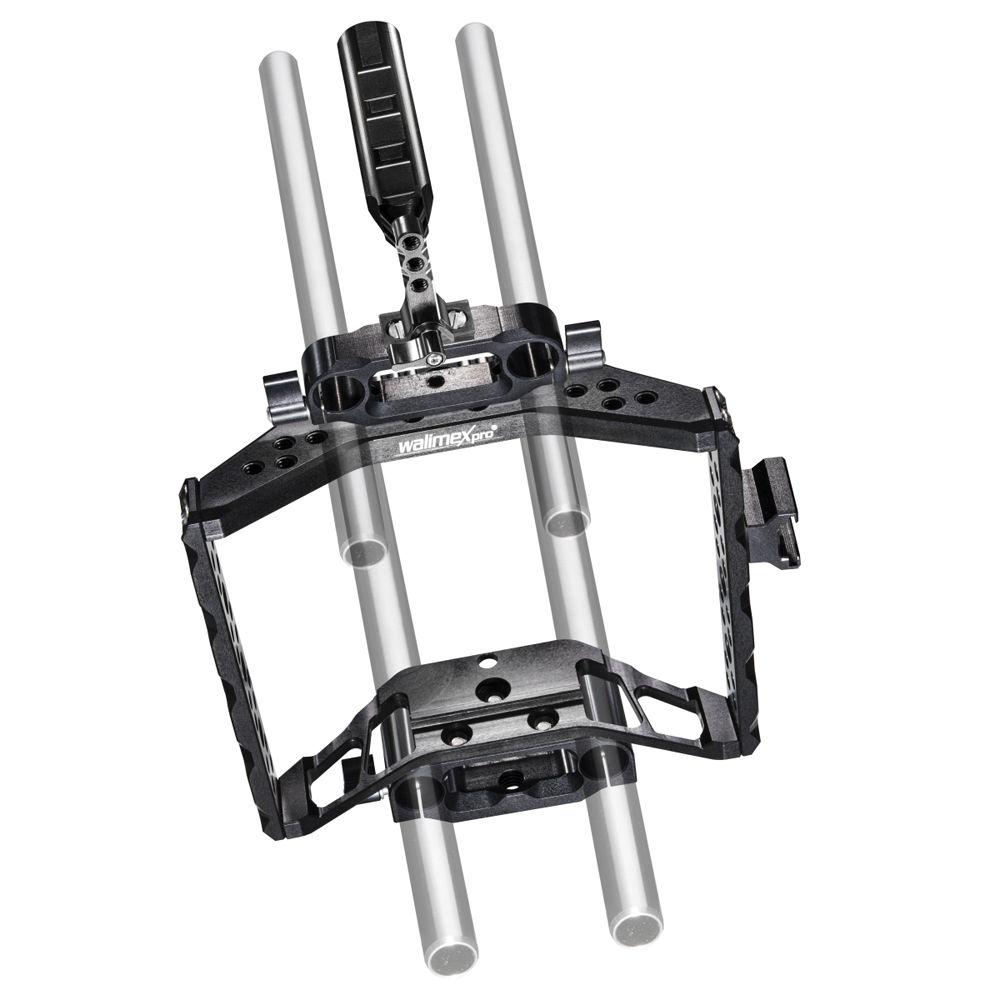

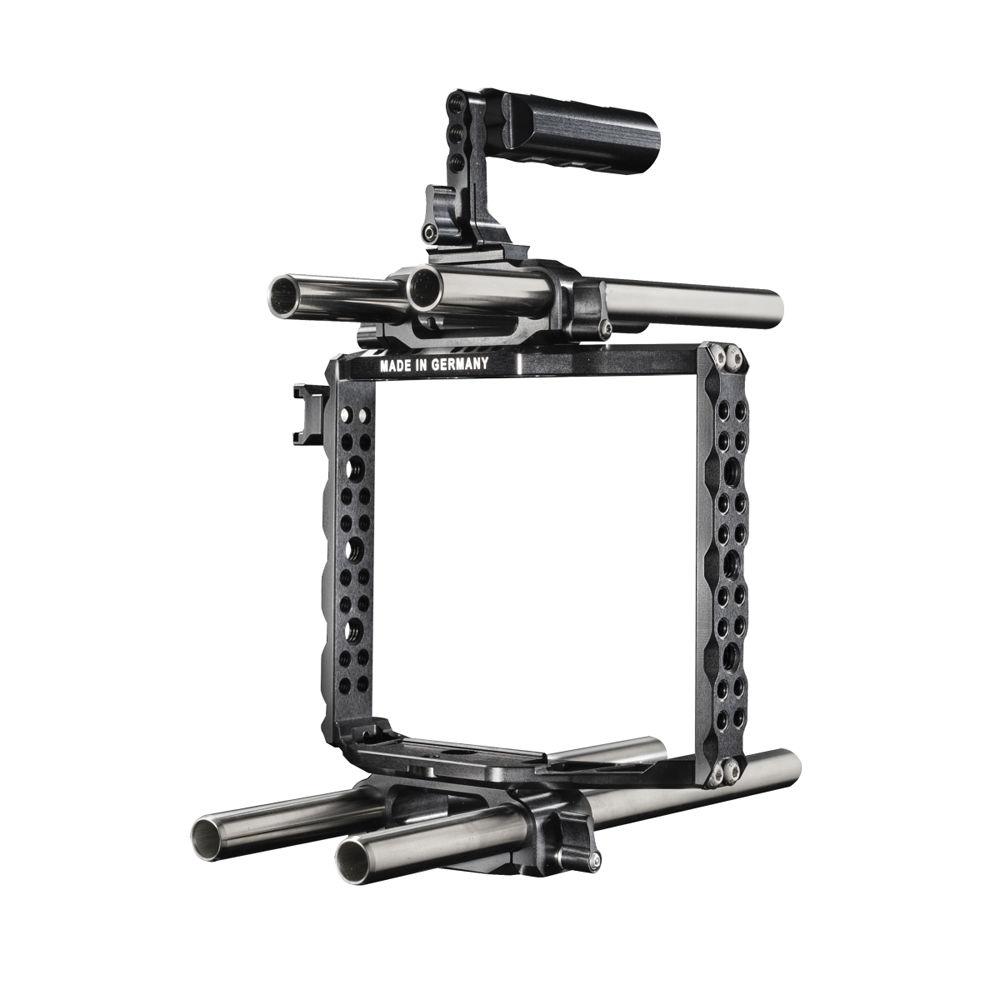

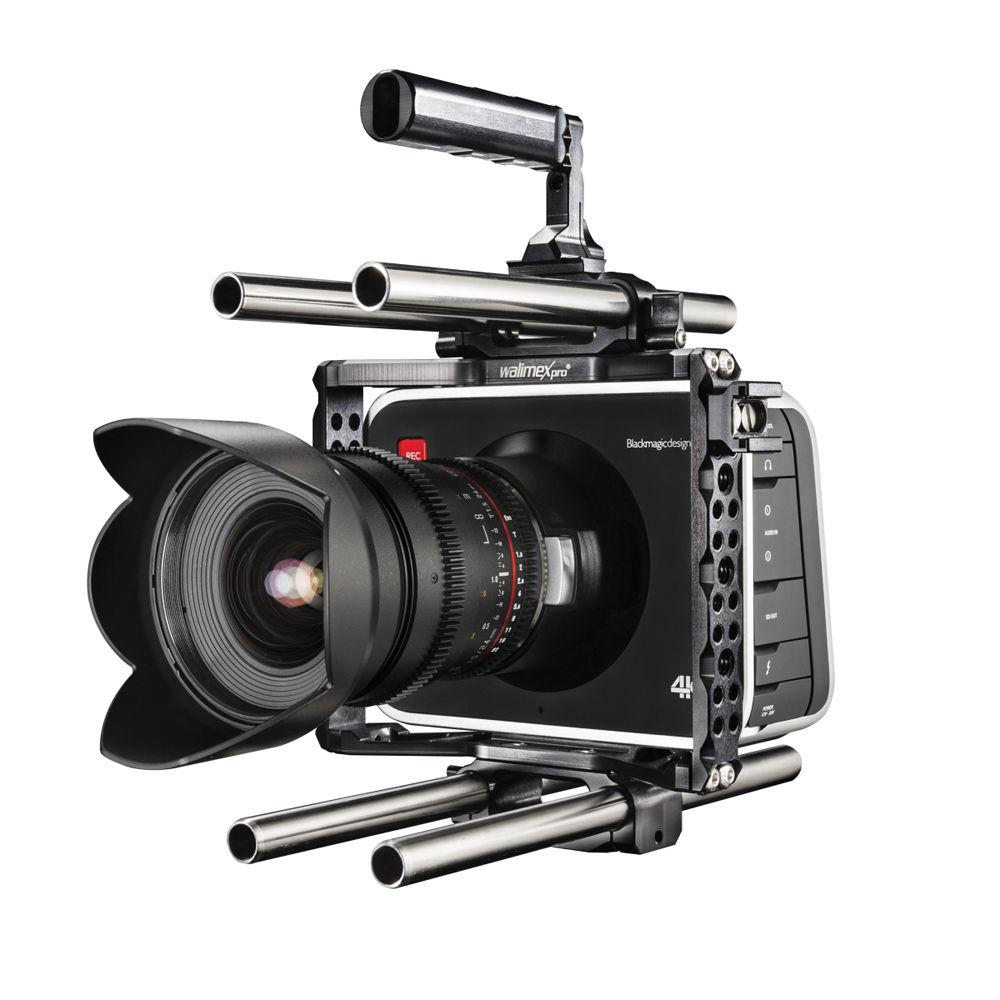

The Aptaris Camera Cage from walimex Pro is designed for the Blackmagic 2.5K Cinema Camera or Production Camera 4K but also fits many DSLR and mirrorless cameras. It provides a 1/4"-20 threaded screw for the camera and offers additional 1/4"-20 threads around the cage for attaching the included cold shoe mount and handle, as well as optional accessories such as microphones, recorders, monitors, or LED lights.

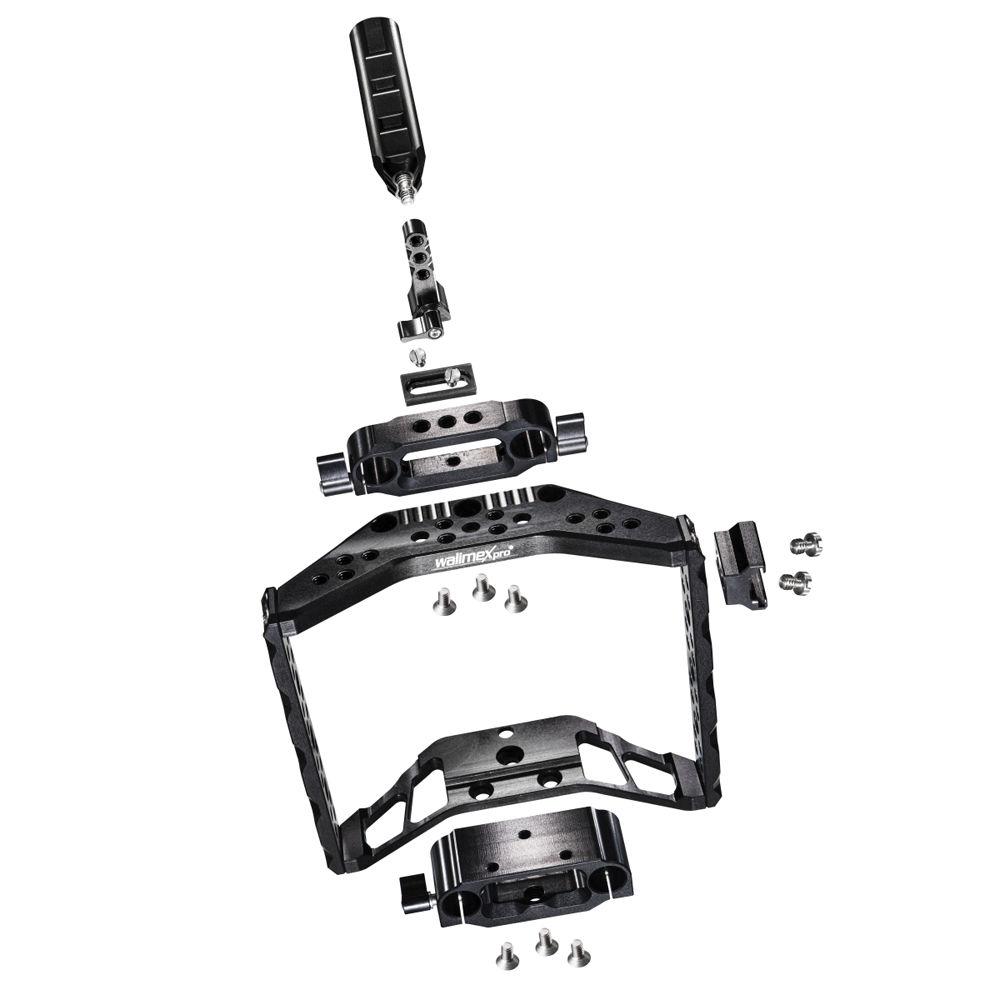

Rod modules on the top and bottom of the cage allow for standard 15mm rods to be added for direct attachment of accessories such as a matte box and follow focus. The bottom rod module has a 3/8"-16 threaded hole for use with a tripod. The cage comes included with two pairs of 15mm rods, in 9.8" and 7.9" lengths. The included two-part handle consists of a grip and riser, and attaches to the cage via a mini rail which can be positioned at any of the 1/4"-20 accessory holes. The handle riser slides onto the mini rail, using a lever to secure it in place. The cold shoe mount can also be positioned at any of the 1/4"-20 accessory holes.
    • Camera cage and 15mm support system for Blackmagic Cinema Camera 2.5K and Production Camera 4K
    • Fits most DSLR and mirrorless cameras
    • The cage doesn't block access to camera controls or SSD slot
    • 1/4"-20 accessory threads on top and sides of cage
    • Top and bottom rod modules for adding 15mm rods
    • 9.8" and 7.9" rods included
    • Constructed from light and aircraft aluminum
    • Adjustable handle can be mounted on top, bottom, or either side of cage

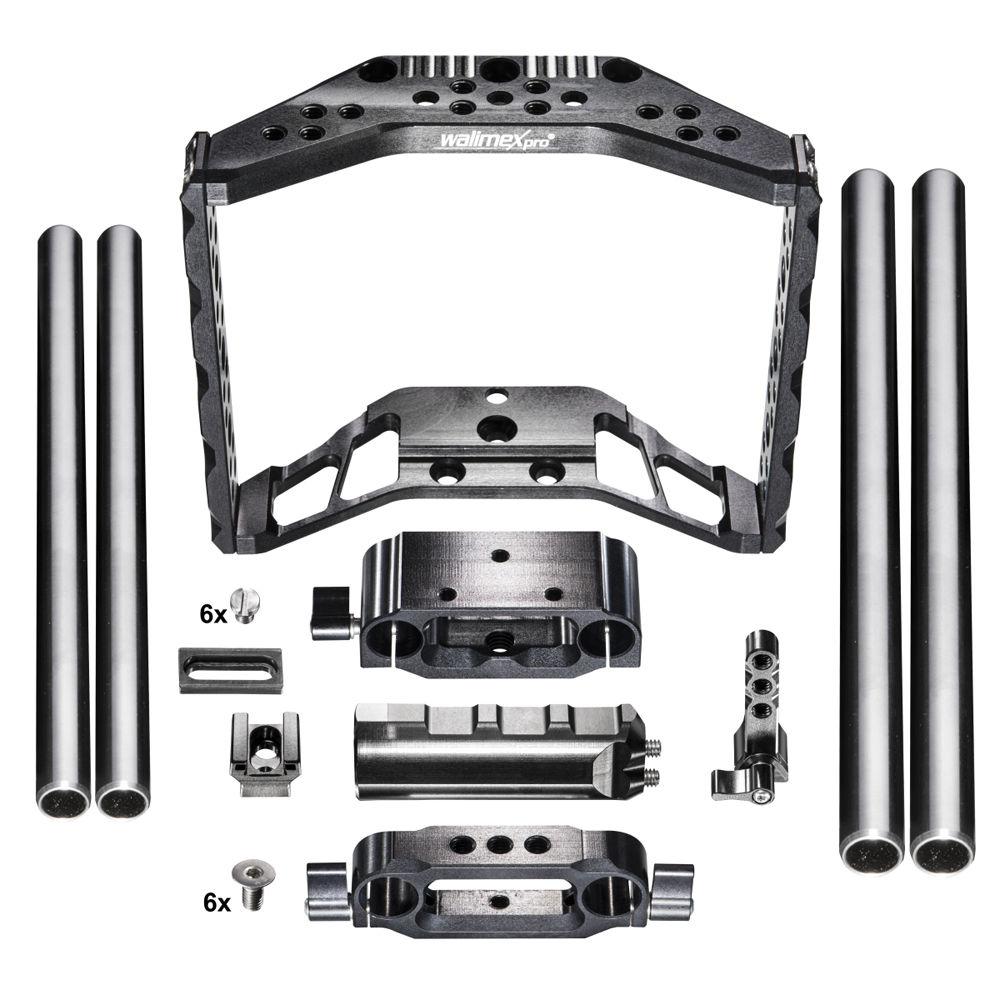

In the Box walimex Pro Aptaris Camera Cage for Blackmagic Cinema Camera, DSLRs & Mirrorless Cameras
  • Mini Rail
  • Handle Riser
  • Handle
  • Cold Shoe Mount
  • 2 x 15mm Rod (9.8")
  • 2 x 15mm Rod (7.9")
  • Fastening Screws
  • Wrench
  • Limited 2-Year Warranty
  • User Manual PDF 2.3mb Table of Contents




    Upload User Manual

    Have you got an user manual for the walimex Pro Aptaris Camera Cage for Blackmagic Cinema Camera, DSLRs & Mirrorless Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    walimex Pro 20172 Specs

    Material of Construction Cage: Black anodized aircraft-grade aluminum
    Rods: Stainless steel
    Accessory Mounting Threads 47 x 1/4"-20
    Tripod Mounting Thread 1 x 3/8"-16
    Rod Length 2 x 9.8" / 25 cm
    2 x 7.9" / 20 cm
    Dimensions (H x W) Cage with Top Handle: 10.3 x 7.4" / 26.2 x 18.9 cm)
    Weight With Rods: 2.4 lb / 1.1 kg
    Package Weight 3.0 lb
    Box Dimensions (LxWxH) 10.709 x 9.291 x 3.622"
