User Manual for WALRUS AUDIO Fathom Reverb Pedal for Electric Guitars Click to enlarge the picture
Contents of the user manual for the WALRUS AUDIO Fathom Reverb Pedal for
- Product category: Effects Pedals WALRUS AUDIO
- Brand: WALRUS AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WALRUS AUDIO Effects Pedals
|
User manual for the WALRUS AUDIO Fathom Reverb Pedal for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WALRUS AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WALRUS AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WALRUS AUDIO product will considerably shorten its lifespan!
|

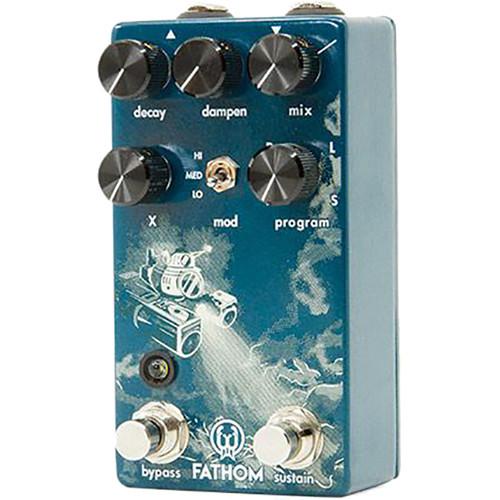

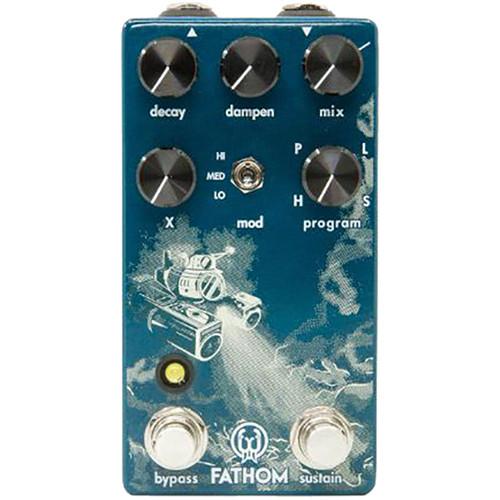

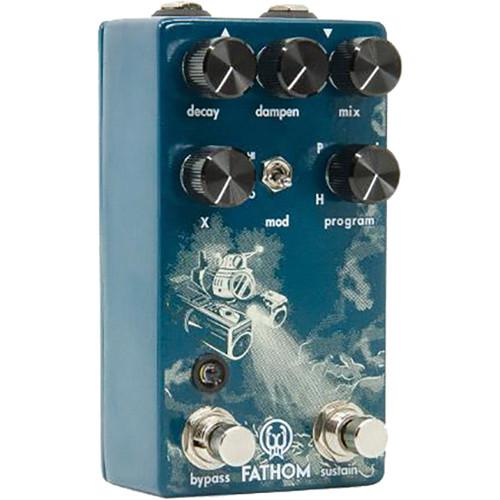

Product description Painted in an Arizona Teal finish with original artwork by Stuart Dooley, the Walrus Audio Fathom is a reverb pedal for electric guitars. It's capable of a wide array of reverberated tones thanks to its Program knob, which gives you access to four different algorithms. With this pedal, you can engage hall, plate, lo-fi, and octavized reverbs. Controls include Decay, Dampen, and Mix for blending wet signal with your dry, unprocessed tone. A Mod toggle lets you apply varying amounts of modulation to the signal, while the X knob's function changes depending on the Program knob, which changes the reverb algorithm. Two footswitches control not only bypass, but also momentary functions that come in handy for lending flavor to specific musical passages. The power supply for this pedal is available separately. - 4 Reverb Algorithms
- Hall: A wide, open, and vast with decay that ends with high-frequency roll-off. The X knob adjusts predelay.
Plate: A full-bodied reverb with a smooth decay. The X knob adjusts predelay. Lo-Fi: A filtered reverb with decay ranging from warm to thin, AM radio timbres. The X knob adjusts filter width. Sonar: A reverb fed with both high and low octaves. The X knob controls octave blend. - Momentary Functions
- When the pedal is in the off position, press and hold the bypass switch to temporarily activate the effect, which will add only a moment of reverb. Releasing the switch turns then the effect off.
Press and hold the sustain switch while the pedal is on to sustain the reverb decay for a dreamy, ambient decrescendo. - Trails Mode
- To turn Trails mode on or off, unplug the pedal and press and hold down the bypass Switch for two seconds while plugging the pedal back in.
UPC: 810424030633 In the Box WALRUS AUDIO Fathom Reverb Pedal for Electric Guitars Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WALRUS AUDIO Fathom Reverb Pedal for Electric Guitars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWALRUS AUDIO Fathom Reverb Specs I/O | 1 x 1/4" instrument input, phone type 1 x 1/4" instrument output, phone type | Controls | Decay knob Dampen knob Mix knob X knob Program knob Mod switch Bypass footswitch Sustain footswitch | Power Requirements | 9 VDC, 100 mA minimum | Power Supply | Not included | Dimensions | 4.8 x 2.6 x 1.4" / 12.1 x 6.6 x 3.5 cm | Weight | Not specified by manufacturer | | Package Weight | 0.85 lb | Box Dimensions (LxWxH) | 5.8 x 4.7 x 2.5" |
