User Manual for Warm Audio WA-251 Large-Diaphragm Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Warm Audio WA-251 Large-Diaphragm Tube Condenser
- Product category: Tube Microphones Warm Audio
- Brand: Warm Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Warm Audio Tube Microphones
 |
User manual for the Warm Audio WA-251 Large-Diaphragm Tube Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Warm Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Warm Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Warm Audio product will considerably shorten its lifespan!
|

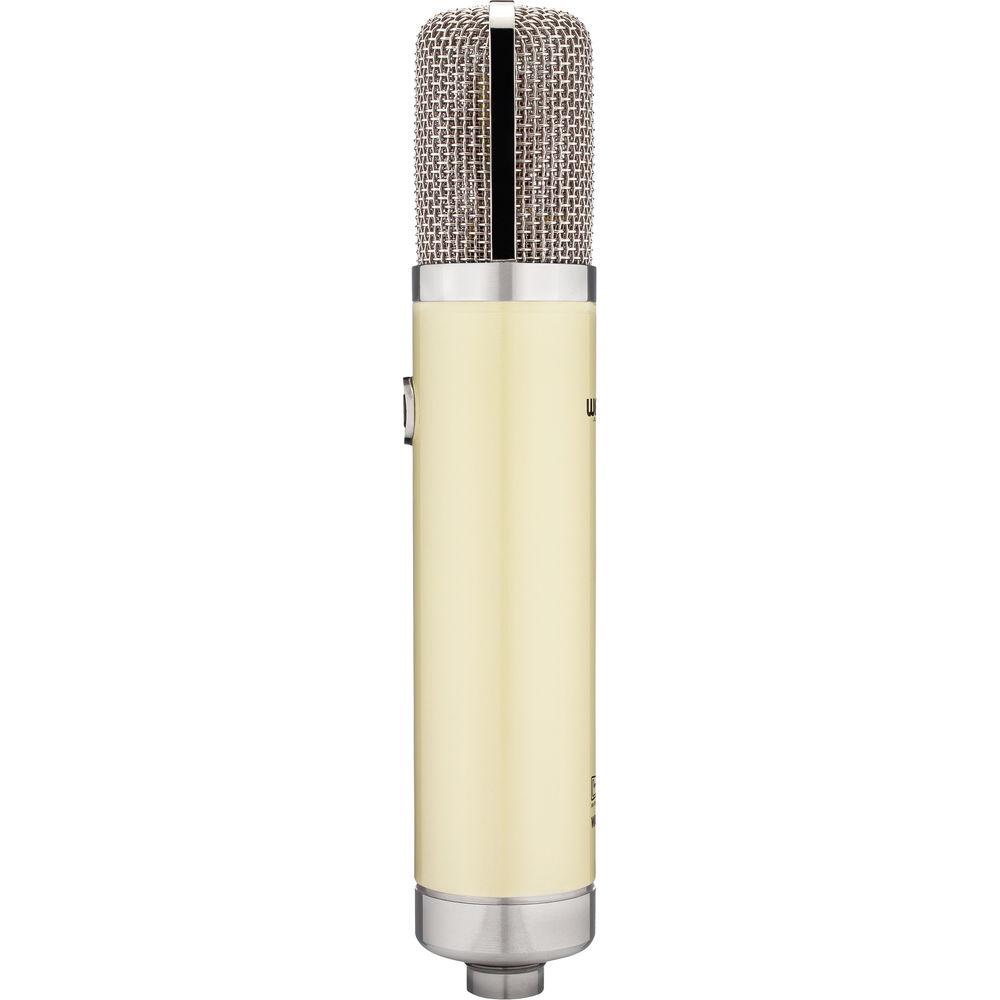

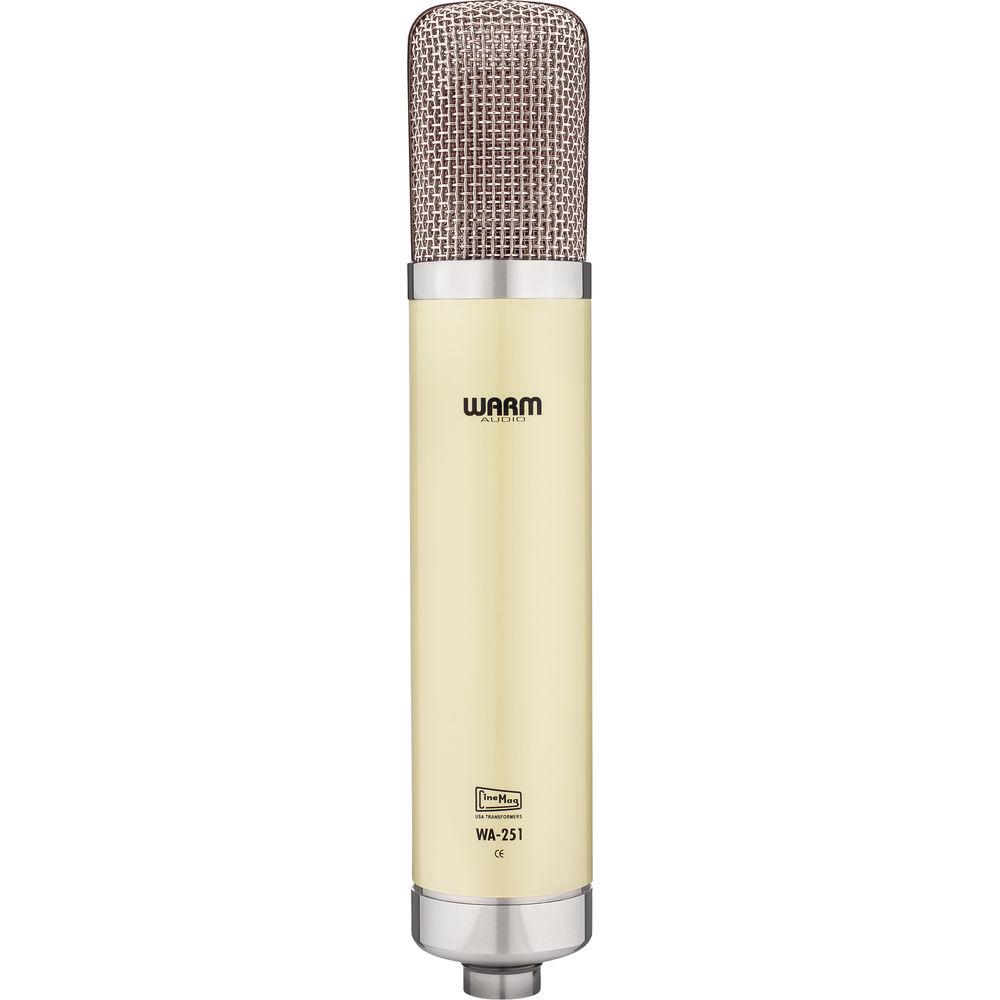

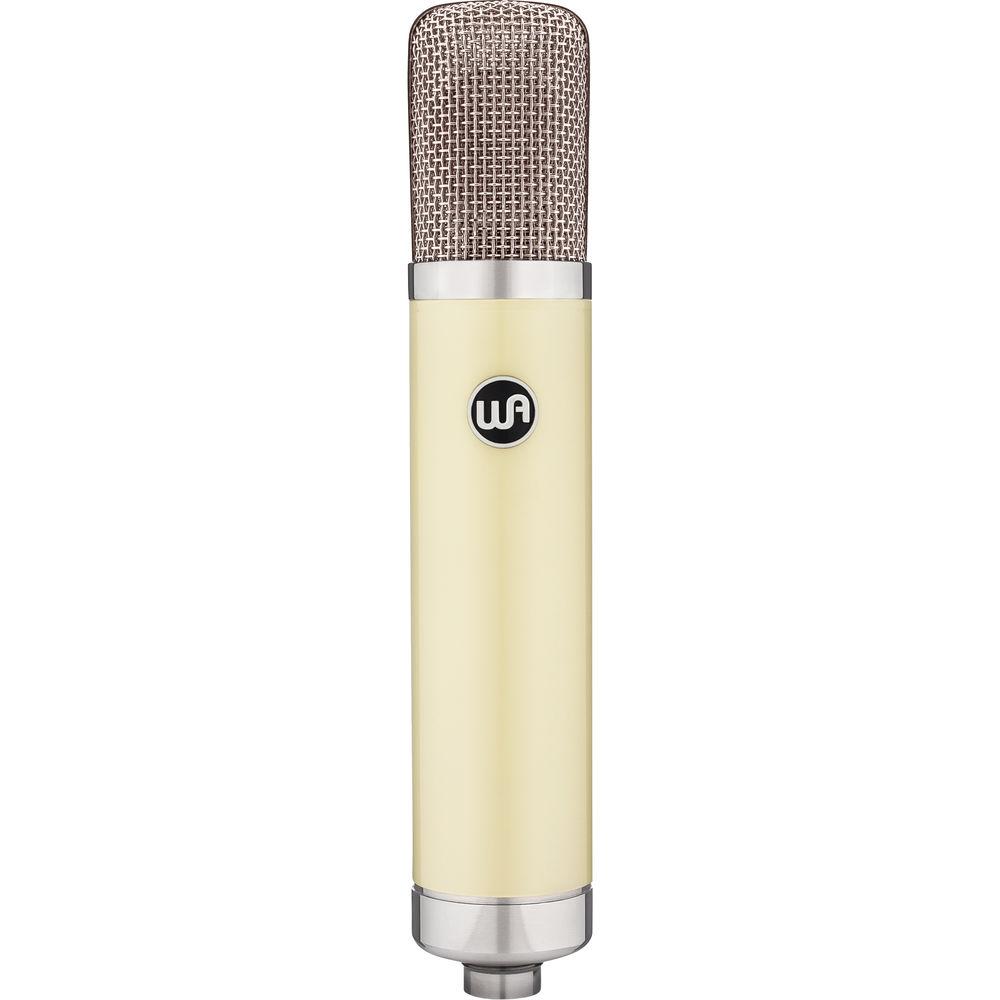

Product description The Warm Audio WA-251 is a large-diaphragm tube condenser microphone designed to provide the tonal characteristics of classic 251 microphones for vocalists, musicians, and recording engineers in home, project, and commercial recording studios. Thanks to three polar patterns—cardioid, omnidirectional, and figure-8—selectable from the included external power supply, its versatility allows it to excel on anything from close-up vocals to distant room sounds. It handles SPLs up to 132 dB with low distortion and noise, and produces a frequency response of 20 Hz to 20 kHz.The custom CK12-style capsule features brass construction and a gold-sputtered, 6-micron Mylar diaphragm with a single backplate. Tone-enhancing components, including a JJ 12AY7 vacuum tube, an American-made CineMag output transformer, and WIMA, Solen, and polystyrene capacitors, have been carefully selected to impart vintage-flavored tone characterized by a present high end and prominent low frequencies. Even the 7-pin cable, manufactured by Gotham Audio in Switzerland, rises to meet the demands of high-resolution audio production. It ensures the integrity of high frequencies and minimizes phase shift between the microphone and the power supply.The WA-251 is supplied with a wood box and a shockmount, which reduces rumble and decouples it from problematic vibrations. - Vintage-Style Microphone
- Engineered to pay homage to the classic 251 microphone of the 1960s while standing out on its own; ideal for vocals, drums, piano, strings, guitar, bass, brass/woodwind instruments, and more
- Custom Capsule
- Custom, all-brass, edge-terminated WA-12-B-60V capsule with a 24kt gold–sputtered, 6-micron NOS PET film (Mylar) diaphragm offers the tonality of the classic CK12 capsule with the reliability of modern components
- JJ 12AY7 Vacuum Tube
- Slovak Republic JJ 12AY7 vacuum tube imparts a characterful frequency response and contributes smoothness to the circuit
- CineMag Transformer
- American-made CineMag transformer helps provide the present top end and the large bottom end typically desired from a 251-style condenser mic
- Carefully Selected Capacitors
- Carefully selected capacitors include polystrene coupling capacitors, WIMA film capacitors, and an imported Solen capacitor on the output
- Premium Tube Mic Cable
- Includes a premium Gotham Audio GAC-7 tube microphone cable, which enhances top-end presence and reduces phase shift

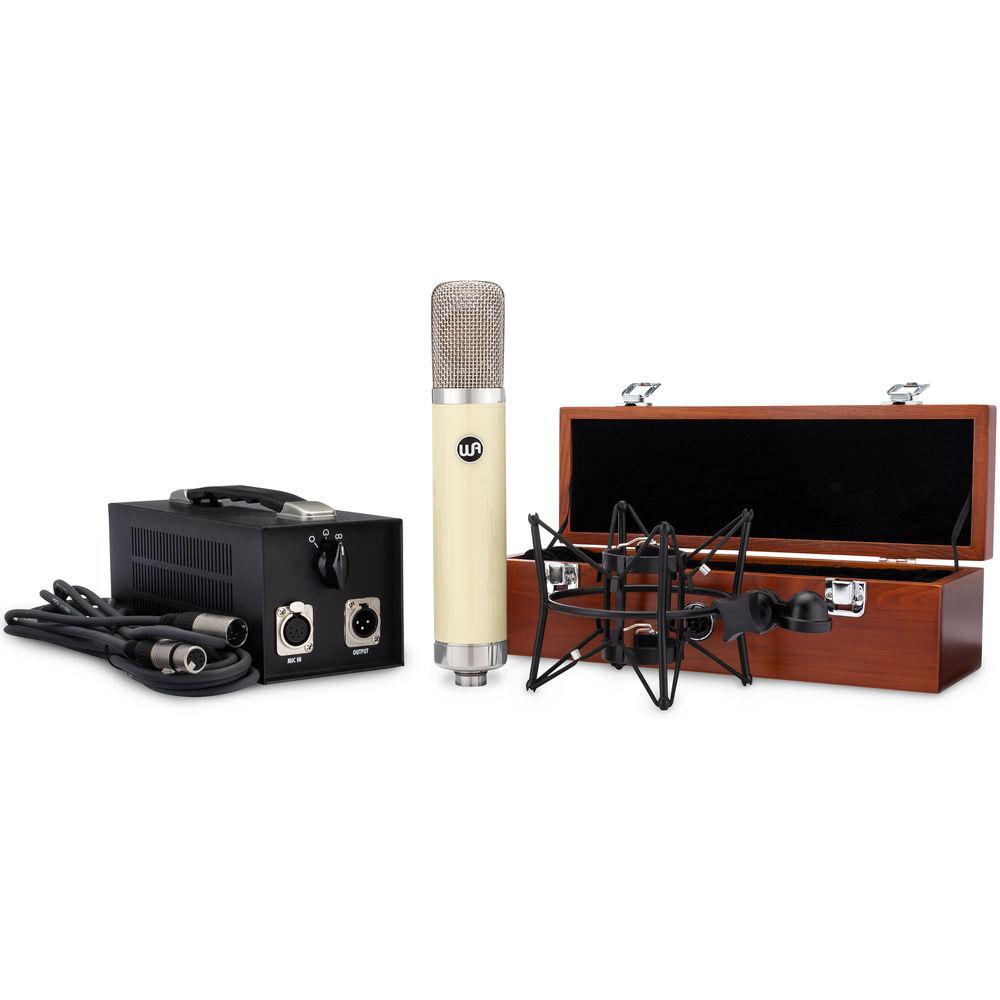

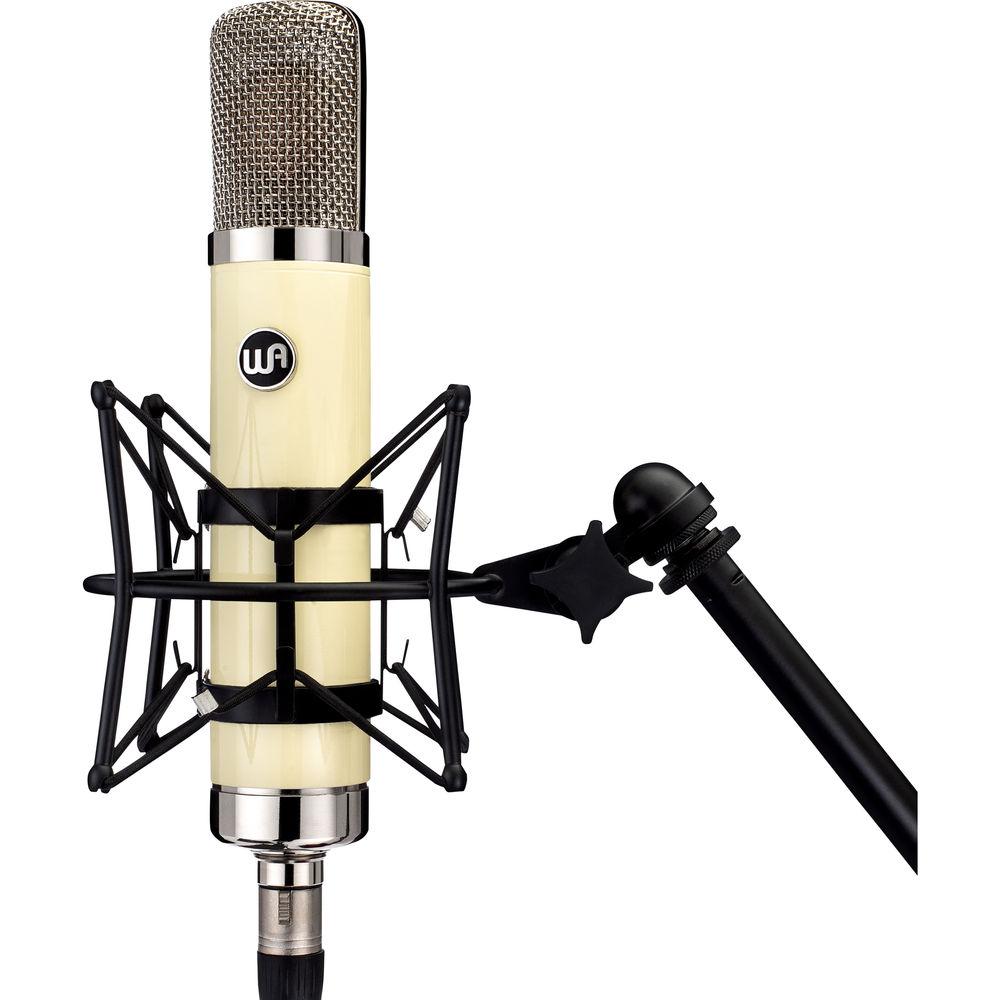

UPC: 860191002128 In the Box Warm Audio WA-251 Large-Diaphragm Tube Condenser Microphone Power Supply Unit Shockmount Gotham 7-Pin Tube Microphone Cable Wood Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA-251 Large-Diaphragm Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWarm Audio WA-251 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient
Pressure Operated | | Transducer | Condenser | | Tube | Yes JJ Slovak 12AY7 Vacuum Tube | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB A-Weighted | | Equivalent Noise Level | 12 dB A-Weighted | | Maximum SPL | 132 dB SPL | | Pad | None | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Low-Cut Filter | None | | Dynamic Range | 125 dB A-Weighted | | | | Output Connectors | 1 x 7-Pin XLR
1 x 3-Pin XLR Microphone: 7-Pin XLR
Power Supply: 3-Pin XLR | | Cable Length | 16.40' / 5 m | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | Length | 9.72" / 247 mm | | Diameter | 1.81" / 46 mm | | | | Package Weight | 10.615 lb | | Box Dimensions (LxWxH) | 19.2 x 14.1 x 5.7" |
