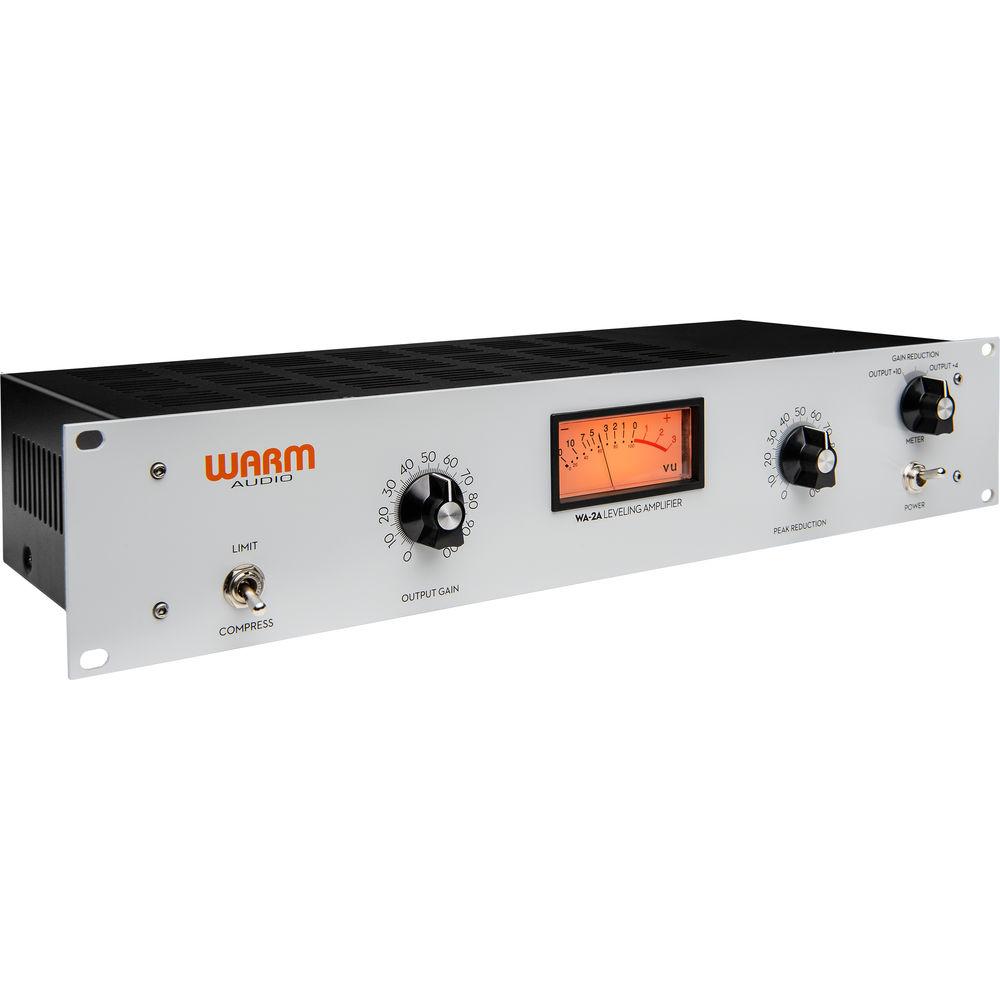

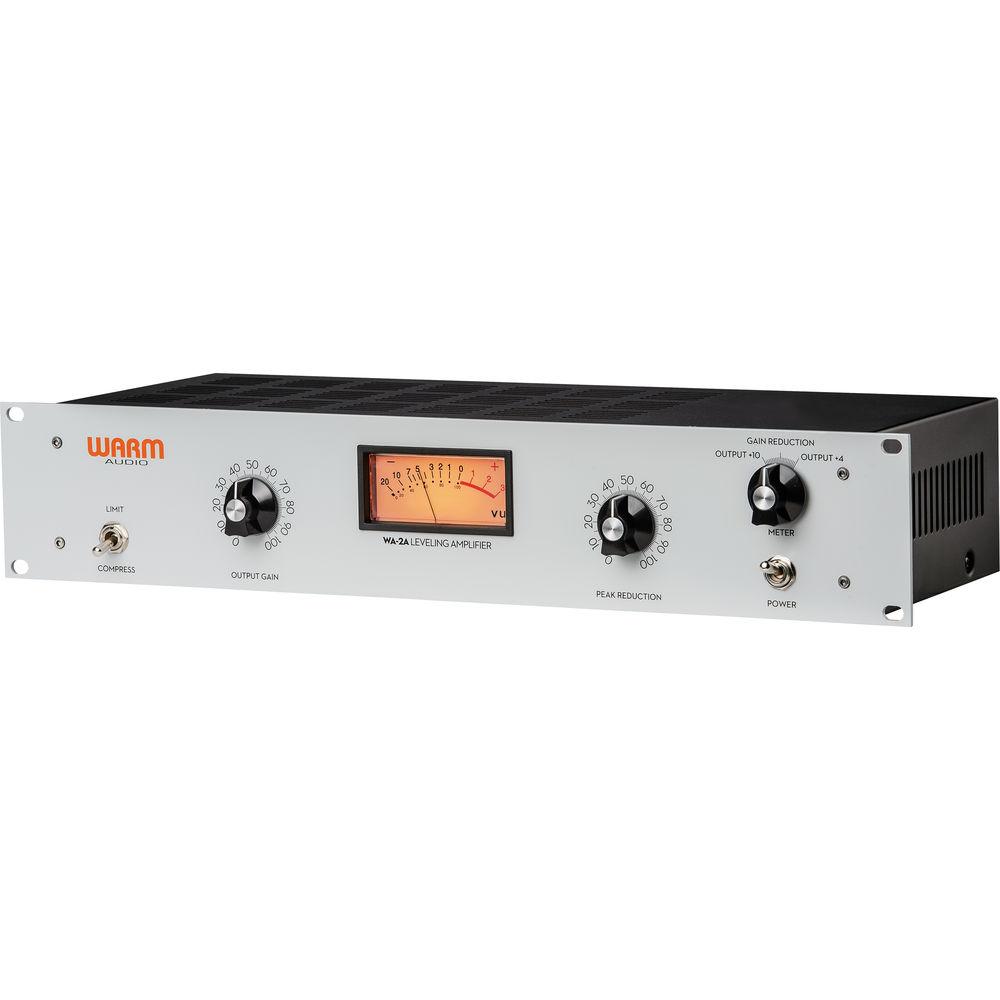

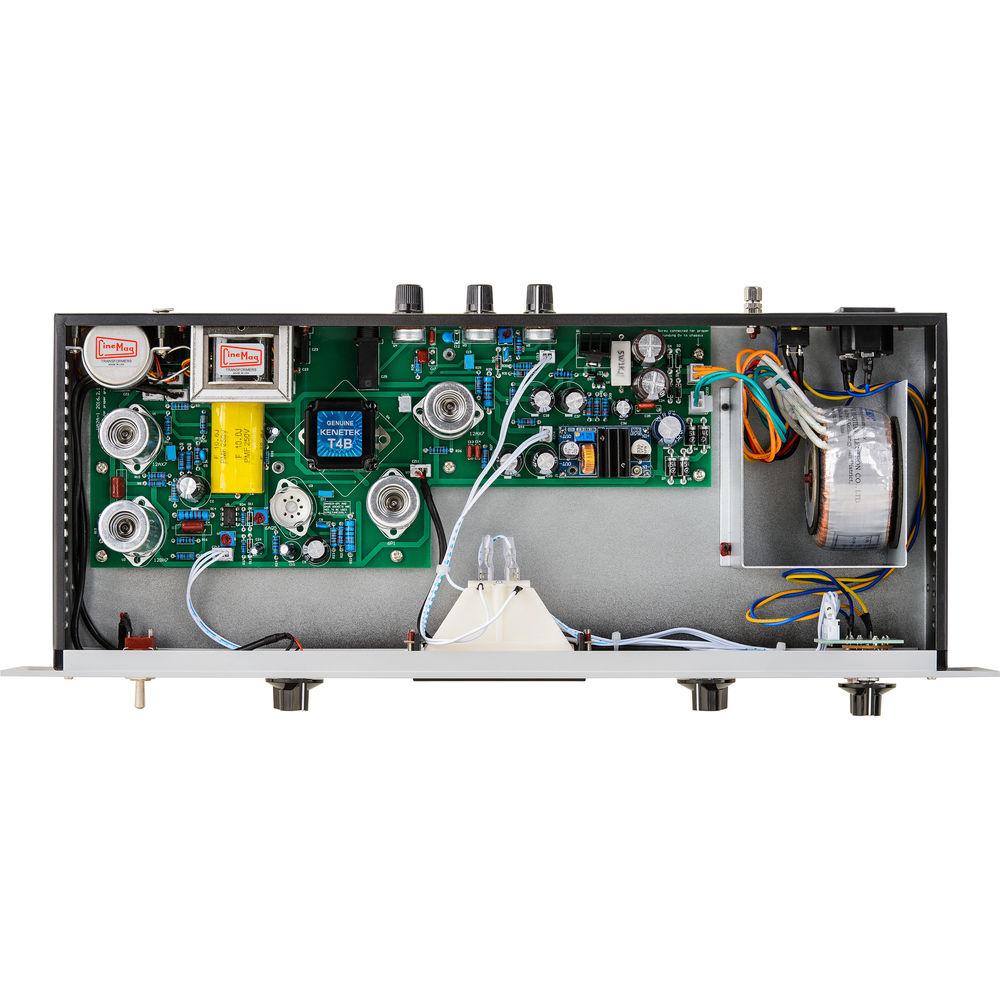

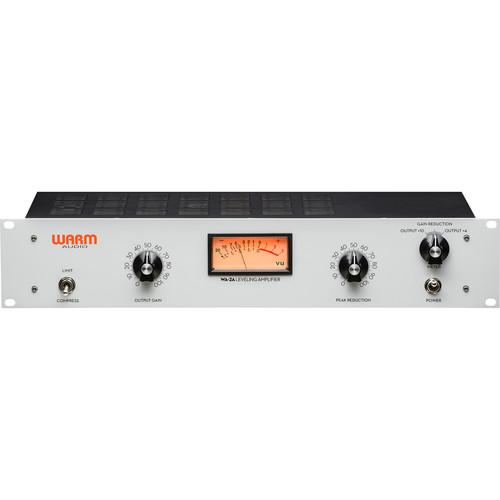

Product description The Warm Audio WA-2A is a single-channel tube optical compressor that recreates a classic leveling amplifier originally released in the late 1950s. With Tung-Sol and Electro-Harmonix tubes, dual CineMag transformers, and a Kenetek opto-cell, the WA-2A offers smooth, warm compression ideal for vocals, bass, guitars, drums, and parallel submixes. Its discrete signal path is terminated with balanced XLR and 1/4" TRS input and output connectors, and delivers a high output with minimal noise. Use compress mode for moderate peak attenuation, or switch to limit mode for more aggressive gain reduction. Operation is simple and efficient, thanks to the adjustable gain and peak reduction controls. The rear-panel "Pre-Emphasis" serves as a tone control for the sidechain. A large VU meter allows easy viewing of gain reduction or output level, and can be calibrated via a dedicated potentiometer. The WA-2A supports stereo linking to a second WA-2A through a 1/4" TRS cable (available separately). - Transformed-balanced, high-voltage, optical tube compressor built in the classic "2A" style
- Up to 40 dB of gain reduction
- Up to 40 dB of make-up gain
- CineMag USA input and output transformers
- USA-made Kenetek opto-cell attenuator T4-style module
- Socketed construction to allow retrofitting of other opto-cells and tubes
- Tung-Sol and Electro-Harmonix tubes including two 12AX7s, one 12BH7, and one 6P1
- Fully discrete signal path
- Variable pre-emphasis allows for reducing high frequencies in the sidechain
- Supports stereo linking via 1/4" TRS
- Balanced XLR and 1/4" TRS I/O
- VU meter with selectable display of gain reduction or output at +4 dB / +10 dB above the meter reading
- Rear-panel meter adjust function for easy VU calibration
- Occupies 2 RU of rack space
UPC: 638142859097 In the Box Warm Audio WA-2A Single-Channel Tube Optical Compressor IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA-2A Single-Channel Tube Optical Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWarm Audio WA-2A Specs | Function | Compressor/Limiter (Leveling Amplifier) | | Number of Channels | 1 | | Inputs | 1 x XLR 3-Pin Female (Balanced)
1 x 1/4" TRS Female (Balanced) | | Outputs | 1 x XLR 3-Pin Male (Balanced)
1 x 1/4" TRS Female (Balanced) | | Link Connector | 1 x 1/4" TRS Female | | Input Impedance | 600 Ohms | | Output Impedance | 600 Ohms | | Maximum Input Level | +16 dB | | Compression Threshold | Fixed | | Compression Ratio | Compress Mode: Fixed and Source-Dependent
Limit Mode: Approximately Infinity:1 | | Attack Time | 10 ms | | Release Time | 50% Release: 60 ms
Complete Release: 500 ms to 5 sec | | Maximum Output Level | +16 dB (+10 dB Nomimal) | | Make-up Gain | Up to 40 dB (
