User Manual for Warm Audio WA-412 4-Channel Microphone Pre-Amp with DI Click to enlarge the picture
Contents of the user manual for the Warm Audio WA-412 4-Channel Microphone Pre-Amp
- Product category: Microphone Preamps Warm Audio
- Brand: Warm Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Warm Audio Microphone Preamps
 |
User manual for the Warm Audio WA-412 4-Channel Microphone Pre-Amp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Warm Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Warm Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Warm Audio product will considerably shorten its lifespan!
|

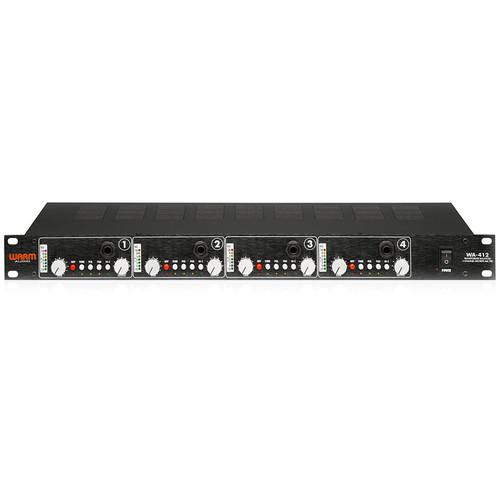

Product description The WA-412 from Warm Audio is a four-channel preamp for microphones and Hi-Z inputs housed in a 1 RU chassis. It's fashioned in the American console preamp style, providing a punchy bottom end and smooth trebles. Each channel gives you 65 dB of gain, polarity switching, a 20 dB pad, 48V phantom power, a switchable impedance selector for tonal shaping, and knobs for both input gain and output; this allows for both precise and creative gain structuring of sound. You can easily watch your signal via the on-board LED meter for every channel.

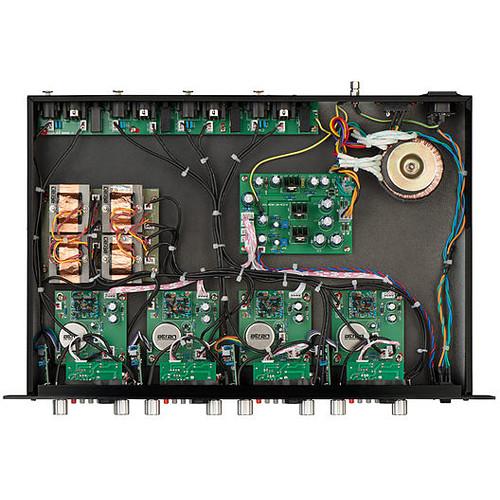

Under the hood, you'll notice that each channel uses a discrete and socketed 6-pin X520 op-amp, which helps in giving you a significant amount of headroom with minimal distortion characteristics. You'll also note the Altran input and output transformers. If you don't peak under the hood, you'll take comfort in the fact that these components are extending your low-frequency response all while maintaining a pleasurable and open sound. UPC: 638142859295 In the Box Warm Audio WA-412 4-Channel Microphone Pre-Amp with DI Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA-412 4-Channel Microphone Pre-Amp with DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWarm Audio WA-412 Specs | Number of Channels | 4 | | Inputs | 4 x XLR inputs

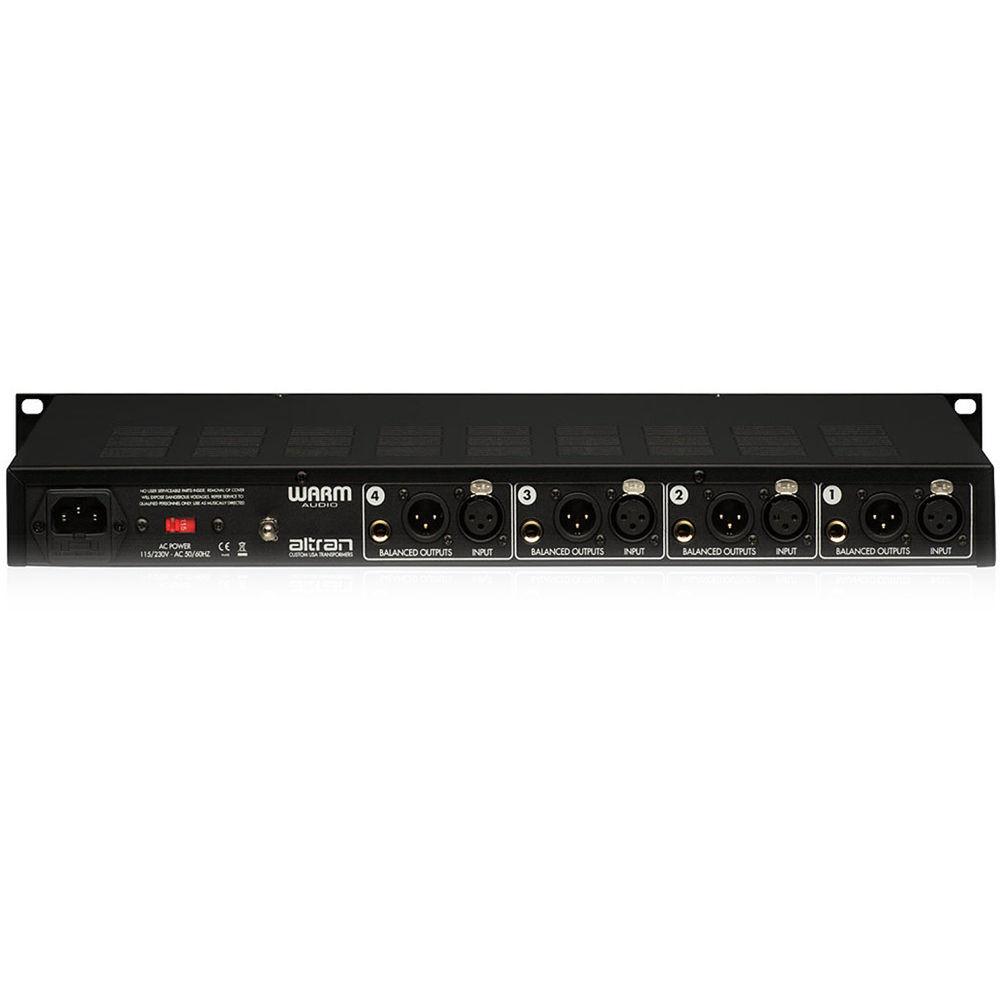

4 x 1/4" HI-Z instrument inputs | | Output | 4 x XLR balanced outputs
4 x 1/4" TRS balanced outputs | | Phantom Power | Switchable for every channel | | Gain Range | 65 dB | | Input Impedance | Switchable between 600 and 150 Ohms | | Rackmount Space | 1 RU | | Total Dimensions & Weight | Not specified by manufacturer | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 27.0 x 21.0 x 6.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
