User Manual for Warm Audio WA-47 Large-Diaphragm Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Warm Audio WA-47 Large-Diaphragm Tube Condenser
- Product category: Tube Microphones Warm Audio
- Brand: Warm Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Warm Audio Tube Microphones
 |
User manual for the Warm Audio WA-47 Large-Diaphragm Tube Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Warm Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Warm Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Warm Audio product will considerably shorten its lifespan!
|

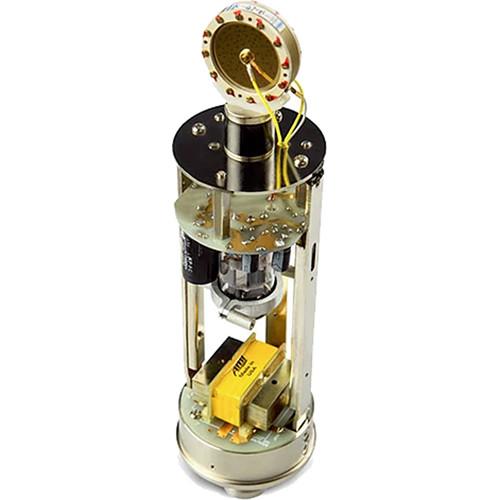

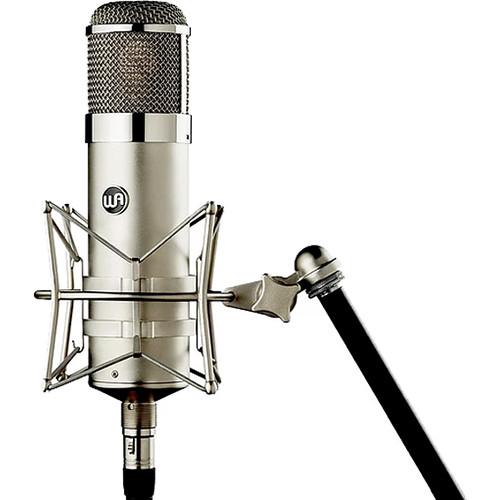

Product description The Warm Audio WA-47 is a large-diaphragm tube condenser microphone designed to provide the tonal characteristics of classic U47 microphones for vocalists, musicians, and recording engineers in home, project, and commercial recording studios. Thanks to nine polar patterns—cardioid, omnidirectional, figure-8, and six intermediate patterns—selectable from the included external power supply, its versatility allows it to excel at anything from close-up vocals to distant room sounds. The K47-style capsule reproduction features dual gold-sputtered, 6-micron Mylar diaphragms with a single backplate. Tone-enhancing components, including a JJ 5751 vacuum tube, TAB-Funkenwerk (AMI) output transformer, and WIMA, Solen, and polystyrene capacitors, have been carefully selected to impart vintage-flavored tone characterized by a smooth, uncompressed high end and strong, warm low frequencies. Even the 7-pin cable, manufactured by Gotham Audio in Switzerland, rises to meet the demands of uncompromised audio production. It ensures the integrity of high frequencies and minimizes phase shift between the microphone and the power supply. The WA-47 ships with a wood box and a shockmount, which reduces rumble and decouples it from problematic vibrations. - Custom Capsule

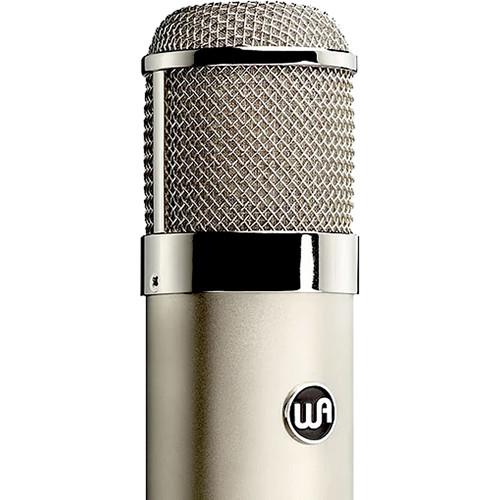

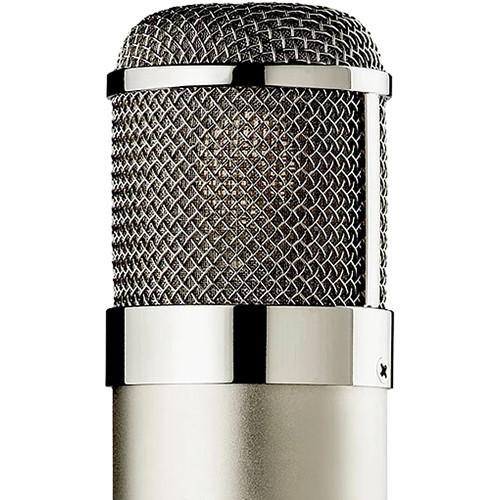

- The WA-47 utilizes a custom reproduction of the vintage K47-style capsule that was used in the classic U47 microphone—designed with the same hole pattern and frequency response. Warm Audio's version of this capsule (model WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer whose precision and consistency allows sonic replication of the most important piece of this classic style of microphone.
- JJ Vacuum Tube
- The JJ 5751 vacuum tube from the Slovak Republic is a lower gain, low-noise tube that forces much of the sonics of the capsule and transformer to be heard more significantly than some higher-gain tubes might allow. After auditioning four different tube brands, the folks at Warm Audio fell in love with the JJ 5751. Its frequency response and tonal contributions are smooth and vintage in nature.
- AMI Transformer
- The WA-47 utilizes an American-made TAB-Funkenwerk (AMI) USA transformer with imported large-core German laminations. This transformer helps provide the creamy smooth top end and the larger-than-life bottom end one would expect from a U47-style condenser microphone.
- Premium Cable
- One component of a tube microphone often overlooked is the 7-pin cable that connects the microphone to its power supply. When auditioning the WA-47 and other tube microphones, Warm Audio learned a lot about 7-pin cables and how the shielding and wire gauge can drastically change the sonic characteristics of a tube microphone. Warm Audio partnered with Gotham Audio in Switzerland to use their carefully built, premium 7-pin GAC-7 cable. Using this cable increases top-end presence and the overall size of the recorded image in the stereo field by reducing phase shift and the parasitic effect often found in poorly built cables.
- Tone-Impacting Capacitors
- The WA-47 uses a polystyrene coupling capacitor for uncompressed top-end response from the capsule. WIMA film capacitors are present throughout and an imported Solen capacitor drives the TAB-Funkenwerk (AMI) USA output transformer.

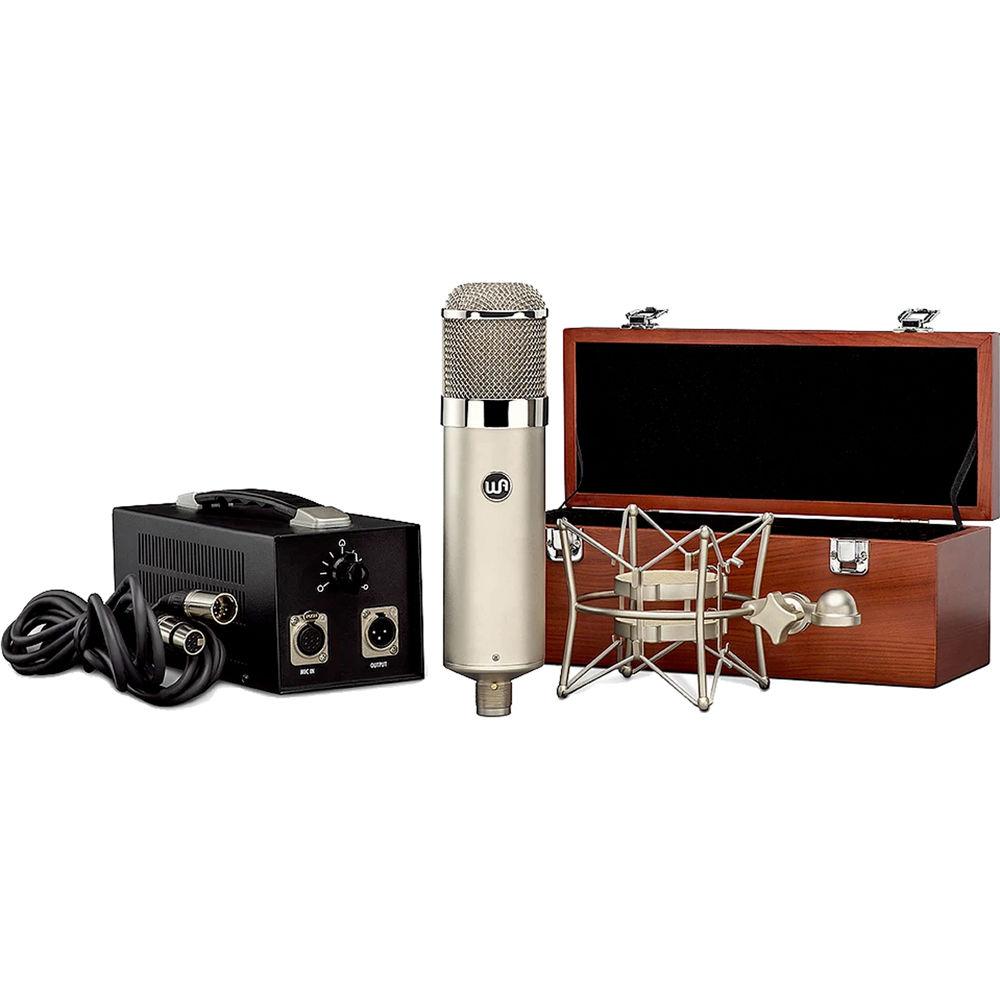

UPC: 713541493117 In the Box Warm Audio WA-47 Large-Diaphragm Tube Condenser Microphone Wood Box External Power Supply Shockmount Gotham 7-Pin GAC-7 Cable IEC Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA-47 Large-Diaphragm Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWarm Audio WA-47 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional Six additional mixed polar patterns are also selectable via power supply | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 82 dB A-Weighted | | Equivalent Noise Level | 10 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | None | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Low-Cut Filter | None | | Dynamic Range | 130 dB A-Weighted | | | | Output Connectors | 1 x 7-Pin XLR
1 x 3-Pin XLR 7-pin XLR on microphone
3-pin XLR on power supply | | Cable Length | 16.40' / 5 m Detachable Gotham GAC-7 cable | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | Length | 10.00" / 254 mm | | Diameter | 3.54" / 90 mm | | Weight | 9 lb / 4.08 kg Microphone, power supply, shockmount, and cables | | | | Package Weight | 12.75 lb | | Box Dimensions (LxWxH) | 19.0 x 13.7 x 5.7" |
