User Manual for Warm Audio WA-47jr Large-Diaphragm FET Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Warm Audio WA-47jr Large-Diaphragm FET Condenser
- Product category: Large Diaphragm Condenser Warm Audio
- Brand: Warm Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Warm Audio Large Diaphragm Condenser
 |
User manual for the Warm Audio WA-47jr Large-Diaphragm FET Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Warm Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Warm Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Warm Audio product will considerably shorten its lifespan!
|

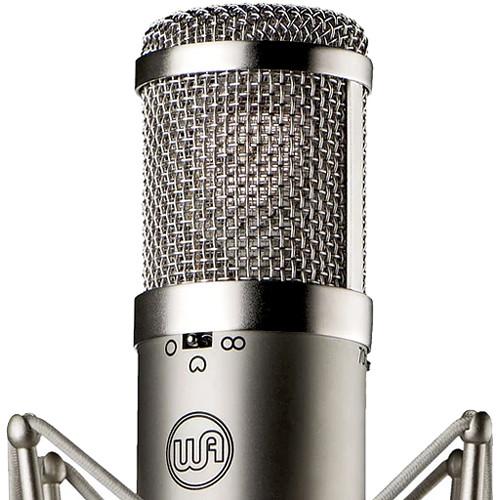

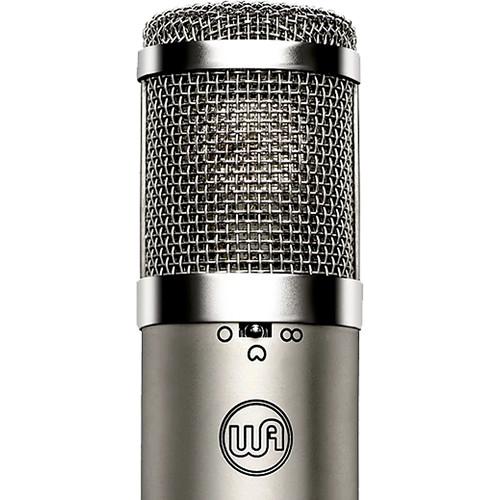

Product description The Warm Audio WA-47jr is a large-diaphragm FET condenser microphone designed to provide the tonal characteristics of classic solid-state U47 microphones for vocalists, musicians, and recording engineers in home, project, and commercial recording studios. Thanks to three polar patterns—cardioid, omnidirectional, figure-8—selectable from a switch on the front of the body, its versatility allows it to excel at anything from dry, close-up vocals to ambient room sounds. A -10 dB pad switch raises the maximum SPL from 147 dB to a high of 157 dB, enabling safe use when miking kick drums and cranked guitar and bass amps. Excessive low frequencies from proximity effect are easily reduced via the high-pass filter, which rolls off lows below 70 Hz. The K47-style capsule reproduction features dual gold-sputtered, 6-micron Mylar diaphragms with a single backplate. The fully discrete signal path includes Toshiba FETs, WIMA film capacitors, and Panasonic electrolytic capacitors to deliver the clean tone associated with transformerless microphones. With a gold-plated XLR 3-pin connector and operability via 48V phantom power, it is compatible with most mixing consoles and mic preamps. The WA-47jr ships with a storage pouch, hardmount, and a shockmount, which reduces rumble and decouples it from problematic vibrations. - Custom Capsule

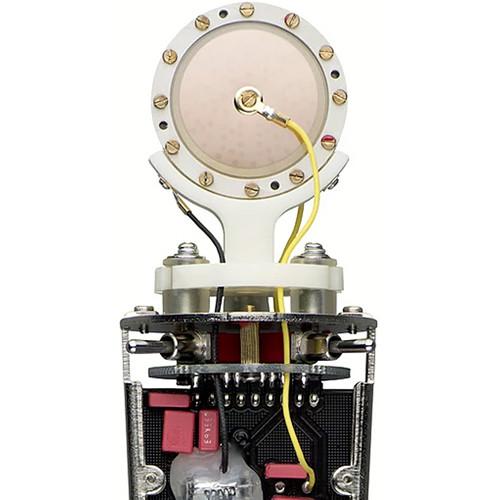

- The WA-47jr utilizes a custom reproduction of the vintage K47-style capsule that was used in the classic U47 microphone—designed with the same hole pattern and frequency response. Warm Audio's version of this capsule (model WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer whose precision and consistency allows sonic replication of the most important piece of this classic style of microphone.
- Low Noise
- The WA-47jr's discrete signal path pairs with the true U47-style capsule to obtain a very similar tone to the classic U47 microphone. The low self-noise of only 9 dBA enables pristine capture of quiet sound sources.
- Tone-Impacting Components

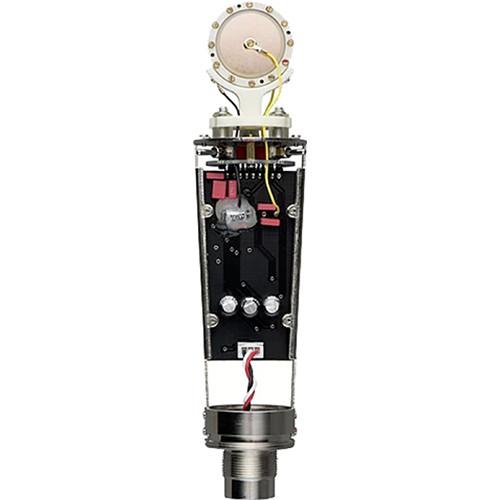

- The WA-47jr incorporates a modernized and simplified circuit design. Toshiba FETs, WIMA film capacitors, and Panasonic electrolytic capacitors contribute to the signature tone of the mic.
- Configuration Flexibility
- Three polar patterns and a -10 dB pad enable versatility for close and distant positions and loud and quiet sources. The 70 Hz high-pass filter aids in reducing rumble, proximity effect, and excessive low frequencies.

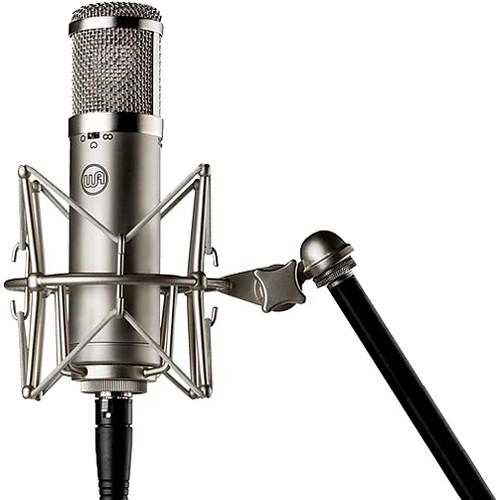

UPC: 713541493124 In the Box Warm Audio WA-47jr Large-Diaphragm FET Condenser Microphone Shockmount Hardmount Zipper Storage Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA-47jr Large-Diaphragm FET Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWarm Audio WA-47JR Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 85 dB A-Weighted | | Equivalent Noise Level | 9 dB A-Weighted | | Maximum SPL | 147 dB SPL 157 dB with -10 dB pad engaged | | Pad | -10 dB | | Impedance | 100 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | 10 mV/Pa | | Low-Cut Filter | @ 70 Hz | | Dynamic Range | 138 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 8.27" / 210 mm | | Diameter | 2.05" / 52 mm | | Weight | 1.1 lb / 0.50 kg | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 11.2 x 10.0 x 6.1" |
