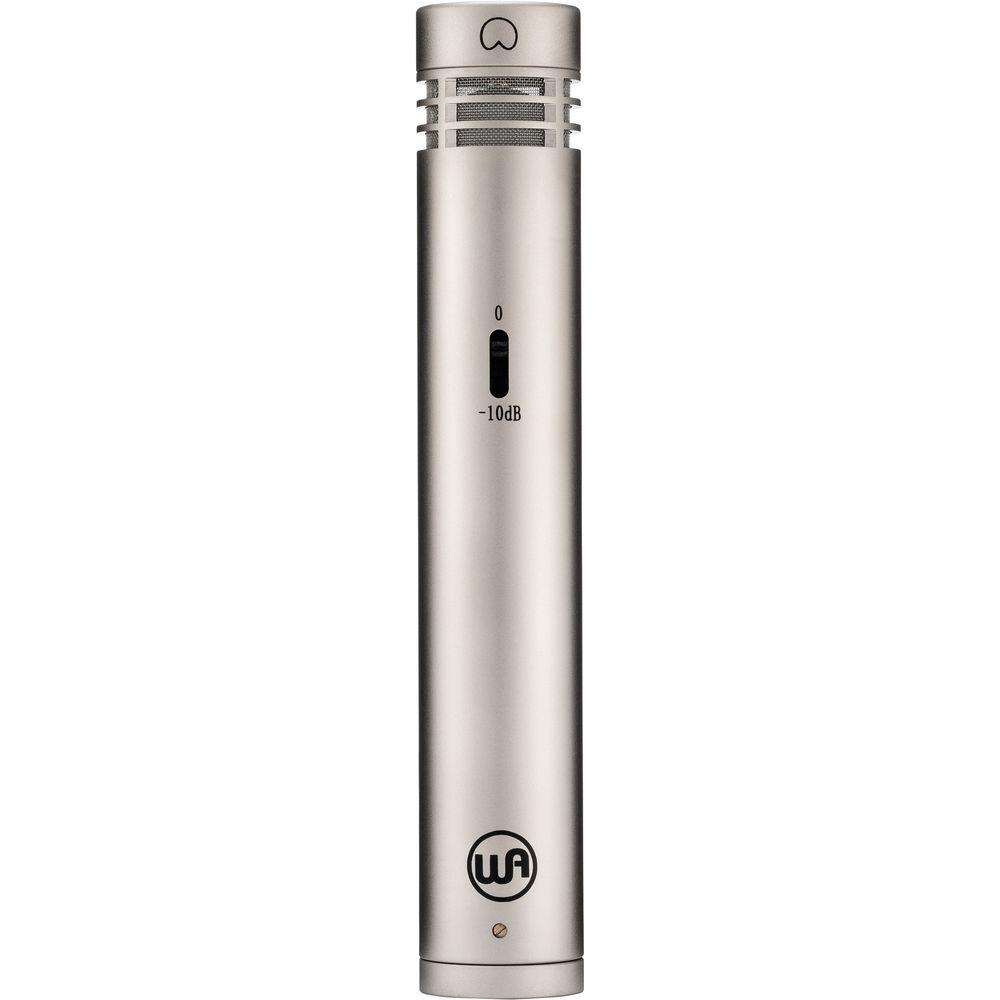

Product description Based on classic microphone circuitry, the nickel Warm Audio WA-84 is a fully discrete, small diaphragm condenser microphone, well suited for professional studios, home studios, live sound, and broadcast applications The WA-84 excels at capturing a variety of sources including acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass, woodwinds, and an array of other instruments.
The WA-84 features a heavy nickel CineMag USA transformer in its signal path to warm up and enlarge the sound source. Also, included are audiophile components including polystyrene capacitors, Wima capacitors, and a Fairchild FET, which all contribute to produce a gorgeous sounding circuit with great signal integrity and a smooth boutique tone, and a creamy-smooth top-end and a beefy mid-to-bottom.

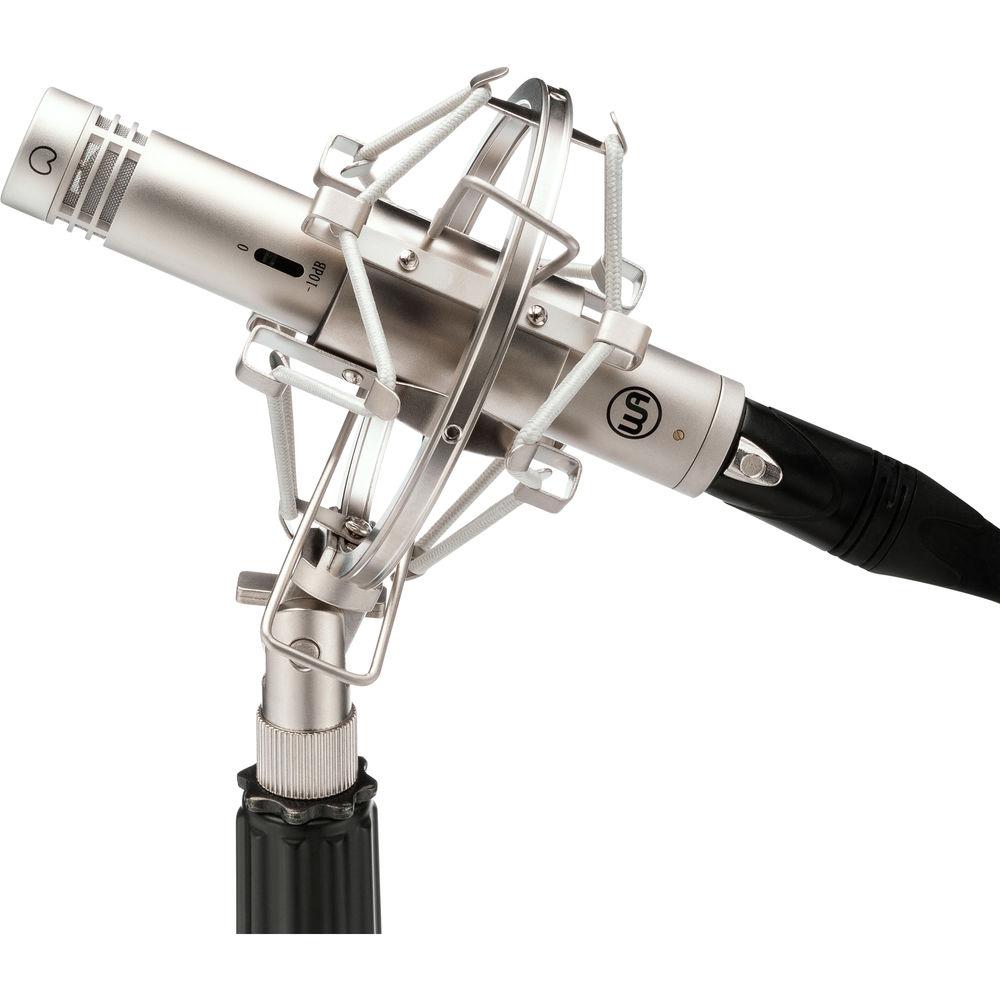

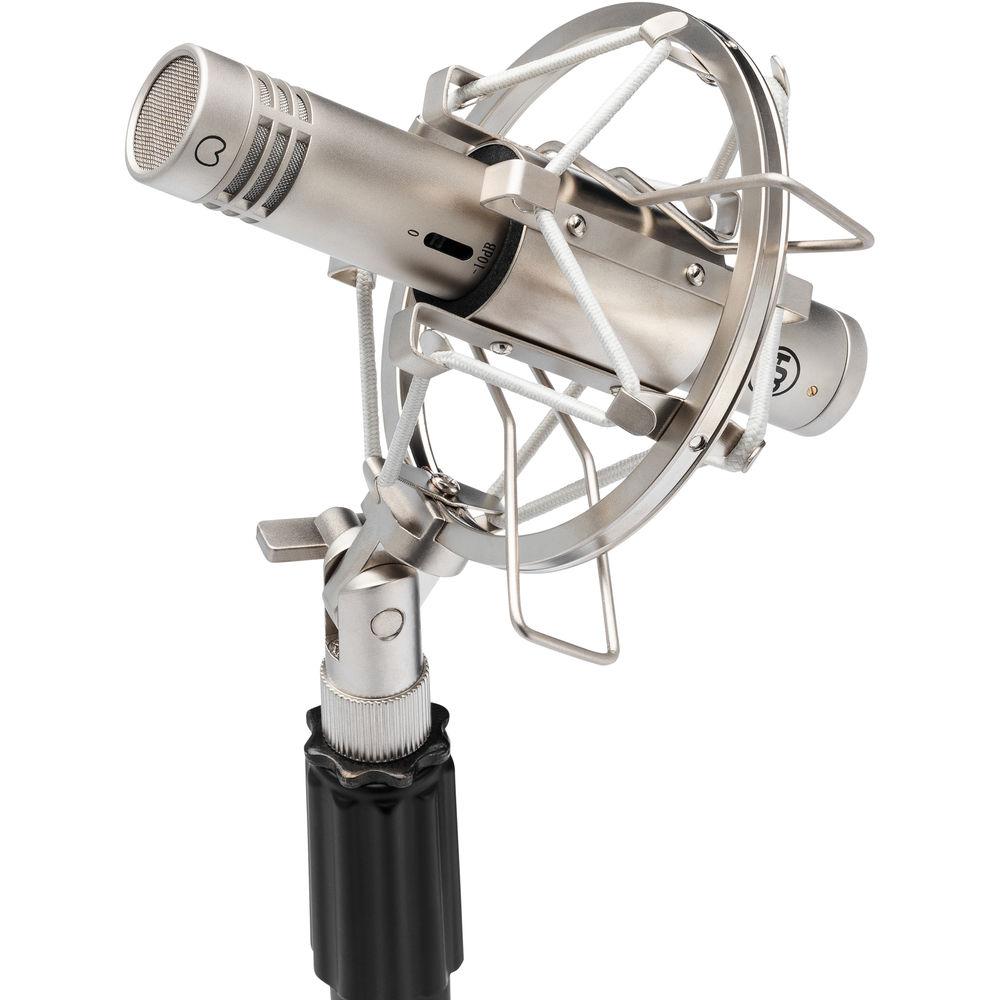

The cardioid capsule is replaceable and is easily unscrewed from the body. The enclosure features a -10 dB pad to attenuate loud sources, while the gold-plated 3-pin XLR ensures a solid connection to an optional microphone cable. The WA-84 offers a frequency response of 20 Hz to 20 kHz and can capture sources with a maximum SPL of 133 dB (with the -10 dB pad engaged). The Warm Audio WA-84 includes a shock-mount, a microphone clip, a windscreen, and a carrying case. -
- Utilizes a CineMag USA transformer
- Directional Pattern: Cardioid
- Fully discrete vintage-style signal path
- Vintage capsule reproduction
- +48V phantom powered
- Frequency Range: 20 Hz to 20 kHz
- Pad: 0 or -10 dB
- Maximum SPL: 123/133 dB (0/-10 dB)
- Connector: 3-pin gold-plated XLR
- Package Includes: Microphone, cardioid capsule, shock-mount, mic clip, windscreen, and carrying case
In the Box Warm Audio WA-84 Small Diaphragm Condenser Microphone (Nickel) Shockmount Mic Clip Windscreen Carrying Case Limited 1-Year Warranty with Registration within 14 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA-84 Small Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWarm Audio WA-84 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient
Pressure Operated | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 133 dB SPL | | Pad | -10 dB | | Impedance | 200 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | -39 dB at 1 kHz | | Dynamic Range | 107 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 5.20" / 132 mm | | Diameter | 0.87" / 22 mm | | Weight | 4.30 oz / 122 g |
