User Manual for Warm Audio WA-87 Multi-Pattern Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Warm Audio WA-87 Multi-Pattern Condenser Microphone
- Product category: Large Diaphragm Condenser Warm Audio
- Brand: Warm Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Warm Audio Large Diaphragm Condenser
 |
User manual for the Warm Audio WA-87 Multi-Pattern Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Warm Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Warm Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Warm Audio product will considerably shorten its lifespan!
|

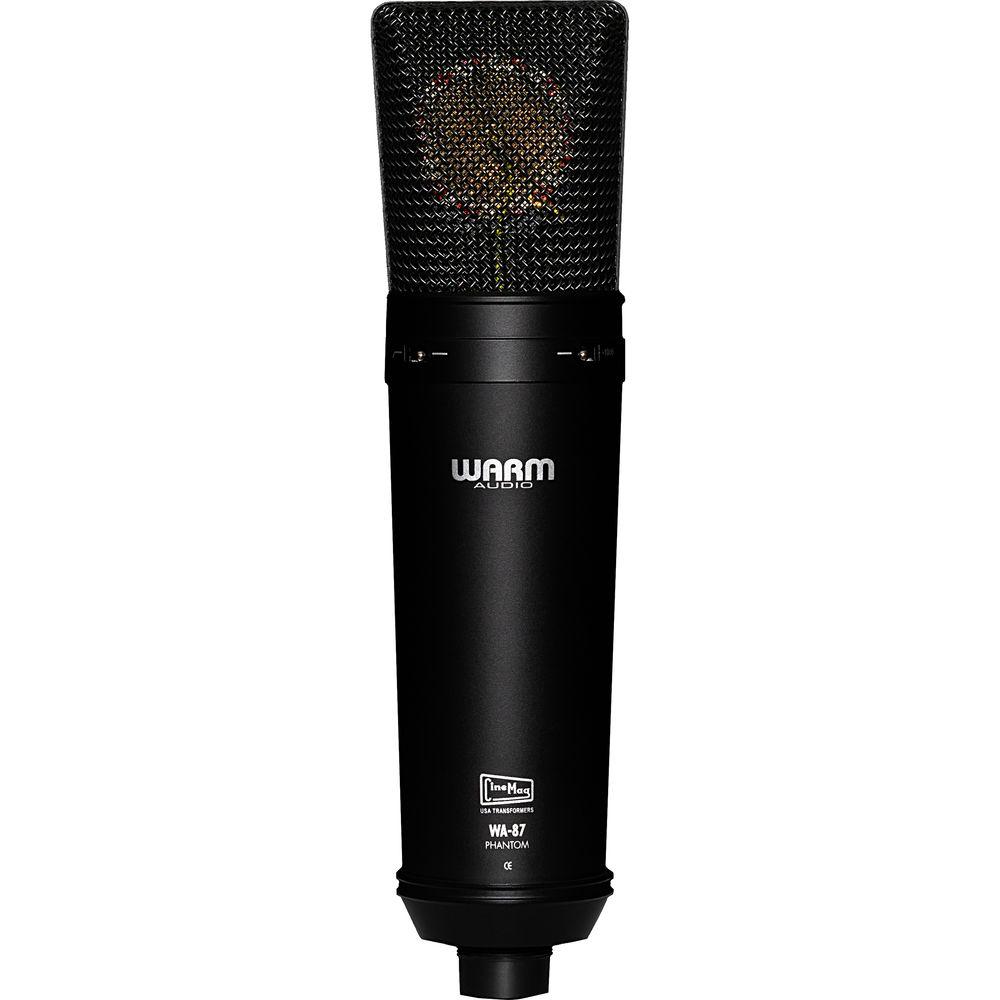

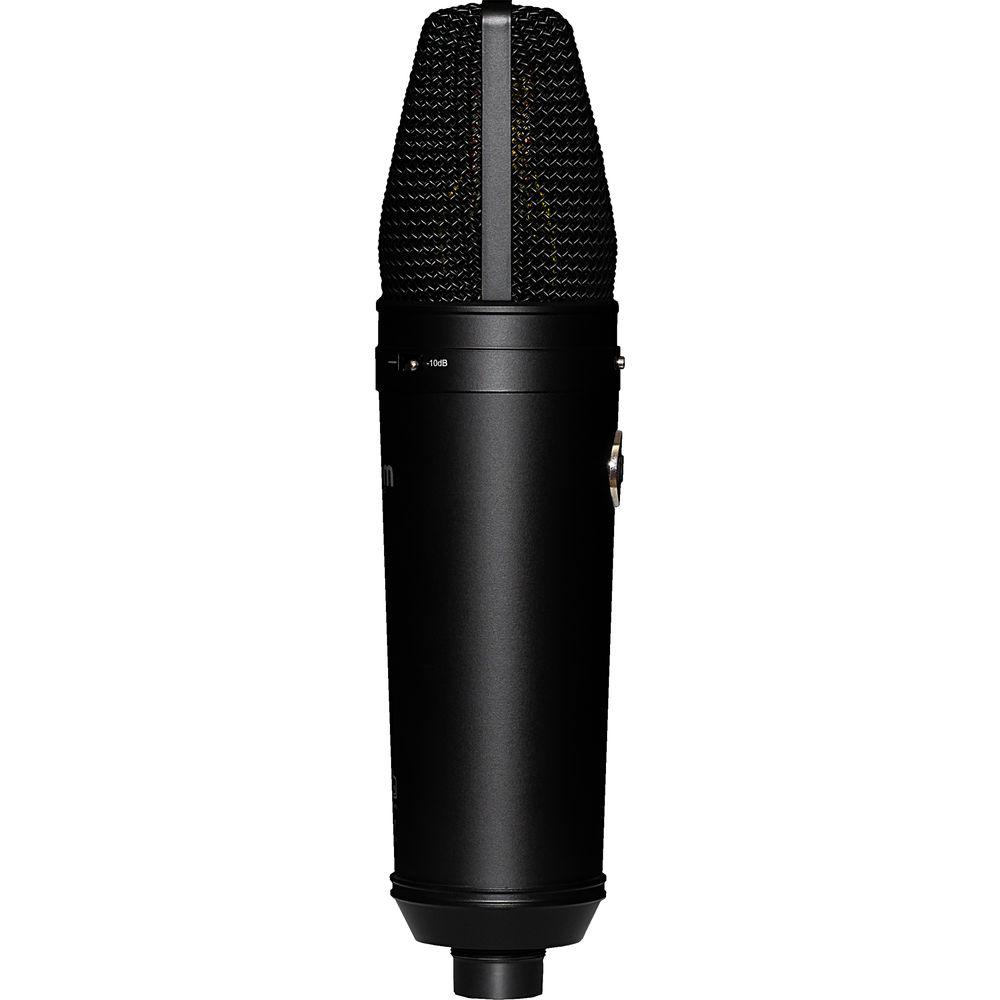

Product description The limited edition black WA-87 Multi-Pattern Condenser Microphone from Warm Audio features all discrete, premium components such as Fairchild FETs, tantalum, polystyrene, and WIMA film capacitors, and is rounded off with a CineMag USA output transformer. It can be used to capture audio in several environments such as recording studios, live stage, theaters, and is suitable for brass, woodwind, and string instruments.Featuring a custom reproduction of the classic K-87 dual-backplate/dual-diaphragm capsule found in the early "87" mics, the WA-87 provides a selection of three polar patterns: Figure-8, omnidirectional, and cardioid. It has a 20 Hz to 20 kHz frequency response and comes with a shockmount, a hard mount, and a wood box for storage. In addition, it uses a 3-pin, 24tk gold-plated XLR output connector. UPC: 860191002111 In the Box Warm Audio WA-87 Multi-Pattern Condenser Microphone (Limited Edition Black) Shockmount Hard Mount Wood Box Limited 1-Year Warranty Upon Online Registration Within 14 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA-87 Multi-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWarm Audio WA-87B Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient
Pressure Operated | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Tube | No | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | -117 dB | | Maximum SPL | 125 dB SPL | | Pad | -10 dB | | Impedance | 150 Ohms | | Low-Cut Filter | @ 80 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | | | Package Weight | 5.93 lb | | Box Dimensions (LxWxH) | 15.5 x 11.8 x 6.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
