User Manual for Warm Audio WA12 MKII Dual-Transformer Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the Warm Audio WA12 MKII Dual-Transformer Microphone
- Product category: Microphone Preamps Warm Audio
- Brand: Warm Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Warm Audio Microphone Preamps
 |
User manual for the Warm Audio WA12 MKII Dual-Transformer Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Warm Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Warm Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Warm Audio product will considerably shorten its lifespan!
|

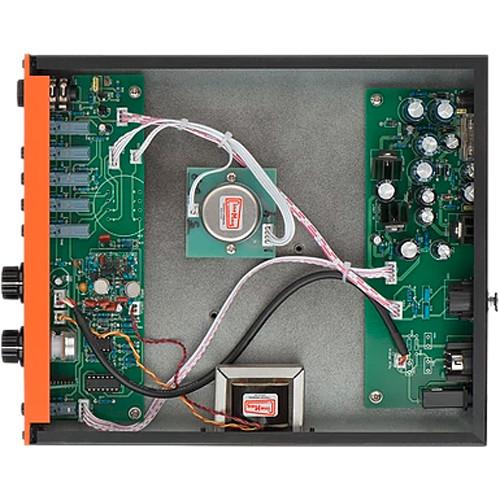

Product description The WA12 MKII Dual-Transformer Microphone Preamplifier from Warm Audio is designed for high gain (+71 dB), high headroom, and low noise. It is suitable for all types of recording applications. It is based around a discrete op-amp, the X731, considered to be the predecessor to the modern 2520-style op-amp. The X731 can achieve vibrant, clean, and lifelike tones; but can also be driven into mild saturation at much higher gain levels. The WA12 MKII can also accept any discrete op-amp, which conforms to the ±16V, 2520 pin out standard. - Utilizes premium grade input and output USA CineMag transformers
- 71 dB of gain, fully discrete signal path
- Can be replaced with other 6-pin 2520 foot-print op-amps for varying tone/flavor
- TONE button - Switches the input impedance from 600 Ohms to 150 Ohms, changes the tone of both the microphone and HI-Z inputs
- 2-MOhm True HI-Z input on front panel, sends instrument signal through entire circuit including both Cinemag transformers and the discrete op-amp
- Suitable for guitars, bass, keyboards, and other instruments that have a 1/4" output jack
- Output attenuation control (after the CineMag output transformer) allows for driving the preamp and transformers into saturation
- LED meter gain indication
UPC: 638142859301 In the Box Warm Audio WA12 MKII Dual-Transformer Microphone Preamplifier Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA12 MKII Dual-Transformer Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

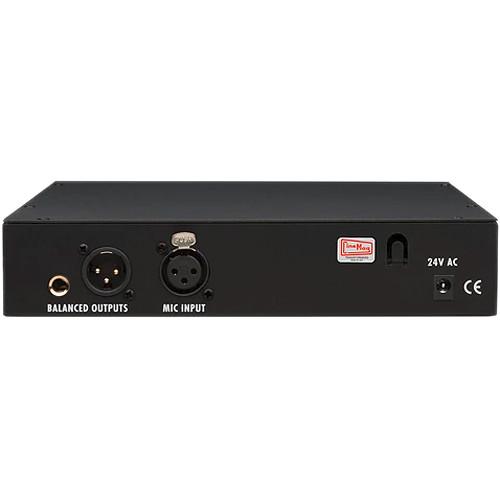

Technical parametersWarm Audio WA12 MKII Specs | Number of Channels | 1 | | Inputs | Microphone Level Balanced Input: XLR | | Output | Balanced Outputs: XLR and 1/4" / TRS | | Phantom Power | 48 V | | Pad | 20 dB | | Gain Range | 29 to 65 dB
35 to 71 dB when the tone switch is engaged | | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | Dimensions | Unit: 10.5 x 8.5 x 1.75" (26.7 x 21.6 x 4.44 cm)
Power Supply: 5 x 3 x 4" (13 x 8 x 10 cm) | | Weight | Unit: 4 lb (1.8 kg)
Power Supply: 1 lb (0.45 kg) | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 13.9 x 12.7 x 3.7" |
