Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier

Search your instruction manual in PDF to download

User Manual for Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer

Click to enlarge the picture
Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer Contents of the user manual for the Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier
  • Product category: Microphone Preamps Warm Audio
  • Brand: Warm Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Warm Audio Microphone Preamps

Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer
User manual for the Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Warm Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Warm Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Warm Audio product will considerably shorten its lifespan!



Product description

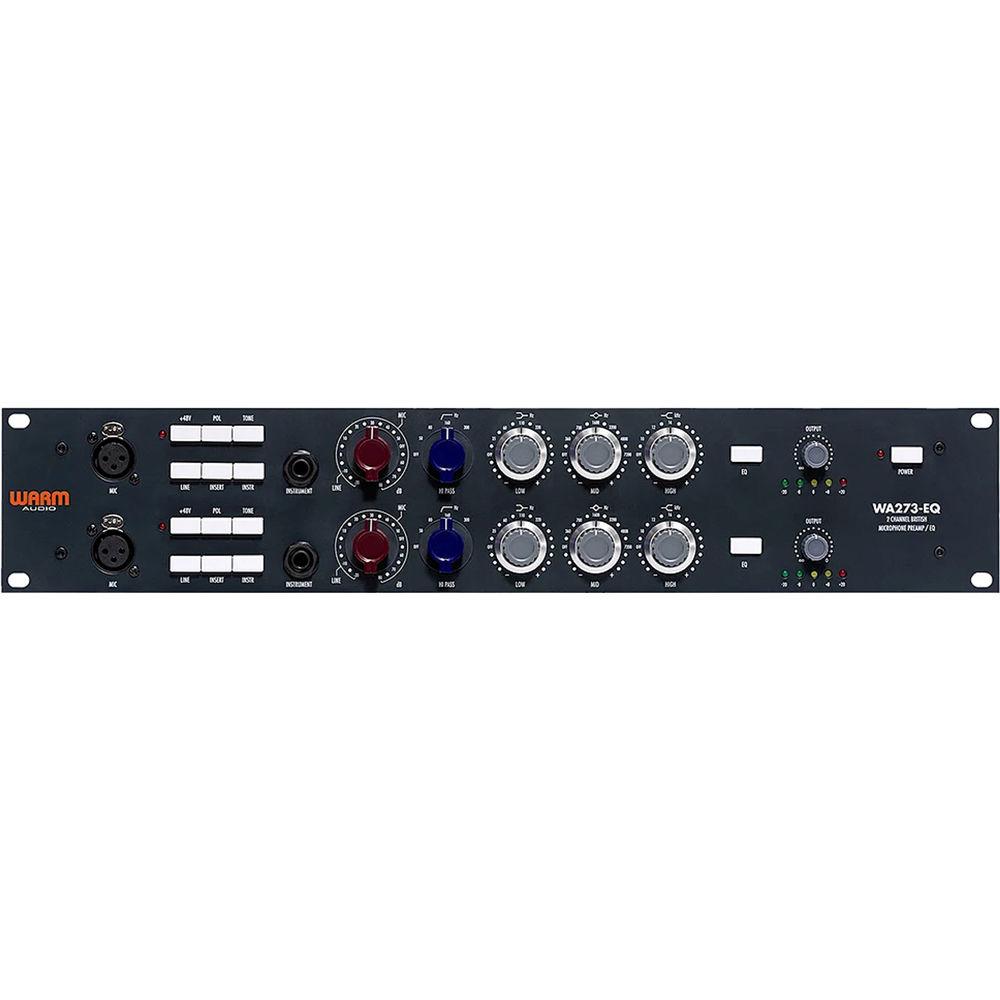

The Warm Audio WA273-EQ is a dual-channel, Class-A microphone preamp and equalizer designed to provide up to 80 dB of gain and 3-band EQ for engineers, producers, musicians, and vocalists in mobile-recording rigs and home, project, and commercial studios. It features custom Carnhill transformers and is wired and assembled by hand to deliver the sound and functionality of classic British '73-style preamps.Its inputs include balanced XLR and 1/4" TRS jacks and two front-panel 1/4" TS instrument inputs. Input impedance, polarity, ground lift, and phantom power are switchable. Connect an outboard compressor or equalizer via the 1/4" TS insert send and return jacks. Balanced XLR and 1/4" outputs are fed by output level controls and allow compatibility with most audio interfaces and mixing consoles. The selectable high-pass filter can be set to 50 Hz, 80 Hz, 160 Hz, or 300 Hz for management of unruly bass frequencies.The inductor-based EQ boasts selectable frequencies and Blore Edwards dual-concentric potentiometers. The WA273-EQ is rack-mountable and occupies 2 RU.
  • Occupies 2 RU
  • Dual-channel, Class-A mic preamp and 3-band equalizer wired and assembled by hand
  • Created through years of R&D, careful reverse-engineering, and countless hours of auditioning
  • Designed to function and sound like a classic '73-style preamp

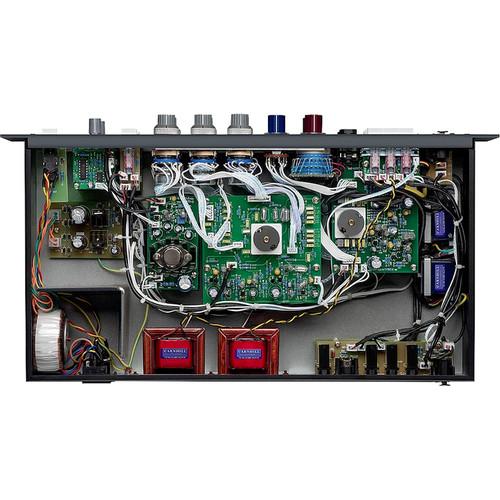

  • Fully discrete, transformer-balanced signal path
  • Custom Carnhill transformers saturate sweetly when pushed
  • Tantalum and polystyrene capacitors in the signal path and an output transistor choice that is smooth in high-gain settings
  • Stepped mic pre gain
  • Selectable low-frequency boost or cut at 35 Hz, 60 Hz, 110 Hz, or 220 Hz
  • Selectable mid-frequency boost or cut at 360 Hz, 700 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz, or 7.2 kHz
  • Selectable high-frequency boost or cut at 10 kHz, 12 kHz, or 16 kHz
  • Inductor-based EQ and high-pass filter
  • Blore Edwards dual-concentric EQ switching potentiometers

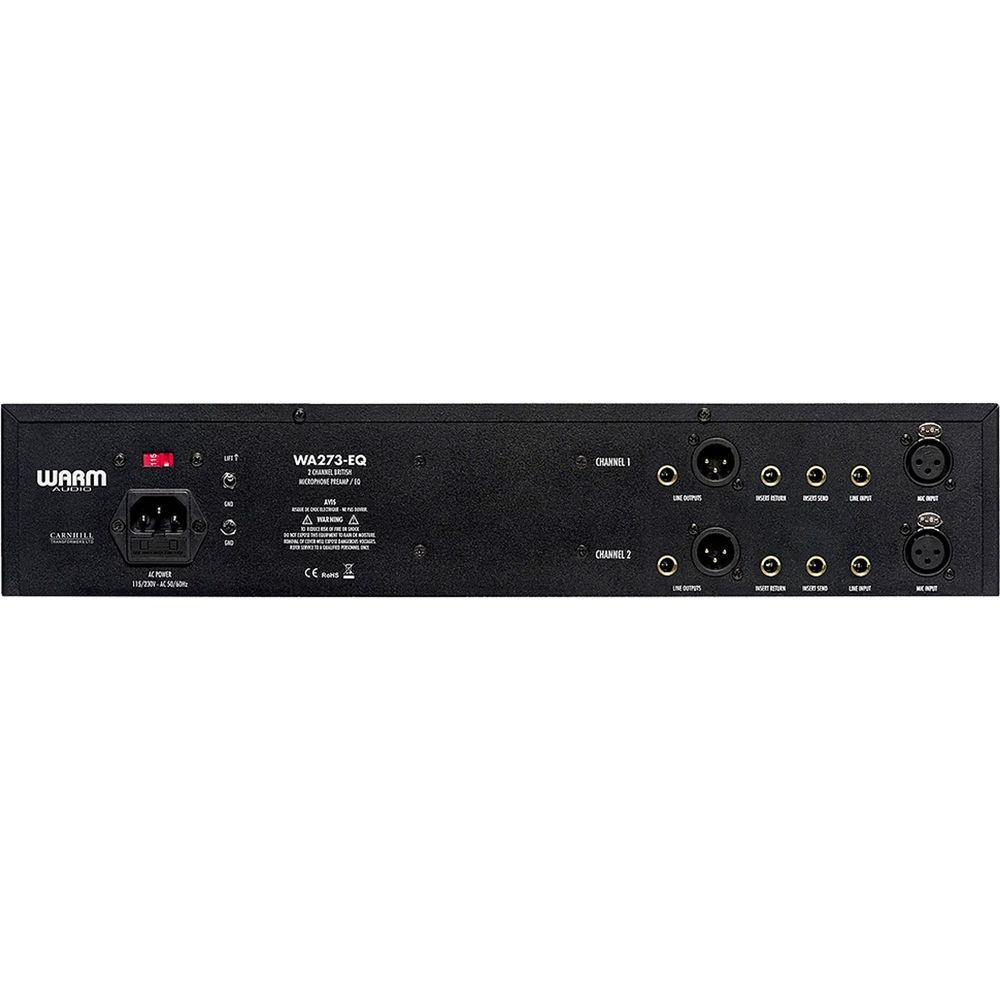

  • Balanced XLR and 1/4" inputs and outputs
  • Front-panel 1/4" TS instrument inputs
  • 1/4" TS insert sends and returns
  • Output controls with 5-segment LED meters
UPC: 713541493148 In the Box Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer
  • IEC Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and EqualizerDownload PDF User Manual - https://www.search-manual.com/ upload/ warm-audio-wa273-eq-dual-channel-microphone-preamplifier-and-equalizer-344435-user-manual.pdf
    (PDF file, 12.32 MB)


    Technical parameters

    Warm Audio WA273-EQ Specs

    Rack Height 2 RU
    Number of Channels 2
    Inputs 2 x XLR 3-pin (balanced)
    2 x 1/4" TRS (balanced)
    2 x 1/4" TS (unbalanced)
    Outputs 2 x XLR 3-pin (balanced)
    2 x 1/4" TRS (balanced)
    Phantom Power 48 V
    High-Pass Filter Off, 50 Hz, 80 Hz, 160 Hz, or 300 Hz
    Gain Range Up to 80 dB
    Frequency Response 20 Hz to 20 kHz (
