User Manual for Warm Audio WA73 Single-Channel Microphone Preamp Click to enlarge the picture
Contents of the user manual for the Warm Audio WA73 Single-Channel Microphone Preamp
- Product category: Microphone Preamps Warm Audio
- Brand: Warm Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Warm Audio Microphone Preamps
 |
User manual for the Warm Audio WA73 Single-Channel Microphone Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Warm Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Warm Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Warm Audio product will considerably shorten its lifespan!
|

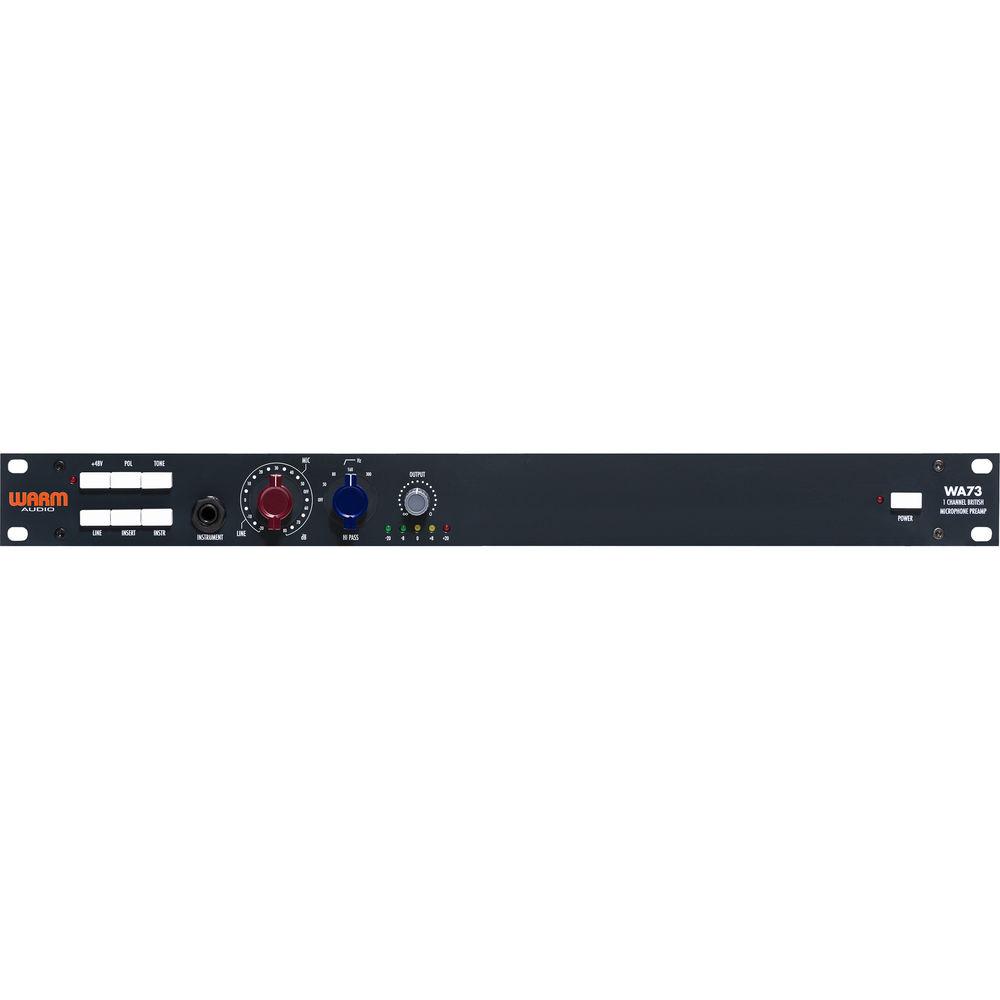

Product description The Warm Audio WA73 is a single-channel, Class-A microphone preamp designed to provide up to 80 dB of gain for engineers, producers, musicians, and vocalists in mobile-recording rigs and home, project, and commercial studios. It features custom Carnhill transformers and is wired and assembled by hand to deliver the sound and functionality of classic British '73-style preamps.Its inputs include balanced XLR and 1/4" TRS jacks and one front-panel 1/4" TS instrument input. Input impedance, polarity, ground lift, and phantom power are switchable. Connect an outboard compressor or equalizer via the 1/4" TS insert send and return jacks. Balanced XLR and 1/4" outputs are fed by an output level control and allow compatibility with most audio interfaces and mixing consoles. The selectable high-pass filter can be set to 50 Hz, 80 Hz, 160 Hz, or 300 Hz for management of unruly bass frequencies.The WA73 is rack-mountable and occupies 1 RU. - Single-channel, Class-A mic preamp wired and assembled by hand
- Created through years of R&D, careful reverse-engineering, and countless hours of auditioning
- Designed to function and sound like a classic '73-style preamp
- Fully discrete, transformer-balanced signal path

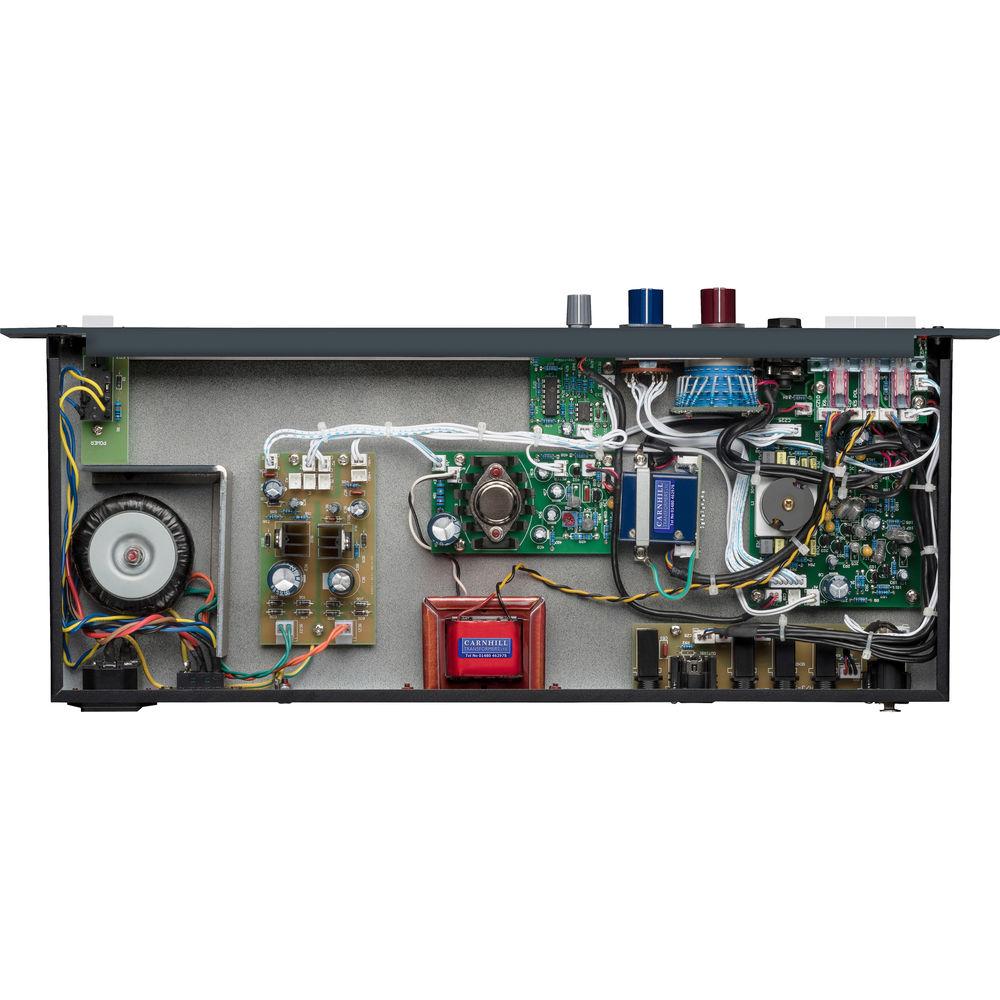

- Custom Carnhill transformers saturate sweetly when pushed
- Tantalum and polystyrene capacitors in the signal path and an output transistor choice that is smooth in high-gain settings
- Inductor-based selectable high-pass filter

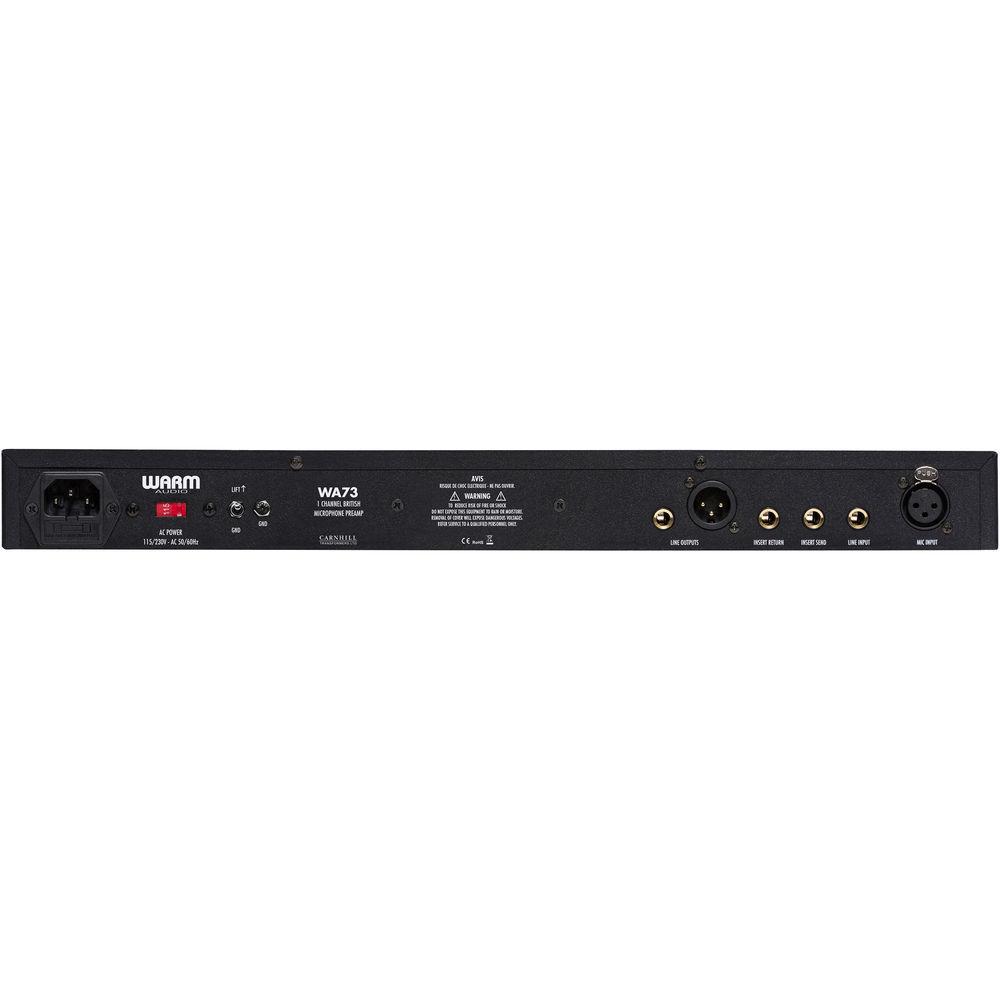

- Balanced XLR and 1/4" inputs and outputs
- Front-panel 1/4" TS instrument input
- 1/4" TS insert send and return
- Output control with 5-segment LED meter
UPC: 713541493155 In the Box Warm Audio WA73 Single-Channel Microphone Preamp IEC Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA73 Single-Channel Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWarm Audio WA73 Specs | Rack Height | 1 RU | | Number of Channels | 1 | | Inputs | 1 x XLR 3-pin (balanced)
1 x 1/4" TRS (balanced)
1 x 1/4" TS (unbalanced) | | Outputs | 1 x XLR 3-pin (balanced)
1 x 1/4" TRS (balanced) | | Phantom Power | 48 V | | High-Pass Filter | Off, 50 Hz, 80 Hz, 160 Hz, or 300 Hz | | Gain Range | Up to 80 dB | | Frequency Response | 20 Hz to 20 kHz (
