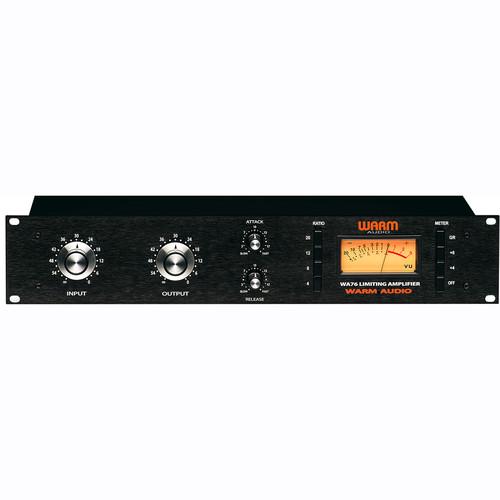

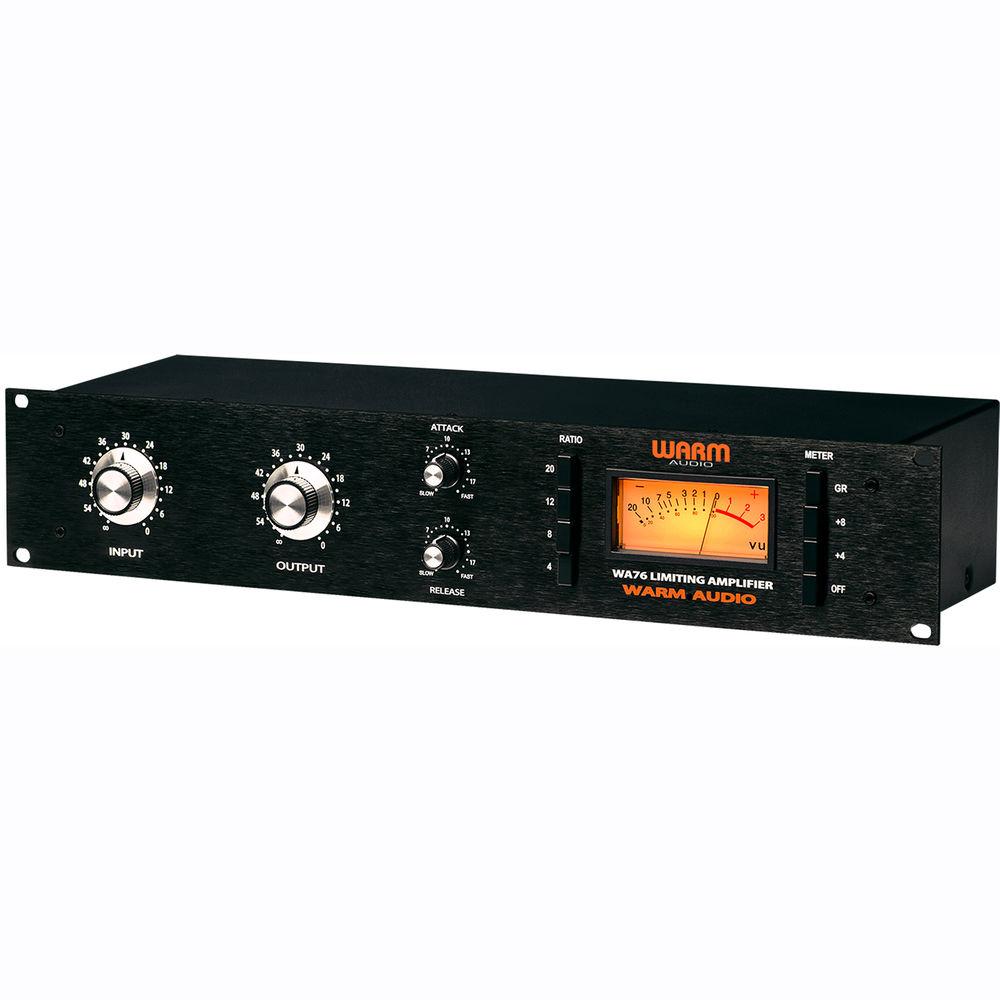

User Manual for Warm Audio WA76 - Discrete FET Compressor Click to enlarge the picture
Contents of the user manual for the Warm Audio WA76 - Discrete FET
- Product category: Dynamics Processors Warm Audio
- Brand: Warm Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Warm Audio Dynamics Processors
 |
User manual for the Warm Audio WA76 - Discrete FET contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Warm Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Warm Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Warm Audio product will considerably shorten its lifespan!
|
Product description The WA76 from Warm Audio is a modern reproduction of the 1176 revision D limiting amplifier. With its completely discrete signal path and use of the original Reichenbach Engineering's (now CineMag) transformer design, the unit remains as faithful as possible to the construction of the original classic.
The 1176 was a major breakthrough in limiter technology, being the first true peak limiter with an all transistor circuitry while offering superior performance and a signature sound. The ultra-fast attack time was and still is a sound coveted by many legendary artists and studio engineers. This reproduction includes the famous "all buttons in" setting. - True to the classic 1176 compressor in design and performance

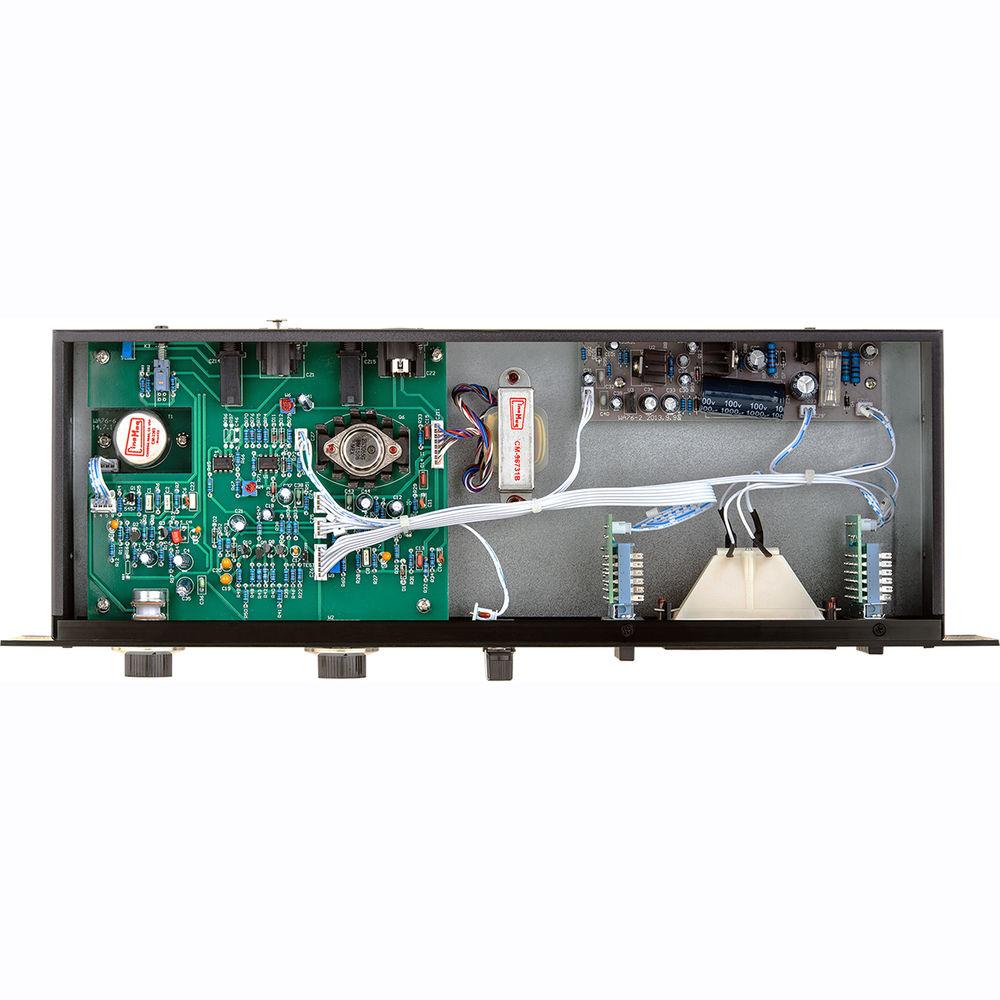

- Completely discrete signal path
- Modeled after the D revision
- Utilizes USA made CineMag input and output transformers
- Supports "all buttons in" ratio setting
- Class-A line-level output amplifier
UPC: 799430206181 In the Box Warm Audio WA76 - Discrete FET Compressor External Power Transformer One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Warm Audio WA76 - Discrete FET Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

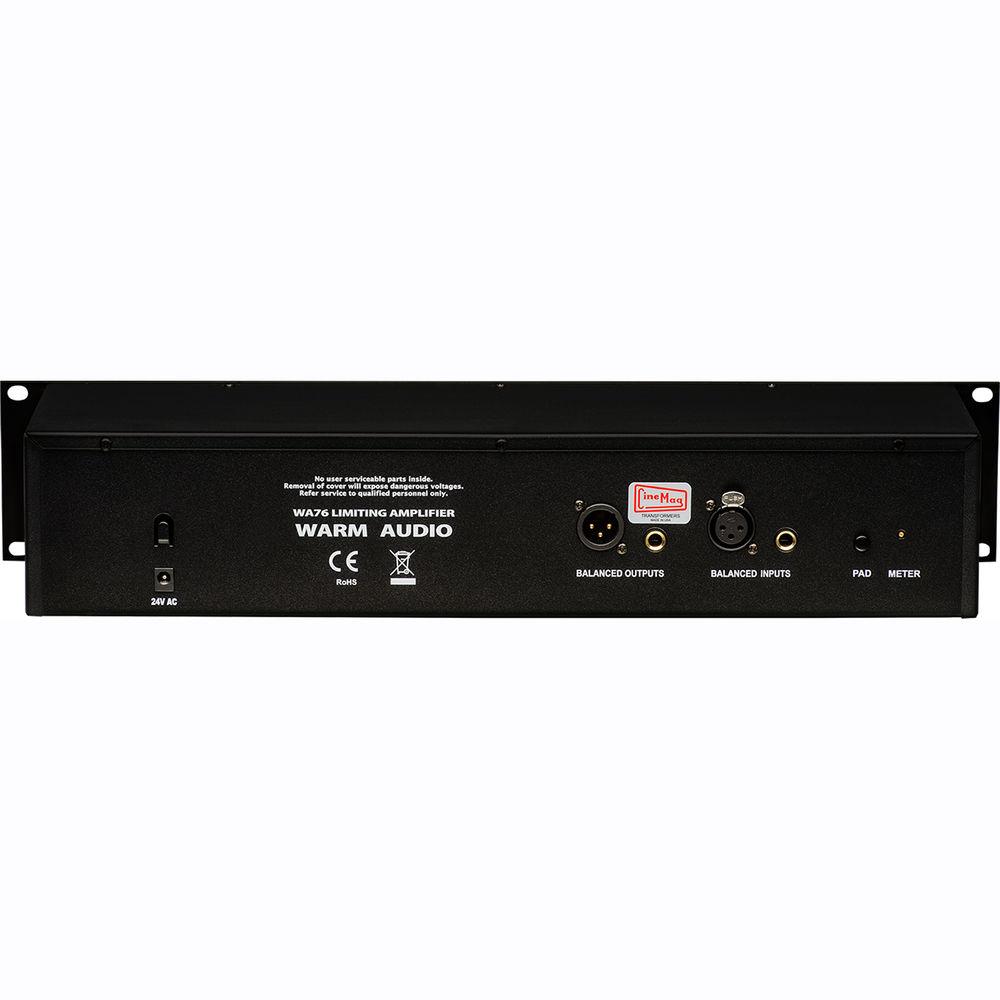

Technical parametersWarm Audio WA76 Specs | Function | Compressor/Limiting Amplifier | | Number of Channels | Single | | Inputs | 1 x XLR
1 x 1/4" TRS | | Input Impedance | 600Ω, bridges-T control (floating) | | Outputs | 1 x XLR
1 x 1/4" TRS | | Attack Time | 20 to 800 microseconds | | Release Time | 50 milliseconds to 1 second | | Make-up Gain | 55 dB | | Frequency Response | 20 Hz to 20 kHz, +/-1.0 dB | | THD | <0.4% (50 Hz to 20 kHz with limiting) | | Noise | SNR: >74 dB at +25 dBm
EIN: -104.1 dBm | | Power Requirements | Internal power supply, external 110V to 24V AC power transformer | | Dimensions | 19 x 6 x 3.5" (483 x 152 x 89 mm) | | Weight | 10 lb (4.5 kg) | | | | Package Weight | 9.1 lb | | Box Dimensions (LxWxH) | 24.2 x 9.9 x 6.5" |
