User Manual for Watec 221S2-WAT 550TVL Mini Box Camera Click to enlarge the picture
Contents of the user manual for the Watec 221S2-WAT 550TVL Mini Box Camera
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
|
User manual for the Watec 221S2-WAT 550TVL Mini Box Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|

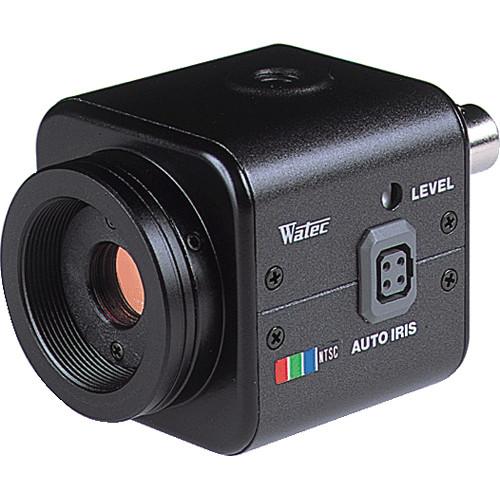

Product description The 221S2-WAT 550TVL Mini Box Camera (No Lens) from Watec features a 1/2" interline transfer CCD image sensor which allows it to capture video and images at resolutions up to 550 TVL. The camera supports an OSD menu for full access to all features and functions.
The camera can capture images in low light thanks to its aperture of f/1.2. It features motion-detection, privacy masking, and digital wide dynamic range, providing flexibility in your surveillance setup. - 1/2" interline transfer CCD sensor
- Up to 550 TVL resolution (768 x 494 resolution)
- f/1.2 aperture provides clear images even in low-light scenes
In the Box Watec 221S2-WAT 550TVL Mini Box Camera (No Lens) Lens Mount Cap Remote Control Hex Wrench 11.8" (300mm) Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec 221S2-WAT 550TVL Mini Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-221S2 Specs | Image Pickup Element | 1/2" interline transfer CCD image sensor | | Total Pixels (H x V) | 811 x 508 | | Number of Effective Pixels (H x V) | 768 x 494 | | Unit Cell Size | 8.4 x 9.8 μm | | Imaging System | Yellow, cyan, magenta, and green complementary color mosaic filters on chip | | Synchronizing System | Internal | | Scanning System | 2:1 interlace | | Video Output | Composite, Y/C: 1 V p-p, 75 Ohms, unbalanced | | Horizontal Resolution | > 550 TVL (center) | | Minimum Illumination | 0.006 lux f/1.2 (AGC on, shutter off, NR on, γ 0.45)
0.0004 lux f/1.2 (AGC on, shutter x16, NR on, γ 0.45) | | S/N Ratio | > 55 dB (AGC -3 dB, γ = 1) | | Control | OSD or RS-485 (Pelco-D)controller | | AE Mode | Fixed:
2, 4, 8, 16, 32, 64, 128, 256x (field)
1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 s
EI:
1/60 to 1/100000 sec
x16 to 1/100000 sec | | AGC (Automatic Gain Control) | High: -3 to 44 dB
Low: -3 to 32 dB | | MGC | -3 to 44 dB (1 dB step) | | Gamma Characteristics | 9 steps setting (1.0/0.8/0.7/0.6/0.55/0.5/0.45/0.4/0.35) | | White Balance | ATW, PWB, MWB, PRESET (4 types) | | Noise Reduction | 3DNR ON (level selectable) / OFF | | Wide Dynamic Range | Digital WDR: ON (level selectable) / OFF | | Iris | Video / DC | | Back Light Compensation | Hightlight BLC: ON / OFF | | White Blemish Correction | Up to 64 pixels | | Defog | ON (level selectable) / OFF | | Digital Zoom | 2-256x (ZOOM/PAN/TILT) | | Privacy Mask Type | 4 masks | | Mirror Image | Vertical flip / horizontal flip / HV flip | | Motion Detection | ON (Area/Sensitivity/Alarm) / OFF | | Power Supply | 12 VDC ± 10% | | Power Consumption | 1.32 W (110 mA) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Humidity | Less than 95% RH (non-condensing) | | Lens Mount | CS-mount (back focus adjustable) | | Dimensions | 1.75 x 1.73 x 2.64" (44.5 x 44 x 67 mm) | | Weight | Approximately 5.3 oz (150 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.9 x 3.7 x 2.7" |
