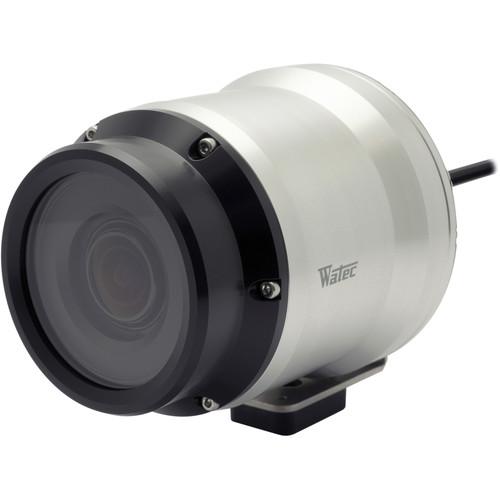

User Manual for Watec 400D2 650 TVL Waterproof Color Camera with 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Watec 400D2 650 TVL Waterproof Color
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
|
User manual for the Watec 400D2 650 TVL Waterproof Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|
Product description The 400D2 650 TVL Waterproof Color Camera from Watec features a 1/3" interline transfer CCD image sensor and 2.8mm auto-iris lens for capturing videos at a maximum resolution of 650 TVL. Rated for IPX8, the camera can be used in harsh environments, and even be fully submerged in water. With a minimum illumination of 0.005 lux, it can capture footage under low-light conditions. In the Box Watec 400D2 650 TVL Waterproof Color Camera with 2.8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec 400D2 650 TVL Waterproof Color Camera with 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-400D2 Specs | Sensor | 1/3" interline transfer CCD image sensor | | Total Pixels | 1020 (H) x 508 (V) | | Effective Pixels | 976 (H) x 494 (V) | | Unit Cell Size | 5.4 x 7.4 μm (H x V) | | Lens | Auto-iris (2.8mm, f/1.2) | | Imaging System | Ye, Cy, Mg, and G complementary color mosaic filters on chip | | Synchronizing System | Internal | | Scanning System | 2:1 interlace | | Video Output | Composite Video, 1.0 V p-p, 75 Ohms, unbalanced | | Horizontal Resolution | More than 650 TVL (center) | | Minimum Illumination | 0.005 lux, f/1.2 | | S/N Ratio | More than 52 dB | | Auto Exposure | 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec | | White Balance | ATW, 5100K, 6300K, ANTI CR | | Mirror Image | H-FLIP | | AGC | -3 to 45 dB | | Gamma Characteristics | γ ≒ 0.45 | | Back Light Compensation | OFF | | Power Supply | 15 VDC ±10% | | Power Consumption | 1.8 W (120 mA) | | Cable | Type: RG-58/U
Built-In Length: 32.8' (10 m)
Maximum Length: 656.1' (200 m) | | Operating Temperature | Without Condensation: 14 to 122°F (-10 to 50°C) | | Storage Temperature | Without Condensation: -22 to 158°F (-30 to 70°C) | | Storage Humidity | Less than 95% RH | | Dimensions | 4.4 x 2.83 x 2.55" (116 x 72 x 65 mm) | | Weight | 31.7 oz (900 g) | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 8.8 x 6.6 x 3.7" |
