User Manual for Watec 902B 1 2" High Sensitivity Camera Click to enlarge the picture
Contents of the user manual for the Watec 902B 1 2" High Sensitivity
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
|
User manual for the Watec 902B 1 2" High Sensitivity contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|

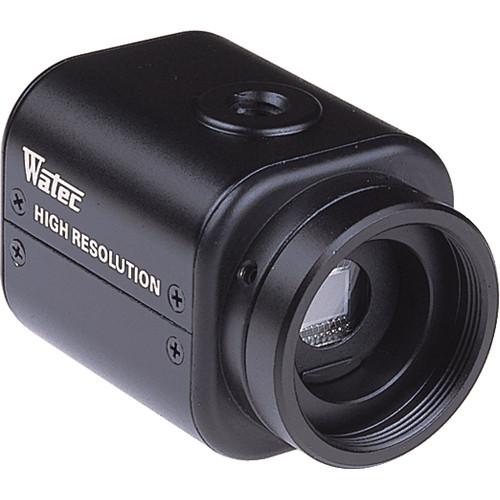

Product description The Watec 902B 1/2" High Sensitivity Camera (EIA) comes with an RCA video out and auto iris connection, and has 570 TVL resolution. It uses a 2:1 interlace scanning system and has an internal synchronizing system. This camera also has a backlight compensation selectable option. In the Box Watec 902B 1/2" High Sensitivity Camera (EIA) 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec 902B 1 2" High Sensitivity Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-902B Specs | Model | WAT-902B (EIA) | | CCD | 1/2" interline transfer CCD image sensor | | Total Pixels | 811 (H) x 508 (V) | | Number of Effective Pixels | 768 (H) x 494 (V) | | Unit Cell Size | 8.4 μm (H) x 9.8 μm (V) | | Synchronizing System | Internal | | Scanning System | 2:1 interlace | | Video Output | Composite video 1 Vpp, 75 Ω, unbalanced | | Resolution | Horizontal: >570 TVL (centre) | | Minimum Illumination | 0.003 lux F1.4 | | S/N | >50 dB (AGC = 10 dB, γ = 1) | | AE Mode | Fixed:1/60, 1/100 sec
EI: 1/60 to 1/1,00,000 sec | | AGC (Automatic Gain Control) | On:
High: 5 to 32 dB/low: 5 to 20 dB
Off: 10 dB | | Gamma Characteristics | γ = 0.45 (on) / γ = 1(off) | | Lens | Video (Watec original arrangement) (lens-iris) | | Backlight Compensation | On / off | | Power Supply | 12 VDC ± 10% | | Power Consumption | 1.7 W (145 mA) | | Operating Temperature | 14 to 104°F (-10 to 40°C) (without condensation) | | Storage Temperature | -22 to 158°F (-30 to 70°C) (without condensation) | | Humidity | Operating / Storage: Less than 95% RH | | Lens Mount | CS-mount | | Dimensions (L x W x H) | 2.28 x 1.42 x 1.4" (58 x 36 x 35.5 mm) | | Weight | Approximately 2.96 oz (84 g) | | | | Package Weight | 0.235 lb | | Box Dimensions (LxWxH) | 13.75 x 3.25 x 1.75" |
