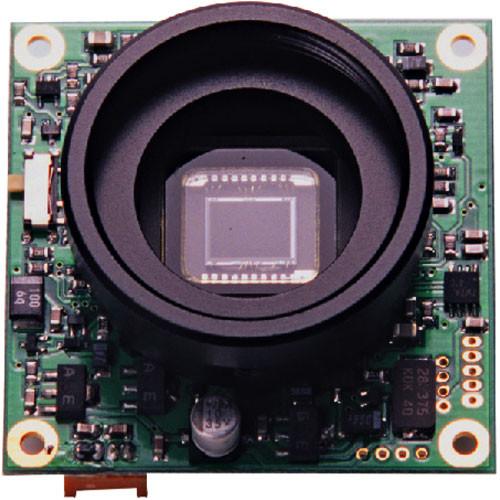

User Manual for Watec 902HB2S Super High Sensitivity B W Board Camera Click to enlarge the picture
Contents of the user manual for the Watec 902HB2S Super High Sensitivity B
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
|
User manual for the Watec 902HB2S Super High Sensitivity B contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|
Product description The Watec 902HB2S is an ultra compact board camera suitable for use in covert, mobile, medical, scientific and similar specialized surveillance applications. Because of its small size and bare board format, users can readily integrate it with new or existing monitoring systems as they see fit. With its 1/2" CCD and electronic picture controls, users are also assured of getting the level of image quality and operating stability necessary in critical monitoring endeavors. - Super High Sensitivity
- Through the use of a 1/2" CCD along with advanced electronic controls, this camera is able to achieve an almost unheard of low light sensitivity rating of 0.0003 lux. This means that the camera will provide visible images in light levels at or near the infrared spectrum. And because no IR LEDs are involved in the illumination process, video images retain a natural look, an important factor in industrial monitoring applications.
- CS Lens Mount (Miniature Lens Mount Option)
- A CS lens mount allows the camera to be quickly fitted with readily available CCTV lenses. For added versatility, users can replace the CS lens mount with a Watec miniature compact glass or pinhole lens mount.
In the Box Watec 902HB2S Super High Sensitivity B/W Board Camera Cable & Connector (K-59) Hexagonal Wrench 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec 902HB2S Super High Sensitivity B W Board Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-902HB2S Specs | Signal System | EIA | | Image Sensor | 1/2" B/W | | Number of Pixels | 380,000 | | Resolution | 570 Lines | | Lens | Accepts CS lens mounts (optional miniature lens mount available) | | Iris Operation | Electronic | | Minimum Illumination | 0.0003 Lux | | IR Illumination | No | | Signal-to-Noise Ratio | 50dB | | Controls | Shutter Speed
AGC (Hi/Lo/Off)
Back Light Compensation (On/Off) | | Microphone | No | | Weather Resistance | No | | Video Output | Open wire | | Audio Output | N/A | | Sync System | Internal | | Power Requirements | 12VDC | | Dimensions (WxHxD) | 1.6 x 1.6 x 0.6" (40 x 40 x 16mm) | | Weight | 0.9 oz (25g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.0 x 2.5 x 2.5" |
