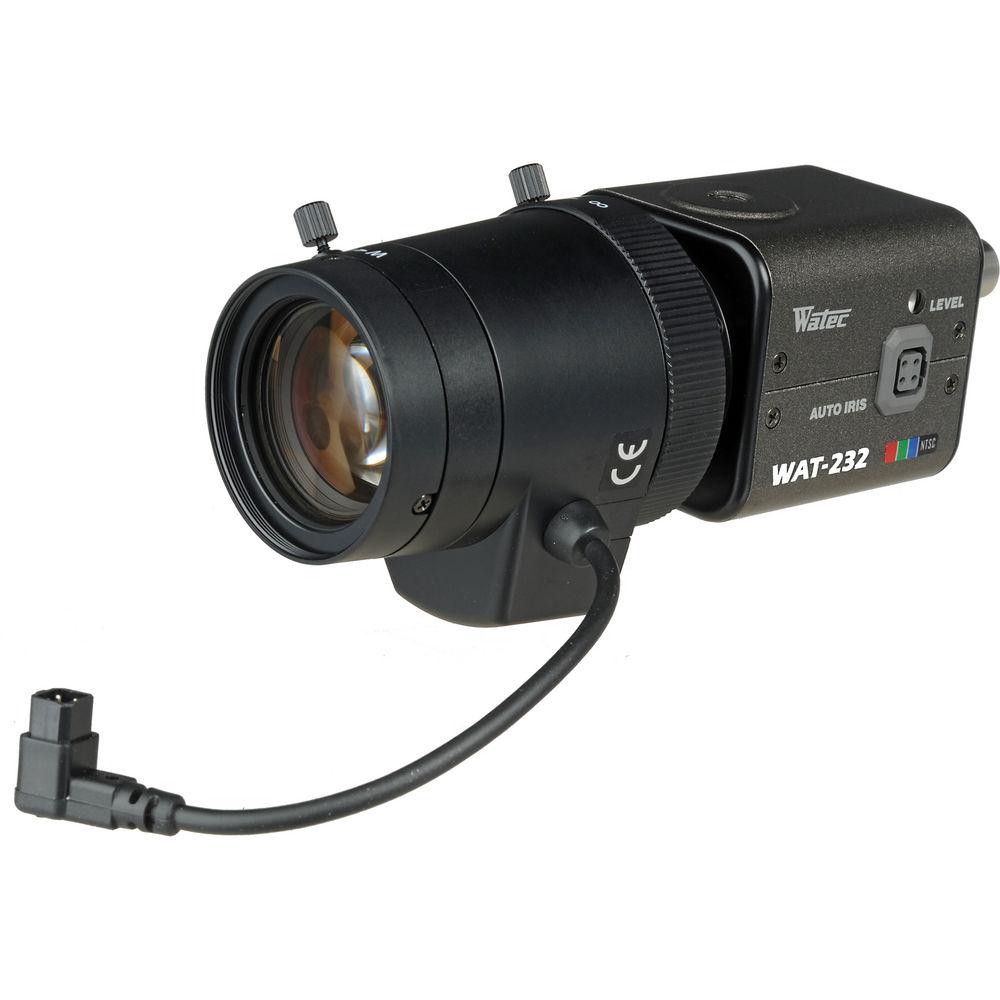

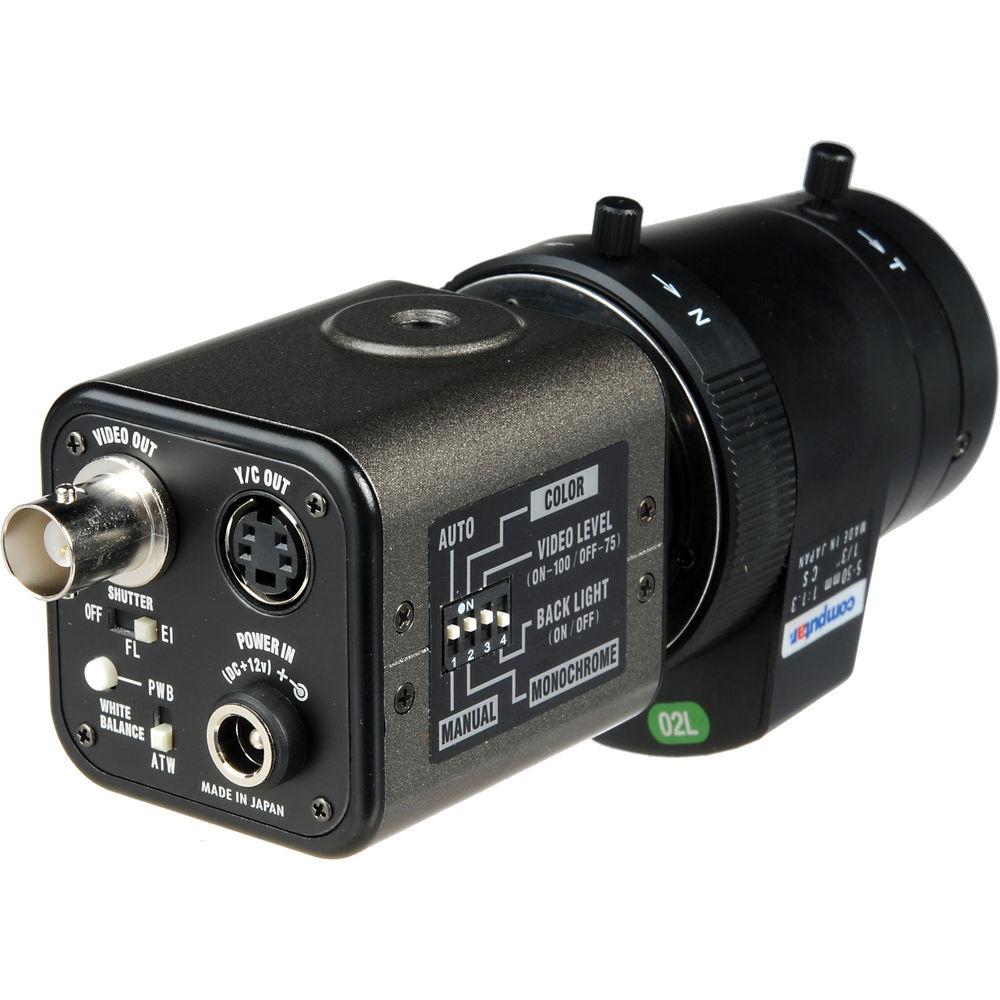

Product description The Watec APAQ2000-D/N 5.50 Outdoor Day/Night Surveillance Package is an outdoor surveillance kit featuring the WAT-233 Camera, APAQ2000 8" sealed outdoor housing, and 5-50mm varifocal lens. The camera has a 1/3" CCD sensor, captures 650 TVL resolution, and offers night vision for 24-hour monitoring. The housing is IP67 weatherproof for outdoor use. - 960H Box Camera (No Lens) The 650TVL Box Camera (No Lens) from Watec features a 1/3" interline transfer CCD image sensor which allows it to capture video and images at resolutions up to 650 TVL. The camera supports an OSD menu for full access to all features and functions.
The camera can capture images in low light thanks to its larger aperture of f/1.2 and its mechanical IR cut filter. It features motion-detection, privacy masking, and digital wide dynamic range, providing flexibility in your surveillance setup. - 1/3" interline transfer CCD sensor
- Up to 650 TVL resolution (768 x 494 resolution)
- Mechanical IT cut filter for accurate night vision
- Large f/1.2 aperture provides clear images even in low light scenes

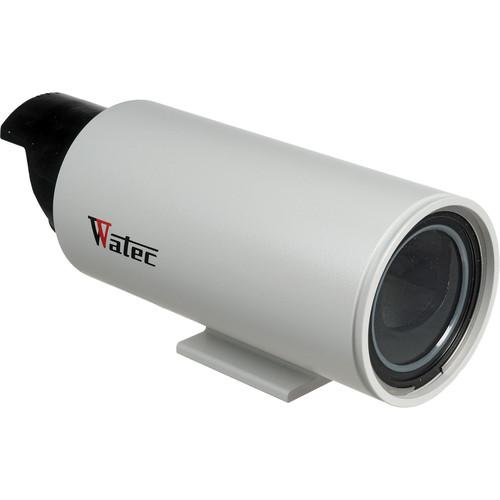

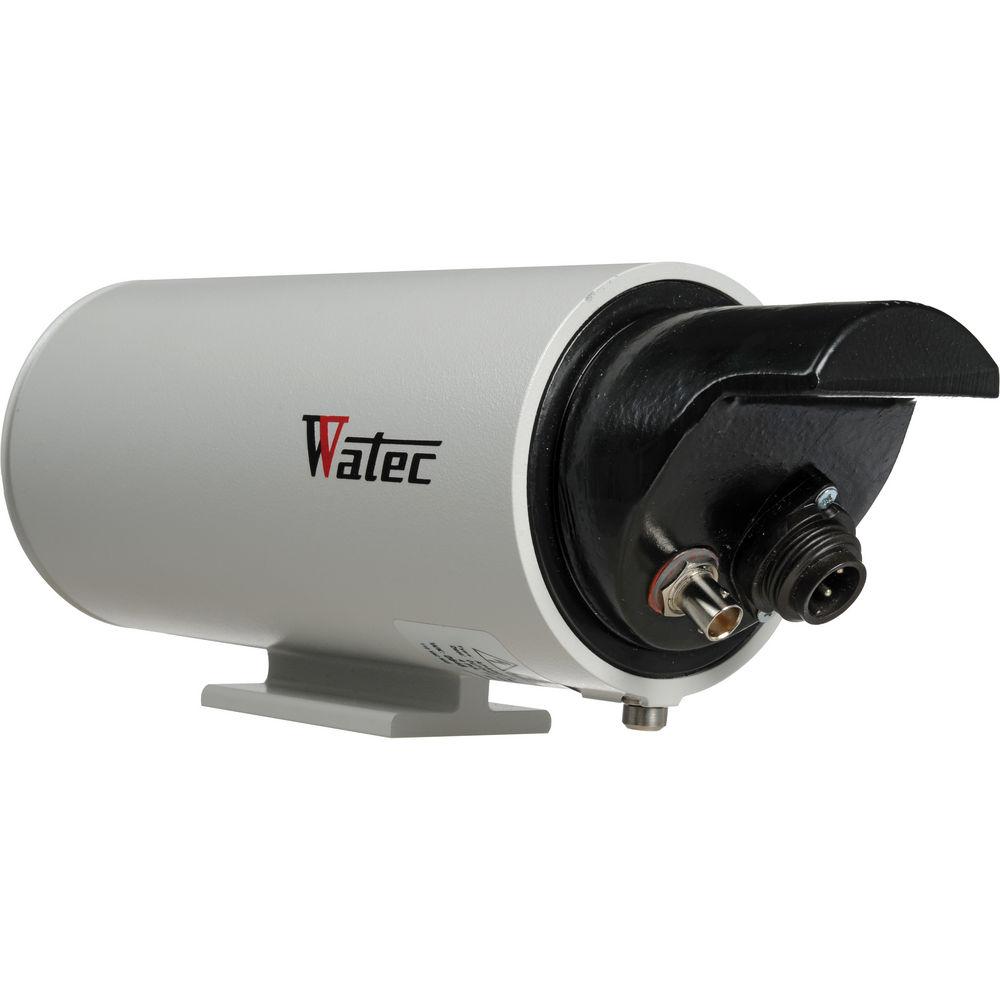

- APAQ2000 8" Sealed Housing (12 VDC/24 VAC) The Watec APAQ2000 is a stylishly designed aluminum outdoor housing for use with Watec's line of fixed CCTV cameras. It has an IP67 water and dust proof rating and features watertight video and power cable entry.
- For use with any Watec camera up to 7" in length
- IP67 waterproof rated, can be submerged up to 3.3 ft (1m)
In the Box Bundle Items 960H Box Camera (No Lens) xcfysfcdffcuxuszztwxbsdwwttzrxbbsda APAQ2000 8" Sealed Housing (12 VDC/24 VAC)
Also Includes - 5-50mm Varifocal Lens
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec Outdoor Day Night Surveillance Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 960H Box Camera (No Lens)
| Image Pickup Element | 1/3" interline transfer CCD image sensor | | Total Pixels (H x V) | 1028 x 508 | | Number of Effective Pixels (H x V) | 976 x 494 | | Unit Cell Size | 5 x 7.4 μm | | Imaging System | Yellow, cyan, magenta, and green complementary color mosaic filters on chip | | Synchronizing System | Internal | | Scanning System | 2:1 interlace | | Video Output | BNC Composite: 1 Vpp, 75 Ohms, unbalanced
Y/C: Y: 1.0Vpp, C: 0.3 Vpp 75 Ohms | | Horizontal Resolution | > 650 TVL (center) | | Minimum Illumination | Color: 0.01 lux f/1.2 (AGC ON, Shutter OFF, NR ON, Y 0.45)
0.0006 lux f/1.2 (AGC ON, Shutter 16x, NR ON, Y 0.45)
Monochrome: 0.0005 lux f/1.2 (AGC ON, Shutter OFF, NR ON, Y 0.45)
0.00003 lux f/1.2 (AGC ON, Shutter 16x, NR ON, Y 0.45) | | S/N Ratio | > 50 dB (AGC: 2 dB, Y: 1) | | Control | OSD or RS-485 (Pelco-D) | | AE Mode | Fixed:
2, 4, 8, 16, 32, 64, 128, 256x (field)
1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 s
EI:
1/60 to 1/100000 sec
16x to 1/100000 sec | | White Balance | ATW (color rolling suppression), PWB, MWB, PRESET (4 types) | | AGC (Automatic Gain Control) | High: 2 to 44 dB
Low: 2 to 32 dB | | MGC | 2 to 44 dB (1 dB step) | | Day/Night | Auto (level selectable) / manual / external | | Gamma Characteristics | 9 steps setting (1.0/0.8/0.7/0.6/0.55/0.5/0.45/0.4/0.35) | | Noise Reduction | 3DNR ON (level selectable) / OFF | | Wide Dynamic Range | ON (level selectable) / OFF | | Iris | Video / DC (EIAJ, auto-select) | | Back Light Compensation | ON / OFF | | HSBLC | Highlight BLC: ON / OFF | | White Blemish Correction | Up to 64 pixels | | Defog | ON (level selectable) / OFF | | Digital Zoom | 2-256x (ZOOM/PAN/TILT) | | Privacy Mask Type | 15 masks | | Mirror Image | Vertical flip / horizontal flip / HV flip | | Motion Detection | ON (area/sensitivity/alarm) / OFF | | Power Supply | 12 VDC ± 10% | | Power Consumption | 1.62 W (135 mA) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Humidity | Less than 95% RH (non-condensing) | | Lens Mount | CS mount (back focus adjustable) | | Dimensions | 1.71 x 1.73 x 2.64" (43.5 x 44 x 67 mm) | | Weight | Approximately 5.3 oz (150 g) | | | | Box Dimensions (LxWxH) | 5.9 x 3.7 x 2.7" | - APAQ2000 8" Sealed Housing (12 VDC/24 VAC)
| Indoor/Outdoor | Outdoor | | Mount Type | Standard | | Compatible Cameras | Fixed CCTV camera | | Clear or Tinted | Clear | | Maximum Camera/Lens Size | Up to 7" (178mm) | | Construction | Aluminum | | Operating Temperature | Not Specified by Manufacturer | | Dimensions (WxHxD) | 3.8 x 4.4 x 10.7" (97 x 112 x 272mm) | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 9.0" |
