User Manual for Watec W-01CDB3-3 1 3" CS-Mount 3rd Generation Board Camera Click to enlarge the picture
Contents of the user manual for the Watec W-01CDB3-3 1 3" CS-Mount 3rd
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
|
User manual for the Watec W-01CDB3-3 1 3" CS-Mount 3rd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|

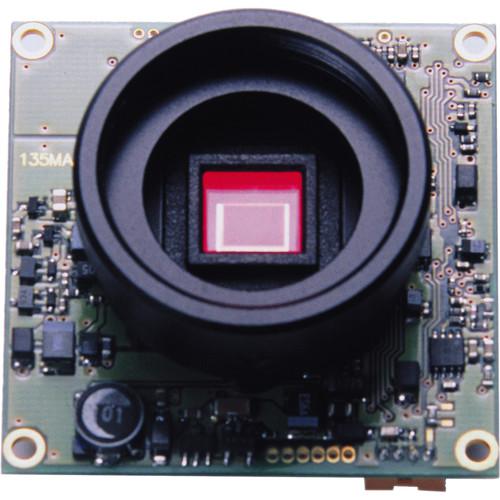

Product description The W-01CDB3-3 1/3" CS-Mount 3rd Generation Board Camera from Watec features a 1/3" interline transfer CCD image sensor that captures clear images in 650 TVL resolution. The 52 dB signal to noise ratio combined with the 2D noise reduction is designed to eliminate image noise such as blur and distortion. - 1/3" interline transfer CCD image sensor
- Night time visibility in conditions with a minimum illumination of 0.005 lux, F1.2
- 2D digital noise reduction
In the Box Watec W-01CDB3-3 1/3" CS-Mount 3rd Generation Board Camera Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec W-01CDB3-3 1 3" CS-Mount 3rd Generation Board Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec W-01CDB3-3 Specs | Image Sensor | 1/3" interline transfer CCD image sensor | | Total Pixels (H x V) | 1020 × 508 | | Effective Pixels (H x V) | 976 × 494 | | Unit Cell Size | H x V: 5.40 × 7.40 μm | | Synchronizing System | Internal | | Scanning System | 2:1 interlaced | | Video Output | Composite video, 1 V p-p, 75 Ohms (Unbalanced) | | Resolution | More than 650 TVL (Center) | | Minimum Illumination | 0.005 lux, f/1.2 | | S/N Ratio | > 52 dB | | Settings | OSD (On Screen Display, operated by optional remote controller) | | Electronic Iris | 1/60 to 1/100000 seconds | | Electronic Shutter | 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 seconds | | AGC | On (-3 to45 dB) / Off (-3 dB) | | MGC | 8 steps (Selectable) | | Noise Reduction | 2DNR, On/Off | | White Balance | ATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK | | Privacy Masking | 8 masks | | Mirror Image | Off / On (H-FLIP) | | Gamma Characteristics | 0.45 | | Video Level | 0-255 (Brightness) | | Back Light Compensation | Off / BLC / HLC | | White Blemish Correction | Max 64 dots | | Output Switching | Auto/Color/B&W | | Sharpness | 0 to 255 (Sharpness) | | Defog | Off / Low / Mid / High | | Iris | Video / DC | | Power Supply | 12 VDC ± 10% | | Power Consumption | 0.78 W | | Consumption Current | 65 mA | | Lens Mount | CS | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions | 1.65 x 1.65 x 0.82" (42 x 42 x 21 mm) | | Weight | 1.02 oz (29 g) |
