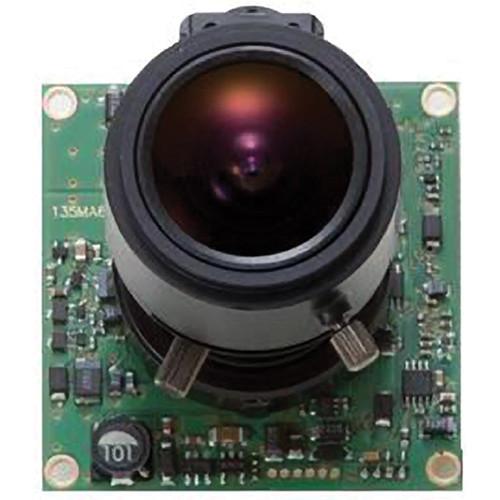

Product description The Watec W-02CDB3 1/3" Camera with 2.8 to 10mm Lens (NTSC) is a high-resolution, exposure, board camera with a built-in varifocal auto-iris lens. W-02CDB3 is a complete package for the color board solution and comes with 450 TVL resolution. In the Box Watec W-02CDB3 1/3" Camera with 2.8 to 10mm Lens (NTSC) 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec W-02CDB3 1 3" Camera with 2.8 to 10mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-02CDB3 Specs | Model | W-02CDB3 (NTSC) | | CCD | 1/3" interline transfer CCD image sensor | | Total Pixels | 811 (H) x 508 (V) | | Number of Effective Pixels | 768 (H) x 494 (V) | | Unit Cell Size | 6.4 μm (H) × 7.5 μm (V) | | Synchronizing System | Internal | | Scanning System | 2:1 interlace | | Scanning Frequency | H: 15.73 kHz
V: 59.94 kHz | | Video Output | Composite video, 1 Vpp, 75 Ω, unbalanced | | Synchronization System | C. video / C. synchronization (external) | | Resolution | Horizontal: 450 TVL or more (center) | | Minimum Illumination | 3 lux @ F1.6 | | S/N | 50 dB or more | | AE Mode | ES: 1/60, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/5,000, 1/10,000, 1/20,000, 1/50,000 sec
EI: 1/60 to 1/1,00,000 sec | | White Balance | ATW, 3,200 K, 5,100 K, 8,200 K (white balance control) | | AGC (Automatic Gain Control) | 3 to 24 dB | | Gamma Characteristics | γ = 0.45 | | Video Level | 100 IRE / 75 IRE | | Backlight Compensation | Full screen | | Power Supply | 12 VDC ± 15% | | Power Consumption | 1.26 W | | Current | 105 mA | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Humidity | Operating / Storage: Less than 95% RH | | Lens Mount | Ø 0.55 (14 mm) | | Standard Lenses | Built-in varifocal lens f2.8 to 10 mm f1.6 | | Dimensions (L x W x H) | 2.24 x 1.65 x 1.65" (57 x 42 x 42 mm) | | Weight | 1.94 oz (55 g) |
