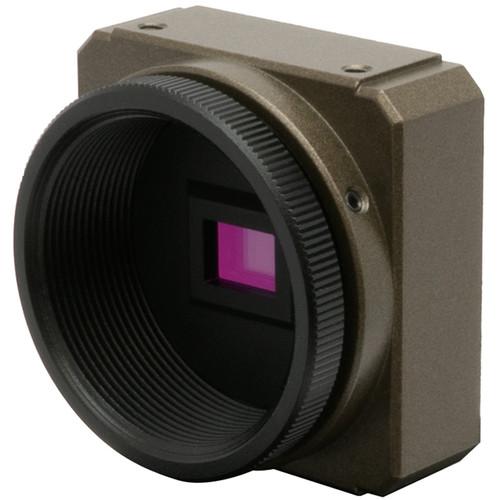

User Manual for Watec WAT-01U2 1 2.8" Miniature Color USB CMOS Camera Click to enlarge the picture
Contents of the user manual for the Watec WAT-01U2 1 2.8" Miniature Color
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
|
User manual for the Watec WAT-01U2 1 2.8" Miniature Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|
Product description Watec's WAT-01U2 1/2.8" Miniature Color USB CMOS Camera is a 5 MP color camera with a CS mount that captures video up to 1920 x 1080p 30 fps. Small in size, it is suitable for medical, machine visions, industrial, interview rooms, and military applications. The camera features a USB 2.0 interface, which supplies power to the camera and provides video out and camera control. The camera can output 8 different preset resolutions. Featuring a CS mount that allows for back focus adjustment, the camera is compatible with a vast array of optional CS mount lenses. - The camera supports USB Video Class drivers and is USB bus powered, so it is truly a plug and play camera when connected to a computer running a compatible OS.
- The USB interface allows you to control various camera settings including shutter speed, gain, white balance, output resolution, AGC, gamma correction, and backlight compensation.
In the Box Watec WAT-01U2 1/2.8" Miniature Color USB CMOS Camera USB Cable 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec WAT-01U2 1 2.8" Miniature Color USB CMOS Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-01U2 Specs | Signal System | NTSC
PAL | | Image Sensor | 1/2.8" Progressive scan CMOS | | Effective Pixels | 1984 x 1225 | | Resolution | Greater than 680 Lines | | Lens Mount | CS (back focus adjustable) | | Synchronization | Internal | | Video Output | USB miniB, USB video class | | Maximum Frame Rate | 30 fps | | Output Size | 1920 x 1080
1280 x 1024
1280 x 800
1280 x 720
640 x 480
320 x 240
176 x 144
160 x 120 | | Electronic Shutter | 1/15
1/30
1/60
1/120
1/250
1/250
1/50
1/1000
1/2000
1/4000
1/8000
1/6000 | | Electronic Iris | Normal: 1/30 to 1/16000
Slow Shutter Mode: 1/15 to 1/160000 | | Minimum Illumination | 0.25 lx f/ 1.4 (1/30s) | | AGC (Automatic Gain Control) | Auto: 0 to 42 db
Manual: 0 to 24 db (24 steps) | | White Balance | ATW: 2800 to 9500K
Manual: 2800 to 6500K | | Gamma Correction | On / Off | | Backlight Compensation | On / Off | | Interface | USB 2.0 | | Operating System Support | Windows XP Professional: Home edition SP2/SP3 (N/A: Gain, Flickerless)
Windows Vista: 32/64-bit
Windows 7: 32/64-bit
Windows 8: 32/64-bit | | Power Supply | USB Bus Powered: 5 VDC | | Power Consumption | 0.6 W (120 mA) | | Temperature | Operating: 14 to 122°F / -10 to 50°C (approximately)
Storage: -22 to 158°F / -30 to 70°C (approximately) | | Humidity | Operating: 95%RH or less (w/o condensation)
Storage: 95%RH or less (w/o condensation) | | Dimensions (WxHxD) | 1.3 x 1.3 x 0.9" / 32.0 x 32.0 x 23.0 mm (including USB port)
1.3 x 1.3 x 0.7" / 32.0 x 32.0 x 18.3 mm (not including USB port) | | Weight | 1.2 oz / 35g (approximately) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.5 x 4.1 x 1.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
