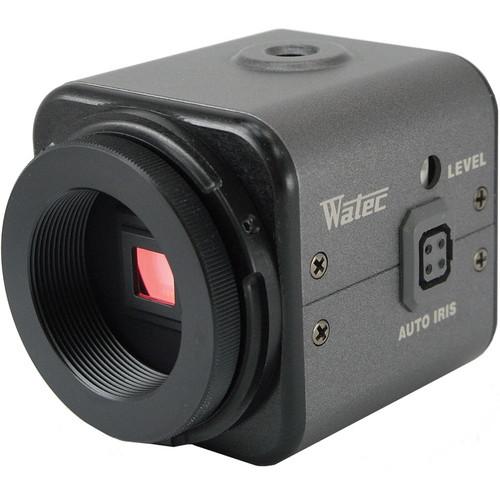

Product description The Watec WAT-231S2 is an ultra compact box CCTV camera with a 1/3" color CCD, a super high resolution of 540 TVL, and a good low light sensitivity of 0.05 lux. It also employs a number of electronic controls, among them AGC, MGC, and BLC, to compensate for a variety of lighting environments. Another important feature of this camera is auto white blemish compensation - a function that can detect and correct overly bright pixels in the image (up to 32 pixels). For flexible connection options, this camera features both a composite (BNC) and S-video output port. A standard CS lens mount offers compatibility with industry CCTV lenses including those with auto iris DC or Video capabilities. - Ultra compact (1.7 x 2") and lightweight (4.9 oz) camera
- High image quality with 1/3" CCD and 540 TVL of resolution
- Auto and manual white balance and gain settings
- Supports auto iris DC and Video lenses
- White blemish compensation for adjusting overly bright pixels
In the Box Watec WAT-231S2 Ultra Compact Camera 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec WAT-231S2 Ultra Compact Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-231S2 Specs | Signal System | NTSC | | Image Sensor | 1/3" Color IT CCD (Ye, Cy, Mg, and G complementary color mosaic filters on chip) | | Number of Pixels | 768 x 494 | | Resolution | 540 TVL | | Lens | CS mount (Back focus adjustable) | | Iris Operation | Video / DC (EIAJ arrangement, Auto-select) | | Minimum Illumination | 0.05 Lux | | IR Illumination | No | | Signal-to-Noise Ratio | More than 50dB | | Controls | Exposure Fixed: 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec
E-Shutter: 1/60 - 1/100000 sec (flicker suppress)
White Balance: ATW(color rolling less), PWB, MWB, Preset (3200K, 4300K, 5100K, 6300K)
AGC: HI: 0～38dB / LO: 0～32dB
MGC: 0～32dB
Gamma Characteristics: On/Off
Back Light Compensation: On/Off
White Blemish Correction: Up to 32 pixels | | Microphone | No | | Video Output | BNC x1, S-Video x1 | | Audio Output | N/A | | Sync System | Internal | | Power Requirements | 12VDC | | Power Consumption | 2.1W | | Operating Temperature | 14 - 114°F (-10 ~ +50°C) | | Dimensions (WxHxD) | 1.7 x 1.7 x 2" (42 x 42 x 51mm) | | Weight | 4.9 oz (140g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 3.5 x 2.6 x 2.5" |
