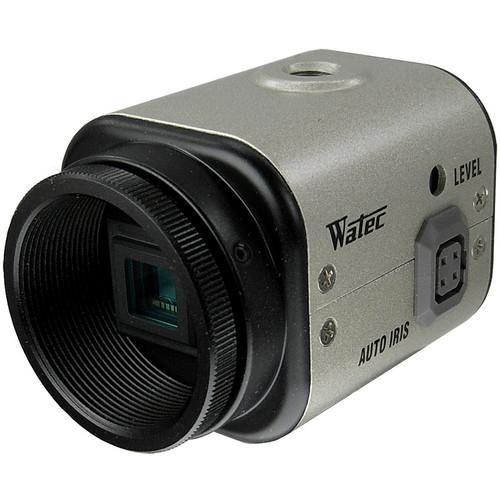

User Manual for Watec WAT-250D2 1 3" Color Camera Click to enlarge the picture
Contents of the user manual for the Watec WAT-250D2 1 3" Color Camera
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
|
User manual for the Watec WAT-250D2 1 3" Color Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|
Product description While maintaining the same small size as the WAT-250D, the Watec WAT-250D2 1/3” Color Camera (NTSC) captures images in minimal light conditions of 0.05 lux in over 540 TVL of high resolution true color producing imagery. This color camera utilizes the DSP technology providing crisp, vivid colors empowering your team with the advantage to clearly identify colors as they appear to the human eye. Further meeting your requirements of perfection is this cameras’ built in feature of pixel correction, enabling you the ability to erase up to 32 hot pixels for those application requiring absolute blemish free video. - High resolution (540 TVL)
- Supports Automatic Gain Control (AGC)
- Video/DC iris auto-select
In the Box Watec WAT-250D2 1/3" Color Camera (NTSC) WPDC12 12VDC Male Connector Plug ucsxquavatrvxcdz AIC-G (Iris Plug) Hex Wrench 3-Year Warranty Brochure PDF 136.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec WAT-250D2 1 3" Color Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-250D2 Specs | Image Pickup Element | 1/3" interline transfer CCD image sensor | | Total Pixels (H x V) | 811 x 508 | | Effective Pixels (H x V) | 768 x 494 | | Unit Cell Size | 6.35 x 7.4 μm (H x V) | | Imaging System | YE, Cy, Mg, and G complementary color mosaic filters on chip | | Synchronizing System | Internal | | Scanning System | 2:1 interlace | | Video Output | Composite video: 1 Vpp, 75 ohms, unbalanced | | Horizontal Resolution | <540 TVL (center) | | Minimum Illumination | 0.02 lux F1.2 | | S/N | <50 dB (MGC = 0 dB, γ = 1.0) | | AE Mode | Fixed: 1/60, 1/100 sec
EI: 1/60 to 1/100,000 sec (flicker suppress) | | White Balance | ATW (color rolling less), PWB | | AGC (Automatic Gain Control) | On: 0 to 30 dB
Off: 0 dB | | Gamma Characteristics | 0.45 (On)/1.0 (Off) | | Video Level | 100 (On)/75 IRE (Off) | | Lens | Iris: Video/DC (EIAJ arrangement, auto-select) | | Back Light Compensation | On/Off | | White Blemish Correction | Up to 32 pixels | | Power Supply | 12 VDC ±10% | | Power Consumption | 1.74 W (145 mA) | | Operating Temperature | 14 to 122°F (-10 to 50°C), without condensation | | Storage Temperature | -22 to 158°F (-30 to 70°C), without condensation | | Humidity | Operating/Storage: >95% RH | | Lens Mount | CS mount (back focus adjustable) | | Dimensions | 2.48 x 1.40 x 1.42" (63.1 x 35.5 x 36 mm) | | Weight | Approximately 3.17 oz (90 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 2.8 x 2.4 x 1.6" |
