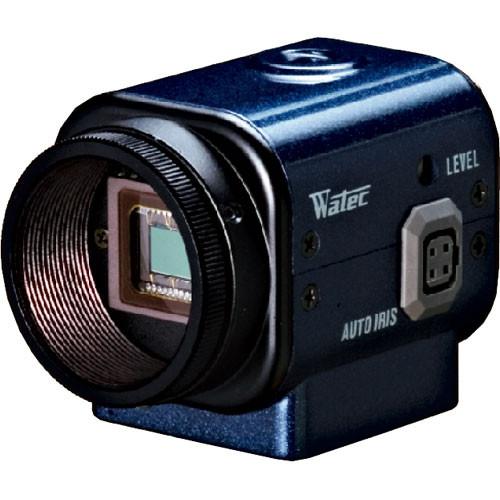

User Manual for Watec WAT-902H2 CCIR Ultimate 1 2" Compact B W Camera Click to enlarge the picture
Contents of the user manual for the Watec WAT-902H2 CCIR Ultimate 1 2"
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
|
User manual for the Watec WAT-902H2 CCIR Ultimate 1 2" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|
Product description The PAL-signal WAT-902H2 CCIR Ultimate 1/2" Compact B/W Camera from Watec is a lightweight and compact, CCTV camera that is highly sensitive and can operate in very low-light conditions, nearing the IR range, with a minimum illumination of 0.0001 lux. This camera can mount any CS-style lens and is equipped with an auto-iris power/control socket. Additional features include manual gain and shutter speed adjustments, with four options for back-light compensation. This is a camera body only, lenses must be purchased separately. In the Box Watec WAT-902H2 CCIR Ultimate 1/2" Compact B/W Camera (PAL) Hex Wrench Lens Mount Cap 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec WAT-902H2 CCIR Ultimate 1 2" Compact B W Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-902H2 Ultimate Specs | Signal System | PAL | | Image Sensor | 1/2" B/W IT CCD | | Resolution | 570 Lines | | Number of Pixels | Total: 795 x 596
Effective: 752 x 582 | | Lens | Accepts CS threaded-mount lenses | | Iris Operation | Auto-Iris socket for compatible lenses | | Minimum Illumination | 0.0001 Lux f/1.4 | | Signal-to-Noise Ratio | >50dB | | Controls | • Electronic Iris: 1/60-1/100,000 / 1/100,000 sec
• Electronic Shutter: 1/60 (off), 1/00 (fl) 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10,000, 1/100,000
• AGC: Hi: 5-60dB / Lo: 5-32dB
• MGC: 5-60dB
• Back Light Compensation: (On) Center, Lower, Center + Lower (Off) | | Sync | Internal | | Video Output | BNC | | Power Requirements | 12 VDC | | Power Consumption | 1.3W | | Environmental | Operating temperature: 14 to 104° F (-10 to 40° C)
Less than 95% relative humidity, non-condensing | | Dimensions | 2.5 x 1.6 x 1.4" (6.3 x 4.0 x 3.6 cm) | | Weight | 3.5 oz (98 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 2.8 x 2.4 x 1.2" |
