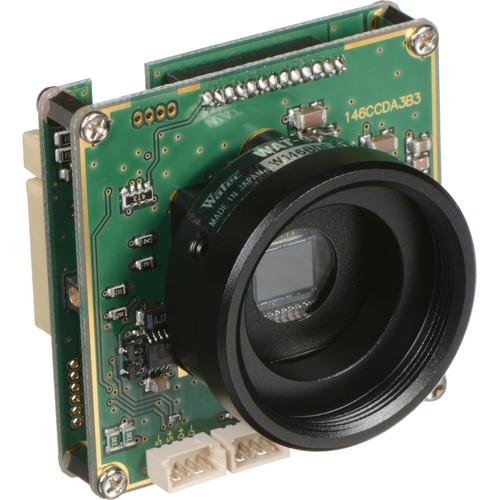

User Manual for Watec WAT-910HX BD 570TV Monochrome Ultra Low Light Camera Click to enlarge the picture
Contents of the user manual for the Watec WAT-910HX BD 570TV Monochrome Ultra
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
|
User manual for the Watec WAT-910HX BD 570TV Monochrome Ultra contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|
Product description Designed for discreet placement, Watec's WAT-910HX/BD 570TV Monochrome Ultra Low Light Camera features a minimum illumination of a mere 0.0000025 lux for exceptional low-light capabilities, and a 1.7x1.7x 0.9" bare-board layout that weighs just 2.5oz, with flying leads that allow it to be placed where conventional cameras cannot. A 1/2" 2:1 interlace image sensor produces up to 570TVL resolution and the camera accepts lenses with CS mounts. Multiple technologies including 3D noise reduction (3DNR), Wide Dynamic Range (WDR), and Back Light Compensation (BLC), work together to enhance image quality, improve motion detection accuracy, and reduce bandwidth and memory usage. - Hardware
-
- CS lens mount
- 570 TVL resolution
- 1/2" 2:1 interlace image sensor
- Composite BNC video-out connector
- Shutter speed from 1/60 to 1/100000 sec
- Minimum illumination: 0.0000025 lux at f/1.4
- More than 52dB signal-to-noise ratio
- Flying leads for concealed applications
- Bare-board layout for discreet deployment
- Compact 1.7x1.7x 0.9" dimensions and 2.5oz weight
- Imaging Technology
-
- 3DNR Digital Noise Reduction: Filters digital interference (noise) from signal to improve motion detection, improve image quality, and reduce bandwidth and memory usage
- Digital Wide Dynamic Range (WDR): Provide clear images when there are very bright and very dark areas simultaneously in the camera's field of view
- Back Light Compensation: Enhances image when a subject is harshly silhouetted against a bright light source
- Dead Pixels Correction: Identifies dead pixels and automatically maps them to be ignored by the processors eliminating black voids in the image
- Recording
-
- Video Motion Detection: Triggers recording when motion is detected, four selectable zones to limit false alarms
- Alarm output terminal: Wire camera to external appliance and trigger when motion is detected
In the Box Watec WAT-910HX/BD 570TV Monochrome Ultra Low Light Camera Limited Three-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec WAT-910HX BD 570TV Monochrome Ultra Low Light Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-910HX/BD Specs | Image Sensor | 1/2" Monochrome 2:1 interlace | | Resolution | 570 TVL | | Lens Mount | CS | | Iris | Auto | | Video Out | 1 x BNC | | Signal-to-Noise Ratio | >52 dB | | Minimum Illumination | 0.0000025 lux at f/1.4 | | IR Illumination | None | | Audio In / Out | None | | Alarm Input / Output | Input: 1 x Terminal block
Output: None | | Power | Required: 12 VDC
Consumption: 1.38 W, 115 mA | | Environmental | Operating temperature: 14 to 122°F (-10 to 50°C)
Storage temperature: -22 to 158°F (-30 to 70°C)
Humidity: <95%, non-condensing | | Dimensions | 1.7 x 1.7 x 0.9" (4.2 x 4.2 x 2.3 cm) | | Weight | 2.5oz (70.8g) | | | | Package Weight | 0.17 lb | | Box Dimensions (LxWxH) | 2.8 x 2.4 x 1.75" |
