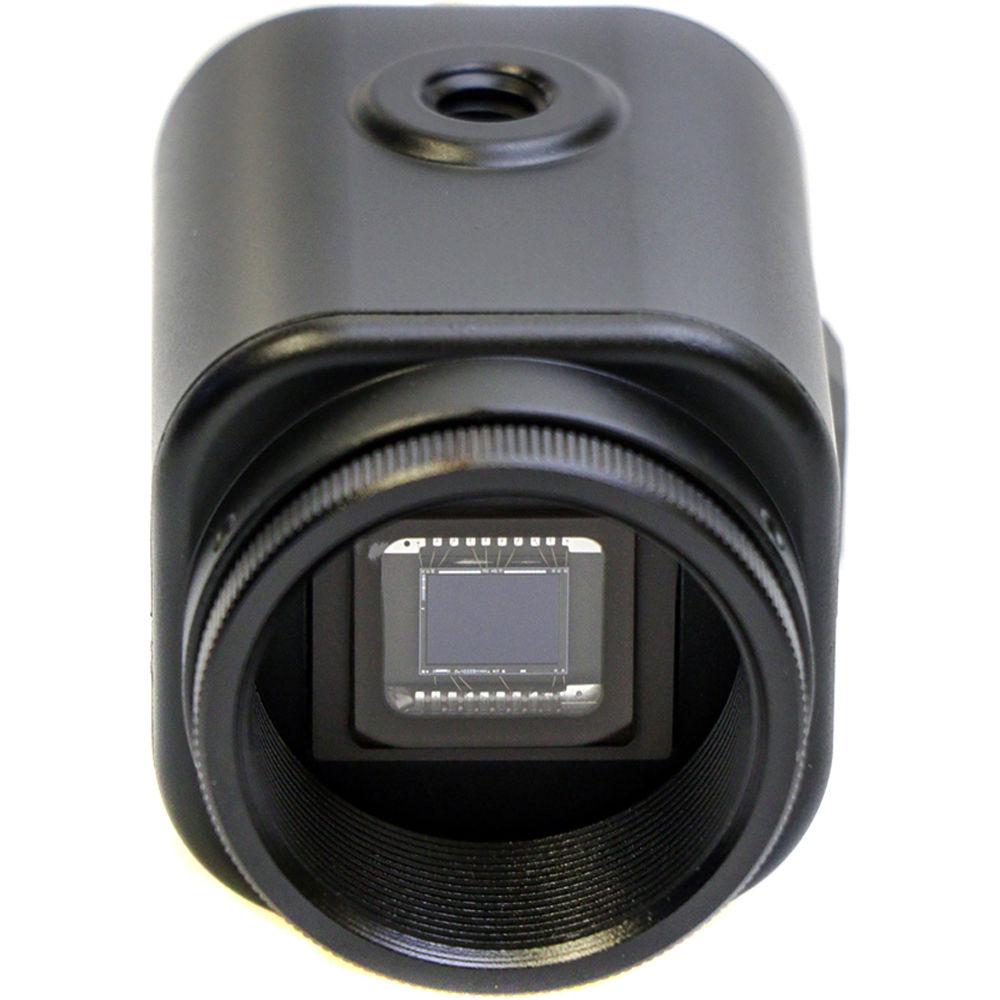

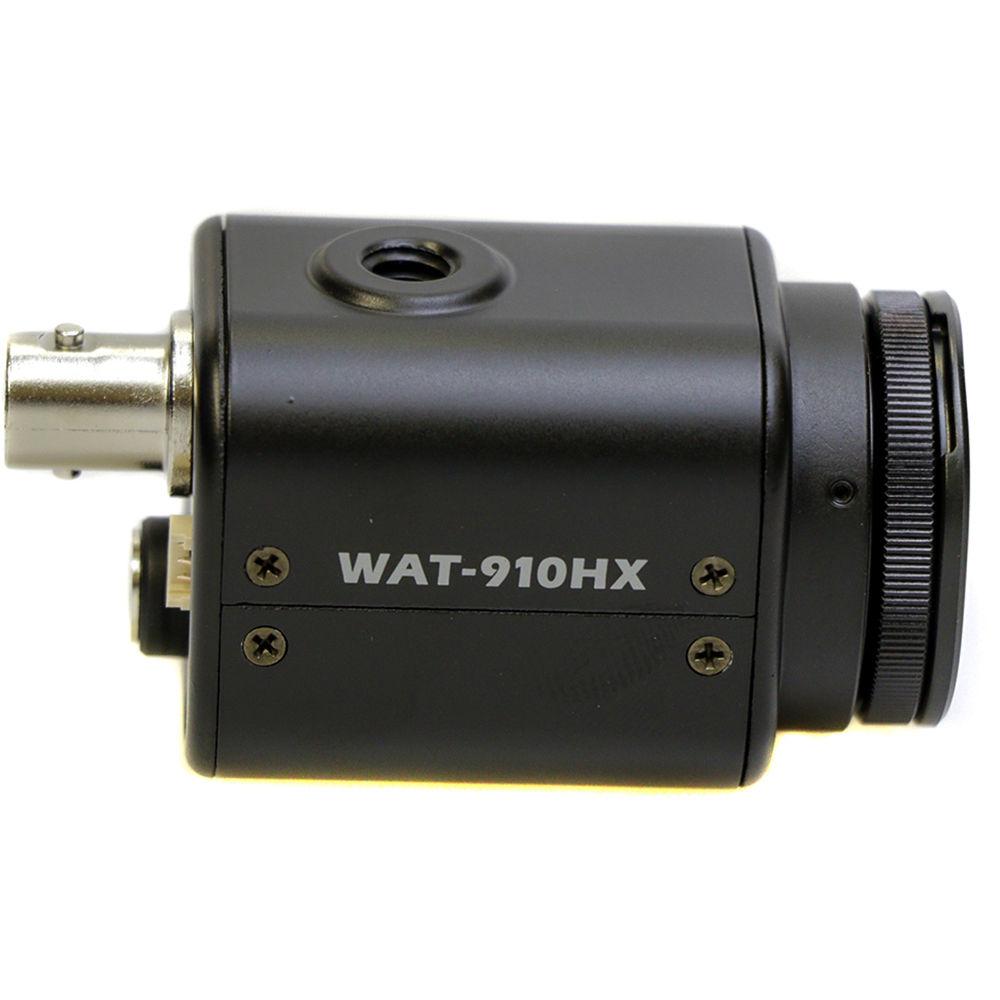

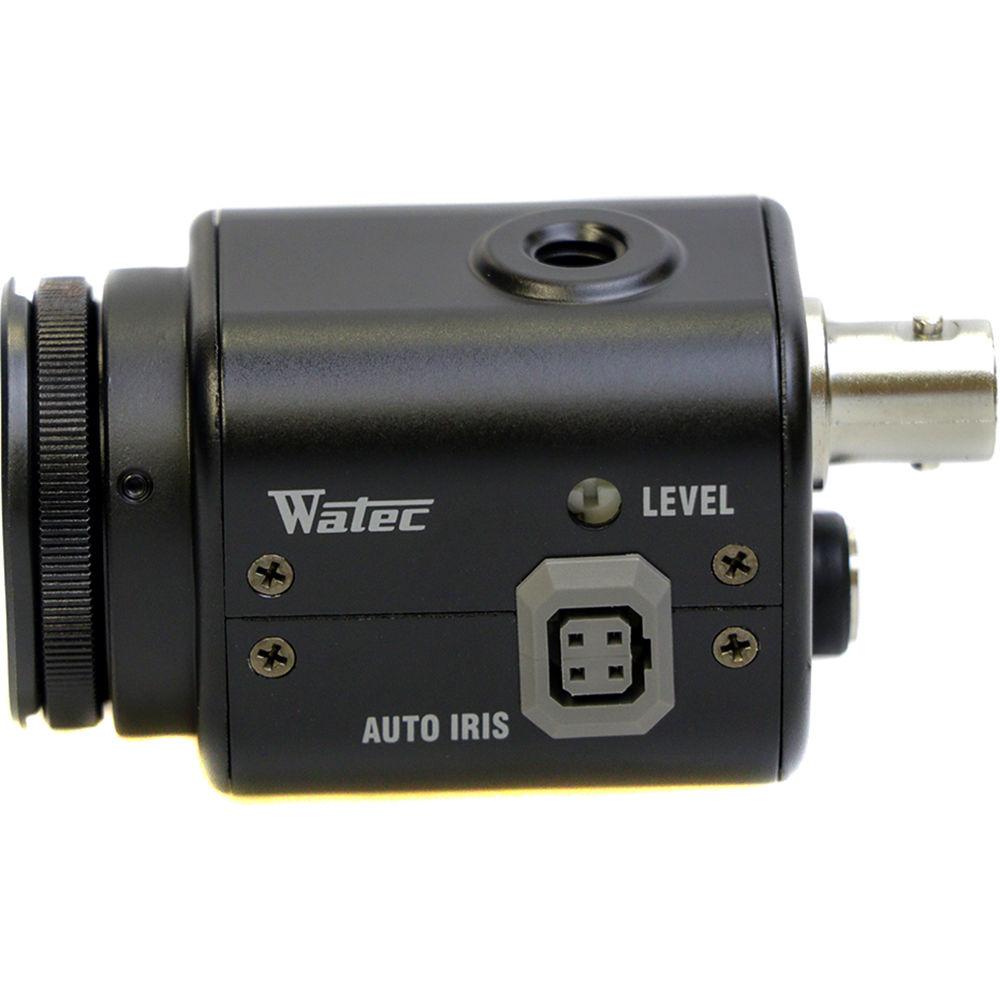

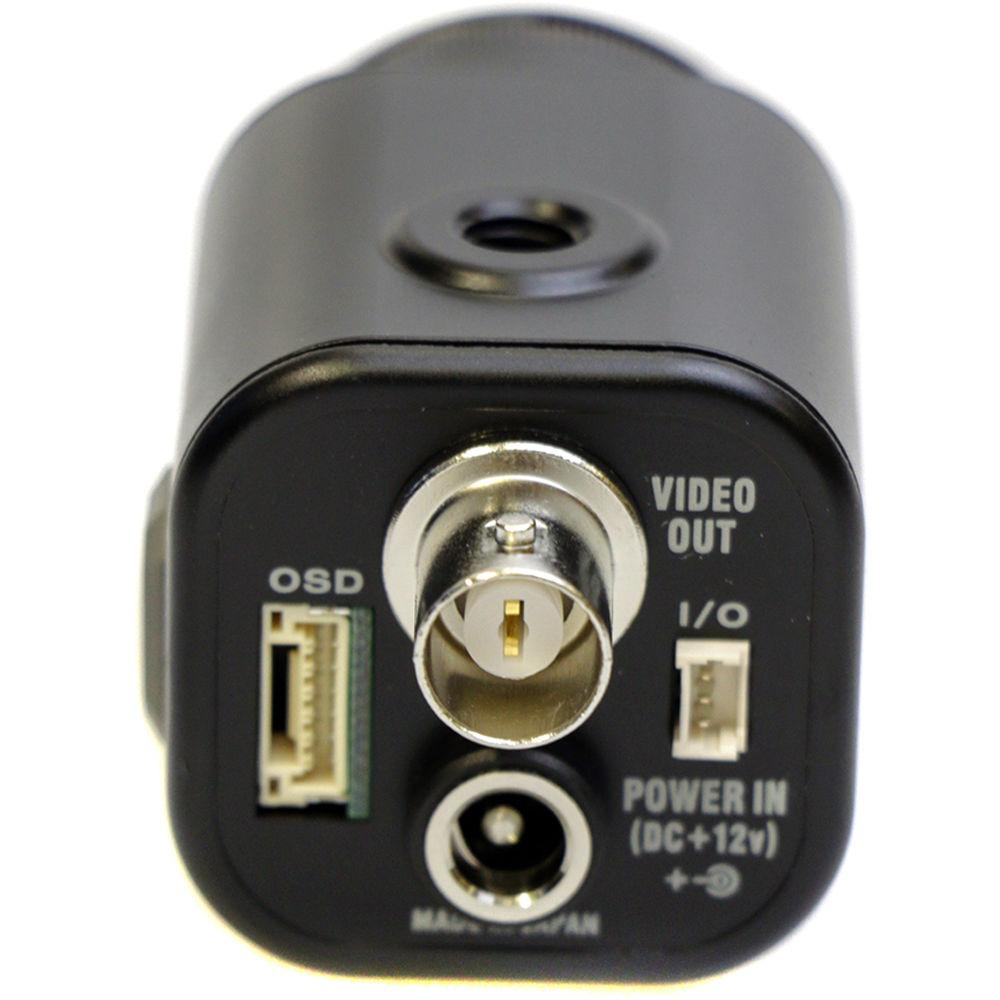

User Manual for Watec WAT-910HX RC 570TVL Camera Click to enlarge the picture
Contents of the user manual for the Watec WAT-910HX RC 570TVL Camera
- Product category: Industrial & Multi-Purpose Cameras Watec
- Brand: Watec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watec Industrial & Multi-Purpose Cameras
 |
User manual for the Watec WAT-910HX RC 570TVL Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watec product will considerably shorten its lifespan!
|

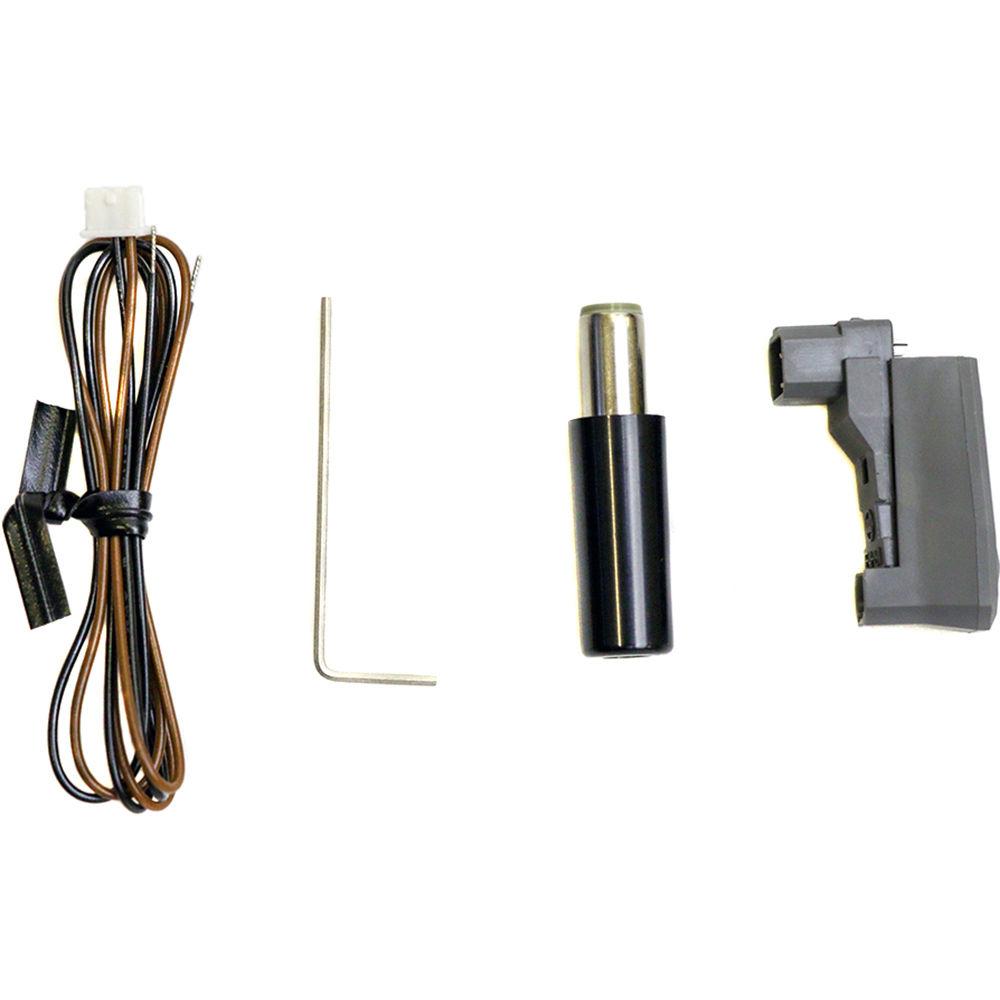

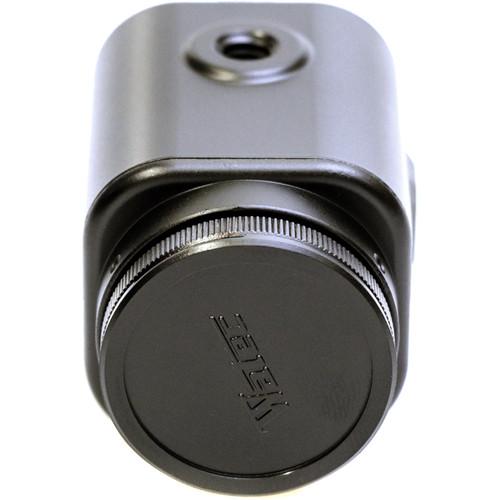

Product description The WAT-910HX/RC 570TVL Camera from Watec operates on standard illumination of 0.0001 lux and 0.000005 lux (integrated frame technology). It is designed to adjust frame loss compensation based on the lighting conditions of your environment. This unit is fully adjustable to meet the requirements of your dark or lighted application and can be pre-calibrated by the user to ensure the highest quality imaging experience. In the Box Watec WAT-910HX/RC 570TVL Camera Lens Mount Cap RC-01 Remote Hex Wrench DC Plug Iris Connector 1' Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watec WAT-910HX RC 570TVL Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatec WAT-910HX/RC Specs | Image Sensor | 1/2" interline transfer CCD image sensor | | Resolution | 570 TVL | | Sync. Systerm | Internal | | Electronic Iris | x256 (field) selectable; 1/100000 sec | | Electronic Shutter | x2, x4, x8, x16, x32, x64, x128, x256 (field)
1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec | | AGC (Automatic Gain Control) | ON:
LOW: 6 to 30 dB / MID: 6 to 34.5 dB / HIGH: 6 to 41 dB
OFF:
6 to 41 dB (1 dB step) selectable | | Gamma Characteristics | γ ≒ 0.05 to 1.00 (0.05 step), user selectable | | Noise Reduction | 3D-DNR; ON / OFF | | Wide Dynamic Range | USER 1 / USER 2 / OFF | | Motion Detection | Maximum 4 areas selectable (output terminal available) | | Back Light Compensation | OFF / BLC / HSBLC | | White Blemish Correction | Up to 64 dots correctable by OSD operation | | Scanning | 2:1 interlace | | Lens Mount | CS (back focus adjustable) | | Iris | Video / DC (EIAJ arrangement, auto-select) | | Video Out | Composite video, 1 Vpp, 75Ω (unbalanced) | | Signal-to-Noise Ratio | >52 dB | | Minimum Illumination | 0.000005 lux; f/1.4 (shutter: x256, AGC: HIGH, γ: 0.35) | | Settings | OSD (On Screen Display) operated by remote control | | Power | Supply: 12 VDC ±10%
Consumption: 1.38 W, 115 mA | | Environmental | Operating temperature: 14 to 122°F (-10 to 50°C)
Storage temperature: -22 to 158°F (-30 to 70°C)
Humidity: <95%, non-condensing | | Dimensions | 1.4 x 1.4 x 2.5" (35.5 × 36.0 × 63.5 mm) | | Weight | 3 oz (83 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 2.7 x 2.4 x 1.8" |
