User Manual for Watson 4-Bay Rapid Charger with LCD and 4 AA NiMH Batteries Click to enlarge the picture
Contents of the user manual for the Watson 4-Bay Rapid Charger with LCD
- Product category: Universal Batteries & Chargers Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Universal Batteries & Chargers
 |
User manual for the Watson 4-Bay Rapid Charger with LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

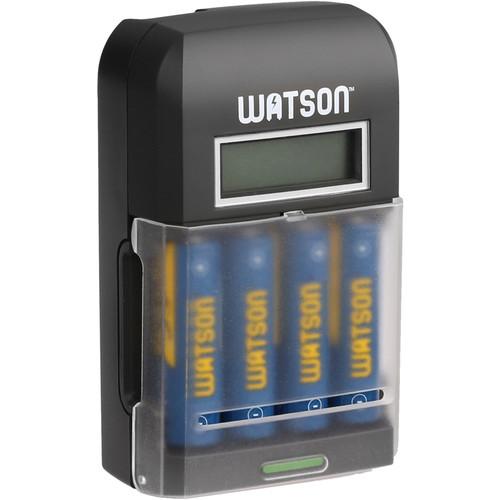

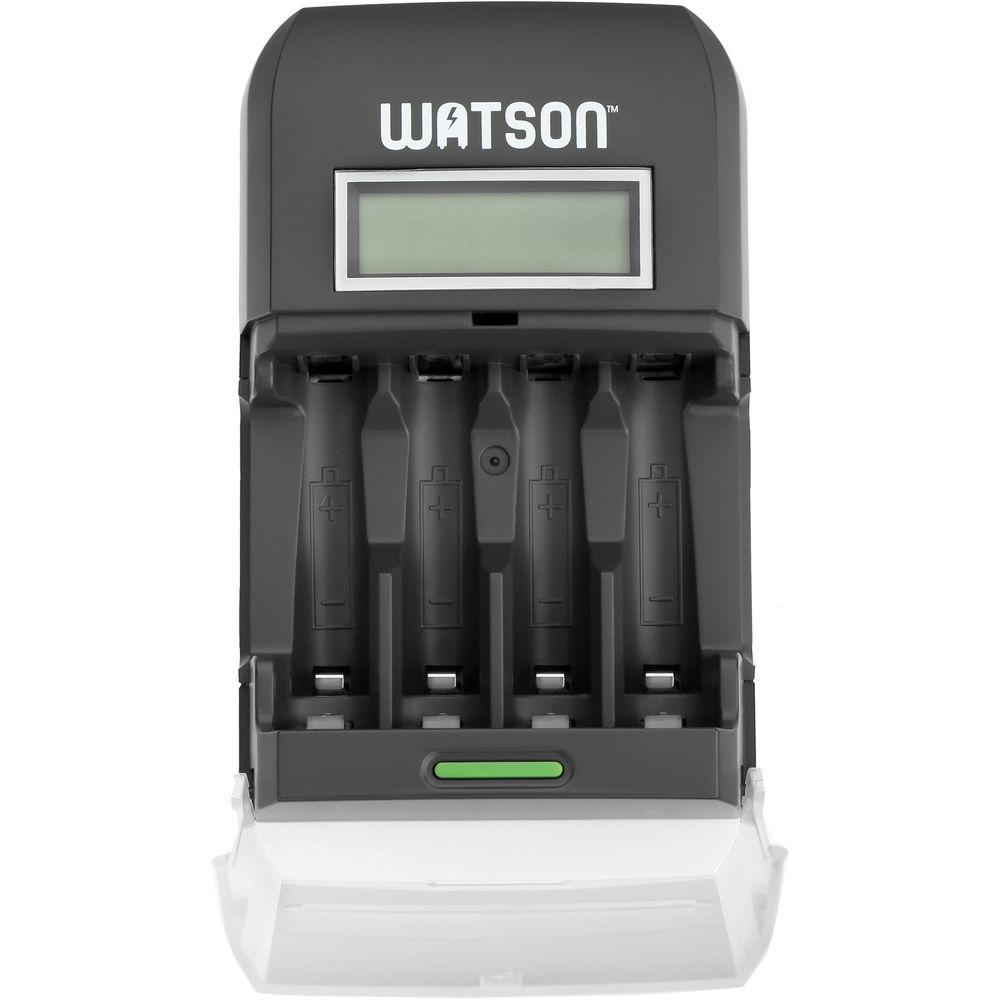

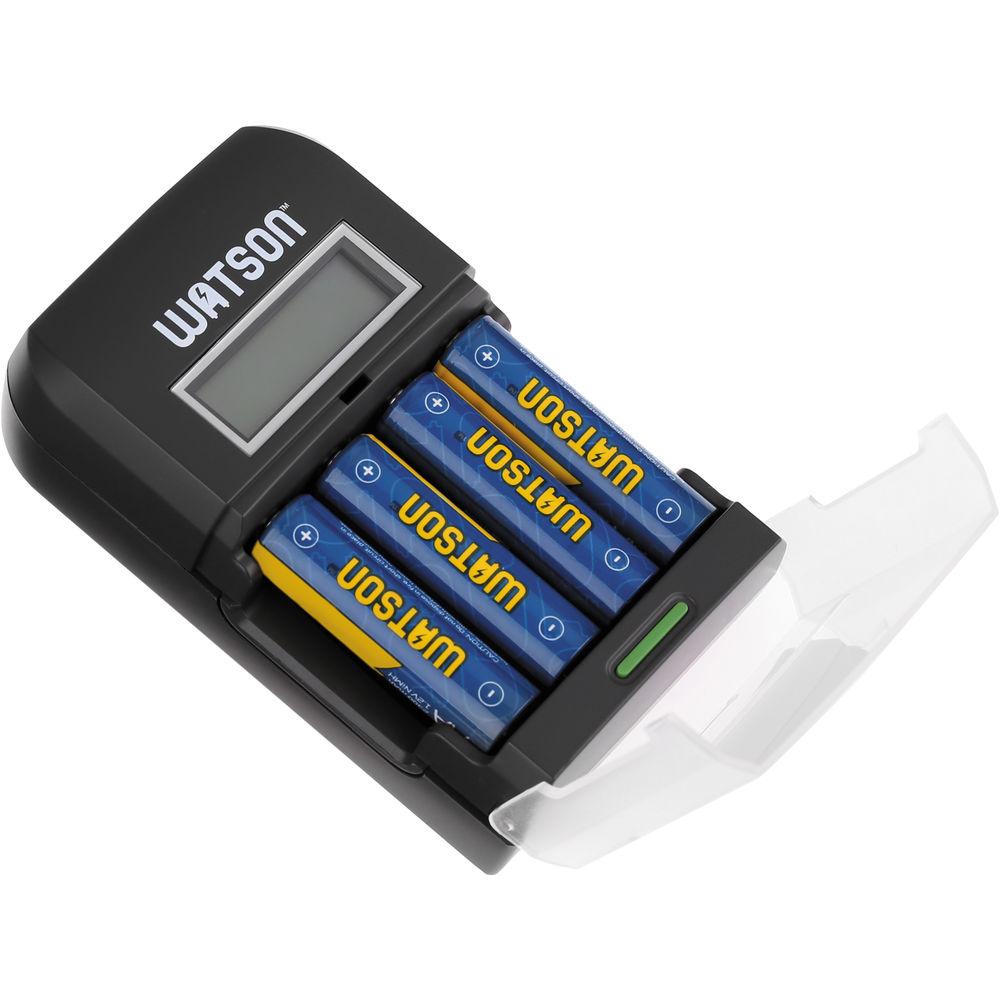

Product description The Watson 4-Bay Rapid Charger accepts 1-4 AA or AAA NiMH or NiCd batteries, and is capable of charging cells of both sizes and types simultaneously. It includes four 1.2V, 2300mAh, AA NiMH batteries, which can be recharged up to 1000 times. Charging time ranges from 0.8-2.0 hr for AAAs and 1.8-4.6 hr for AAs. Four individual LCD indicators blink to show charging status.
The charger features an automatic shut-off function and Negative Delta Voltage Protection, ensuring that it doles out the full charge to each battery while preventing overcharging. Reverse Polarity Protection and Alkaline and Bad Battery Protection safeguard the charger and your batteries against damage when batteries are installed improperly. There's also a discharge function, allowing you to refresh the batteries prior to charging.

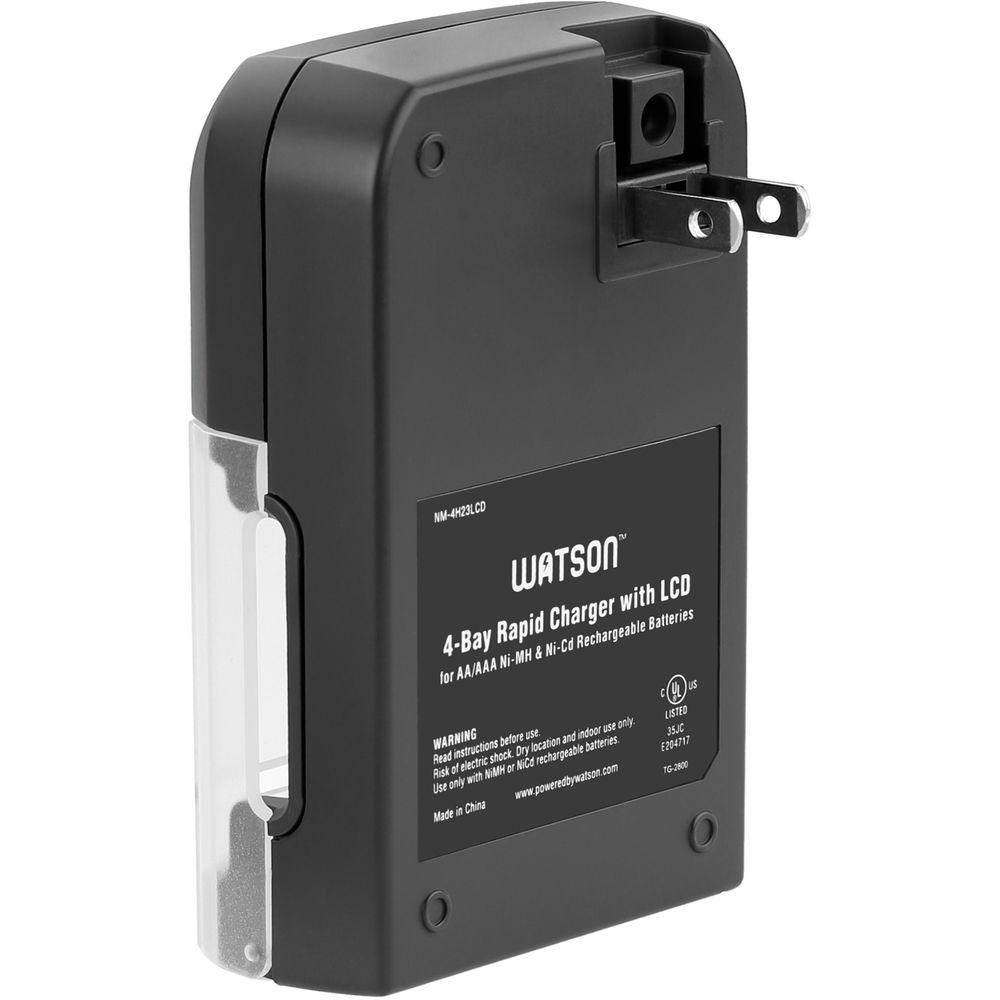

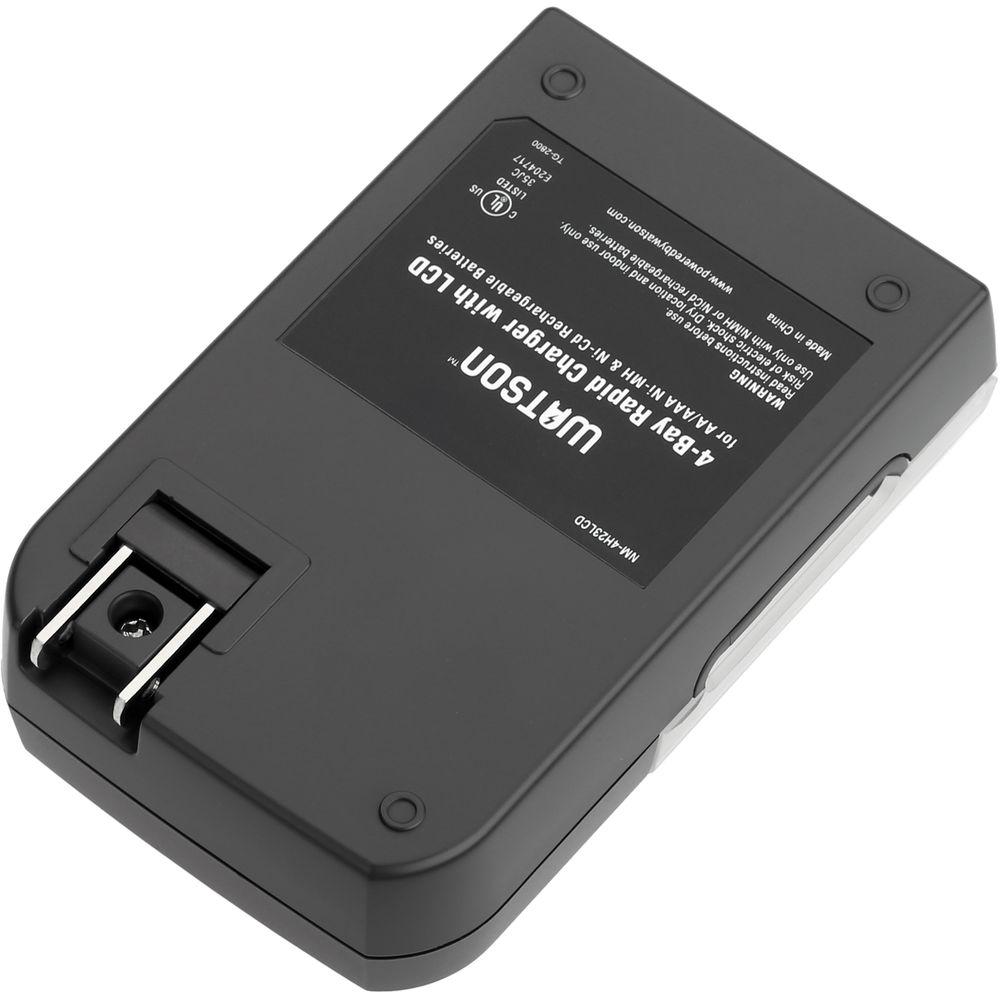

With its flip-out, 2-prong, North American plug, the unit can be inserted into an outlet without the need for a power cord. It runs on 110-240VAC power, enabling worldwide use. - Charges 1-4 AA or AAA NiMH or NiCd batteries.
- Capable of simultaneously charging AAs and AAAs, including cells with mixed chemistry, meaning you can charge NiMH batteries with NiCd ones.
- Includes four 1.2V, 2300mAh, AA NiMH batteries, which can be recharged up to 1000 times.
- Charging time ranges from 0.8-2.0 hr for AAAs and 1.8-4.6 hr for AAs, depending on number and capacity of the cells.
- Charger automatically selects the best charging current for AA and AAA batteries.

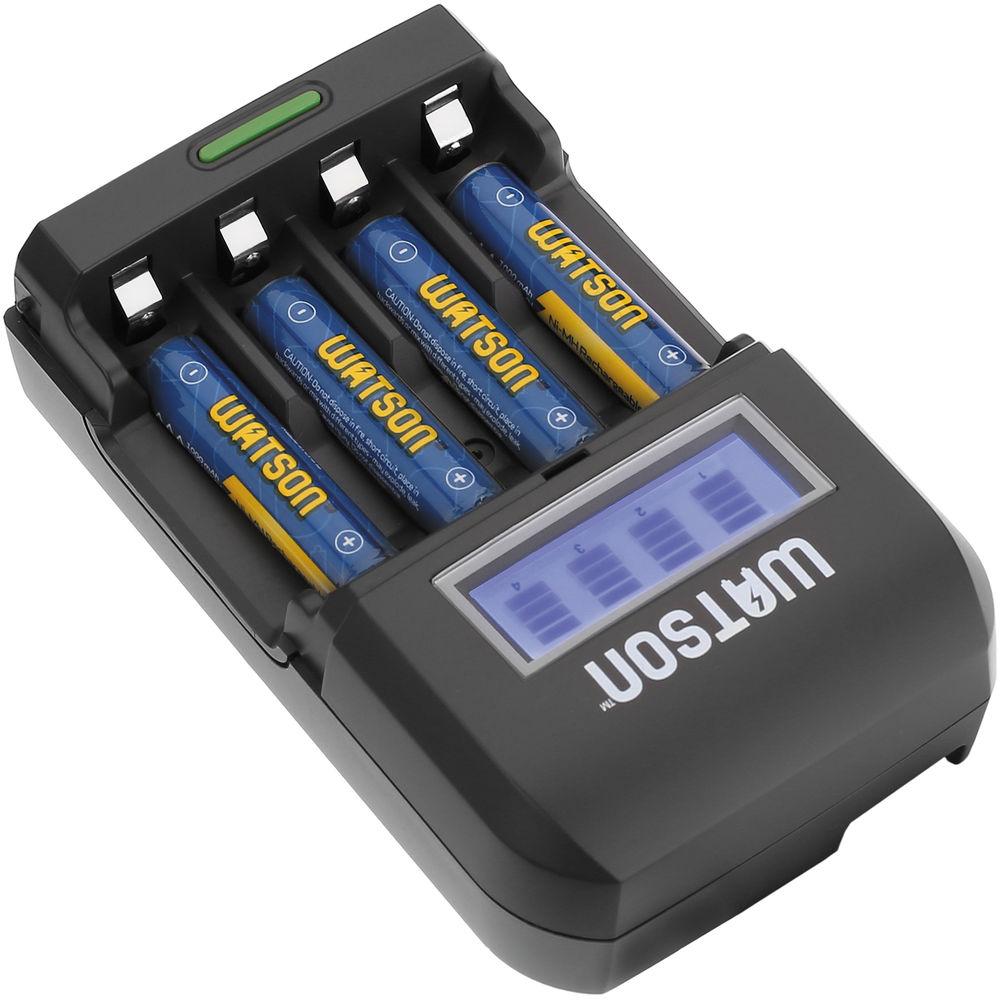

- Four individual LCD indicators blink to show charging status by displaying a certain number of bars. A flashing full-battery icon indicates an abnormality, such as the presence of bad or alkaline/non-rechargeable batteries. The charging process will stop if such an issue is detected.
- Automatic shut-off function senses when batteries are fully charged and ceases the process at that point, in order to prevent overcharging.
- Negative Delta Voltage Protection also helps prevent overcharging by ensuring that the precise, full charge is doled out to each battery.
- Reverse Polarity Protection safeguards the charger and your batteries against damage when batteries are installed improperly.
- Alkaline and Bad Battery Protection prevents damage when non-rechargeable or defective batteries are accidentally installed.
- Discharge function allows you to refresh the batteries prior to charging.

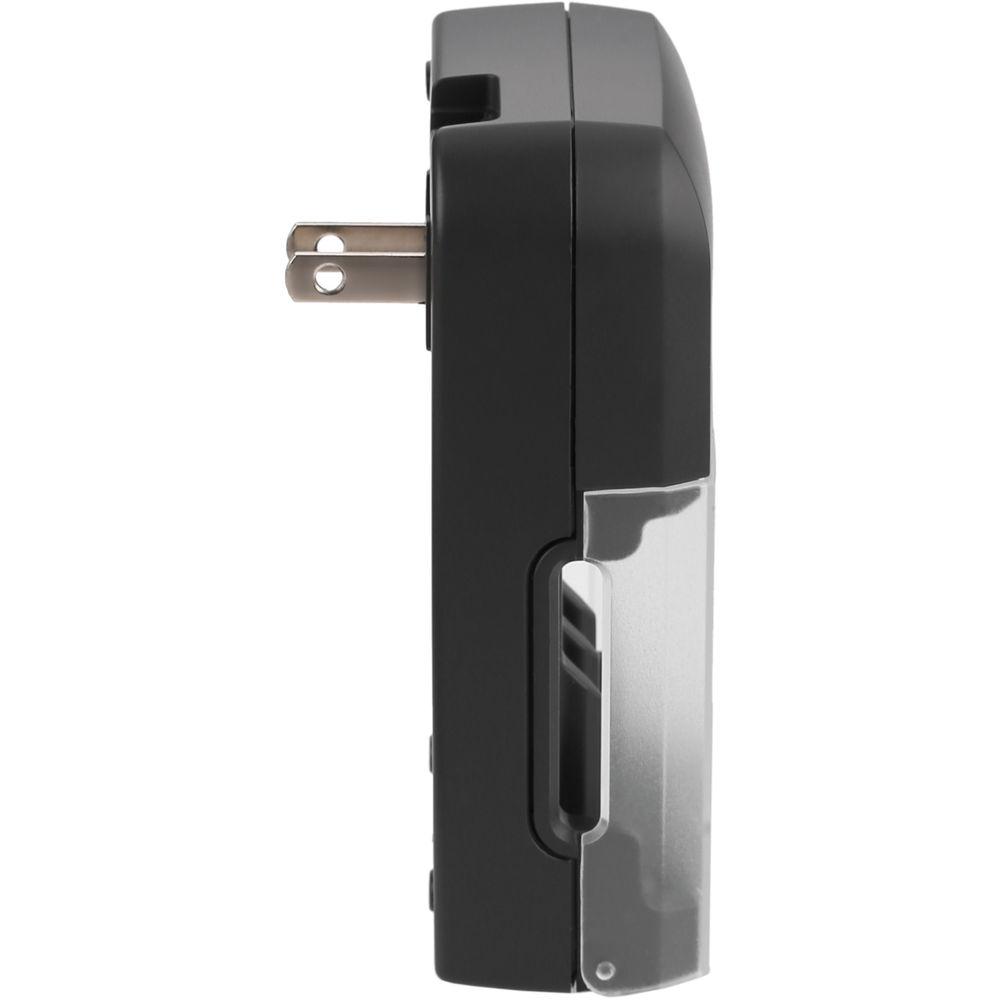

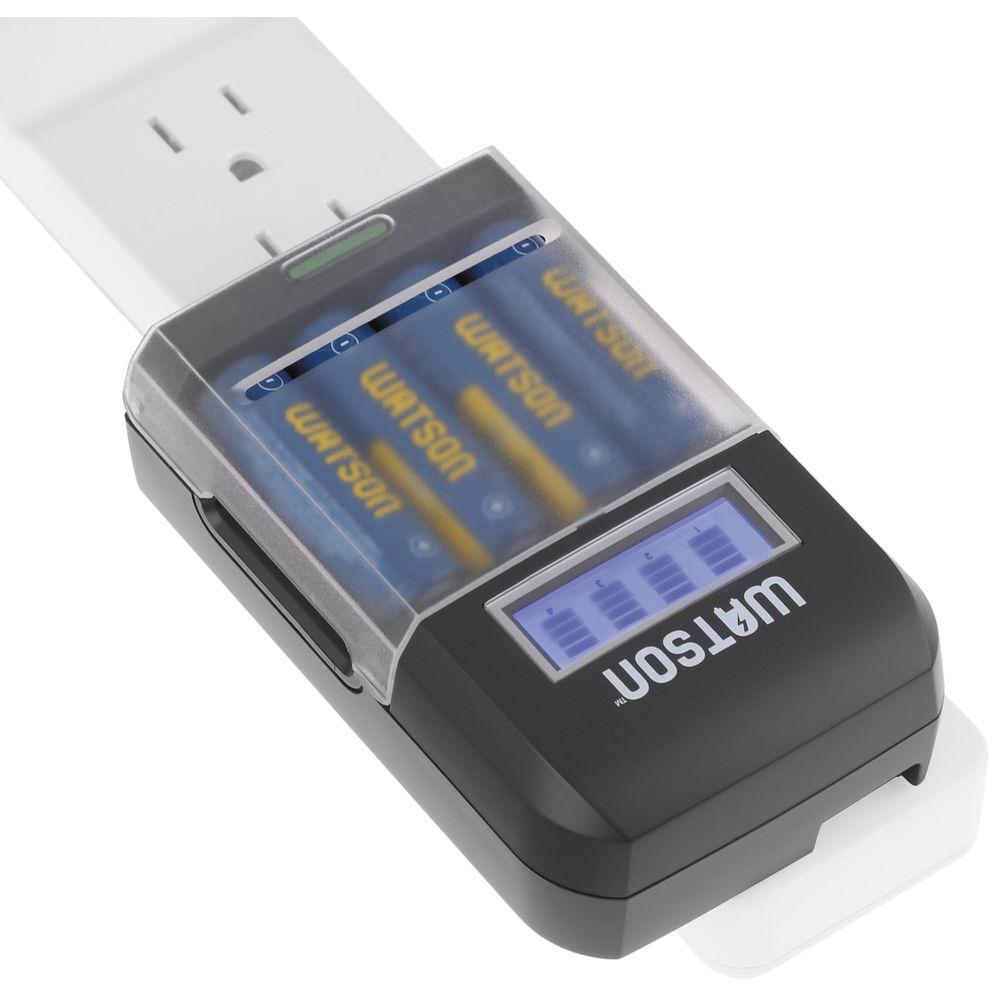

- Has a flip-out, 2-prong, North American plug for direct connection to an outlet, without the need for a power cord.
- Runs on 110-240VAC power, enabling use all over the world.
UPC: 847628536838 In the Box Watson 4-Bay Rapid Charger with LCD and 4 AA NiMH Batteries (2300mAh) AA NiMH Rechargeable Batteries (2300mAh) - 4-Pack vwreuseavvwfxuyuaybrzd Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson 4-Bay Rapid Charger with LCD and 4 AA NiMH Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson NM-4H23LCD Specs | | | Battery Type | 4 x AA | | Battery Chemistry | NiMH | | Battery Voltage | 1.2 V | | Capacity (mAh) | 2300 mAh | | Maximum Recharge Cycles | 1000 | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Power Consumption | 10 W | | Charging Bays | 4 x AA, AAA | | Charging Amperage | 1000 to 2000 mA | | Power Input | 2-Prong US Plug | | Charger Dimensions | 4.4 x 2.7 x 1.4" / 111.00 x 69.00 x 35.00 mm | | Charger Weight | 2.8 oz / 79.4 g | | | | Certifications | UL, cUL, as per Manufacturer | | Operating Temperature | 32 to 113°F / 0 to 45°C | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.898 x 4.488 x 2.205" |
