User Manual for Watson 8-Bay Rapid Charger for AA AAA NiMH or NiCd Rechargeable Batteries Click to enlarge the picture
Contents of the user manual for the Watson 8-Bay Rapid Charger for AA
- Product category: Universal Batteries & Chargers Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Universal Batteries & Chargers
 |
User manual for the Watson 8-Bay Rapid Charger for AA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

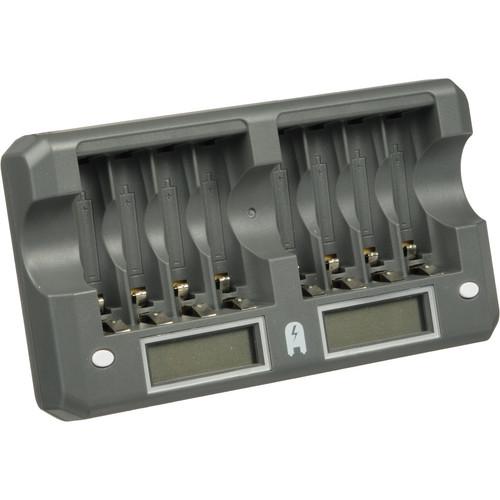

Product description The Watson 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries charges up to 8 AA or AAA size nickel-metal hydride or nickel-cadmium rechargeable batteries. Charging time ranges from 3.6-4.6 hr for AA batteries, and 1.6-2 hr for AAA's. Eight individual LCD indicators give the charging status for each battery. Patented technology permits the charging of different sizes and types of battery simultaneously--charge a AA with a AAA, or an NiMH with an NiCd.
The charger's intelligent microprocessor doles out the full charge to each battery while preventing overcharging, thanks to Delta Voltage Protection. The Safety Timer with Automatic Timer Shut-Off senses when batteries are fully charged and ceases charging. Automatic Charge Current Selection automatically chooses the optimal current for the batteries you're charging. Reverse Polarity Protection and Alkaline and Bad Battery Protection safeguard the charger and your batteries against damage when batteries are installed improperly. There's also a discharge function, allowing you to refresh the batteries prior to charging.
The charger features an icon that shifts up and down during discharging, and stops shifting when discharge is complete. This icon also displays battery capacity while charging. The full-battery icon lights up when the batteries are fully charged. A flashing full-battery icon indicates an abnormality, such as the presence of a bad or alkaline battery, and at this point the charger will cease its operation. The charger is powered by an included external AC adapter with switching 100-240V power for worldwide use, or by the 12-24V DC cord which can plug into your car's cigarette lighter for charging on-the-go. - Charges up to 8 AA or AAA size nickel-metal hydride or nickel-cadmium rechargeable batteries.
- Charging time ranges from 3.6-4.6 hr for AA batteries, and 1.6-2 hr for AAA's.
- Eight individual LCD indicators give the charging status for each battery.
- Patented technology permits the charging of different sizes and types of battery simultaneously--charge a AA with a AAA, or an NiMH with an NiCd.
- Intelligent microprocessor doles out the full charge to each battery while preventing overcharging, thanks to Delta Voltage Protection. The Safety Timer with Automatic Timer Shut-Off senses when batteries are fully charged and ceases charging.
- Automatic Charge Current Selection automatically chooses the optimal current for the batteries you're charging.
- Reverse Polarity Protection and Alkaline and Bad Battery Protection safeguard the charger and your batteries against damage when batteries are installed improperly.
- There's also a discharge function, allowing you to refresh the batteries prior to charging.
- Has an icon that shifts up and down during discharging, and stops shifting when discharge is complete. This icon also displays battery capacity while charging. The full-battery icon lights up when the batteries are fully charged. A flashing full-battery icon indicates an abnormality, such as the presence of a bad or alkaline battery, and at this point the charger will cease its operation.

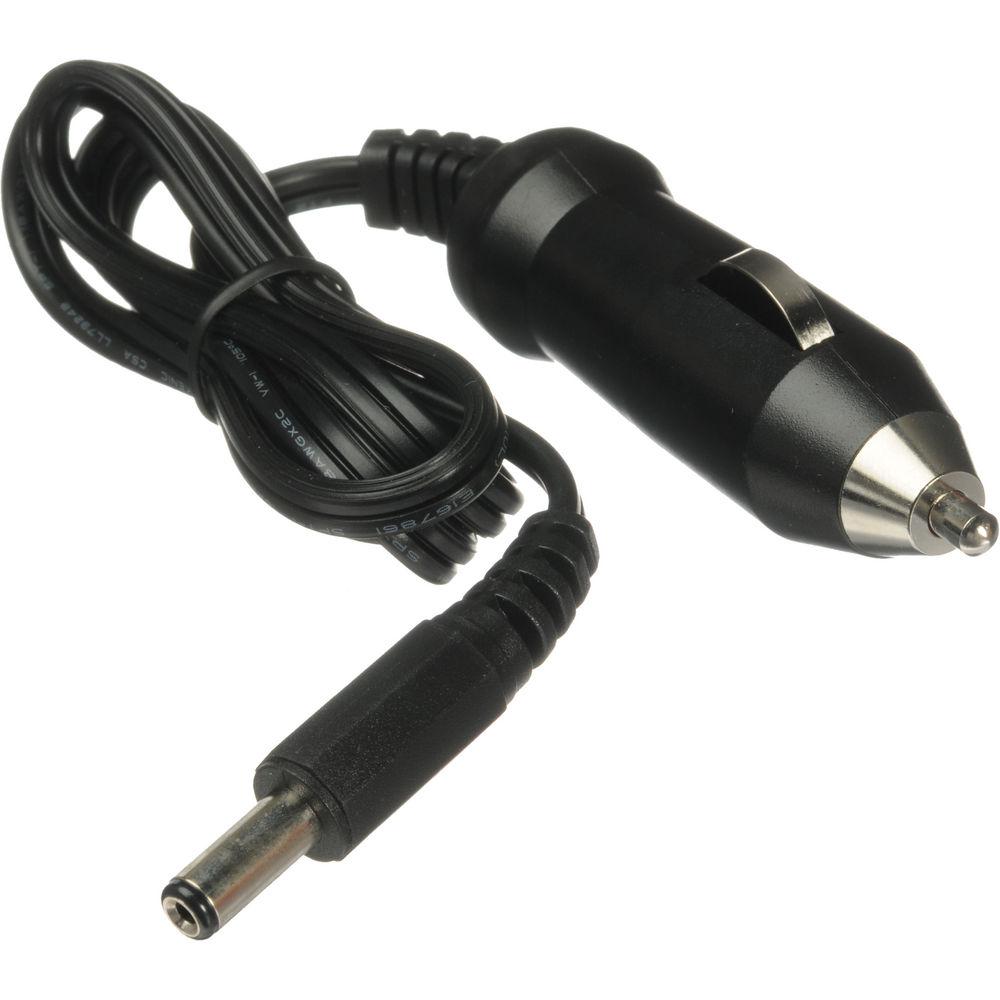

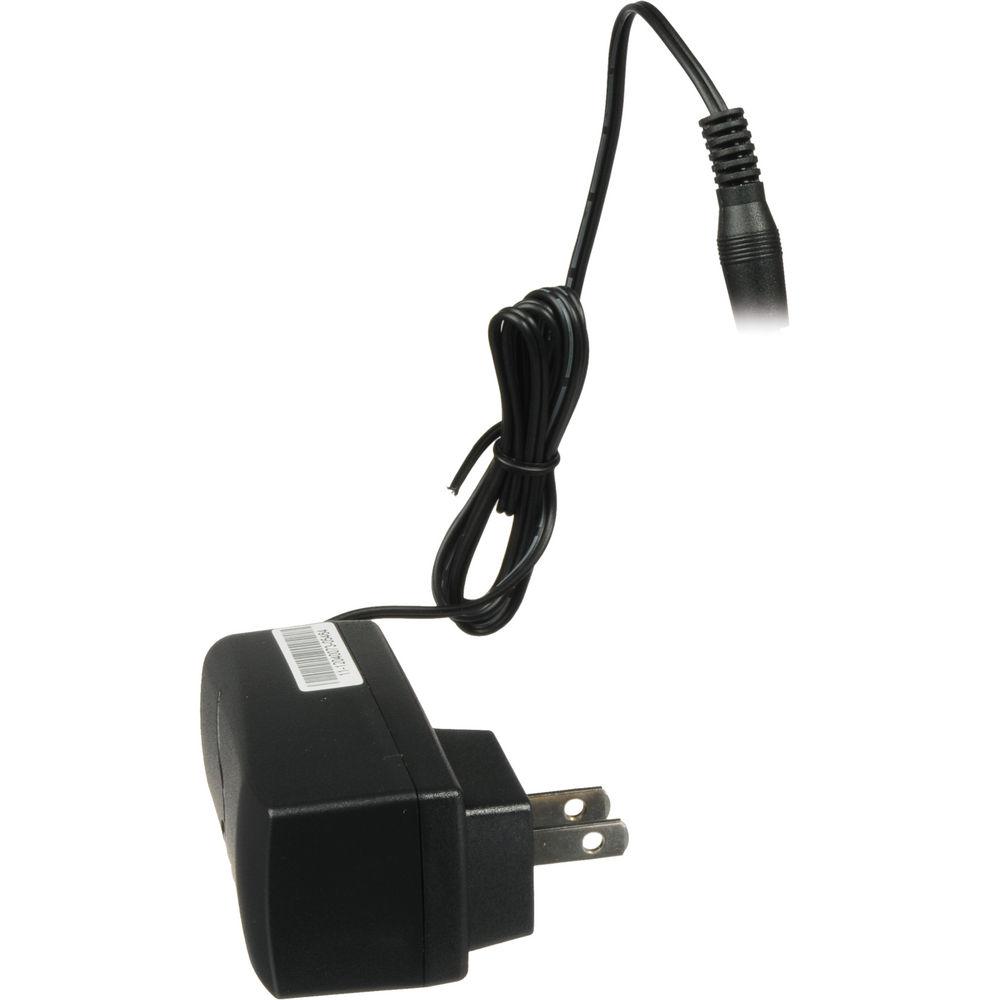

- Powered by an included external AC adapter with switching 100-240V power for worldwide use, or by the 12-24V DC cord which can plug into your car's cigarette lighter for charging on-the-go.
UPC: 847628532922 In the Box Watson 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries 100-240V Switching AC Adapter DC Car Adapter Limited 1-Year Warranty User Manual PDF 556kbszfyyuedvuysyv Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson 8-Bay Rapid Charger for AA AAA NiMH or NiCd Rechargeable Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson AA-8LCD Specs | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Charging Bays | 8 x AA, AAA | | Supported Battery Chemistry | Ni-Cd, Ni-MH | | Charging Voltage | 1.5 VDC | | Charging Amperage | 250 to 500 mA | | DC Input Power | 12 VDC at 1300 mA | | Charger Dimensions | 7.8 x 3.1 x 1.2" / 198.00 x 79.00 x 31.00 mm | | Charger Weight | 4.2 oz / 120 g | | | | Certifications | ETL, RoHS, as per Manufacturer | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.9 x 6.0 x 3.4" |
