User Manual for Watson Compact AC DC Battery Charger and Adapter Plate Kit for BP-600 Series Click to enlarge the picture
Contents of the user manual for the Watson Compact AC DC Battery Charger
- Product category: Chargers & Power Adapters Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Chargers & Power Adapters
|
User manual for the Watson Compact AC DC Battery Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

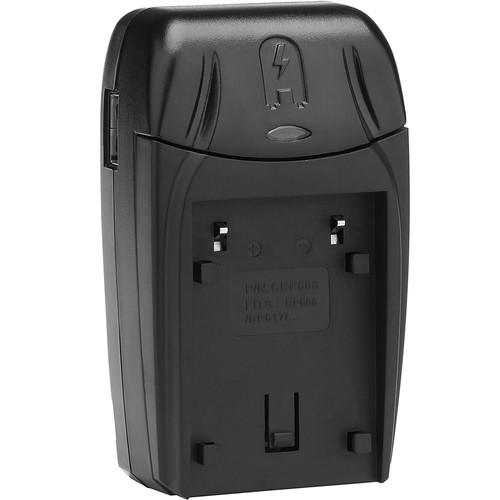

Product description Power up your BP-600 Series camera battery with the Watson Compact AC/DC Battery Charger and Adapter Plate Kit from Photo. This package bundles the charger unit with the designated replacement plate for the Canon BP-608 or BP-617 type batteries. The charger accepts interchangeable plates, so you can swap out the included one for different models in order to recharge various batteries.
The charger runs on 100-240VAC power, allowing for worldwide use. It features a fold-out 2-prong US plug and is supplied with a European plug adapter, as well as a 12VDC car charger that plugs into a cigarette lighter. The Compact AC/DC unit also features a USB power output that allows you to charge and power MP3 players, phones, digital cameras, and other devices--even while charging your camera battery. - Watson Compact AC/DC Battery Charger The Compact AC/DC Battery Charger from Watson charges many different batteries using dedicated interchangeable plates, which are required and available separately. The charger runs on 100-240 VAC power, allowing for worldwide use. It features a fold-out 2-prong US plug and is supplied with a European plug adapter, as well as a 12 VDC car charger that plugs into a cigarette lighter. This makes it ideal for use both at home and on the road. The Compact AC/DC Charger features a USB power output that allows you to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input - even while charging your camera or camcorder batteries.
- Compatibility
- Charges many different batteries using dedicated interchangeable plates, which are required and available separately
- Compact
- Features a fold-out AC plug for easy storage and travel.
- Versatile
- Includes a Euro plug adapter for charging in Europe and a DC adapter with cigarette lighter plug for charging while on the road.
- USB Output
- Charge or supply power to MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input.
- Safety Features
- Protection against overcharging and overheating.
UPC: 847628569287 - Watson Battery Adapter Plate for BP-600 Series The Watson Battery Adapter Plate for BP-600 Series enables you to charge any Canon BP-608 or BP-617 type battery using your Watson Compact AC/DC or Duo LCD Charger.
Watson Compact AC/DC and Duo LCD Chargers feature an interchangeable battery plate system. This economical option allows you to charge many different batteries, all with one charger. Use this plate to expand your charger's compatibility or to replace a lost plate. - Supported Batteries
- Canon BP-608 or BP-617 type
UPC: 847628542198 In the Box - Compact AC/DC Battery Charger szbbaqcwffdctsyzufadyaybtzwbevbdtetets
- USA to 2-Prong European Adapter
- 12 VDC Car Adapter
- Limited 1-Year Warranty
- Battery Adapter Plate for BP-600 Series
Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Compact AC DC Battery Charger and Adapter Plate Kit for BP-600 Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Watson Compact AC/DC Battery Charger
| | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 100 mA | | DC Input Power | 12 / 24 VDC | | Output Voltage | 4.2 to 8.4 VDC at 800 mA | | Charging Time | 1 to 3 Hours | | USB Output Current | 1000 mA | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | 2.0 x 1.3 x 3.5" / 5.1 x 3.3 x 9.0 cm | | Weight | 3.1 oz / 88 g | | | | Box Dimensions (LxWxH) | 6.8 x 4.0 x 2.8" | - Watson Battery Adapter Plate for BP-600 Series
| Dimensions | 2 x 2.6 x 0.5" (5.1 x 6.6 x 1.3 cm) | | Weight | 0.7 oz (20 g) | | | | Box Dimensions (LxWxH) | 5.0 x 2.5 x 1.0" |
