User Manual for Watson Dual Rapid Charger for 3V CR123A and CR2 Lithium Batteries with 2 CR123A Batteries Click to enlarge the picture
Contents of the user manual for the Watson Dual Rapid Charger for 3V
- Product category: Universal Batteries & Chargers Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Universal Batteries & Chargers
 |
User manual for the Watson Dual Rapid Charger for 3V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

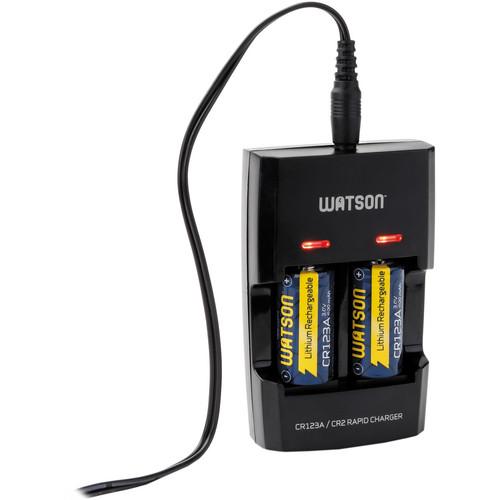

Product description This Dual Rapid Charger from Watson works with 3V CR123A or CR2 rechargeable lithium batteries, and includes two of the 400mAh CR123A type. Individually-monitored channels allow you to charge one battery or two simultaneously, and you can even charge a CR123A and a CR2 together. Charging time is about 2.4 hr for 1-2 CR123A batteries, or 1.6 hr for 1- 2 CR2 batteries. LED indicators are red when charging is in-progress and flash in blue when it's 80-90% done. They will change to a constant blue when charging is 90-100% complete, and will flash red and blue to alert you to a battery error.

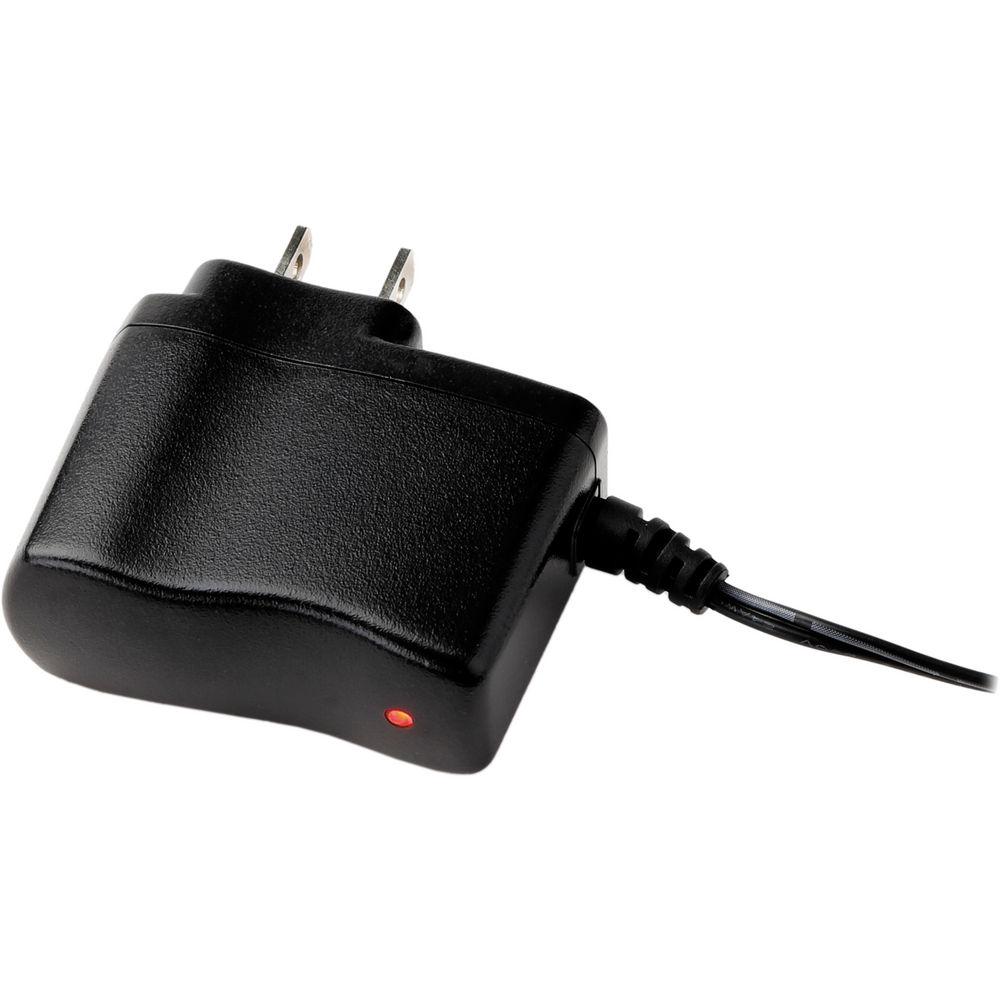

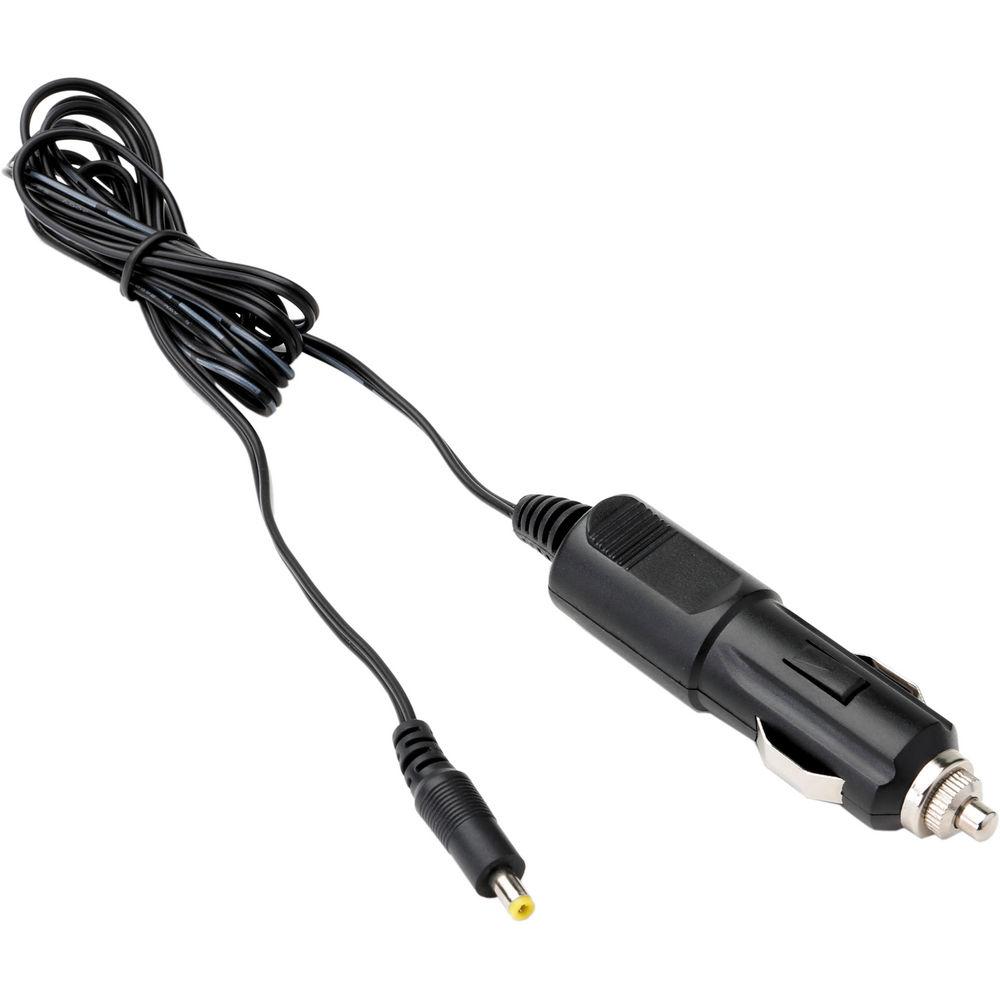

Over-voltage protection keeps the charger from outputting too much power, and surge protection shields it from input power overload. Reverse polarity protection prevents damage if batteries are inserted incorrectly. The Dual Rapid charger accepts 100-240VAC input power for use all over the world. An AC and DC adapter are included for use at-home, in the office or on-the-go.

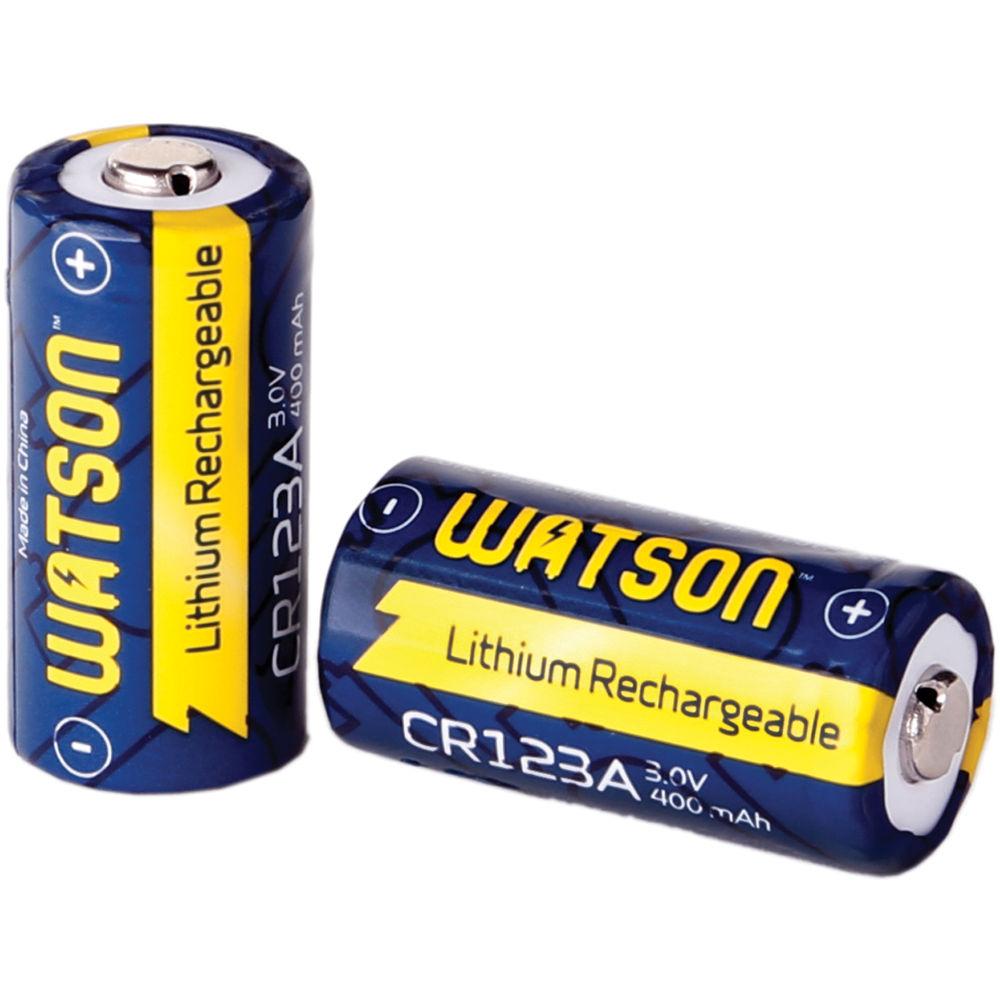

Both the included CR123A and optional CR2 batteries are rechargeable up to 1000 times and feature excellent high-load performance, which helps prevent memory effect. UPC: 847628568242 In the Box Watson Dual Rapid Charger for 3V CR123A and CR2 Lithium Batteries with 2 CR123A Batteries 2 x CR123A Rechargeable Lithium Battery (3V, 400mAh) AC Adapter with 59" / 149.9 cm Power Cord DC Adapter with 57" / 144.8 cm Power Cord Limited 1-Year Warranty User Manual PDF 926.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Dual Rapid Charger for 3V CR123A and CR2 Lithium Batteries with 2 CR123A Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson ADC-3VCR123A Specs | | | Battery Type | 2 x CR123A | | Battery Chemistry | Lithium | | Battery Voltage | 3 V | | Capacity (mAh) | 400 mAh | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Charging Bays | 2 x CR123A, CR2 | | Charging Voltage | 3.7 VDC | | Charging Amperage | 300 mA | | Power Input | 2-Prong US Plug | | DC Input Power | 12 VDC | | Charger Dimensions | 2.1 x 3.4 x 0.8" / 54.00 x 86.00 x 22.00 mm | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.0 x 4.6 x 2.0" |
