User Manual for Watson Duo LCD Charger for BP-U Series Batteries Click to enlarge the picture
Contents of the user manual for the Watson Duo LCD Charger for BP-U
- Product category: Chargers Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Chargers
 |
User manual for the Watson Duo LCD Charger for BP-U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

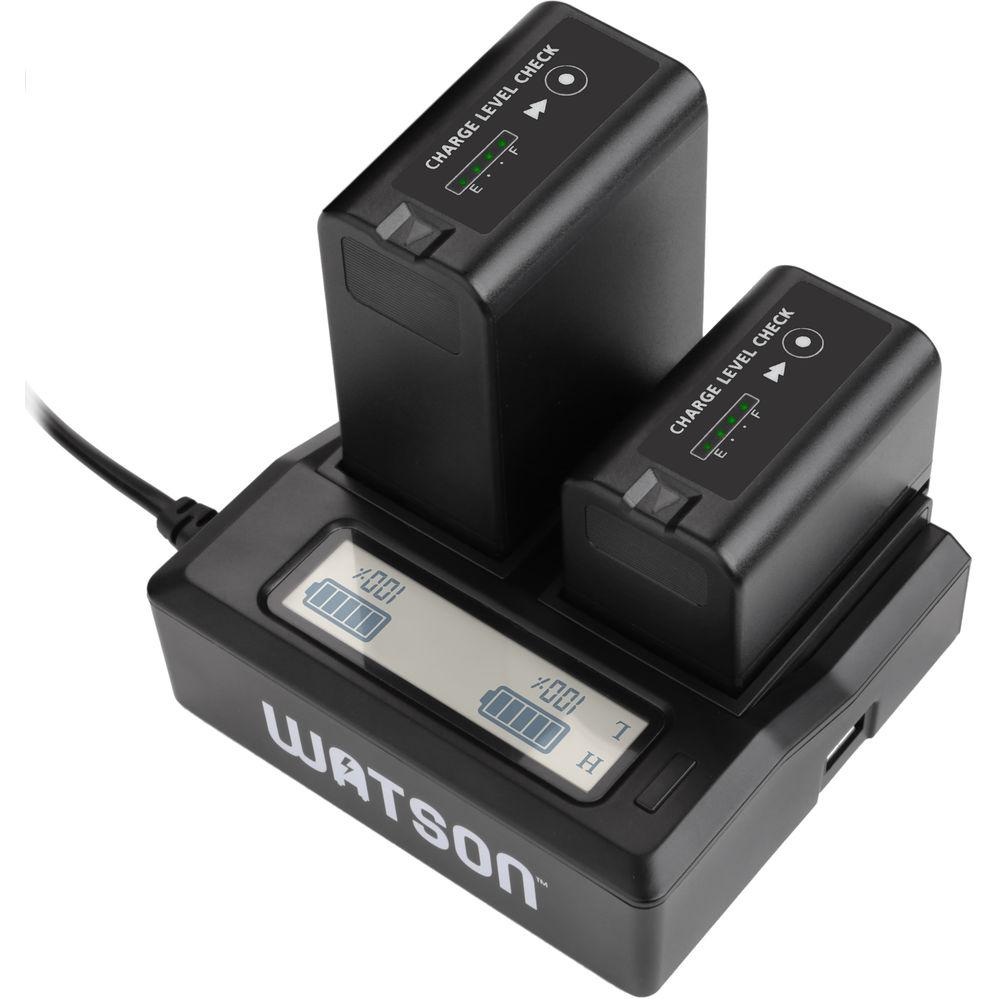

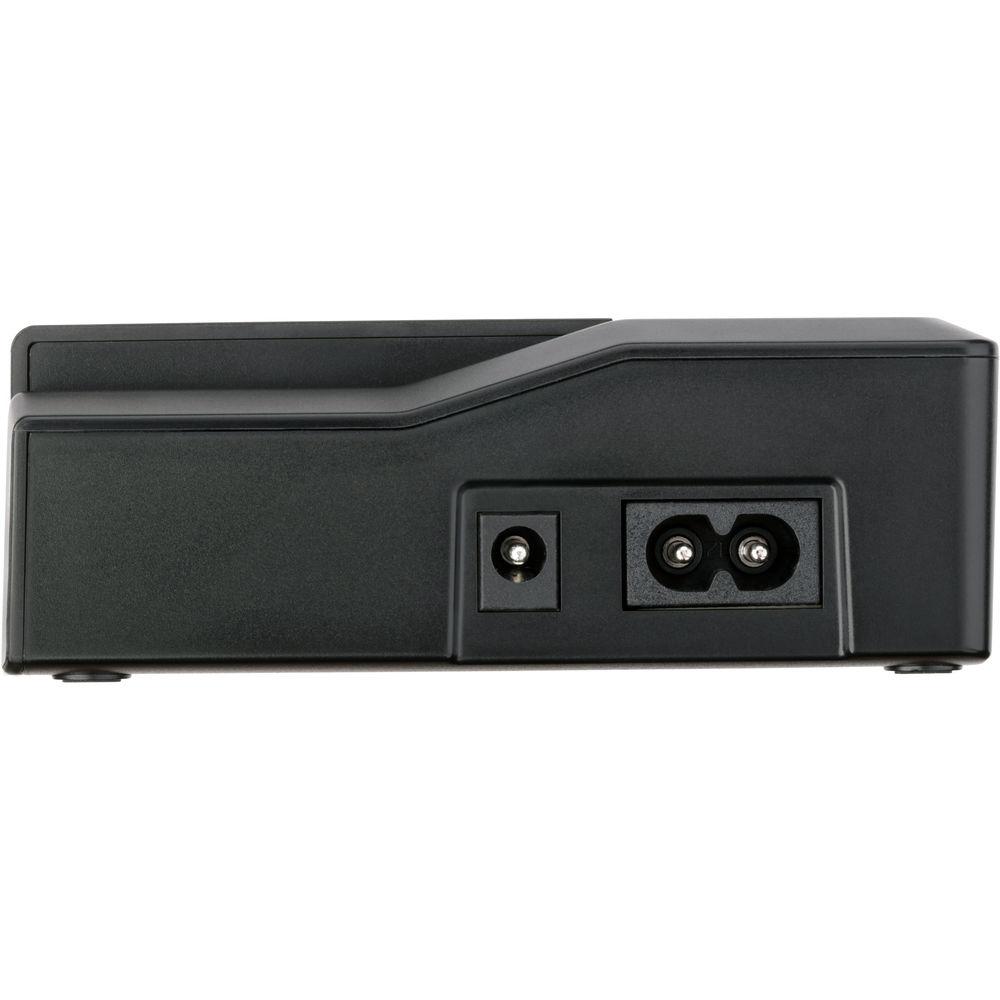

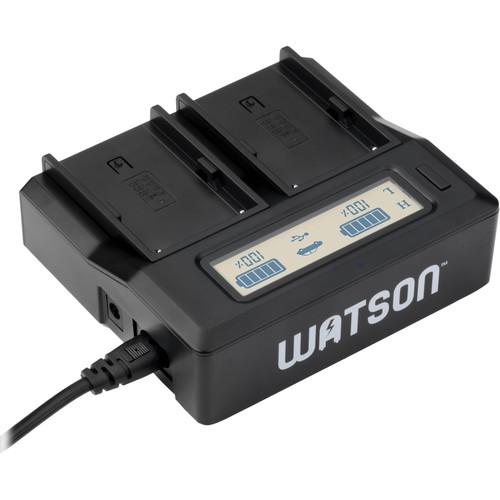

Product description Simultaneously charge two Sony BP-U30, 60, or 90 batteries at your choice of high or low current. This Watson Duo LCD Charger for BP-U Batteries is compact and sturdy, and features a minimalistic, rectangular design that'll be a nice addition to any desktop. It has two integrated battery plates, and offers a current-selection button that lets you choose between 1A and 1.5A of current when charging one battery, and between 0.5A and 0.8A for two batteries. It also has a USB port on the side for charging your mobile devices at the same time with your batteries. Power the charger using the included AC adapter or use an optional DC car lighter adapter when on the road.
The LCD displays a status percentage value for each battery and the charge current selected, as well as confirming whether the USB input is in use. (The charge current must be set to low when charging a battery and USB device together.) The charger also features overcharge, overheat, and short-circuit protection, automatically stopping to charge when a battery reaches charge capacity, or when sensing that the battery is about to overheat, and protecting against defective and shorted batteries. - Key Features
-
- Simultaneously charge two Sony BP-U30, 60, or 90 batteries
- Select "high" or "low" charge current to charge at a faster or slower rate
- Two integrated BP-U battery plates

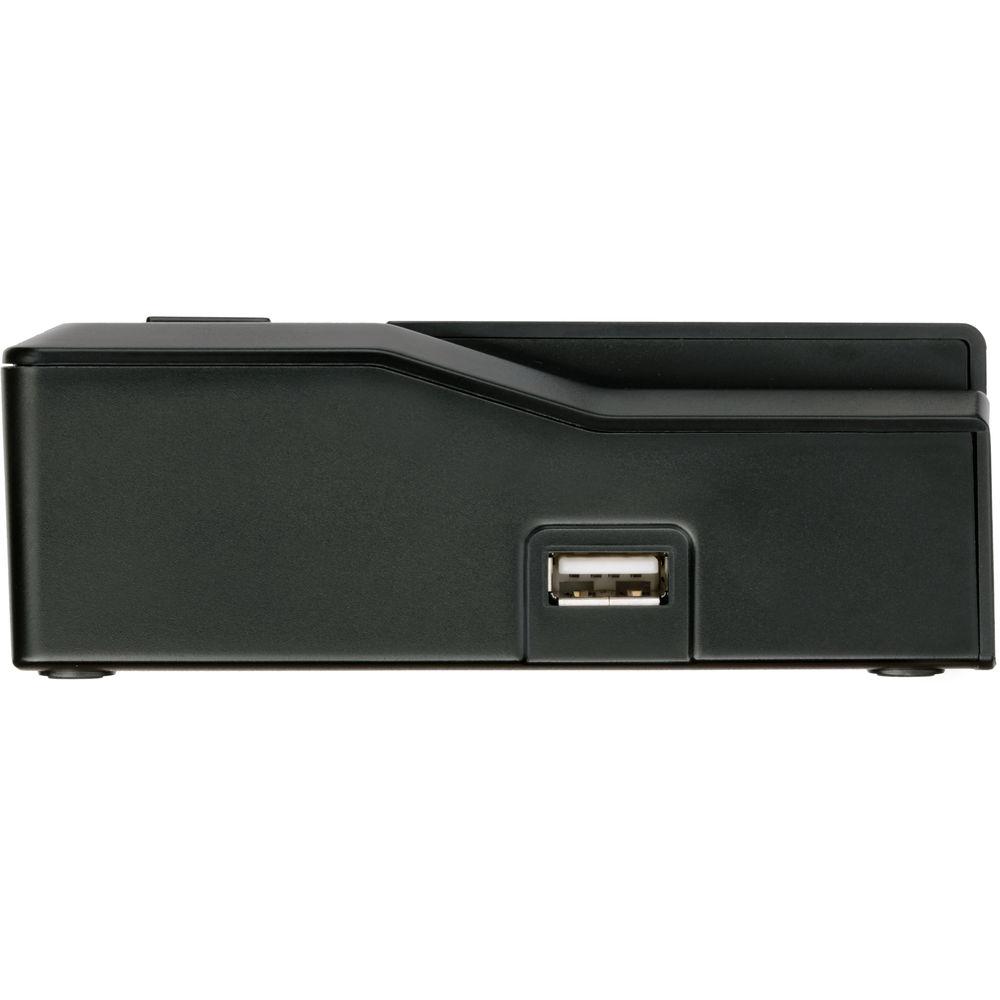

- USB port for charging mobile devices
- Worldwide-compatible AC adapter included; DC car lighter adapter supported
- Percentage value status display for each individual battery
- Overcharge, overheat, and short-circuit protection
UPC: 847628588622 In the Box Watson Duo LCD Charger for BP-U Series Batteries AC Adapter Limited 1-Year Warranty User Manual PDF 751.9kbcsxweczraadbftwexbusdeffesy Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Duo LCD Charger for BP-U Series Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson D-4231 Specs | Input Voltage | 100-240 VAC, 50/60 Hz
12/24 VDC, 3 A | | Output Voltage | 8.4 / 12.6 / 16.8 VDC | | Charge Current | Low: 1 A (one battery), 0.5 A (two batteries)
High: 1.5 A (one battery), 0.8 A (two batteries) | | USB | 5 V, 2.1 A | | Charge Time | 2-6 hours | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 4.5 x 4.4 x 1.6" (11.4 x 11.2 x 4 cm) | | Weight | 10 oz (283 g) | | | | Package Weight | 0.915 lb | | Box Dimensions (LxWxH) | 8.0 x 5.2 x 2.85" |
