User Manual for Watson Duo LCD Charger for VW-VBG Batteries Click to enlarge the picture
Contents of the user manual for the Watson Duo LCD Charger for VW-VBG
- Product category: Chargers & Power Adapters Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Chargers & Power Adapters
 |
User manual for the Watson Duo LCD Charger for VW-VBG contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

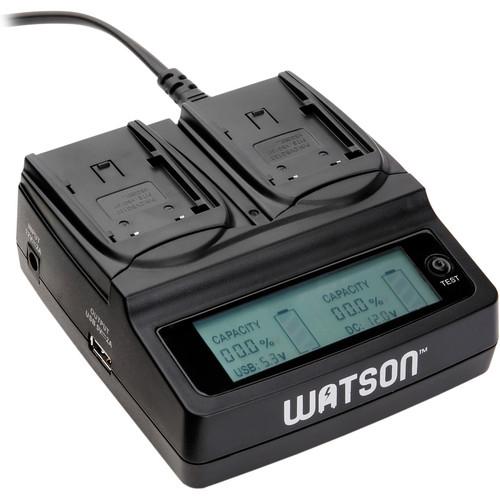

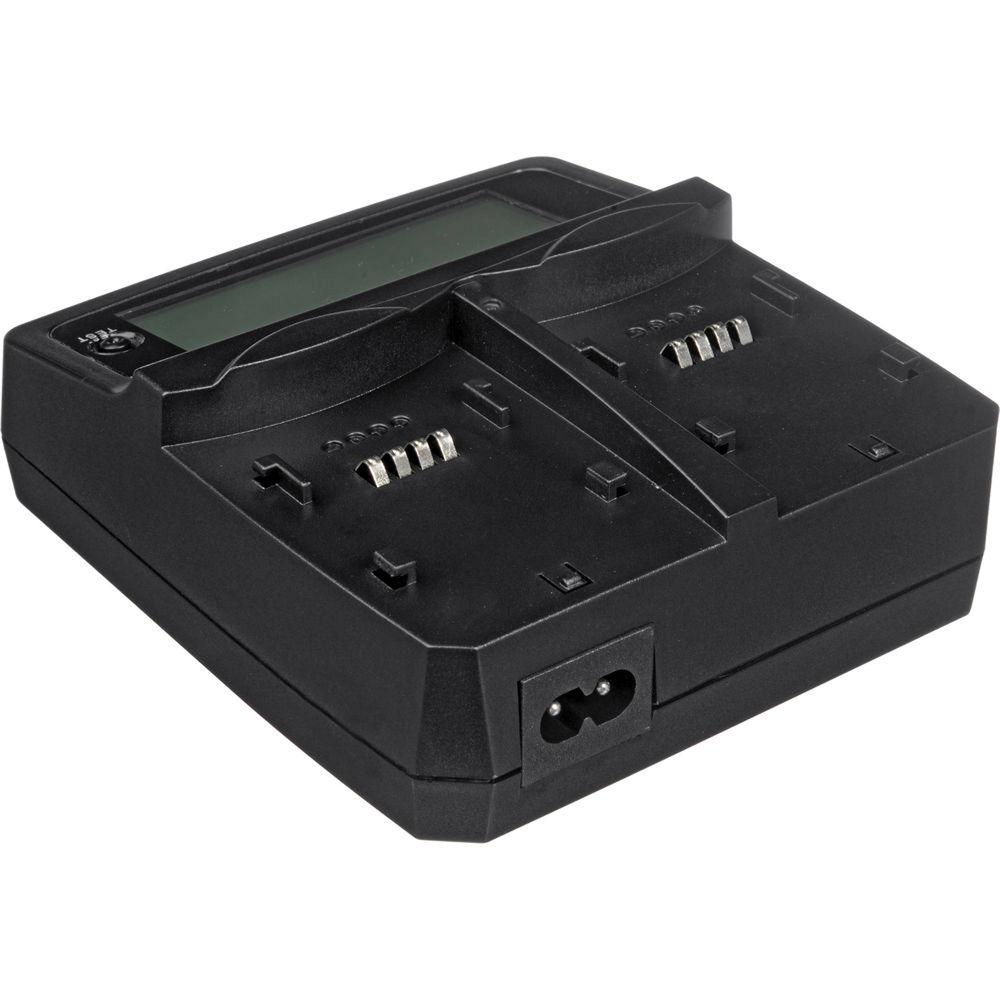

Product description The Duo LCD Charger for VW-VBG Batteries from Watson conveniently charges two batteries simultaneously, drawing power from either an AC wall source (an AC cord with two-prong plug is included) or a 12/24V DC power source (a DC car charger is also included). Additionally, the Duo Charger features a USB power output to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input.

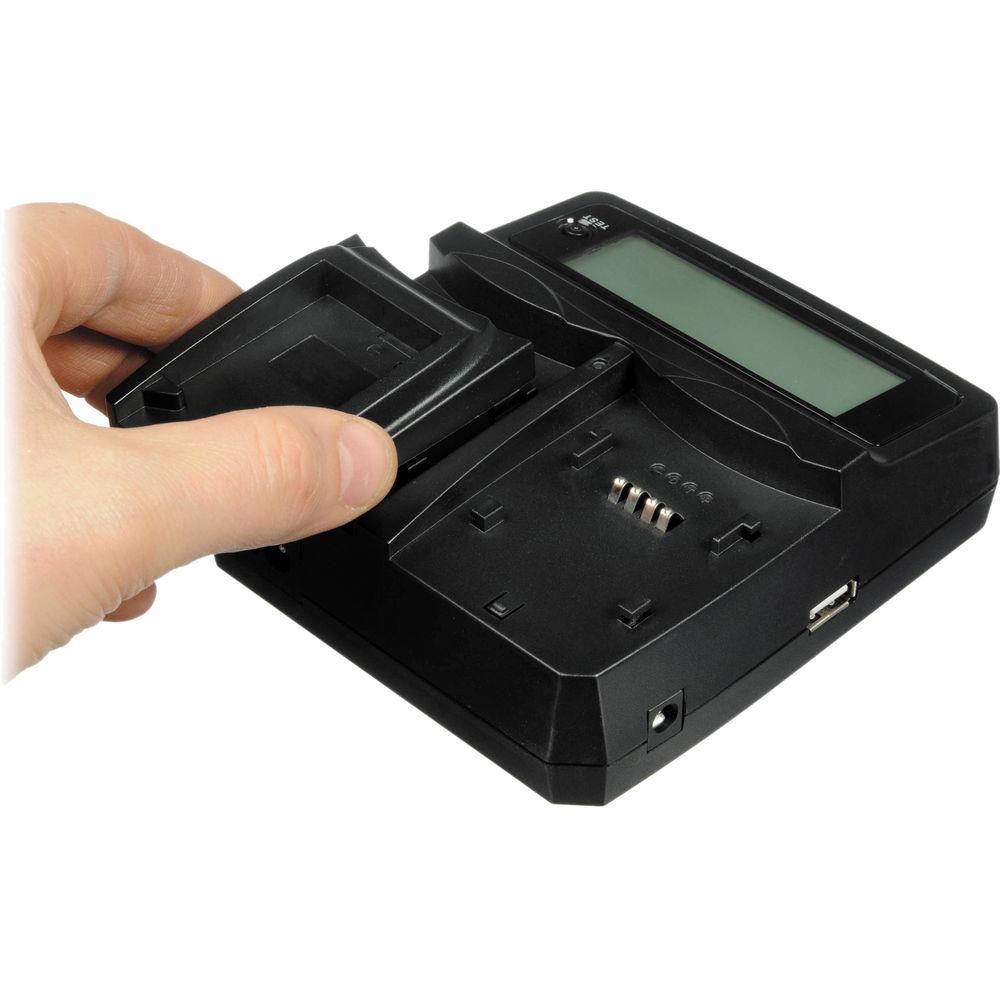

With two easily interchangeable plates, the intelligent charger can also be used for other battery models that are not listed above via the separate purchase of an additional battery plate that's compatible with the intended battery model.

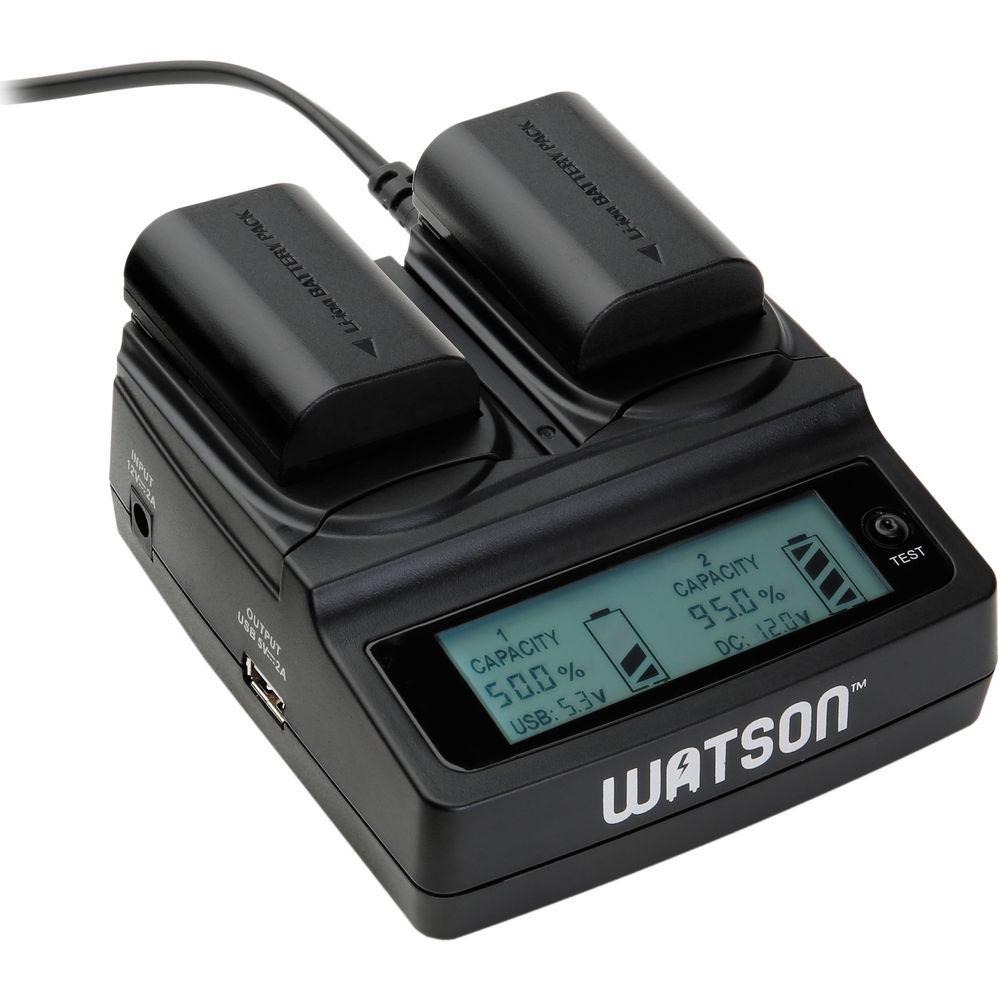

The intelligent charger features an LCD display that graphically shows charge status for both batteries. This allows you to test batteries instantaneously, so you can easily decide which Li-ion cells to bring with you for the day. With protection against overcharging, overheating, and short circuit, the Duo Charger safely, conveniently, and quickly recharges up to two compatible Li-ion batteries and one USB-powered device. - Dual Bay Charger
- Charges two batteries simultaneously.
- LCD Display
- The LCD display shows charging status, charging voltage, USB output, and DC output.
- USB Output
- Charge or supply power for MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input--even while you're charging your digital camera or camcorder batteries. USB output is also displayed on the LCD.
- Test Button
- Test the charge of a battery even with the Duo Charger unplugged by sliding the battery into the charging plate and pressing the Test button. Press the button a second time to display the voltage of the battery.
- Safety Features
- Short-circuit protection, overcharge protection, and overheat protection.
- Compatibility
- Panasonic VW-VBG070, VW-VBG130, VW-VBG260, and DMW-BLA13 type

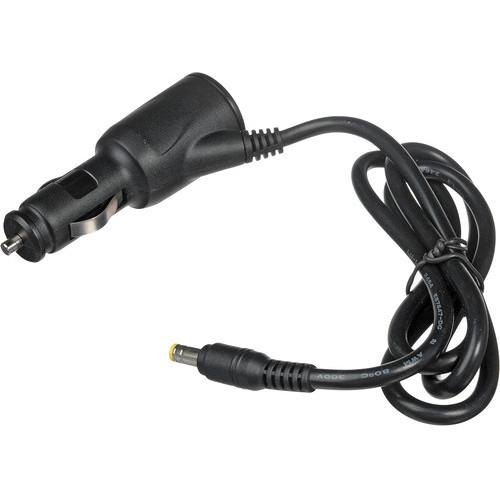

UPC: 847628541788 In the Box Watson Duo LCD Charger for VW-VBG Batteries 2 x Battery Adapter Plate for VW-VBG Series AC Power Cord 12 VDC Car Lighter Adapter 1-Year Limited Warranty Watson Duo Chargers PDF 605.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Duo LCD Charger for VW-VBG Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson D-3618 Specs | Power Input | 100-240 VAC, 50/60 Hz, 12/24 VDC, 2.0 A | | Power Output | 1.2-8.4 VDC, 2.0 A (max), | | Additional Output | USB 2.0, 5 VDC, 1 A (max), for charging USB devices | | Charging Time | 2-6 hours | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | Charger: 4.9 x 4.5 x 1.8" (12.5 x 11.5 x 4.5 cm)
Cord length: 4.7 ft (1.4 m) | | Weight | .5 lb (218 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 10.5 x 6.3 x 2.4" |
