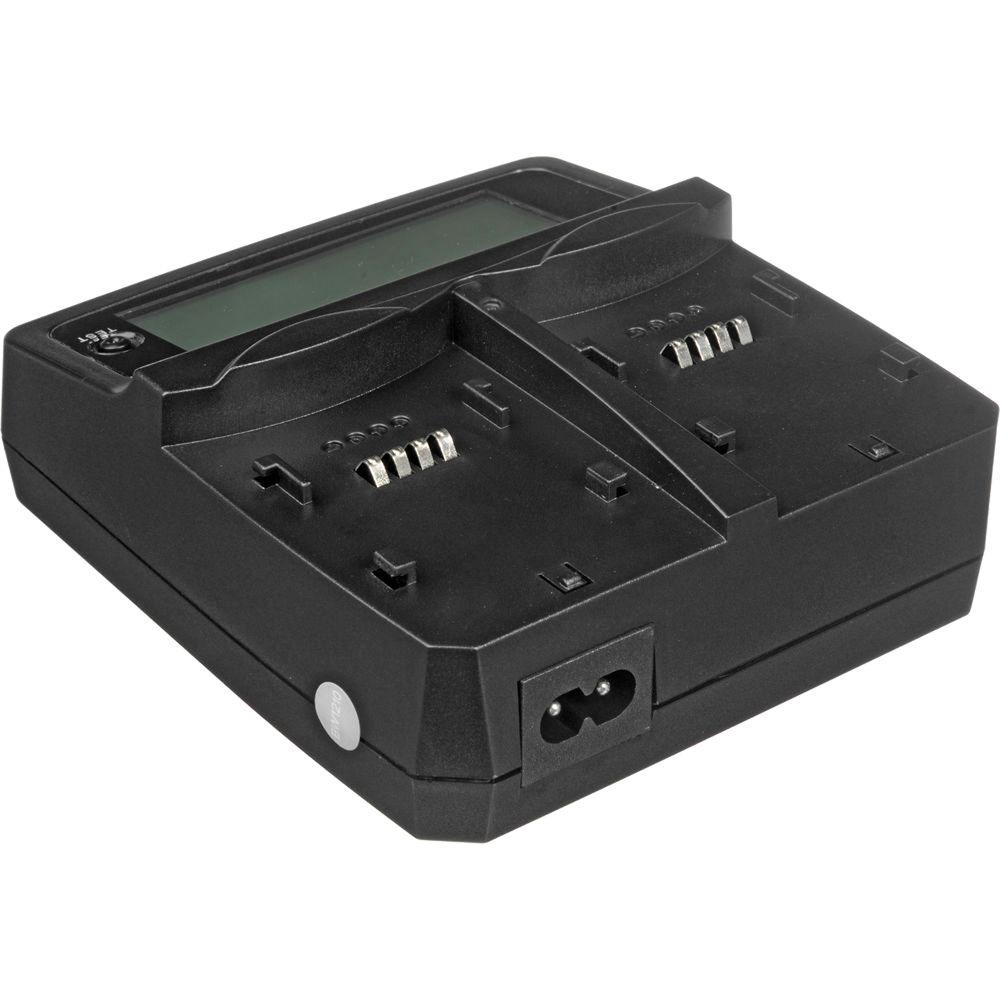

Product description The Duo LCD Charger for VW-VBG6 Batteries from Watson conveniently charges two batteries simultaneously, drawing power from either an AC wall source (an AC cord with two-prong plug is included) or a 12/24V DC power source (a DC car charger is also included). Additionally, the Duo Charger features a USB power output to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input.

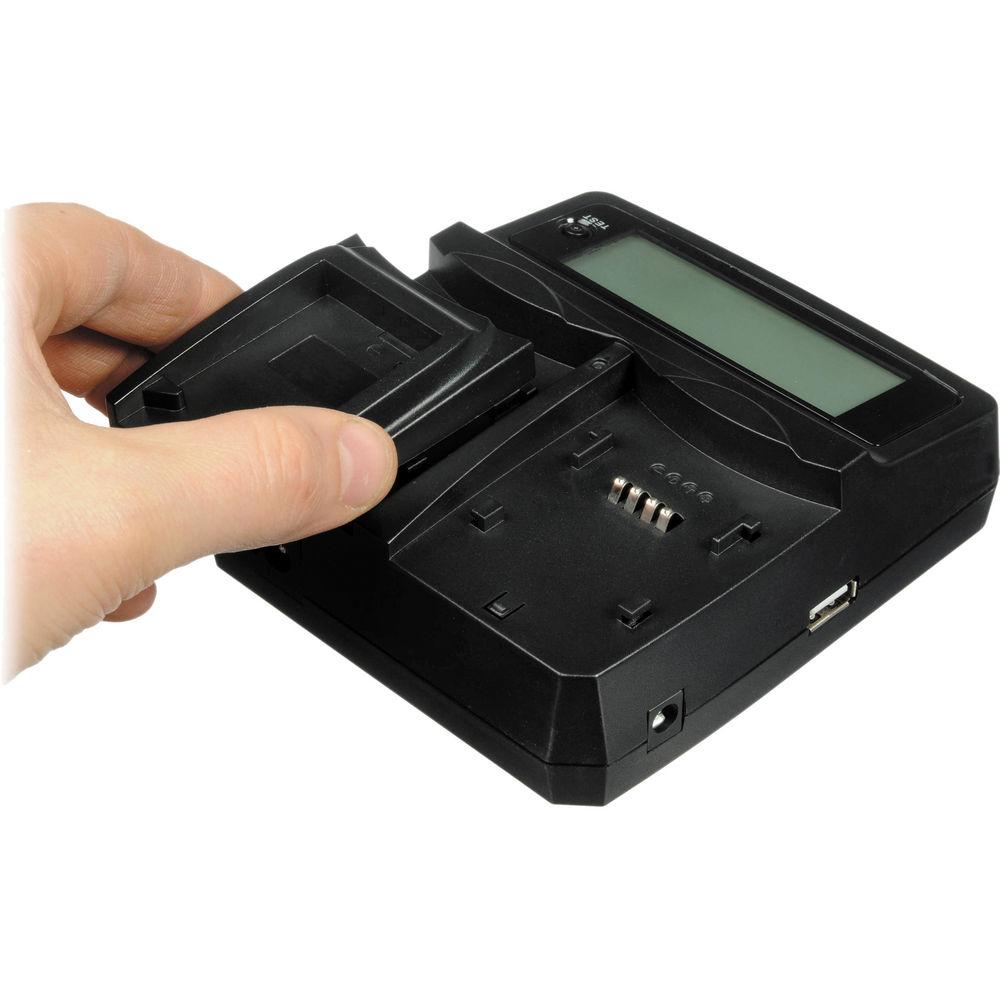

With two easily interchangeable plates, the intelligent charger can also be used for other battery models that are not listed above via the separate purchase of an additional battery plate that's compatible with the intended battery model.

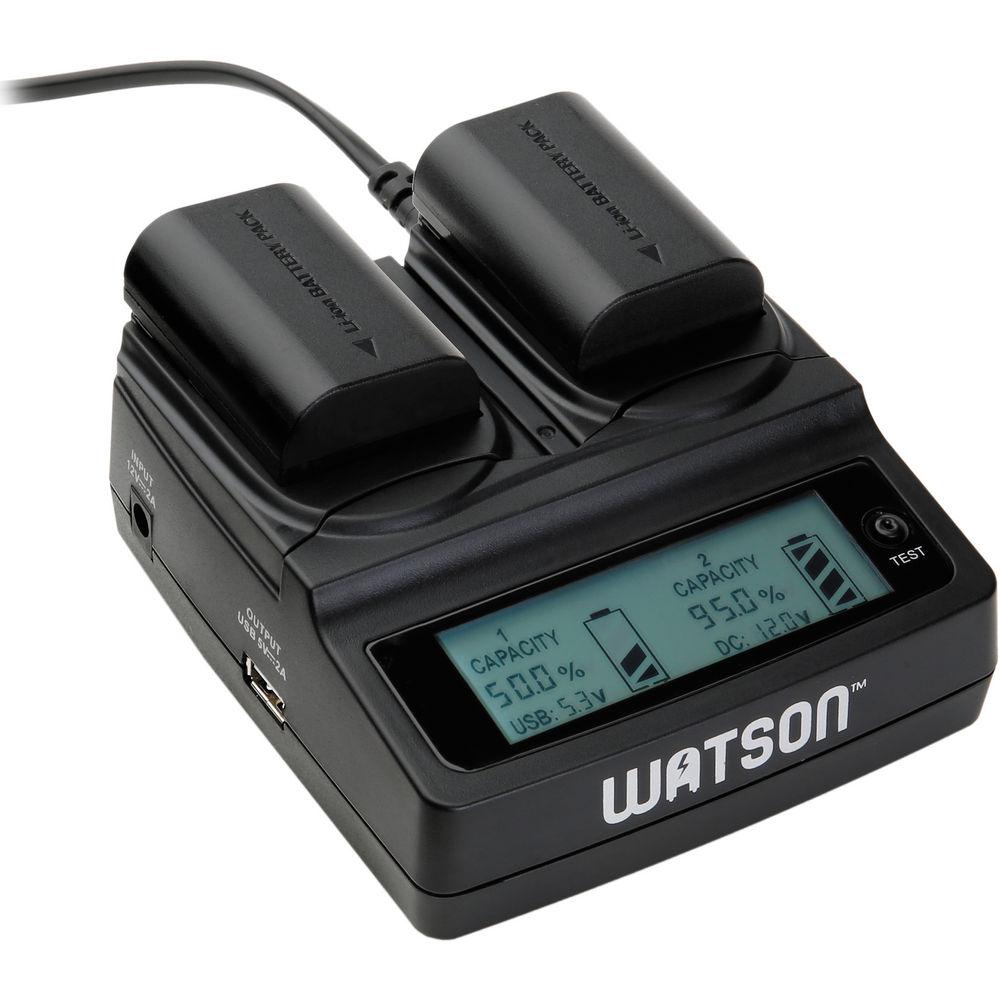

The intelligent charger features an LCD display that graphically shows charge status for both batteries. This allows you to test batteries instantaneously, so you can easily decide which Li-ion cells to bring with you for the day. With protection against overcharging, overheating, and short circuit, the Duo Charger safely, conveniently, and quickly recharges up to two compatible Li-ion batteries and one USB-powered device. - Dual Bay Charger
- Charges two batteries simultaneously.
- LCD Display
- The LCD display shows charging status, charging voltage, USB output, and DC output.
- USB Output
- Charge or supply power for MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input--even while you're charging your digital camera or camcorder batteries. USB output is also displayed on the LCD.
- Test Button
- Test the charge of a battery even with the Duo Charger unplugged by sliding the battery into the charging plate and pressing the Test button. Press the button a second time to display the voltage of the battery.
- Safety Features
- Short-circuit protection, overcharge protection, and overheat protection.
- Compatibility
- Panasonic VW-VBG6 type

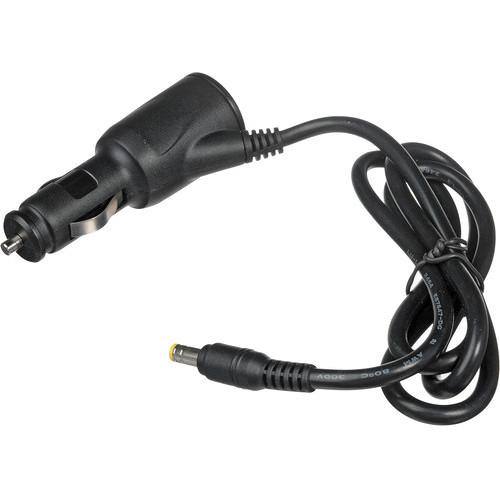

UPC: 847628568112 In the Box Watson Duo LCD Charger for VW-VBG6 Batteries 2 x Battery Adapter Plate for VW-VBG6 AC Power Cord 12 VDC Car Lighter Adapter 1-Year Limited Warranty Watson Duo Chargers PDF 605.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Duo LCD Charger for VW-VBG6 Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson D-3629 Specs | Compatible Battery Series | Panasonic VW-VB | | Charging Time | 2 to 6 Hours | | USB Output Ports | 1 x USB Type-A (5 VDC at 1 A) | | Output Voltage | 1.2 to 8.4 VDC at 2 A | | Cable Length | 4.7' / 1.4 m | | DC Power Input | Car Adapter: 12 to 24 VDC at 2 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 4.9 x 4.5 x 1.8" / 12.5 x 11.5 x 4.5 cm | | Weight | 0.5 lb / 218 g | | | | Package Weight | 1.33 lb | | Box Dimensions (LxWxH) | 10.45 x 6.4 x 2.5" |
