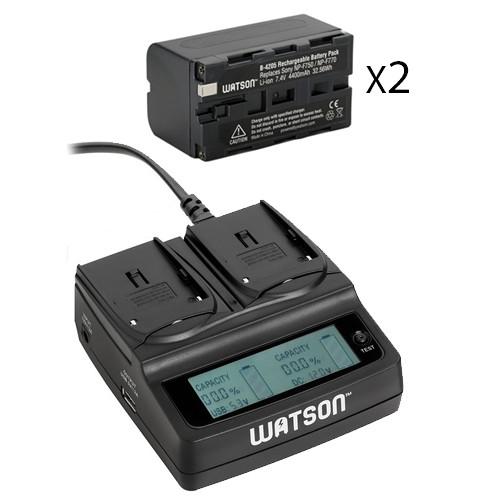

User Manual for Watson NP-F770 Two-Battery Kit with Duo LCD Charger Click to enlarge the picture
Contents of the user manual for the Watson NP-F770 Two-Battery Kit with Duo
- Product category: On Camera Batteries Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson On Camera Batteries
|
User manual for the Watson NP-F770 Two-Battery Kit with Duo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|
Product description Simultaneously charge two batteries and any USB-powered device off a wall outlet or car lighter. This Kit includes two NP-F770 L Series Batteries and a Duo LCD Charger from Watson. The Duo LCD Charger comes with L Series battery plates, which are interchangeable with any of a large variety of other Watson plates, sold separately. The charger features a large display, USB port, overcharge/overheat/short-circuit protection, and a battery charge test button. It supports 100-240 VAC worldwide power input and includes a 12 VDC car lighter adapter for when you're on the road. - 2 x Watson NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh) The Watson NP-F770 Lithium-Ion Battery Pack works with the same cameras as the Sony NP-F770 and NP-F750. This replacement battery pack features a capacity of 4400mAh and 7.4V of output power. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effects.
- Compatible Cameras
- Sony
- DCR-SD1000
- DCR-SR40
- DCR-TRV900
- DCR-VX2000
- DCR-VX2100
- DCR-VX2200
- HDR-AX2000
- HDR-FX1
- HDR-FX7
- HDR-FX1000
- HVR-HD1000
- HVR-V1
- HVR-Z1
- HVR-Z5
- HVR-Z7
- HXR-MC1500
- HXR-MC2000
- HXR-NX5
- HXR-NX5R
- NEX-EA50
- NEX-FS100
- NEX-FS700
UPC: 847628541061 - Watson Duo LCD Charger for L & M Series Batteries The Duo LCD Charger for L & M Series Batteries from Watson conveniently charges two batteries simultaneously, drawing power from either an AC wall source (an AC cord with two-prong plug is included) or a 12/24V DC power source (a DC car charger is also included). Additionally, the Duo Charger features a USB power output to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input.
With two easily interchangeable plates, the intelligent charger can also be used for other battery models that are not listed above via the separate purchase of an additional battery plate that's compatible with the intended battery model.
The intelligent charger features an LCD display that graphically shows charge status for both batteries. This allows you to test batteries instantaneously, so you can easily decide which Li-ion cells to bring with you for the day. With protection against overcharging, overheating, and short circuit, the Duo Charger safely, conveniently, and quickly recharges up to two compatible Li-ion batteries and one USB-powered device. - Dual Bay Charger
- Charges two batteries simultaneously.
- LCD Display
- The LCD display shows charging status, charging voltage, USB output, and DC output.
- USB Output
- Charge or supply power for MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input--even while you're charging your digital camera or camcorder batteries. USB output is also displayed on the LCD.
- Test Button
- Test the charge of a battery even with the Duo Charger unplugged by sliding the battery into the charging plate and pressing the Test button. Press the button a second time to display the voltage of the battery.
- Safety Features
- Short-circuit protection, overcharge protection, and overheat protection.
- Compatibility
- Sony NP-F550, NP-F570, NP-F730H, NP-F750, NP-F770, NP-F930, NP-F950, NP-F960, NP-F970, NP-FM30, NP-FM50, NP-FM500H, NP-FM55H, NP-FM70, NP-FM90, NP-FM91, NP-QM71, NP-QM71D, NP-QM91, and NP-QM91D type
UPC: 847628541894 In the Box - 2 x NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh) vrcsqafsubtzfutrdfaravrtwcttxxcf
- Limited 1-Year Warranty
- Duo LCD Charger for L & M Series Batteries
Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson NP-F770 Two-Battery Kit with Duo LCD Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Watson NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Amp-Hours | 4400 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 1.6" / 70.0 x 38.0 x 40.0 mm | | Weight | 7.2 oz / 204 g | | | | Box Dimensions (LxWxH) | 5.35 x 2.95 x 1.95" | - Watson Duo LCD Charger for L & M Series Batteries
| Compatible Battery Series | Sony L
Sony M | | Charging Time | 2 to 6 Hours | | USB Output Ports | 1 x USB Type-A (5 VDC at 1 A) | | Output Voltage | 1.2 to 8.4 VDC at 2 A | | Cable Length | 4.7' / 1.4 m | | DC Power Input | Car Adapter: 12 to 24 VDC at 2 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 4.9 x 4.5 x 1.8" / 12.5 x 11.5 x 4.5 cm | | Weight | 0.5 lb / 218 g | | | | Box Dimensions (LxWxH) | 10.7 x 6.4 x 2.5" |
