User Manual for Watson Pro 14.4V 158Wh Slim Li-Ion Battery Click to enlarge the picture
Contents of the user manual for the Watson Pro 14.4V 158Wh Slim Li-Ion
- Product category: On Camera Batteries Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson On Camera Batteries
 |
User manual for the Watson Pro 14.4V 158Wh Slim Li-Ion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

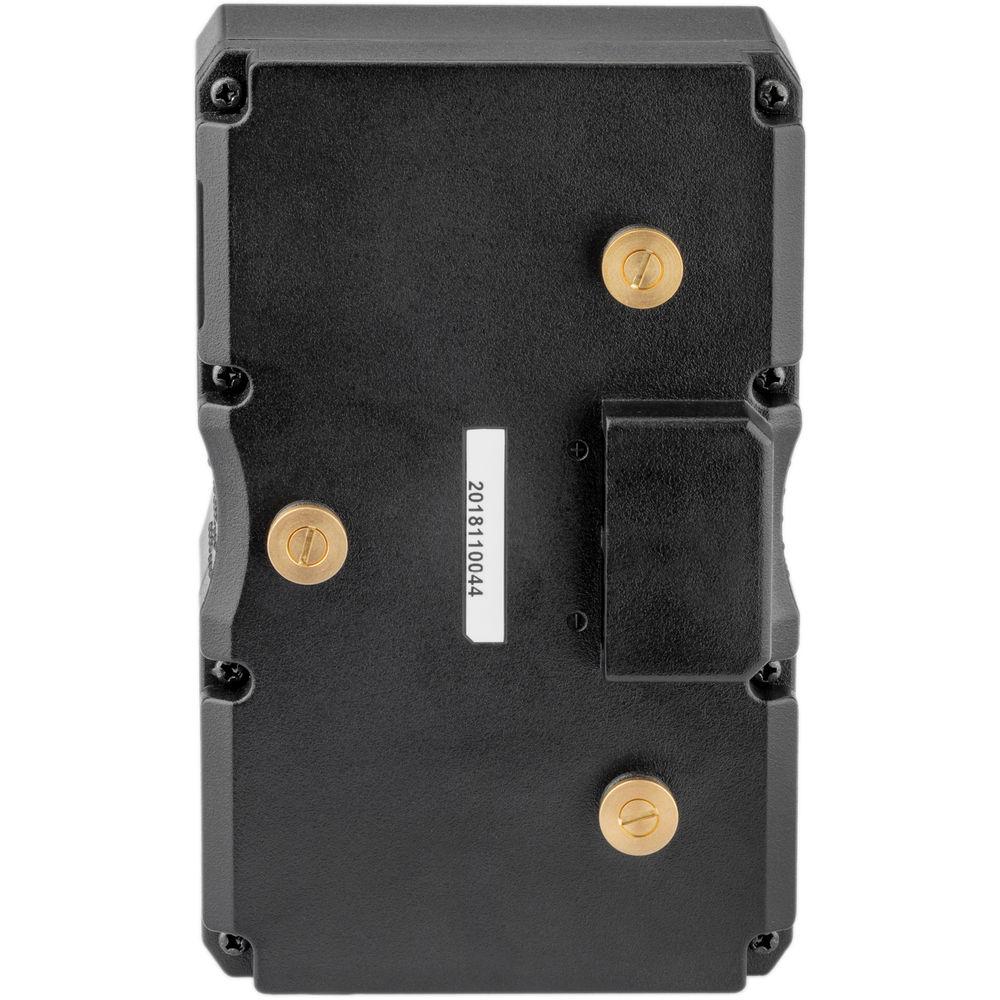

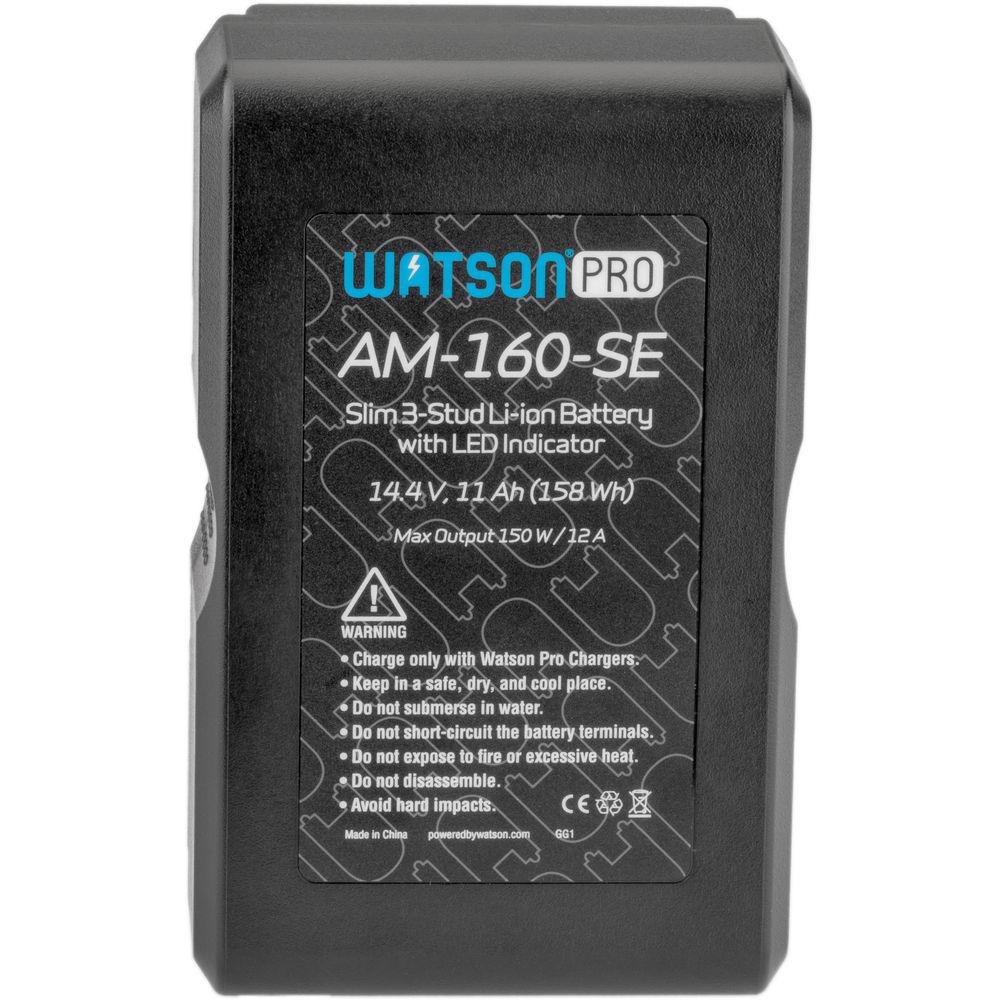

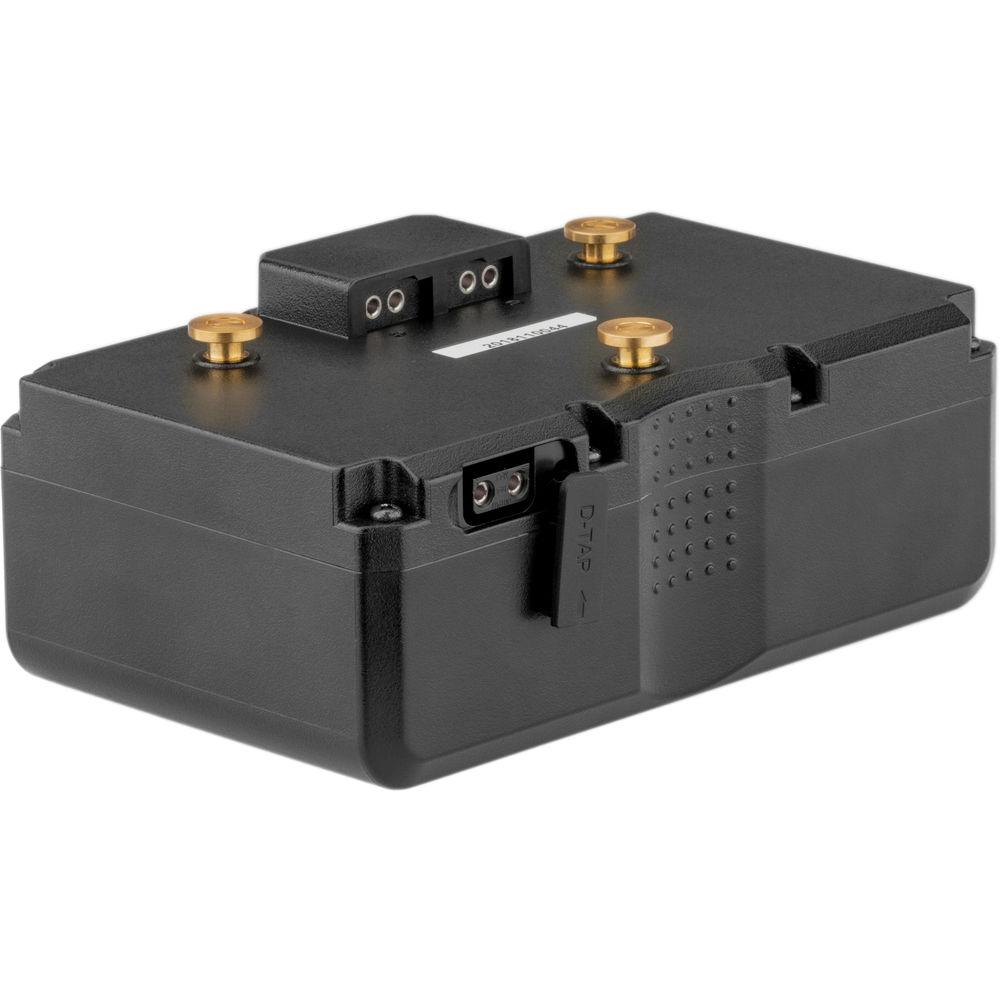

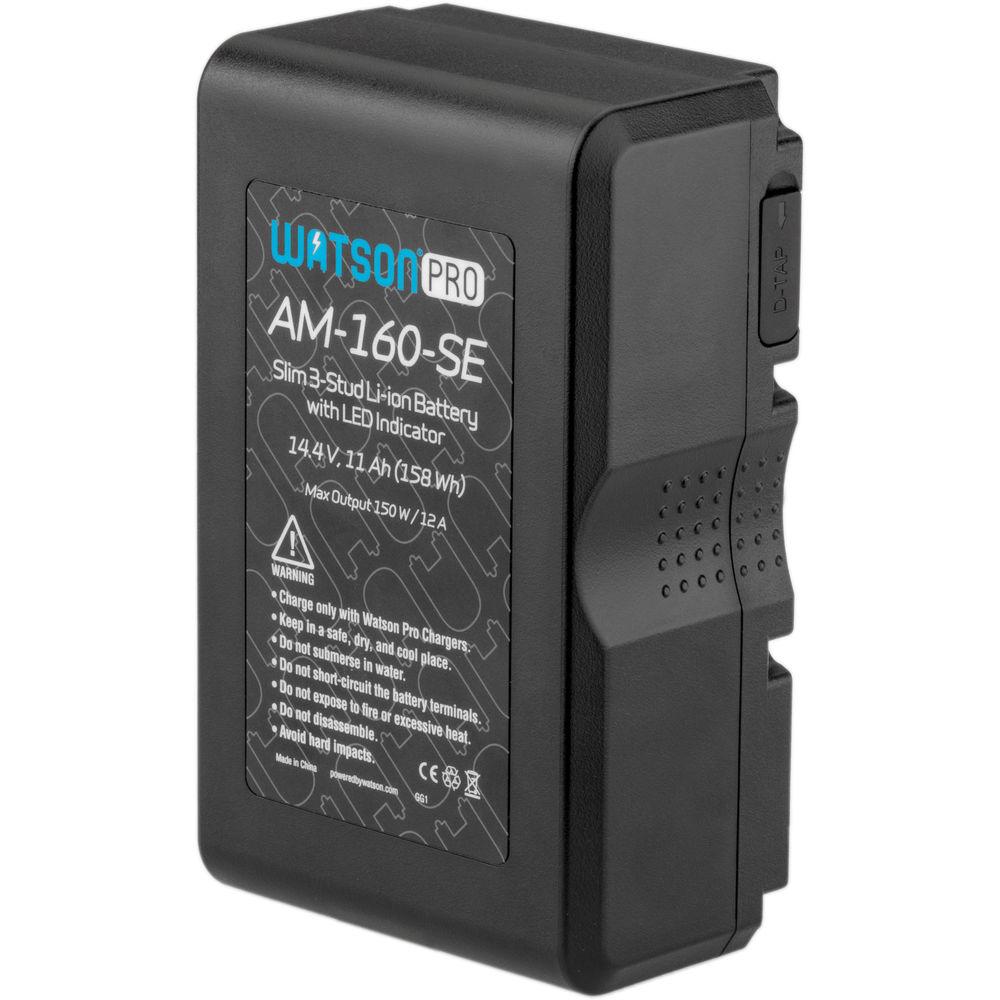

Product description The Watson Pro 14.4V 158Wh Slim Li-Ion Battery, in a Gold mount, provides up to a 12A draw, enough to power the most demanding cameras, lights, and studio setups. It also features a 12V, 10A D-Tap output for powering monitors, transmitters, and other gear and accessories simultaneously with your main load.

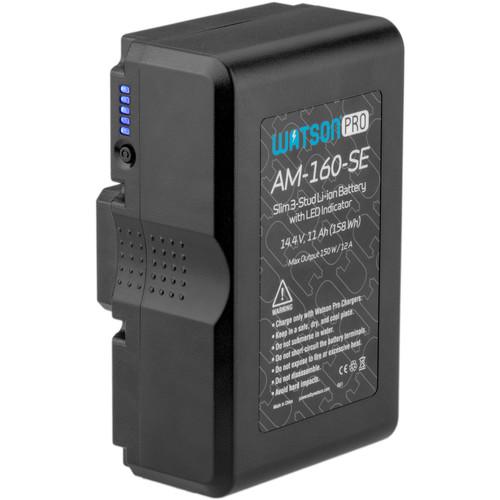

The 158Wh capacity provides approximately 4 hours of runtime for a load of 35W. A 5-LED gauge on the side indicates remaining battery life at the press of a button below the LEDs. When capacity drops under 9%, the bottom LED automatically begins blinking as a warning. For safety, built-in intelligent circuitry shuts down the battery in case of high current, low voltage, extreme temperatures, or possible short circuits, protecting both your battery and gear.
All this is offered in a relatively slim design with ergonomic grips on the sides that allow for more comfortable handling. The AM-160-SE is rechargeable using any Watson Pro Gold mount charger. - Key Features
-
- 12A draw
- Slim design
- 158Wh capacity
- Approximate 4-hour runtime with a 35W load
- 12V, 10A D-Tap output with protective cover
- 5-LED gauge
- Blinking LED warning when capacity drops below 9%
- Built-in intelligent circuitry
- Ergonomic design
- Rechargeable via Watson Pro Gold mount chargers
- 10V end voltage
UPC: 847628012882 In the Box Watson Pro 14.4V 158Wh Slim Li-Ion Battery (Gold Mount) Limited 2-Year Warranty User Manual PDF 667.6kbwrvqcxcufccaadwyxwezdwrzt Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro 14.4V 158Wh Slim Li-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson AM-160-SE Specs | Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 158 Wh | | Amp-Hours | 11 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 150 W, 12 A | | Accessory Port | 1 x D-Tap Output | | Maximum Load (Accessory Port) | 10 A ( D-Tap ) | | Dimensions (W x H x D) | 6.0 x 3.7 x 2.2" / 15.2 x 9.4 x 5.6 cm | | Weight | 2.5 lb / 1.1 kg |
