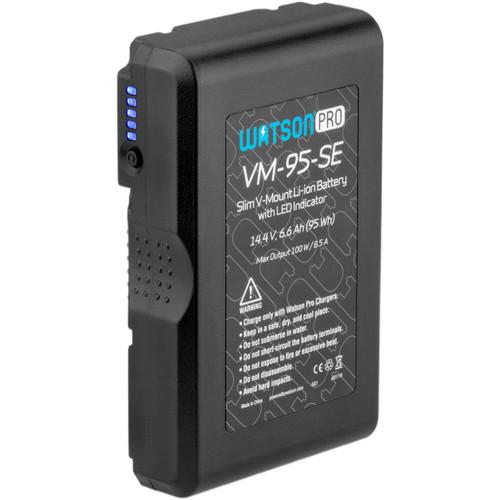

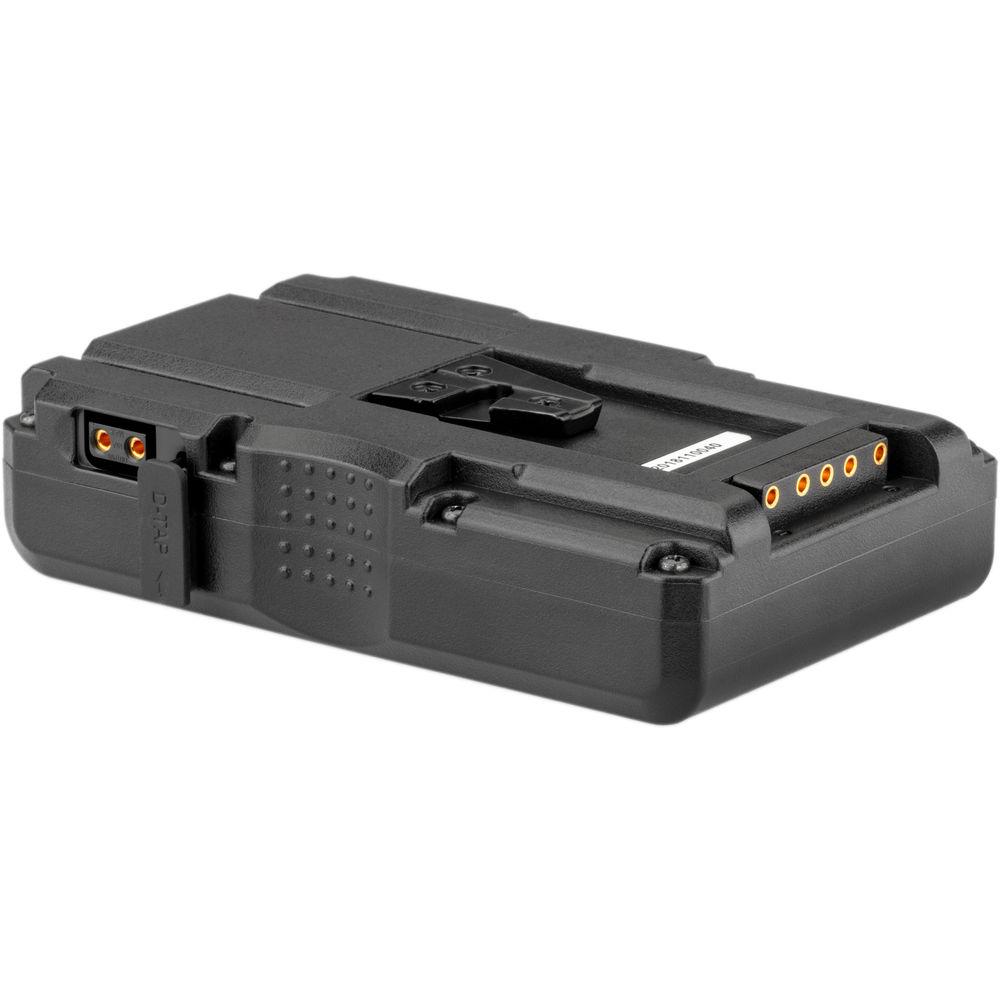

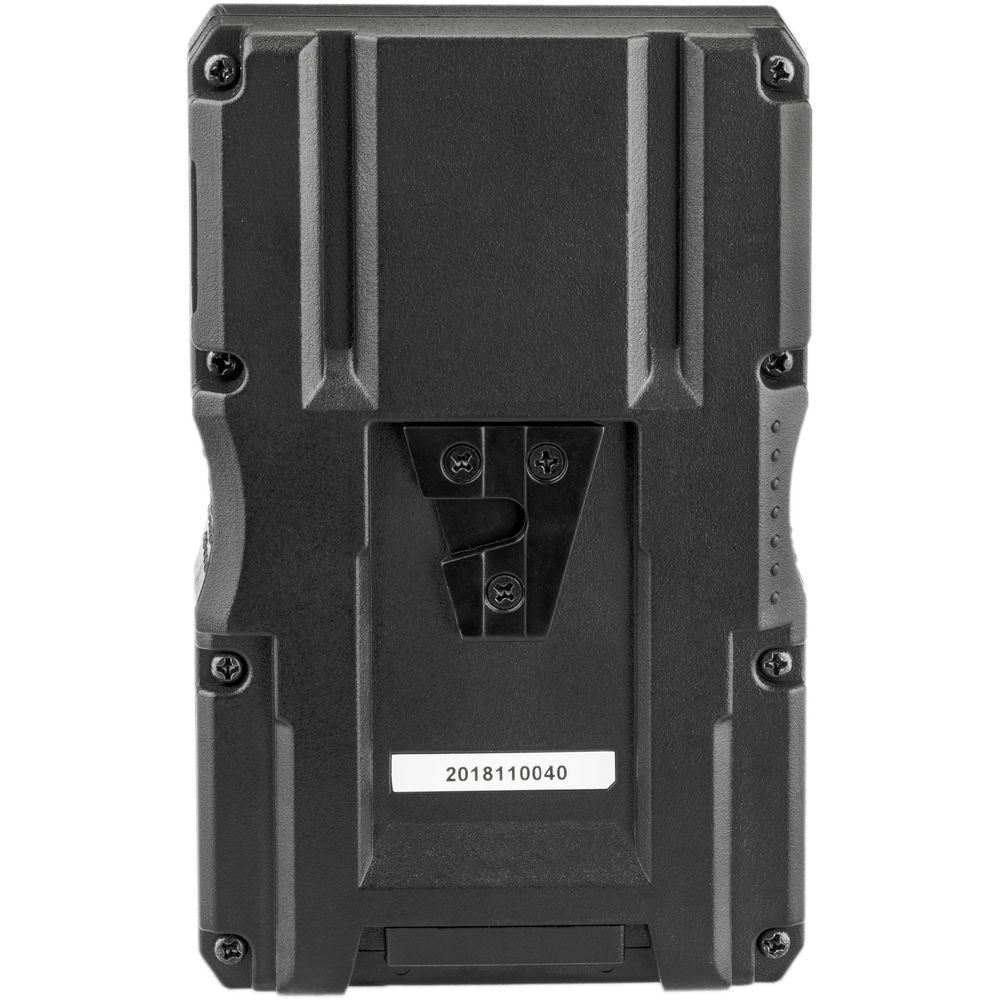

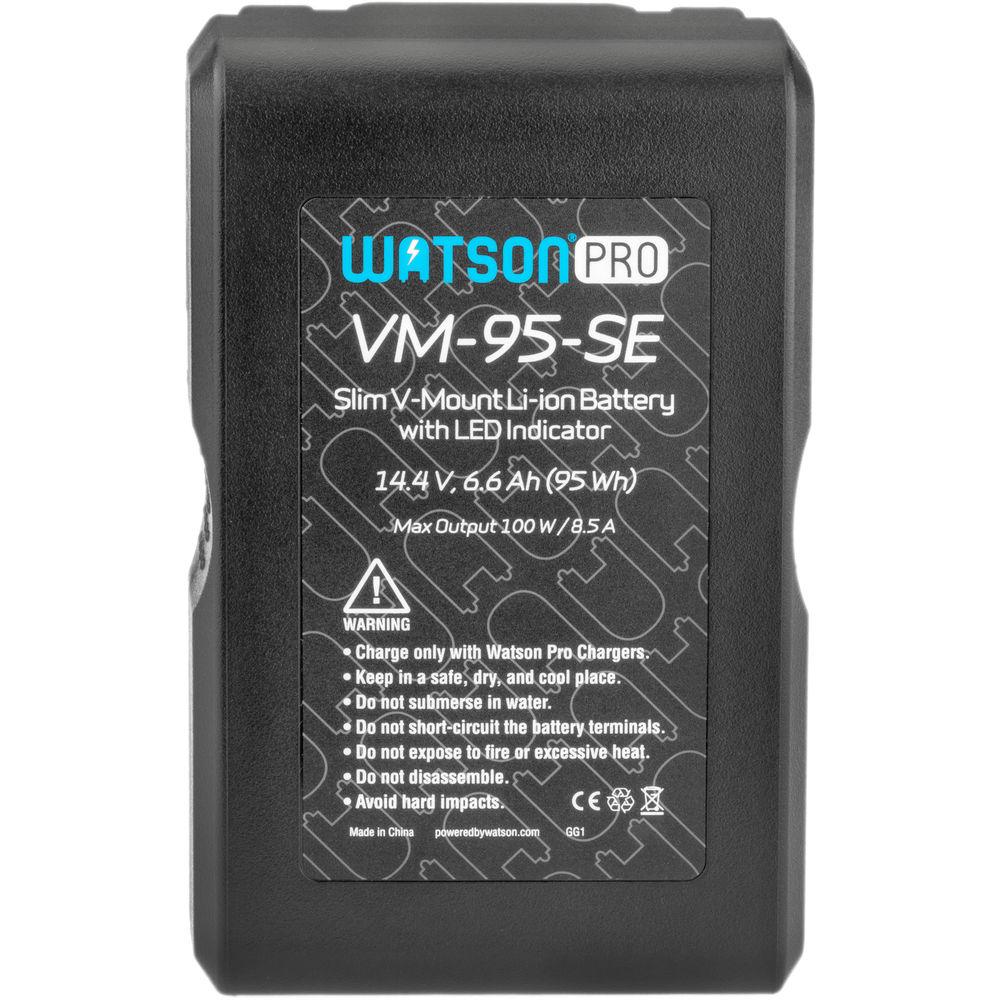

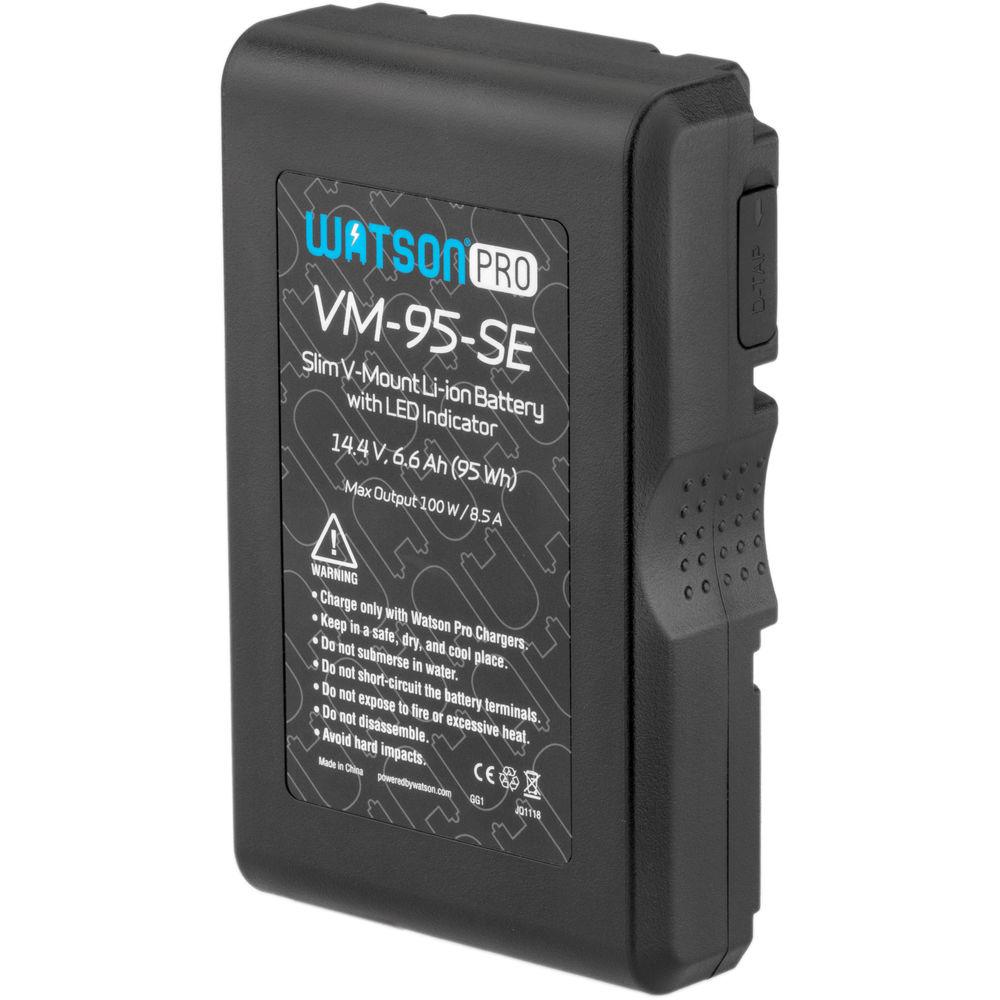

User Manual for Watson Pro 14.4V 95Wh Slim Li-Ion Battery Click to enlarge the picture
Contents of the user manual for the Watson Pro 14.4V 95Wh Slim Li-Ion
- Product category: On Camera Batteries Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson On Camera Batteries
 |
User manual for the Watson Pro 14.4V 95Wh Slim Li-Ion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|
Product description The Watson Pro 14.4V 95Wh Slim Li-Ion Battery, in a V-mount, provides up to an 8.5A draw, ideal for most mirrorless and DLSR cameras, small-format cine cameras, lights, and other setups. It also features a 12V, 8.5A D-Tap output for powering monitors, transmitters, and other gear and accessories simultaneously with your main load. Additionally, the slim design makes this battery suitable for many gimbal, stabilizer, and drone applications.
The 95Wh capacity provides approximately 2.5 hours of runtime for a load of 35W. A 5-LED gauge indicates remaining battery life at the press of a button below the LEDs. When capacity drops under 9%, the bottom LED automatically begins blinking as a warning.
For safety, built-in intelligent circuitry protects the battery and connected gear against damage from high current, low voltage, extreme temperatures, or short circuits. The battery simply shuts down to prevent bigger issues. The VM-95-SE also has an ergonomic grip on the sides, allowing for more comfortable handling while also enhancing the look and feel of the battery. The ergonomics blend well with the slim design of the VM-95-SE.
The VM-95-SE is rechargeable using any Watson Pro V-mount charger. - Key Features
-
- 8.5A draw
- Slim design suitable for gimbal, stabilizer, and drone applications
- 95Wh capacity
- Approximate 2.5-hour runtime with a 35W load
- 12V, 8.5A D-Tap output with protective cover
- 5-LED gauge
- Blinking LED warning when capacity drops below 9%
- Built-in intelligent circuitry
- Ergonomic design
- Rechargeable via Watson Pro V-mount chargers
- 10V end voltage
In the Box Watson Pro 14.4V 95Wh Slim Li-Ion Battery (V-Mount) Limited 2-Year Warranty User Manual PDF 671.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro 14.4V 95Wh Slim Li-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson VM-95-SE Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 95 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 100 W, 8.5 A | | Accessory Port | 1 x D-Tap Output | | Maximum Load (Accessory Port) | 8.5 A ( D-Tap ) | | Dimensions (W x H x D) | 6.0 x 3.7 x 1.5" / 15.2 x 9.4 x 3.8 cm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 1.82 lb | | Box Dimensions (LxWxH) | 7.5 x 4.75 x 3.3" |
