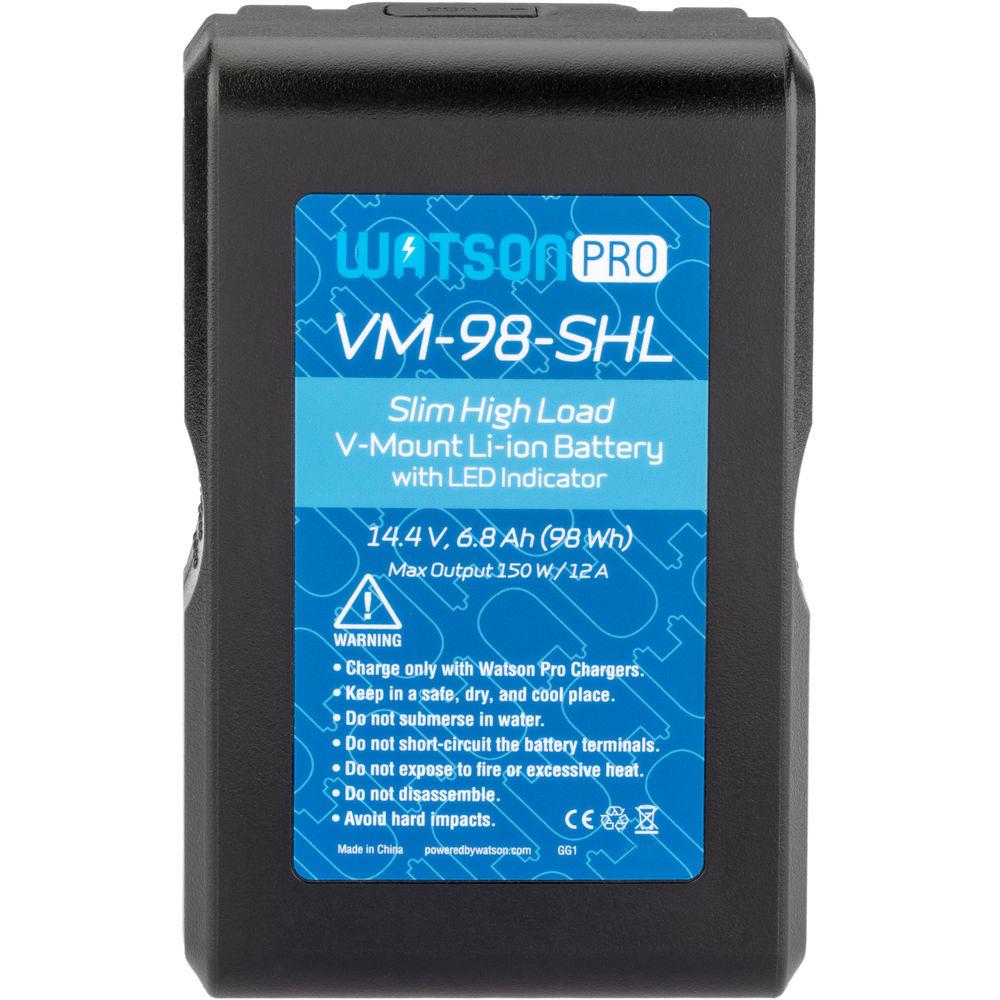

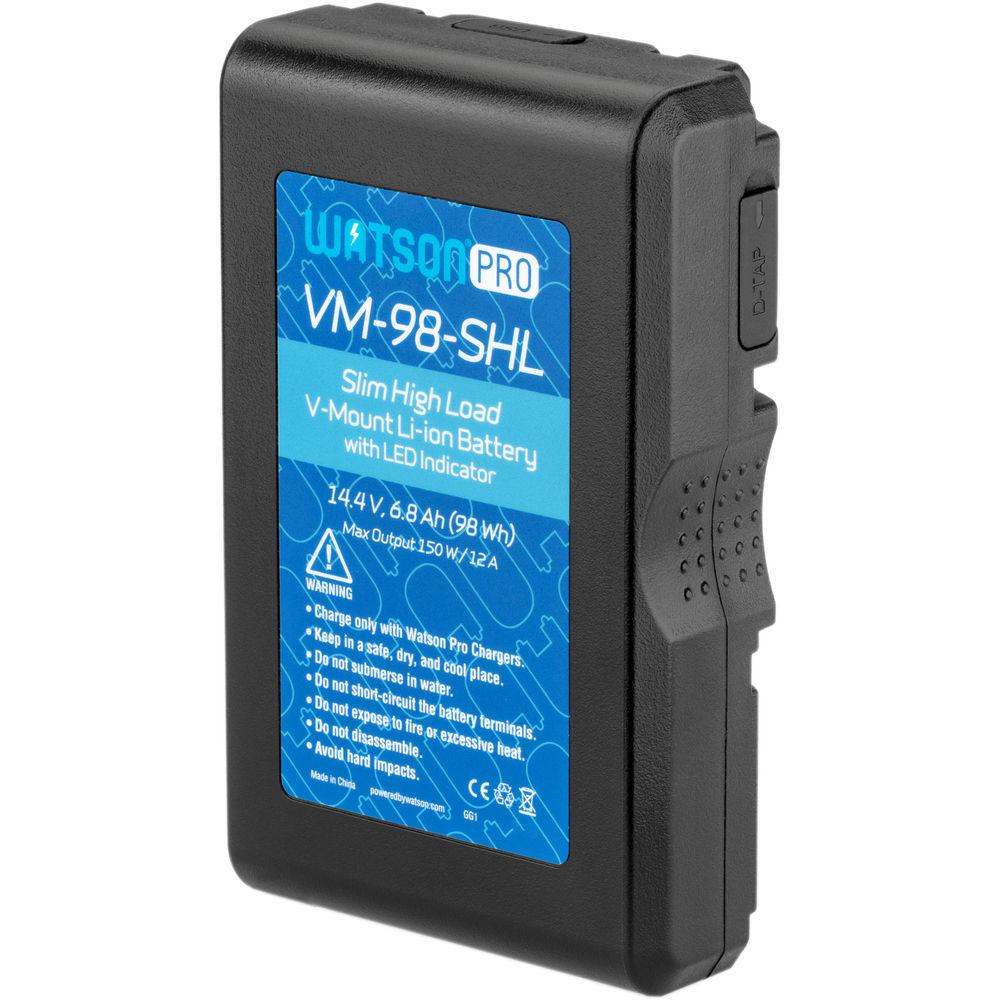

User Manual for Watson Pro 14.4V 98Wh Slim High-Load Li-Ion Battery with USB Click to enlarge the picture
Contents of the user manual for the Watson Pro 14.4V 98Wh Slim High-Load
- Product category: On Camera Batteries Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson On Camera Batteries
 |
User manual for the Watson Pro 14.4V 98Wh Slim High-Load contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

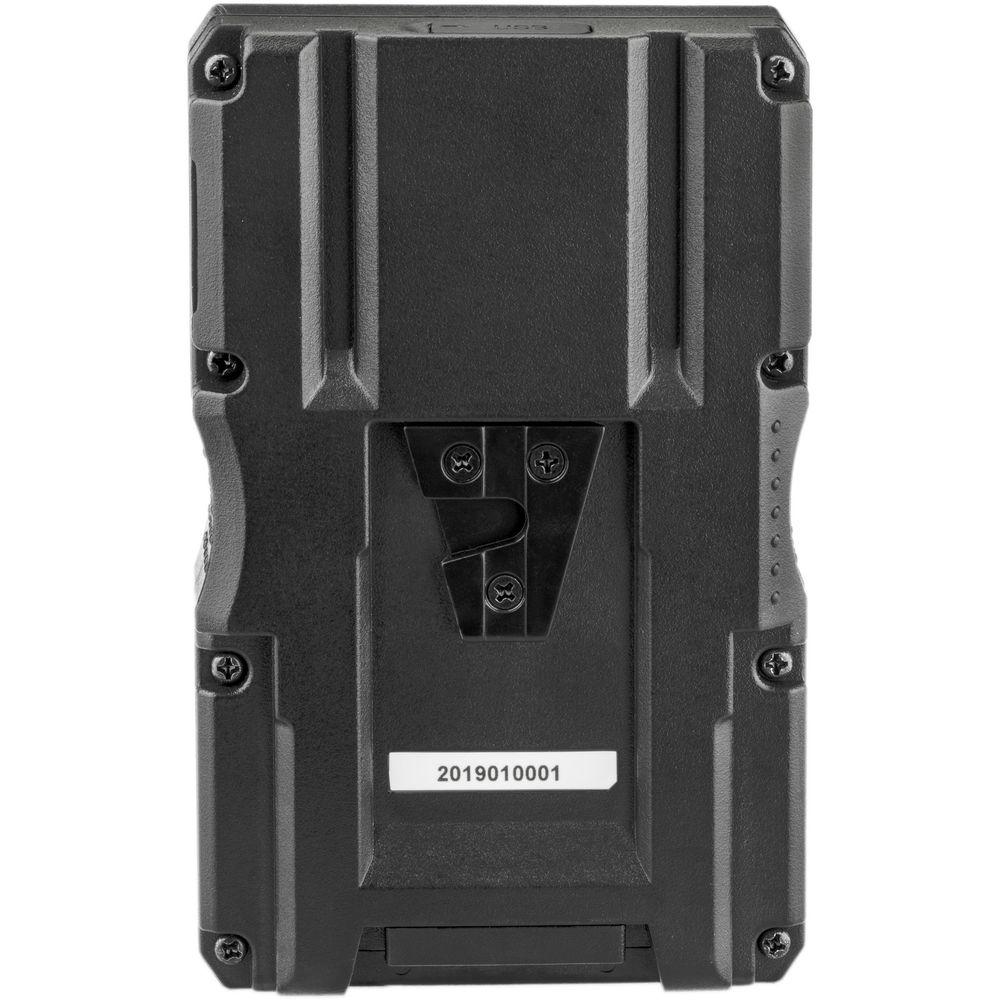

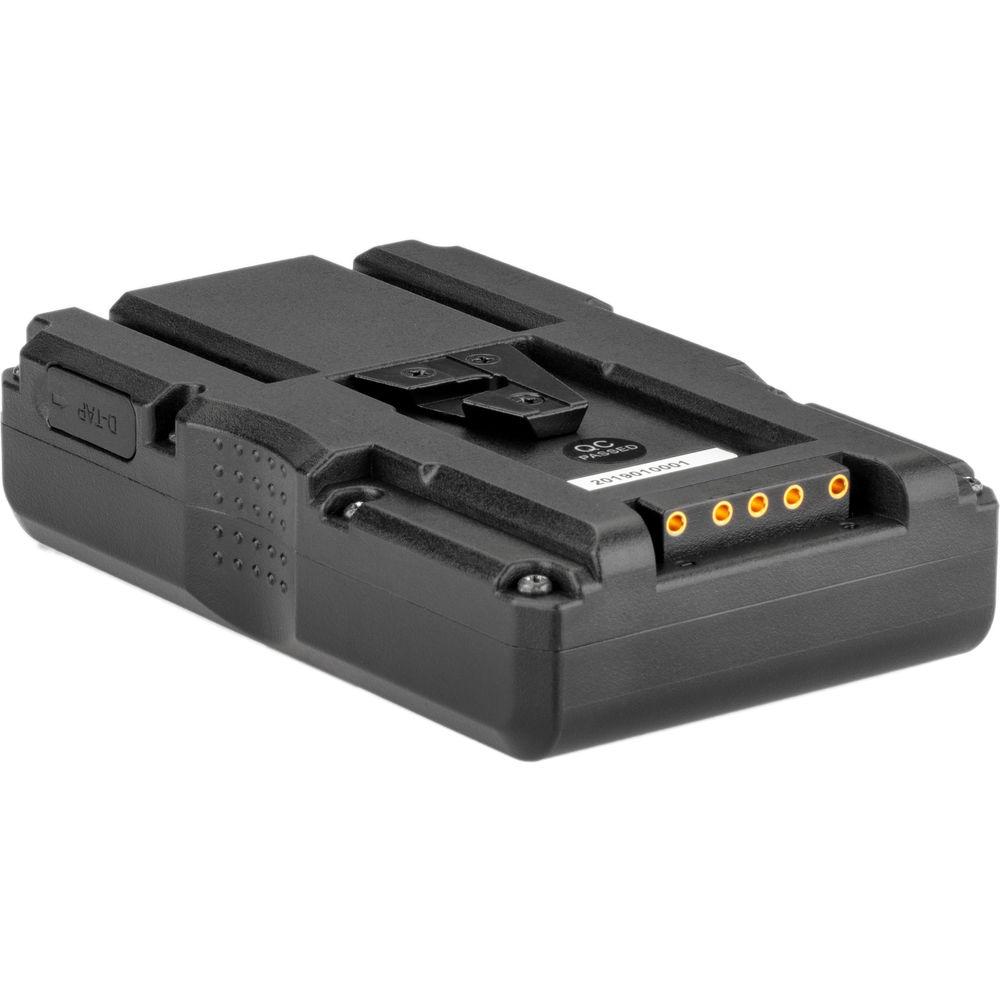

Product description The Watson Pro Pro 14.4V 98Wh Slim High-Load Li-Ion Battery, in a V-mount, packs many in-demand features into one small package. The battery provides up to a 12A draw, enough for many of the most power-hungry cameras and lights. This high current is offered in a slim form factor that's suitable for gimbal, stabilizer, and drone applications. The battery has both D-Tap and USB outputs for powering accessories and charging mobile devices simultaneously with your main load, and this V-mount version features SMBus communication for supporting cameras.
The 98Wh capacity provides approximately 2.5 hours of runtime for a load of 35W. A 5-LED gauge on the side indicates remaining battery life at the press of a button below the LEDs. When capacity drops under 9%, the bottom LED automatically begins blinking as a warning.
For safety, built-in intelligent circuitry shuts down the battery in case of high current, low voltage, extreme temperatures, or possible short circuits. In this way, both the battery and your gear are protected.
Ergonomic grips on the sides of the battery allow for more comfortable handling while also enhancing the look and feel of the battery. The ergonomics blend well with the slim design of the VM-98-SHL.
The VM-98-SHL is rechargeable using any Watson Pro V-mount charger. - Key Features
-
- 12A draw
- Slim design suitable for gimbal, stabilizer, and drone applications
- 98Wh capacity
- Approximate 2.5-hour runtime with a 35W load

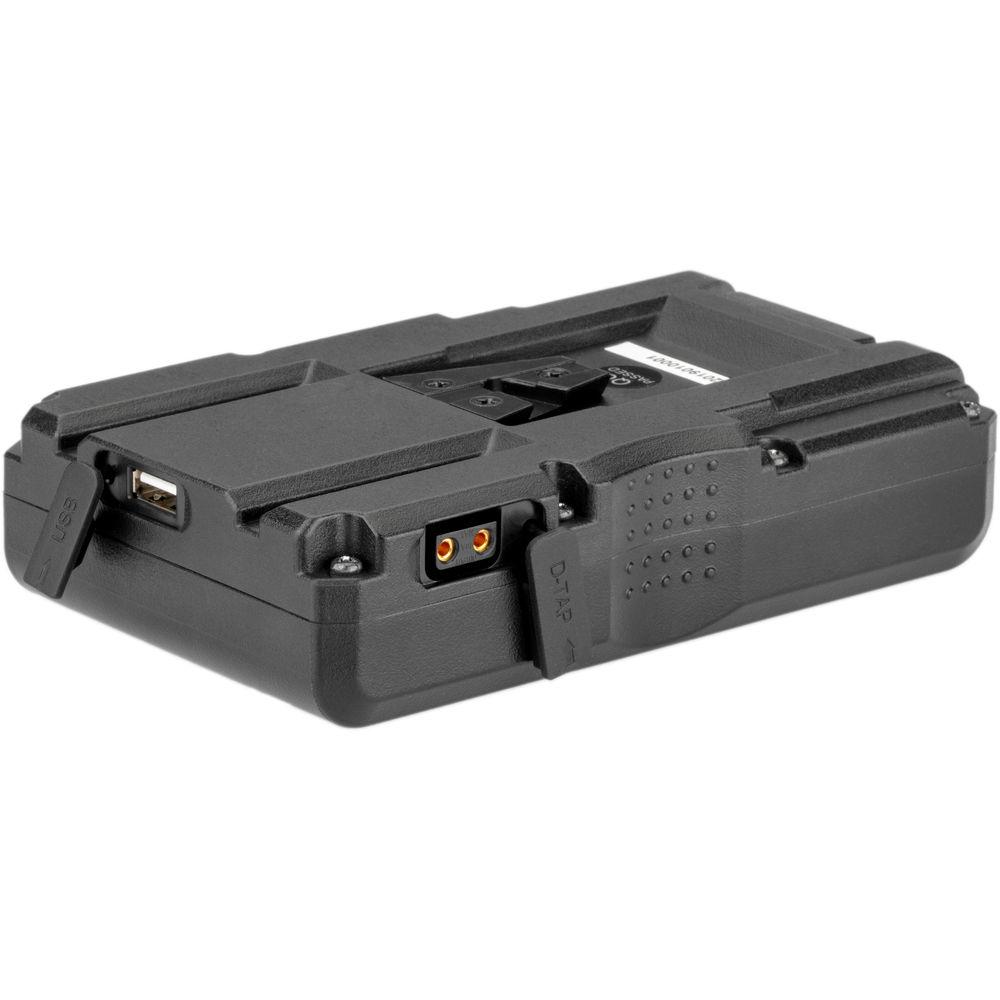

- 12V/10A D-Tap output with protective cover
- 5V/1A USB output

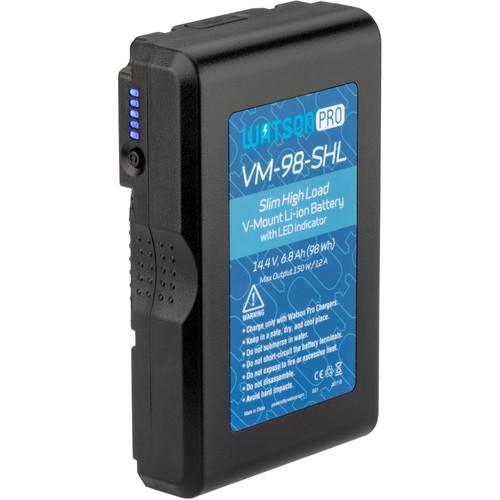

- 5-LED gauge
- Blinking LED warning when capacity drops below 9%
- Built-in intelligent circuitry
- Ergonomic design
- Rechargeable using Watson Pro V-mount chargers
UPC: 847628012851 In the Box Watson Pro 14.4V 98Wh Slim High-Load Li-Ion Battery with USB (V-Mount) Limited 2-Year Warranty User Manual PDF 671kbtzqfuwbzdttx Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro 14.4V 98Wh Slim High-Load Li-Ion Battery with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson VM-98-SHL Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 150 W, 12 A | | Accessory Port | 1 x D-Tap Output
1 x USB Type-A Output | | Maximum Load (Accessory Port) | 10 A ( D-Tap ) | | USB Output | 5 V, 1 A | | Dimensions (W x H x D) | 6.0 x 3.7 x 1.5" / 15.2 x 9.4 x 3.8 cm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 1.855 lb | | Box Dimensions (LxWxH) | 7.5 x 4.8 x 3.4" |
