Watson Pro 14.8V 97Wh Li-Ion Battery

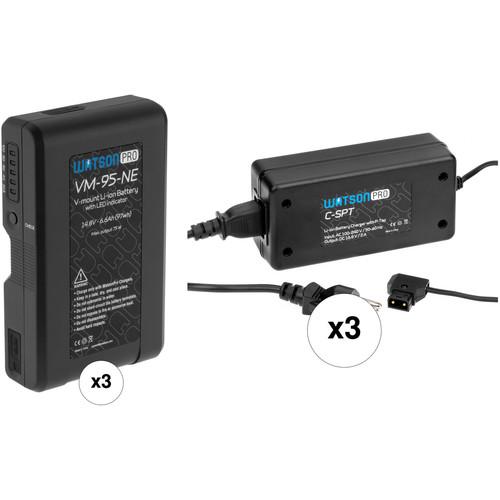

User Manual for Watson Pro 14.8V 97Wh Li-Ion Battery Intro Kit with 3 x Batteries and Chargers

• Product category: On Camera Batteries Watson
• Brand: Watson
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Watson On Camera Batteries

Product description

• 3 x Watson Pro 14.8V 97Wh Li-Ion Battery with LED (V-Mount) Watson Pro designed this V-Mount 14.8V 97Wh Li-Ion Battery with a quick-reference LED battery-level meter and with the punch to power up to most mid-size and large professional cameras. This lightweight battery provides up to a constant 6.5A/79W output. At 35W, average runtime is rated at approximately 154 minutes. For safe operation, a built-in intelligent control circuit protects against damage from current or voltage overload, overheating, or short-circuits.

  The 5-LED battery-level meter is located on the side where it's easy to glance at during your shoot and is activated via a battery-level check button right underneath it. When the battery reaches below 9% capacity level, the bottom LED begins to flash automatically as a warning.

  There's also a D-tap port for powering accessories, and a USB 2.0 port for powering USB devices such as receivers. These two outputs can be used simultaneously.
  Key Features
  • • 14.8V, 97Wh lithium-ion battery with a V-mount
    • Supports up to 6.5A/79W constant draw
    • 154 minute average runtime at 35W
    • 5-LED battery-level meter on the side
    • Intelligent control circuit protection
    • Simultaneously active D-Tap and USB 2.0 ports
  UPC: 847628591899
• 3 x Watson Pro Single-Position Li-Ion Battery Charger with D-Tap Output Conveniently charge any Watson Pro battery that has a D-Tap port with this Single-Position Li-Ion Battery Charger with a D-Tap Output from Watson Pro. Plug it into a 3-prong AC outlet and connect the D-Tap output to your battery. An LED indicator remains red while your battery is charging and switches to green when fully charged.

  This is a 100-240V worldwide compatible charger, capable of being used internationally if you incorporate appropriate plug adapters, sold separately.
  Approximate Charge Times
  • 4.0Ah = 3.6 hours
    4.4Ah = 4 hours
    6.2Ah = 5.2 hours
    6.6Ah = 5.5 hours
    8.2Ah = 6.6 hours
    8.8Ah = 7 hours
    10.2Ah = 8 hours
    11.0Ah = 9 hours
    13.2Ah = 11 hours
  UPC: 847628592421

• 3 x Pro 14.8V 97Wh Li-Ion Battery with LED (V-Mount) vtyvzbctyvwrsercycbf
• Limited 2-Year Warranty

• 3 x Pro Single-Position Li-Ion Battery Charger with D-Tap Output

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 3 x Watson Pro 14.8V 97Wh Li-Ion Battery with LED (V-Mount)

  Mount Type	V-mount
  Output Voltage	14.8 V
  Watt Hours	97 Wh
  Capacity	6.6 Ah
  Output Current	Up to constant 6.5 A
  Output Power	Up to constant 79 W
  Average Runtime	154 min at 35 W
  D-Tap Output	12 V, 10 A max
  USB Output	USB 2.0, 5 V / 1 A
  Dimensions	6.8 x 4 x 1.6" (17.2 x 10.2 x 4.1 cm)
  Weight	1.7 lb (0.76 kg)

  Box Dimensions (LxWxH)	7.6 x 5.0 x 3.4"

• 3 x Watson Pro Single-Position Li-Ion Battery Charger with D-Tap Output

  Output Connection	1 x D-Tap
  Input	100-240 VAC, 50-60 Hz
  Output Voltage	16.8 VDC
  Output Current	2 A
  Plug Type	3-prong AC
  Operating Temperature	14 to 95°F (-10 to 35°C)
  Dimensions	2 x 2.75 x 5.5" (5 x 7 x 14 cm)
  Weight	1.1 lb (480 g)

  Box Dimensions (LxWxH)	7.48 x 5.039 x 3.465"
